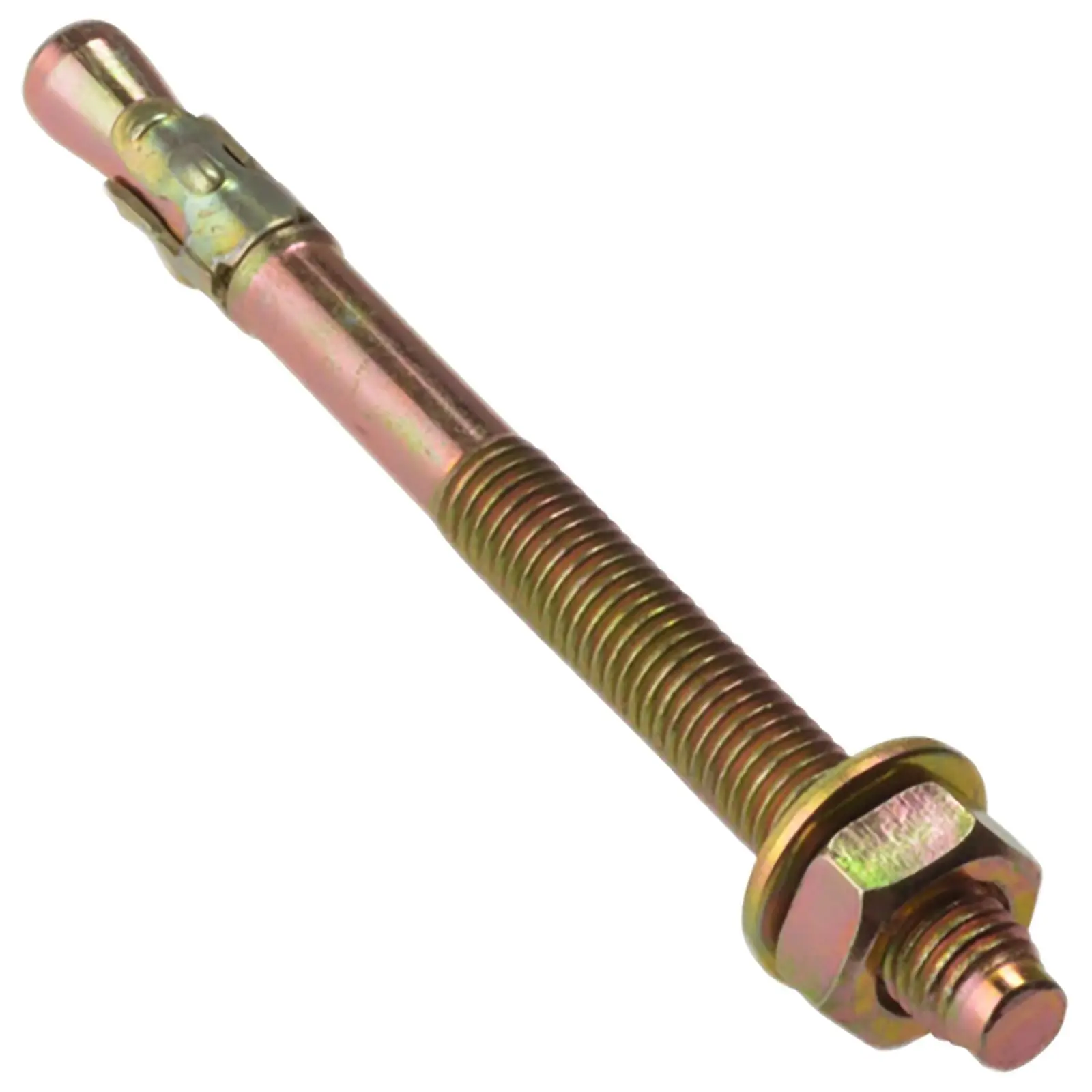

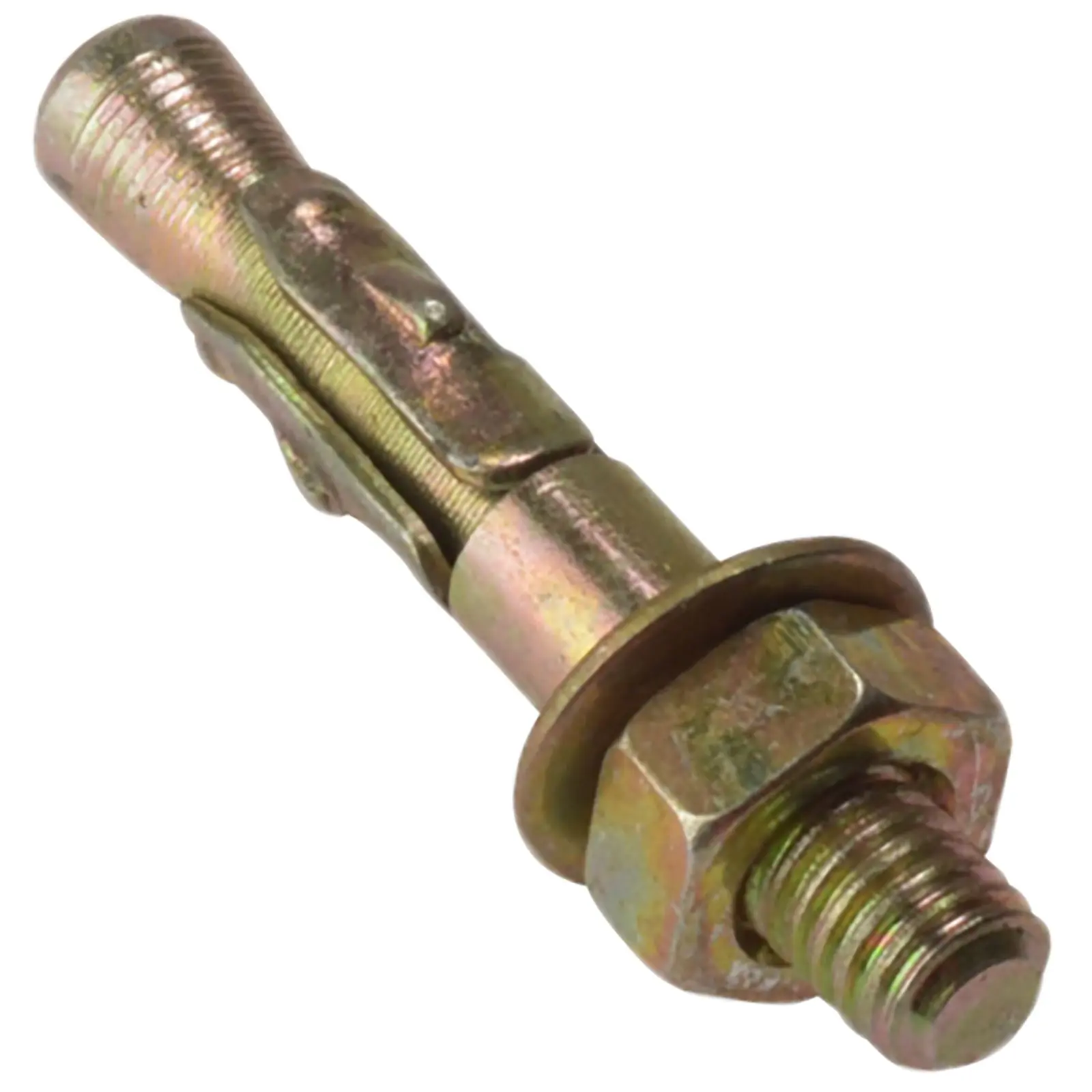

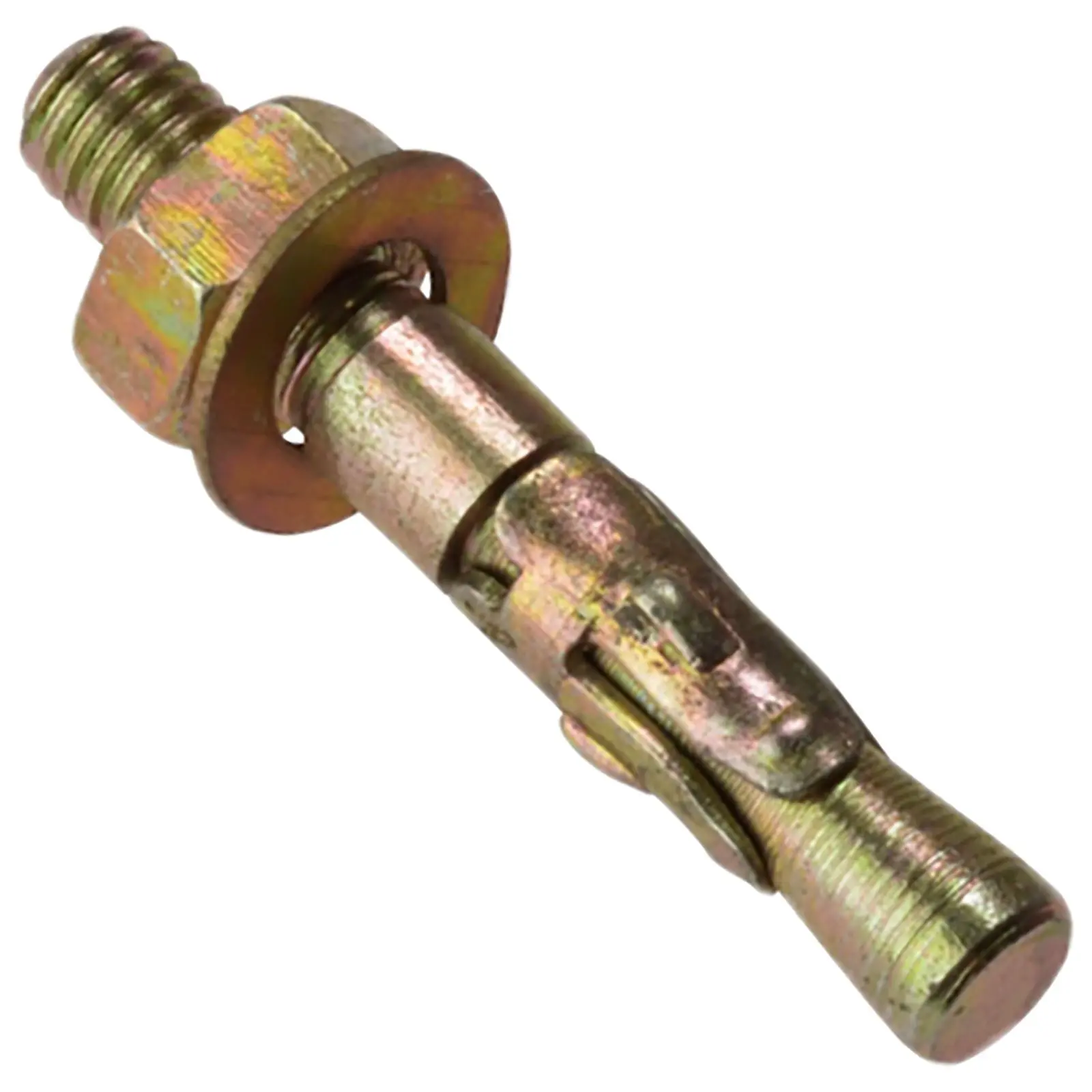

ForgeFix Through Bolt Projection Hold Down Fixing Zinc Yellow Passivated

Percussion expansion anchor masonry fixing

Bolt projection holding down fixing

The perfect choice for permanent installations due to through fixing

Extremely economical and quick to install

Ideal for holding down machinery

Suitable for fixing brackets, cladding, restraints, racking, fabricated stairwells and reinforced doors

Finish: Zinc Yellow Passivated

Available in the following sizes:

• M8 x 50mm (10 Pack)
  • Socket Size: 13mm
  • Drill Size: 8mm
  • Min Hole Depth: 40mm
  • Max Fixing: 5mm
• M8 x 75mm (10 Pack)
  • Socket Size: 13mm
  • Drill Size: 8mm
  • Min Hole Depth: 40mm
  • Max Fixing: 25mm
• M8 x 95mm (10 Pack)
  • Socket Size: 13mm
  • Drill Size: 8mm
  • Min Hole Depth: 40mm
  • Max Fixing: 55mm
• M8 x 115mm (10 Pack)
  • Socket Size: 13mm
  • Drill Size: 8mm
  • Min Hole Depth: 40mm
  • Max Fixing: 60mm
• M8 x 130mm (10 Pack)
  • Socket Size: 13mm
  • Drill Size: 8mm
  • Min Hole Depth: 40mm
  • Max Fixing: 85mm
• M10 x 60mm (10 Pack)
  • Socket Size: 17mm
  • Drill Size: 10mm
  • Min Hole Depth: 50mm
  • Max Fixing: 5mm
• M10 x 80mm (10 Pack)
  • Socket Size: 17mm
  • Drill Size: 10mm
  • Min Hole Depth: 50mm
  • Max Fixing: 15mm
• M10 x 100mm (10 Pack)
  • Socket Size: 17mm
  • Drill Size: 10mm
  • Min Hole Depth: 50mm
  • Max Fixing: 35mm
• M10 x 120mm (10 Pack)
  • Socket Size: 17mm
  • Drill Size: 10mm
  • Min Hole Depth: 50mm
  • Max Fixing: 65mm
• M12 x 80mm (5 Pack)
  • Socket Size: 19mm
  • Drill Size: 12mm
  • Min Hole Depth: 65mm
  • Max Fixing: 5mm
• M12 x 100mm (5 Pack)
  • Socket Size: 19mm
  • Drill Size: 12mm
  • Min Hole Depth: 65mm
  • Max Fixing: 25mm
• M12 x 120mm (5 Pack)
  • Socket Size: 19mm
  • Drill Size: 12mm
  • Min Hole Depth: 65mm
  • Max Fixing: 45mm
• M12 x 140mm (5 Pack)
  • Socket Size: 19mm
  • Drill Size: 12mm
  • Min Hole Depth: 65mm
  • Max Fixing: 65mm
• M12 x 180mm (5 Pack)
  • Socket Size: 19mm
  • Drill Size: 12mm
  • Min Hole Depth: 65mm
  • Max Fixing: 105mm
• M16 x 105mm (5 Pack)
  • Socket Size: 24mm
  • Drill Size: 16mm
  • Min Hole Depth: 85mm
  • Max Fixing: 10mm
• M16 x 125mm (5 Pack)
  • Socket Size: 24mm
  • Drill Size: 16mm
  • Min Hole Depth: 85mm
  • Max Fixing: 30mm
• M16 x 150mm (5 Pack)
  • Socket Size: 24mm
  • Drill Size: 16mm
  • Min Hole Depth: 85mm
  • Max Fixing: 55mm
• M16 x 180mm (5 Pack)
  • Socket Size: 24mm
  • Drill Size: 16mm
  • Min Hole Depth: 85mm
  • Max Fixing: 80mm
• M20 x 130mm (5 Pack)
  • Socket Size: 30mm
  • Drill Size: 20mm
  • Min Hole Depth: 100mm
  • Max Fixing: 20mm
• M20 x 160mm (5 Pack)
  • Socket Size: 30mm
  • Drill Size: 20mm
  • Min Hole Depth: 100mm
  • Max Fixing: 50mm
• M20 x 220mm (5 Pack)
  • Socket Size: 30mm
  • Drill Size: 20mm
  • Min Hole Depth: 100mm
  • Max Fixing: 110mm
