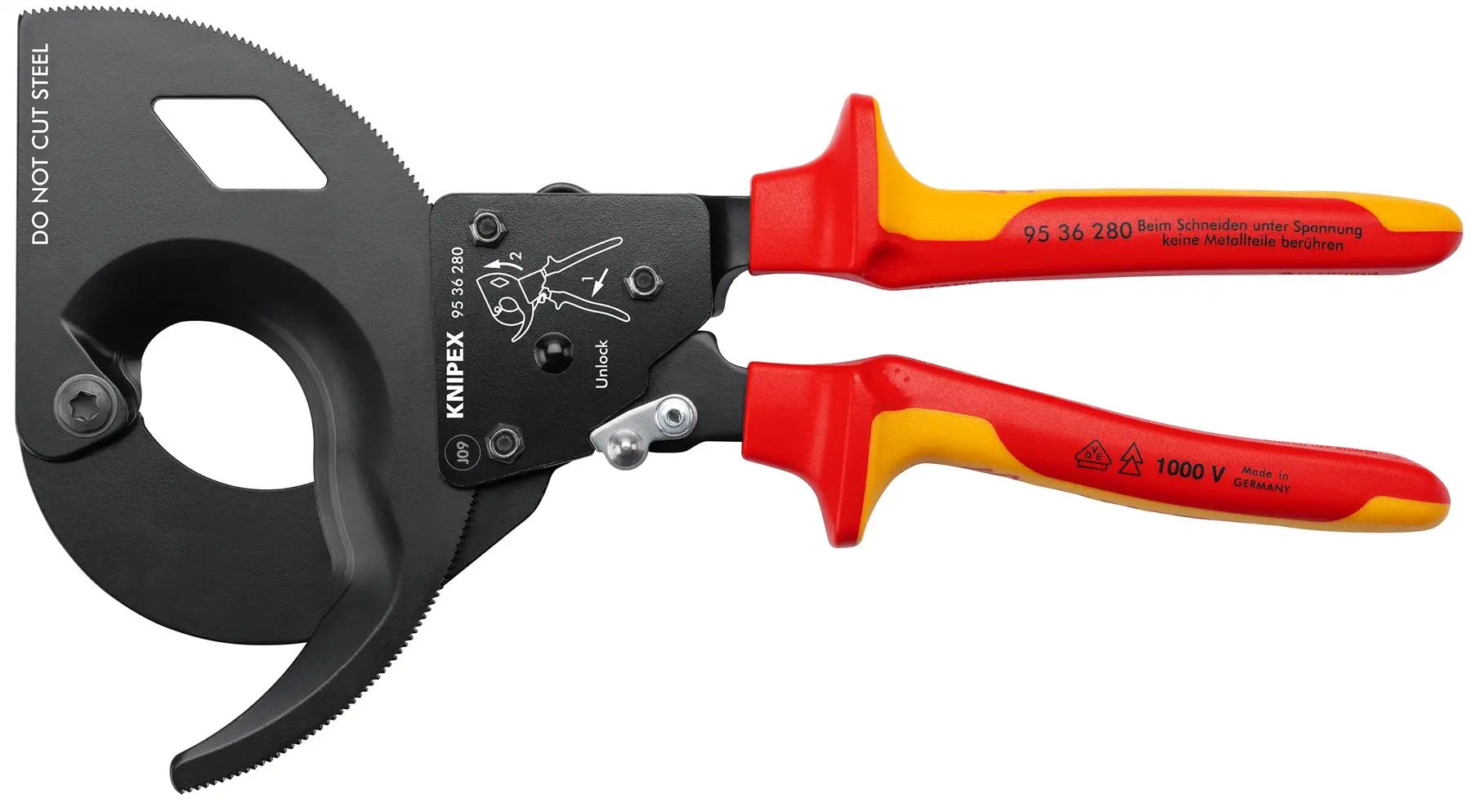

KNIPEX Cable Cutter Ratchet Action 280mm 52mm Capacity VDE Insulated 95 36 280

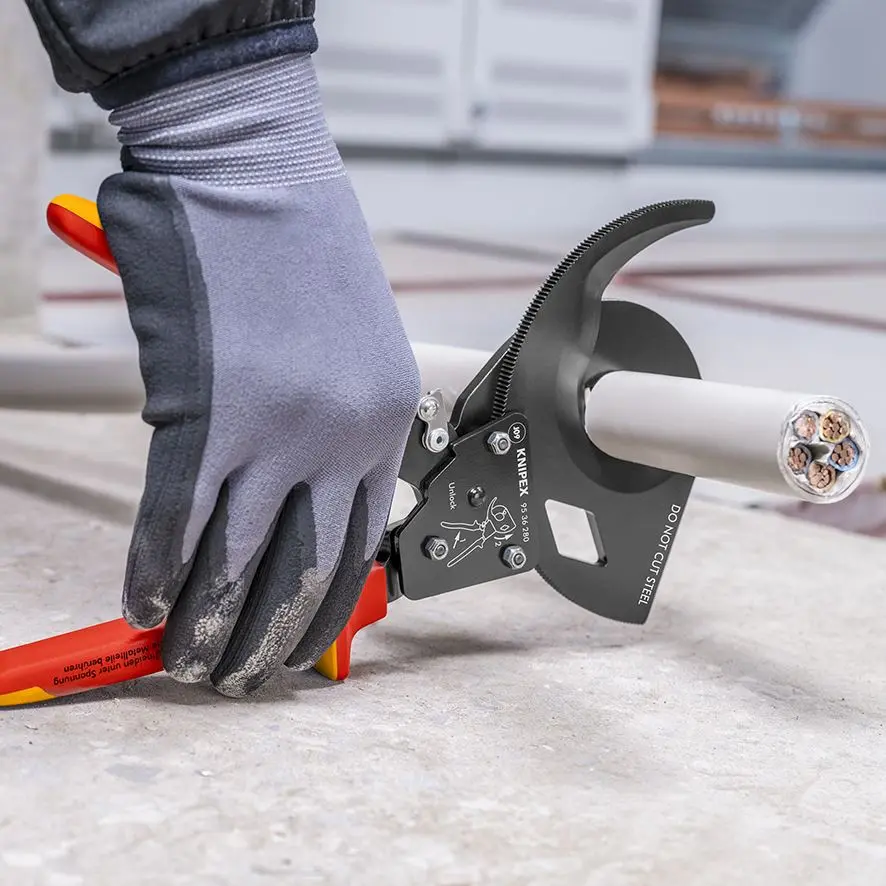

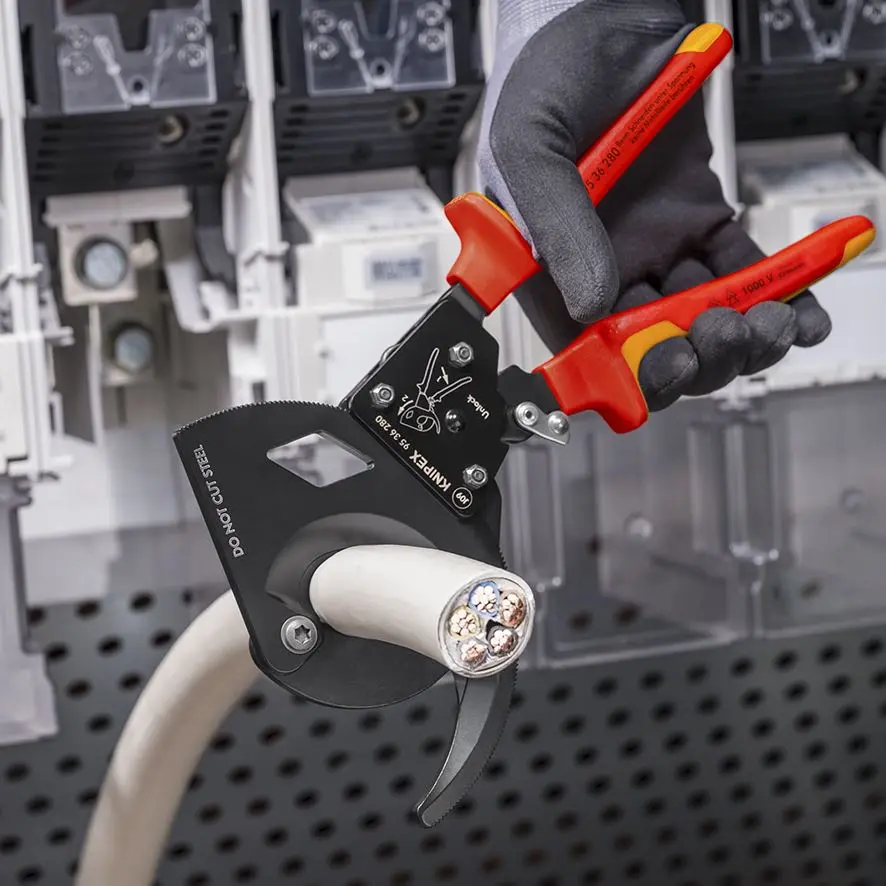

95 36 280 Cable Cutter Sturdy. Easy to use. Stable innovative three-stage ratchet-drive with high leverage for easy cutting in one-hand and two-hand operation. simple handling as a result of low weight and compact design - can be used even in confined areas. Pinch guard prevents operators' fingers being pinched. For cables with single and multi-wire conductors (conductor classes 1 & 2 according to DIN EN 60228, VDE 0295, IEC 60228). Manual open and emergency release possible in any position. Lockable for transport in closed condition - saves space and protects the tool. Not suitable for steel wire, wire ropes and fine-stranded (highly flexible) conductors. Cuts copper and aluminium cables up to a diameter of 52 mm (380 mm²) in one and two-handed operation. hardened cutting edges, precisely ground, cut smoothly and neatly without crushing.

Cutting capacity copper cable, multiple-stranded: 380 mm²

Cutting capacity copper cable, multiple-stranded: Ø 52 mm

MCM: 750

VDE tested: yes

Technical Information:

• Pinch guard prevents operators' fingers being pinched
• For cables with single and multi-wire conductors (conductor classes 1 & 2 according to DIN EN 60228, VDE 0295, IEC 60228)
• Manual open and emergency release possible in any position
• Lockable for transport in closed condition - saves space and protects the tool
• Not suitable for steel wire, wire ropes and fine-stranded (highly flexible) conductors

Downloadable Files:

• Data Sheet: View Here
