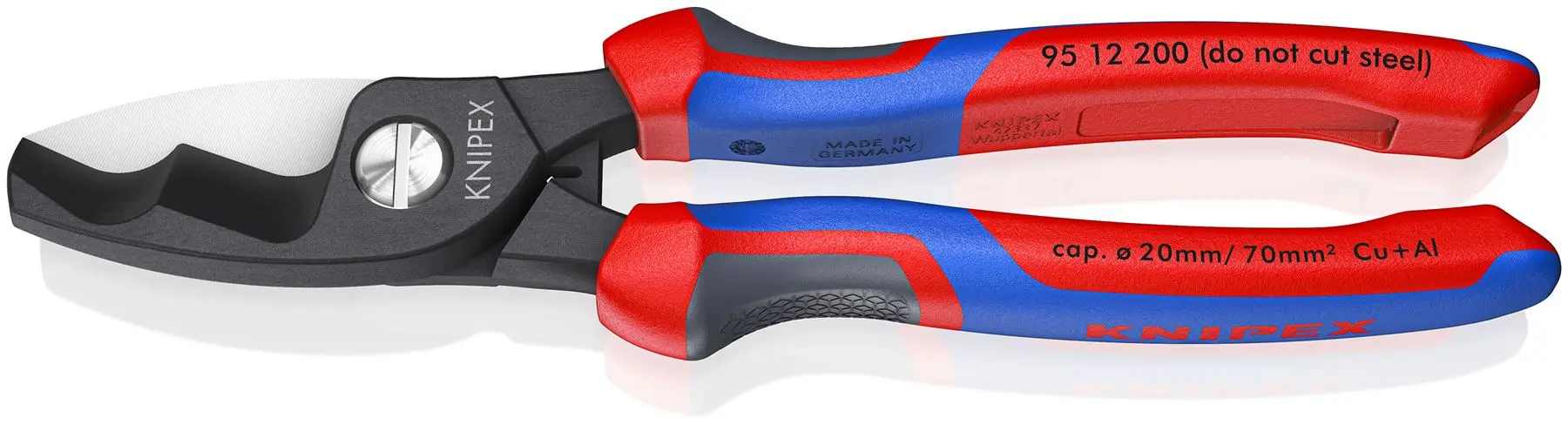

KNIPEX Cable Shears Twin Cutting Edge 200mm with Comfort Handles 95 12 200

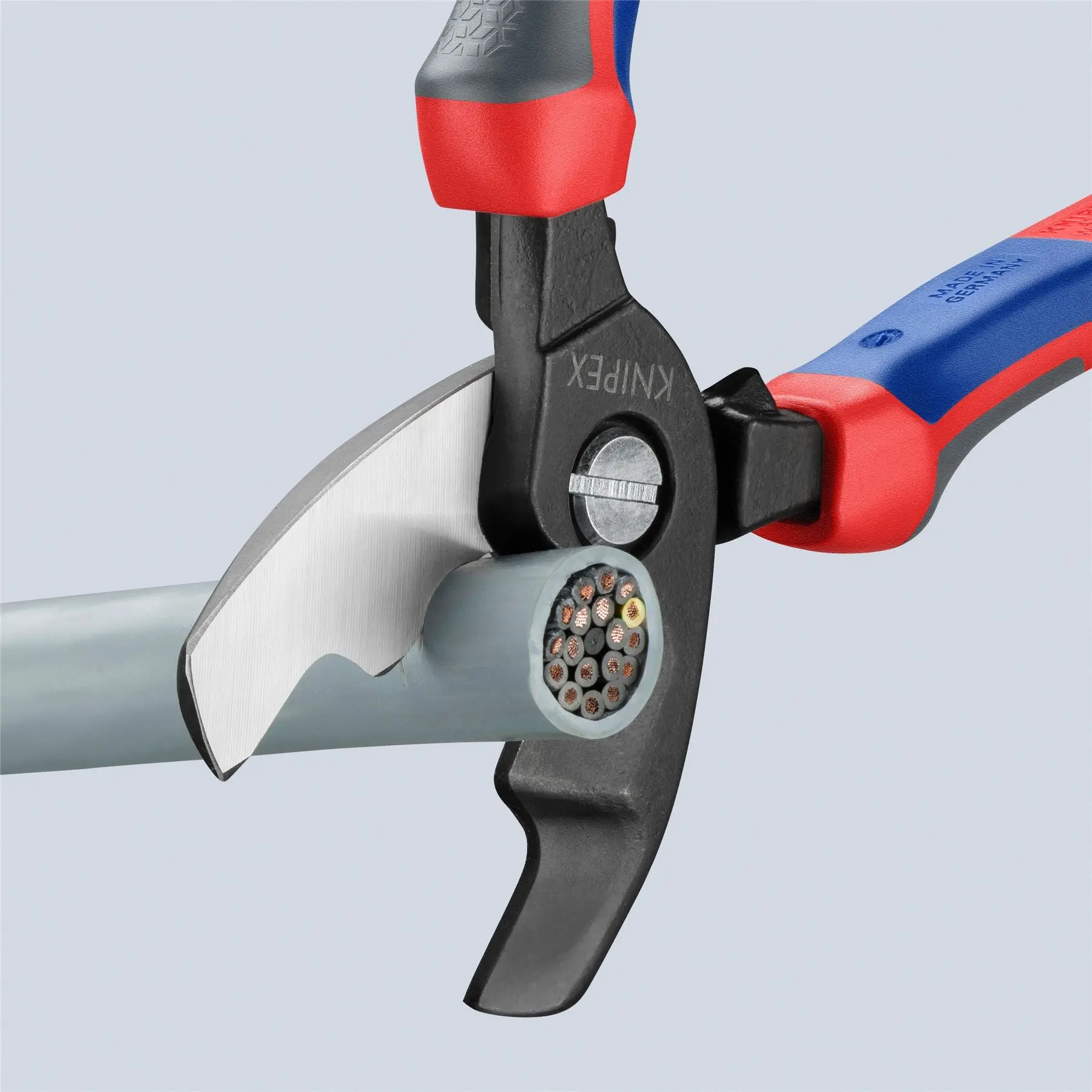

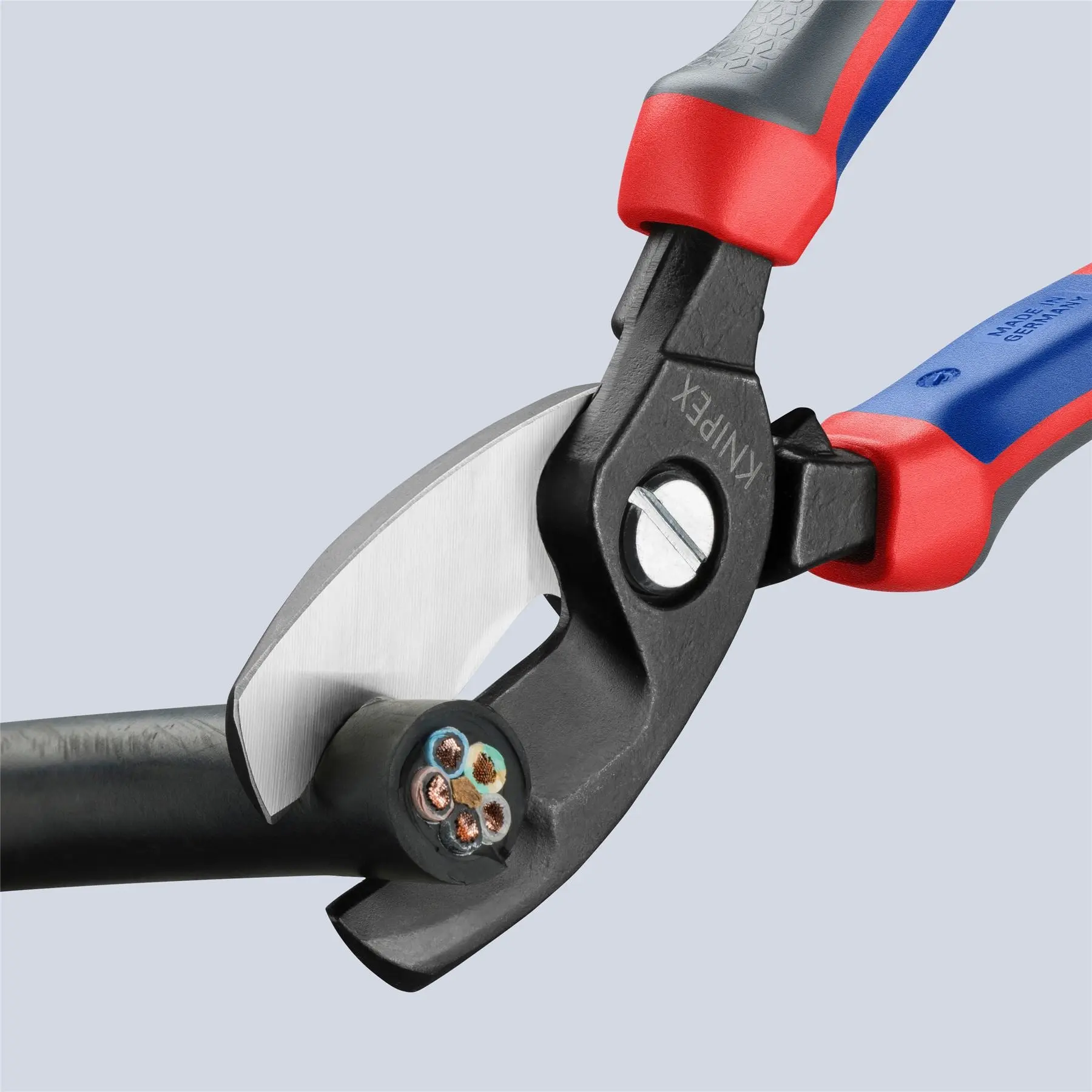

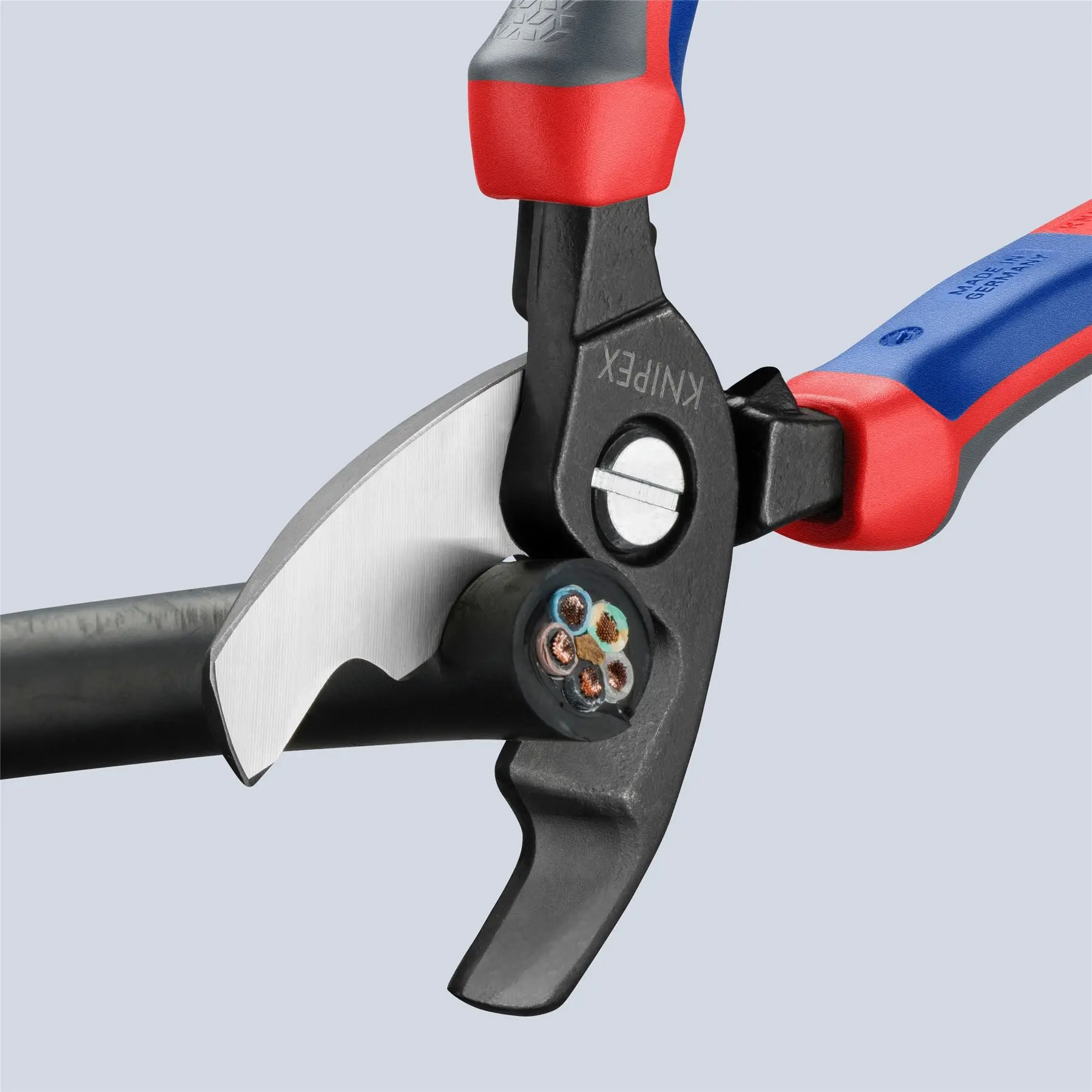

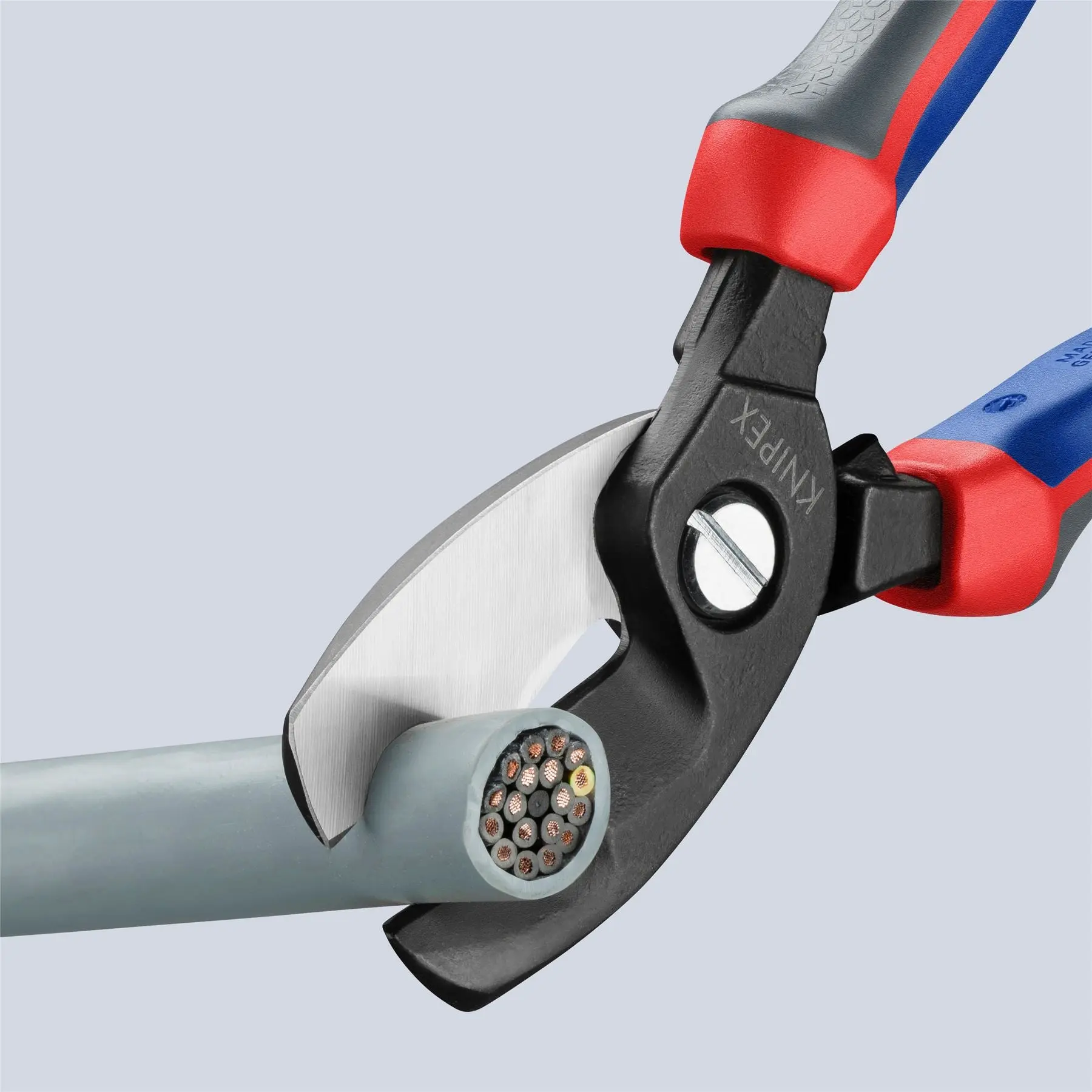

95 12 200 Cable Shears clean and smooth cut without crushing and deformation. by dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables up to Ø 20 mm can be cut in one-hand operation. Pinch guard prevents operators' fingers being pinched. For cutting copper and aluminium cables up to Ø 20 mm (70 mm²). Not suitable for steel wire and hard drawn copper conductors. Precision-ground, hardened blades. Low handforce required due to favourable lever ratio and special blade geometry. Adjustable bolted joint, self-retaining screw. With comfort handles made of three ergonomic components for optimised handling and with two KNIPEXtend interfaces for extensions.

Cutting capacity copper cable, multiple-stranded: 70 mm²

Cutting capacity copper cable, multiple-stranded: Ø 20 mm

AWG: 2 / 0

Technical Information:

• For cutting copper and aluminium cables up to Ø 20 mm (70 mm²)
• Not suitable for steel wire and hard drawn copper conductors
• Precision-ground, hardened blades
• Low handforce required due to favourable lever ratio and special blade geometry
• Adjustable bolted joint, self-retaining screw

Downloadable Files:

• Data Sheet: View Here
