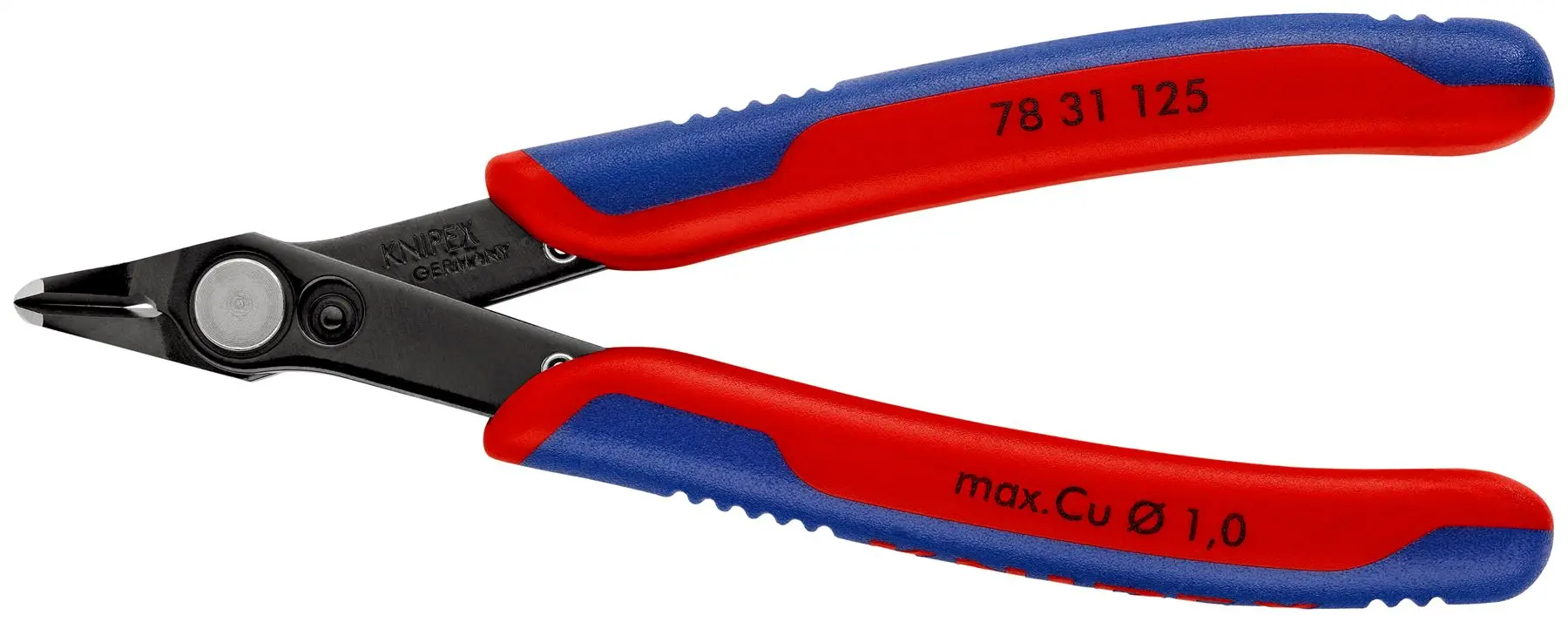

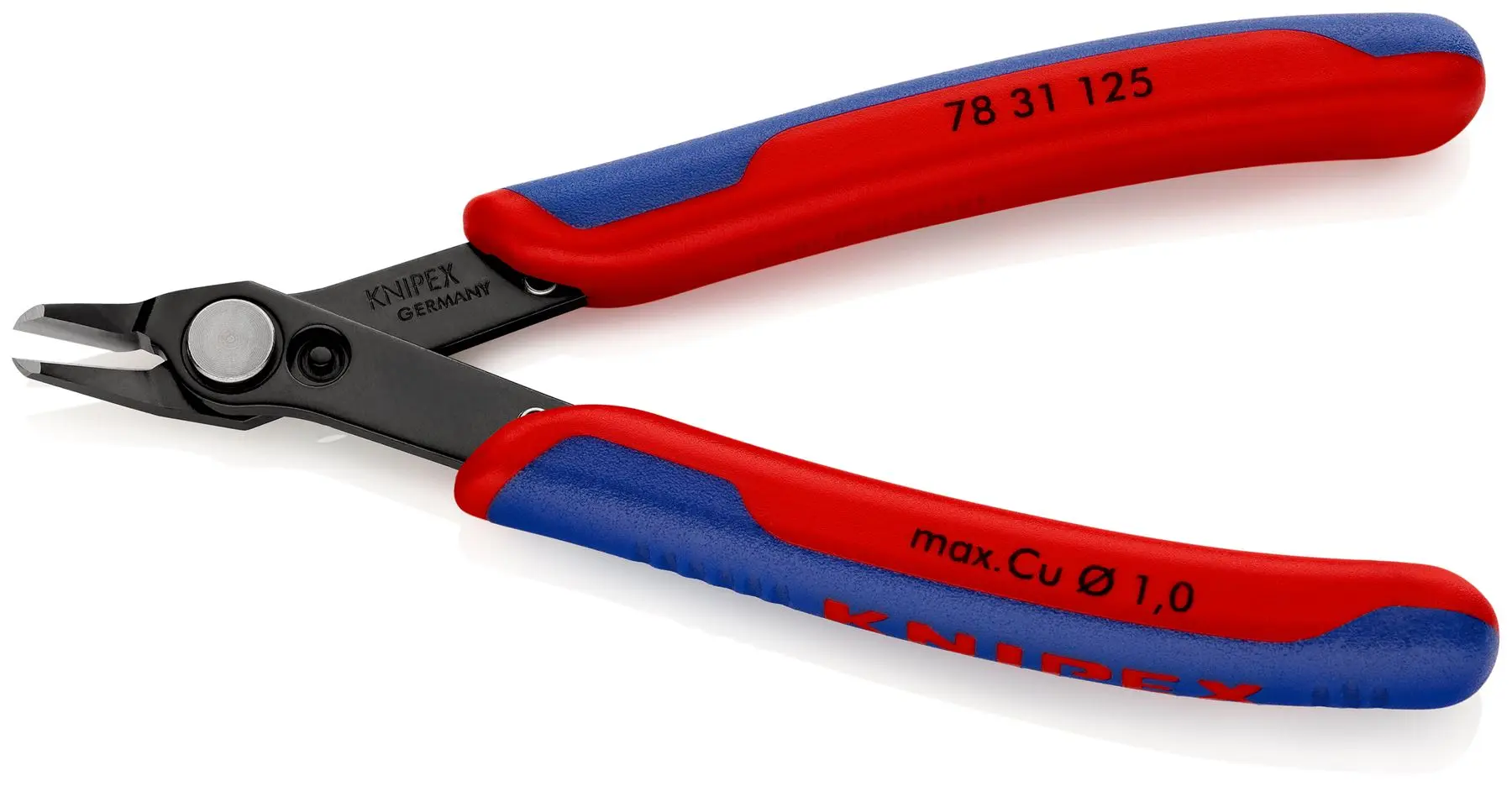

KNIPEX Electronic Super Knips with Narrow Head 125mm Multi Component Grips 78 31 125

78 31 125 Electronic Super Knips® Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Ground, very sharp cutting edges without bevel. Precisely shaped tips cut wires close to a surface from Ø 0.2 mm. Shear cut with controlled micro cutting edge offset for the most precise cutting of even the thinnest of wires and for a long service life. Joint with stainless steel rivet. Extremely smooth movement for minimum operator fatigue. With opening spring and opening limiter. with narrow head. cutting edges additionally induction-hardened, cutting edge hardness approx. 60 HRC. special tool steel, burnished.

Cutting capacities soft wire (diameter): Ø 0.2 – 1.6 mm

Jaw length (B): 9 mm

Jaw thickness (joint) (D): 7.5 mm

Head width (A): 12.5 mm

Technical Information:

• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Ground, very sharp cutting edges without bevel
• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
• Shear cut with controlled micro cutting edge offset for the most precise cutting of even the thinnest of wires and for a long service life
• Joint with stainless steel rivet
• Extremely smooth movement for minimum operator fatigue
• With opening spring and opening limiter

Downloadable Files:

• Data Sheet: View Here
