KNIPEX Electronics Diagonal Cutter Pliers 130mm Multi Component Grips 77 82 130

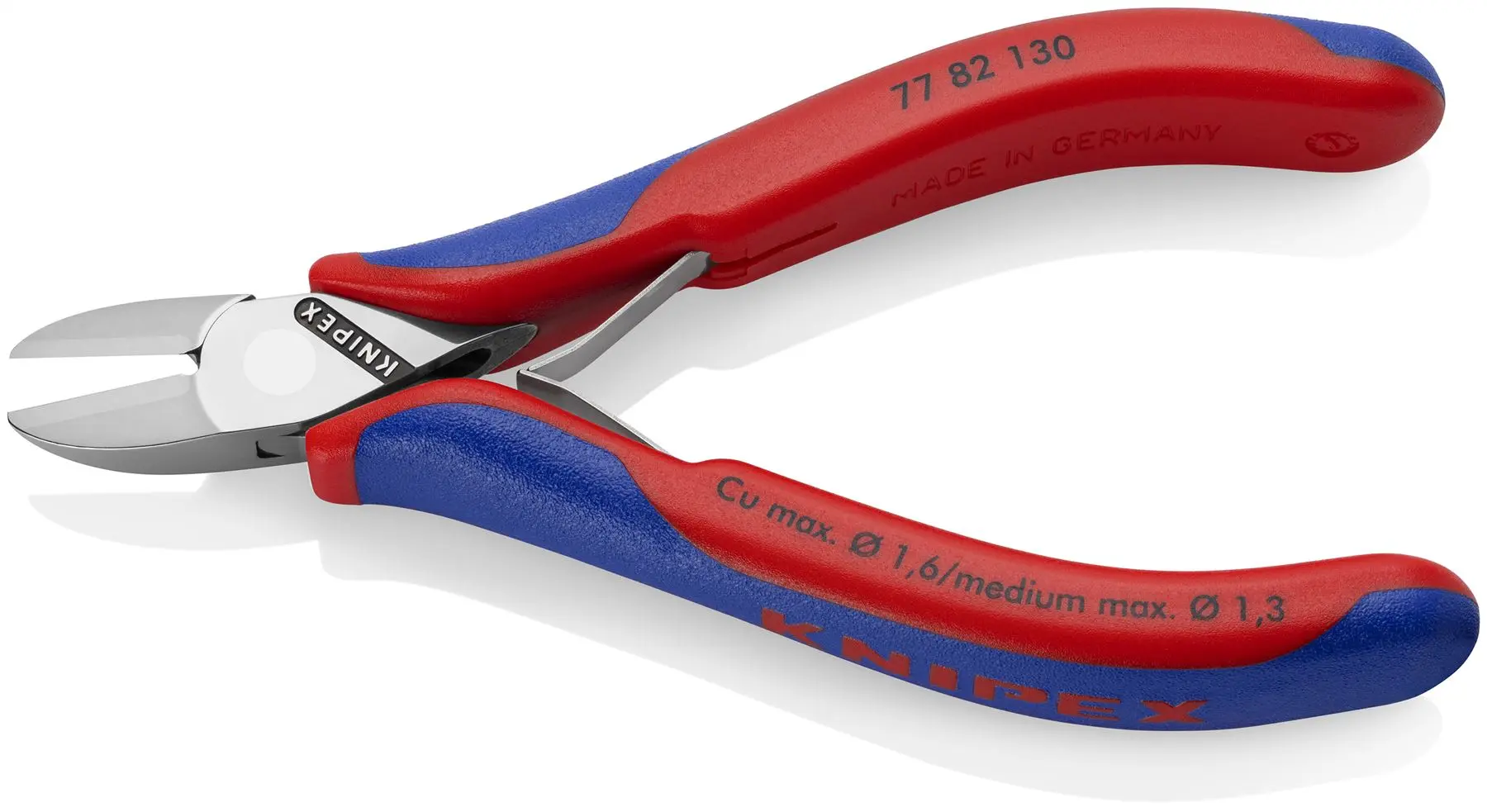

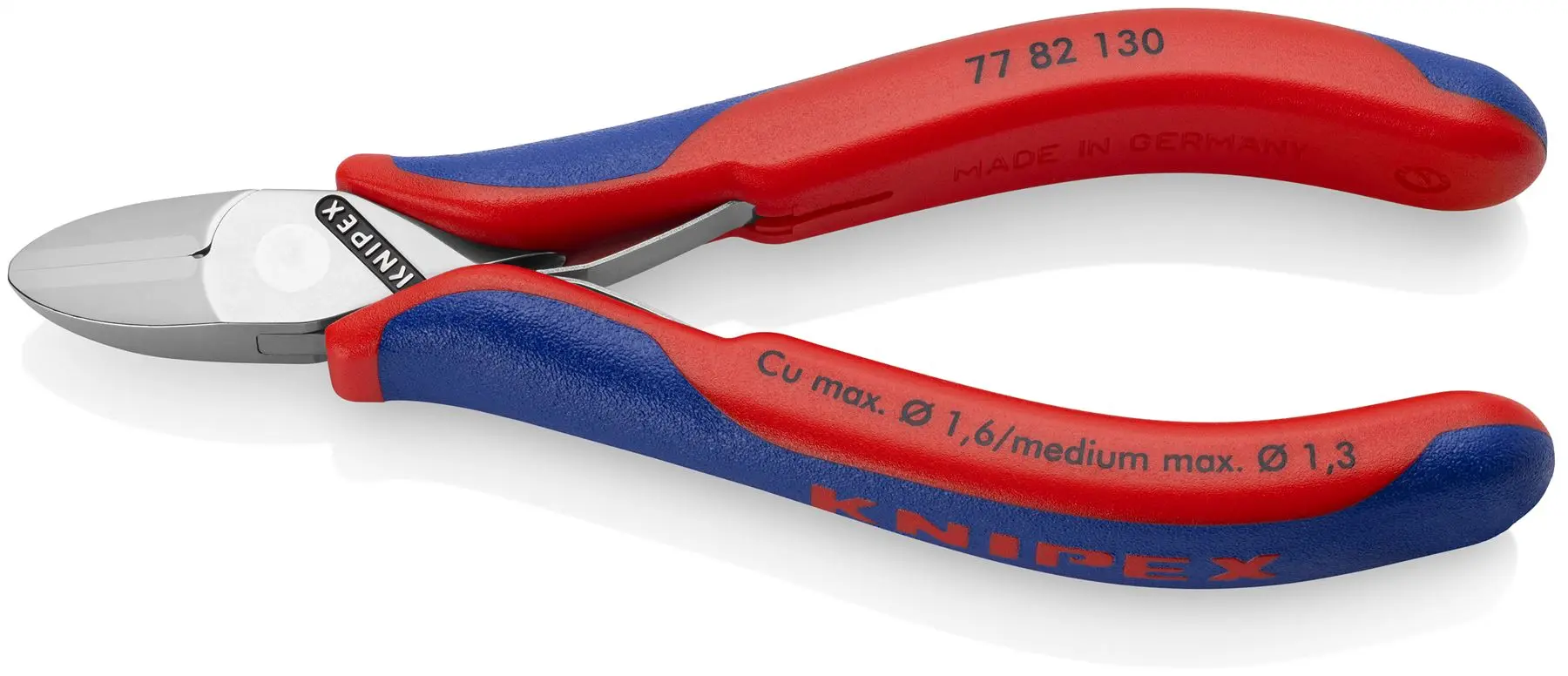

77 82 130 KNIPEX Electronics Diagonal Cutter Pliers
Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for gentle and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. round head, without bevel.

Cutting capacities medium hard wire (diameter): Ø 1.3 mm

Cutting capacities soft wire (diameter): Ø 0.3 – 1.6 mm

Jaw length (B): 16.2 mm

Jaw thickness (joint) (D): 8.5 mm

Head width (A): 13 mm

Cutting edge length mm (C): 16.2 mm

Technical Information:

• Cutters additionally laser hardened, cutter hardness at least 62 HRC
• Load-optimised for a more direct feel when working
• low-friction double spring for gentle and even opening
• round head, without bevel
• The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools

Downloadable Files:

• Data Sheet: View Here
