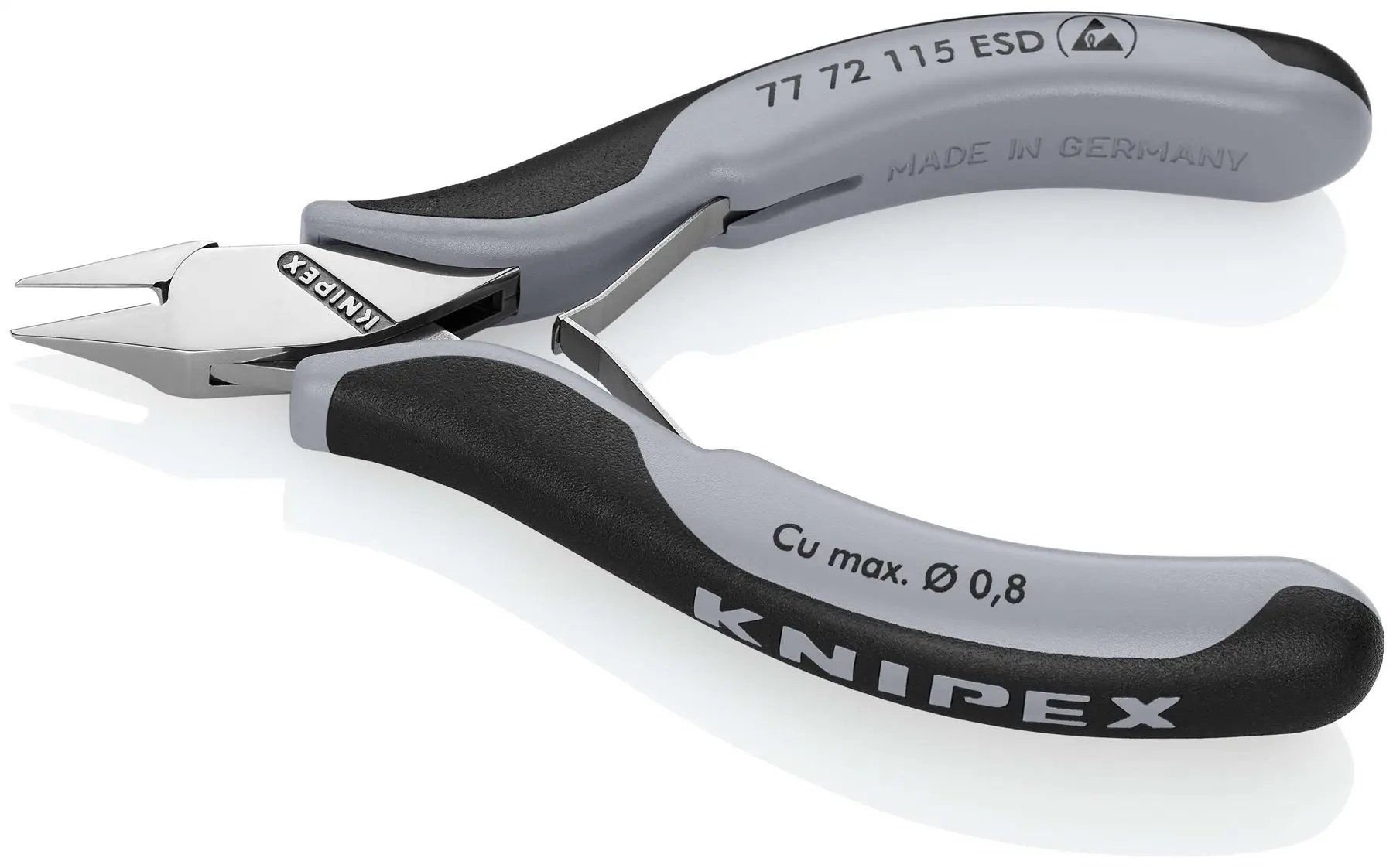

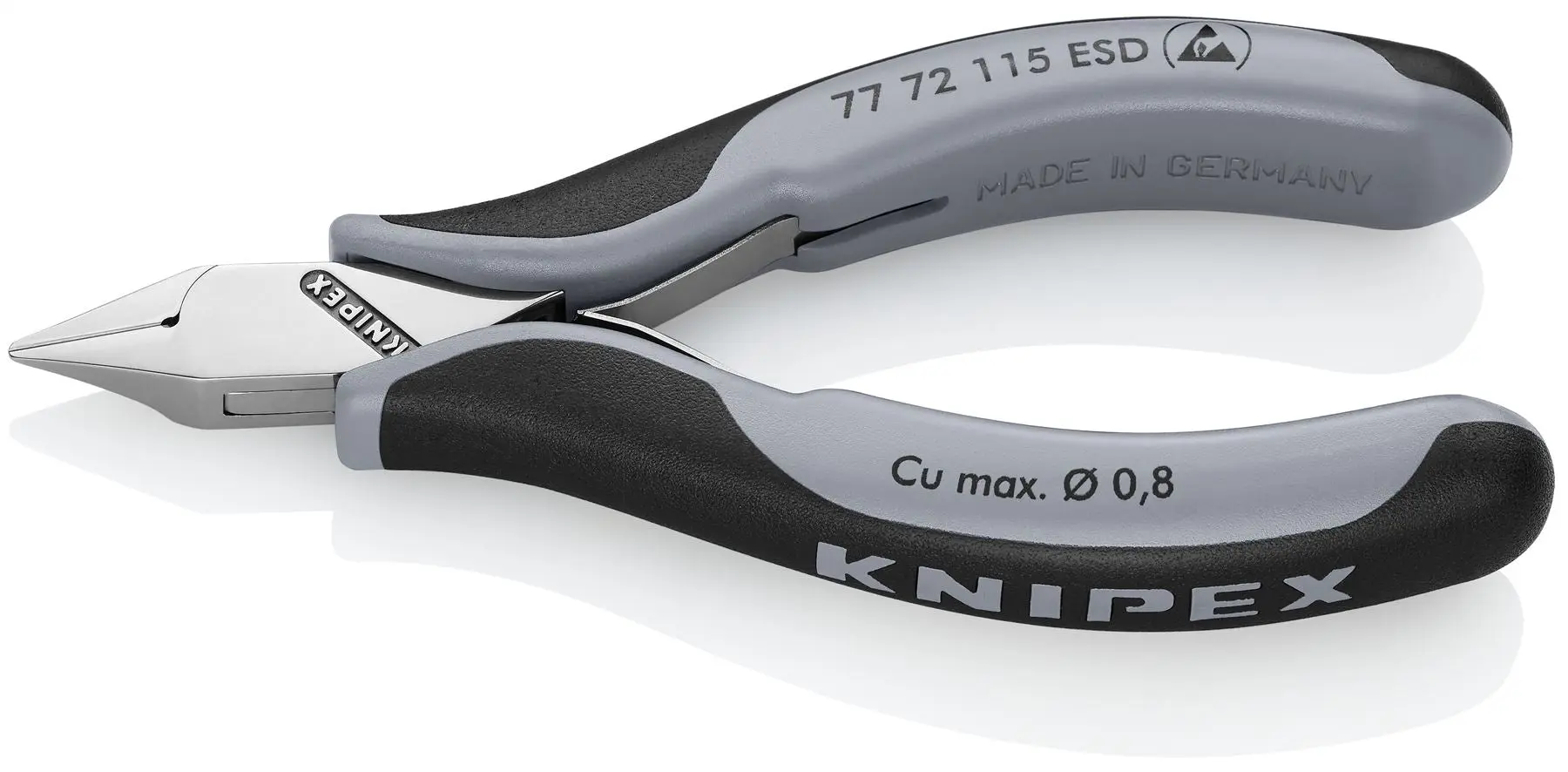

KNIPEX Electronics Diagonal Side Cutting Pliers with Box Joint 77 72 115 ESD

77 72 115 ESD Electronics Diagonal Cutters ESD Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for smooth and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. pointed mini-head, with small bevel.

Cutting capacities soft wire (diameter): Ø 0.3 – 0.8 mm

Jaw length (B): 10.5 mm

Jaw thickness (joint) (D): 6 mm

Head width (A): 11 mm

ESD: yes

Technical Information:

• Load-optimised for a more direct feel when working
• Low-friction double spring for smooth and even opening
• The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
• Cutters additionally laser hardened, cutter hardness at least 62 HRC

Downloadable Files:

• Data Sheet: View Here
