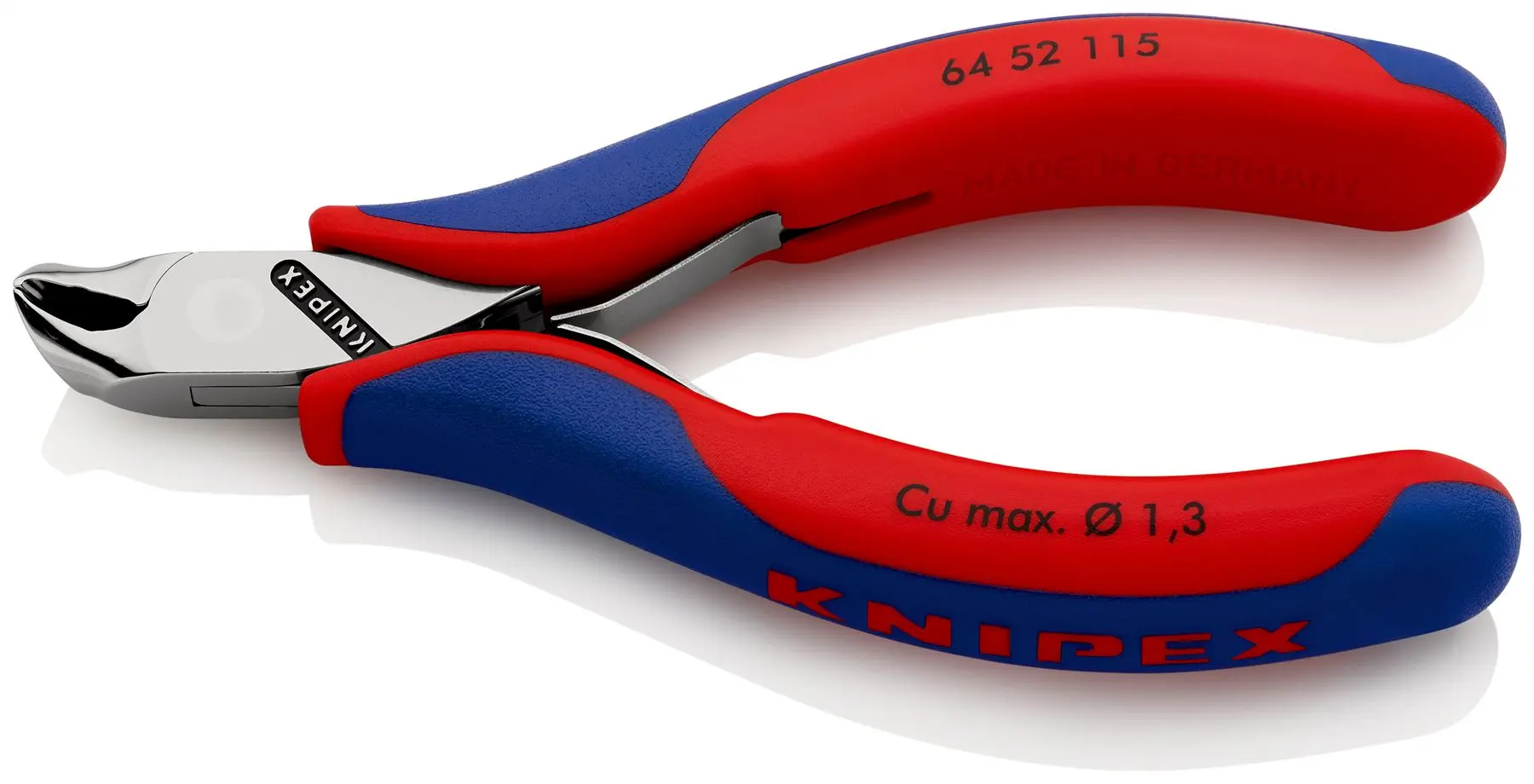

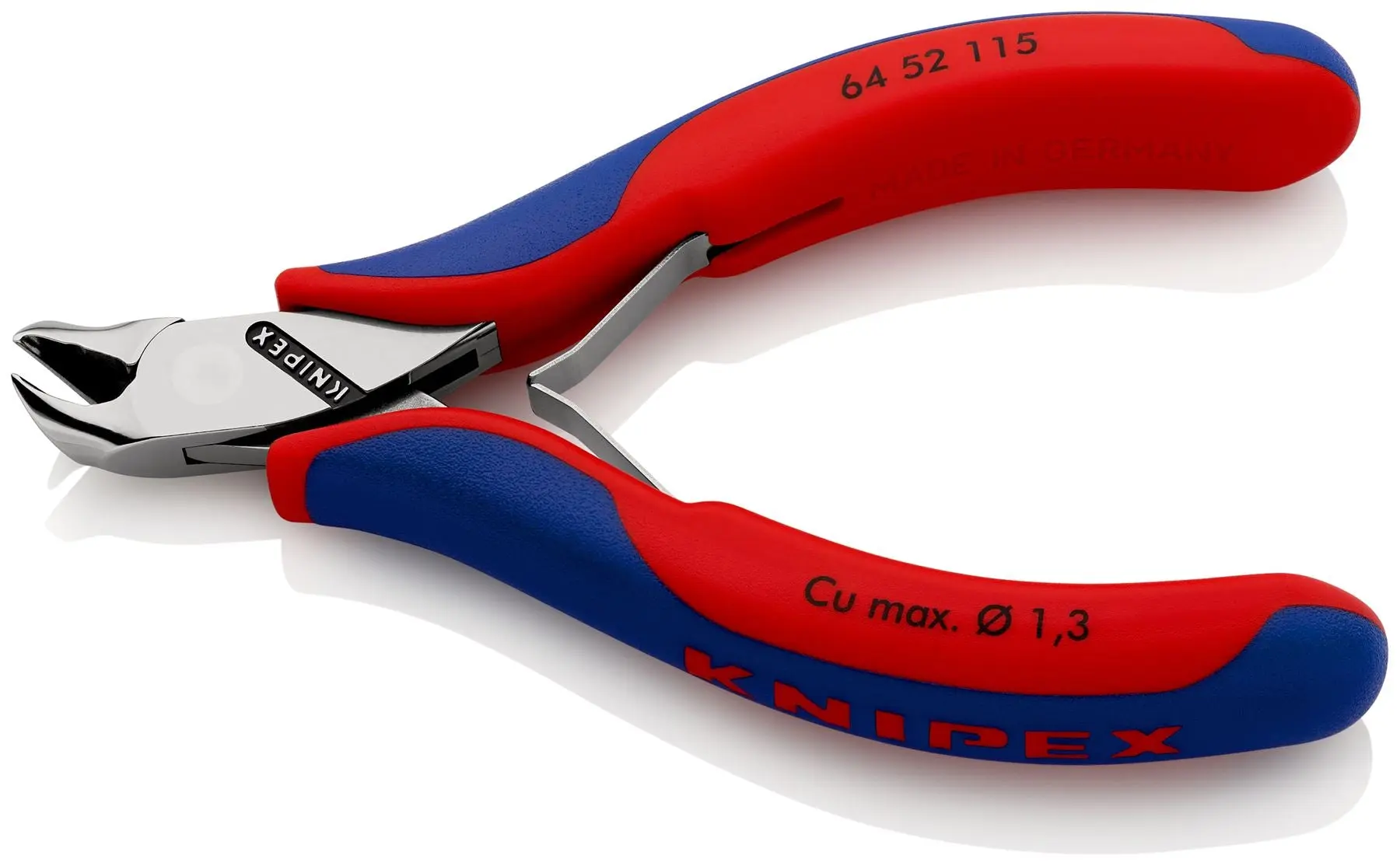

KNIPEX Electronics End Cutting Nipper Pliers 115mm Multi Component Grips 64 52 115

64 52 115 Electronics End Cutting Nipper Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Sturdy, zero backlash box joint. Low-friction double spring for smooth and even opening. The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC. Oblique End Cutter, short head, without bevel, for flush cutting, a = 27°.

Cutting capacities soft wire (diameter): Ø 1.3 mm

Head width (A): 11 mm

Jaw length (B): 10 mm

Jaw thickness (joint) (D): 7 mm

Cutting edge length mm (C): 12 mm

Technical Information:

• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Sturdy, zero backlash box joint
• Low-friction double spring for smooth and even opening
• The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
• Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC

Downloadable Files:

• Data Sheet: View Here
