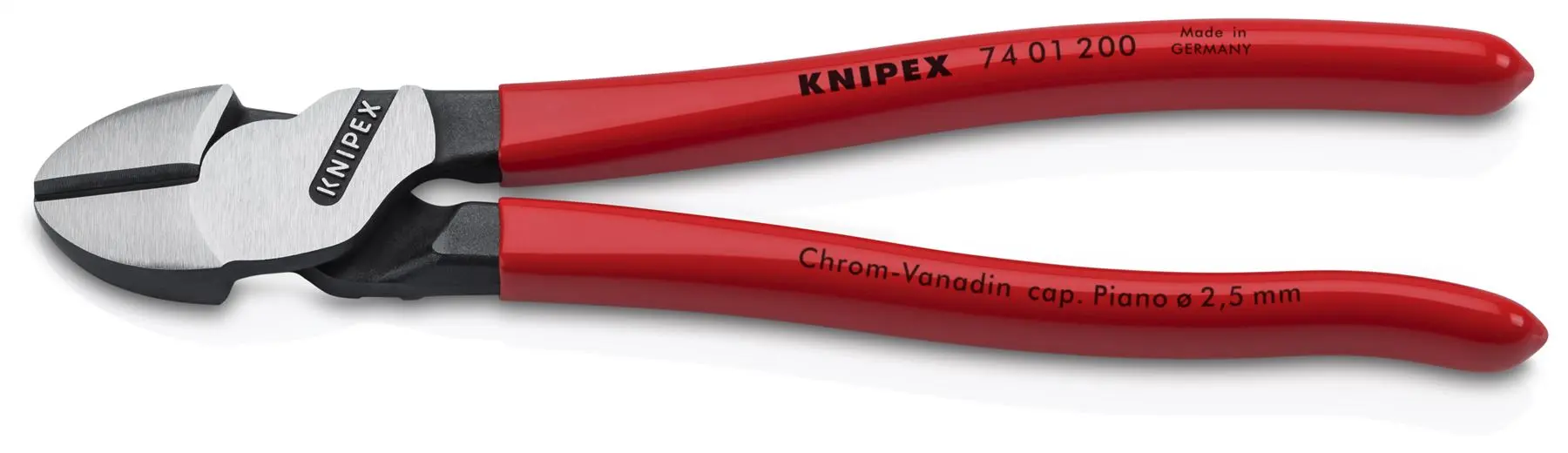

KNIPEX High Leverage Diagonal Side Cutting Pliers 200mm Plastic Coated Handles 74 01 200 SB

74 01 200 SB High Leverage Diagonal Cutter

All-round performance: Optimum combination of cutting power, durability and ergonomics. Cuts easier than conventional diagonal cutters of the same size due to the high leverage joint. Optimised: approx. 20% less effort required compared to the previous model. For very tough, continuous use. The extreme proximity of the jaws to the pivot point makes it easy to cut hard materials Redesigned handle shape for better grip. Precision cutting edges also induction-hardened (hardness approx. 64 HRC), for all wire types including piano wire.

Cutting capacities medium hard wire (diameter): Ø 4.2 mm

Cutting capacities hard wire (diameter): Ø 3.0 mm

Cutting capacities piano wire (diameter): Ø 2.5 mm

Technical Information:

• For very tough, continuous use
• The extreme proximity of the jaws to the pivot point makes it easy to cut hard materials.
• Redesigned handle shape for better grip
• Precision cutting edges also induction-hardened (hardness approx. 64 HRC), for all wire types including piano wire

Downloadable Files:

• Data Sheet: View Here
