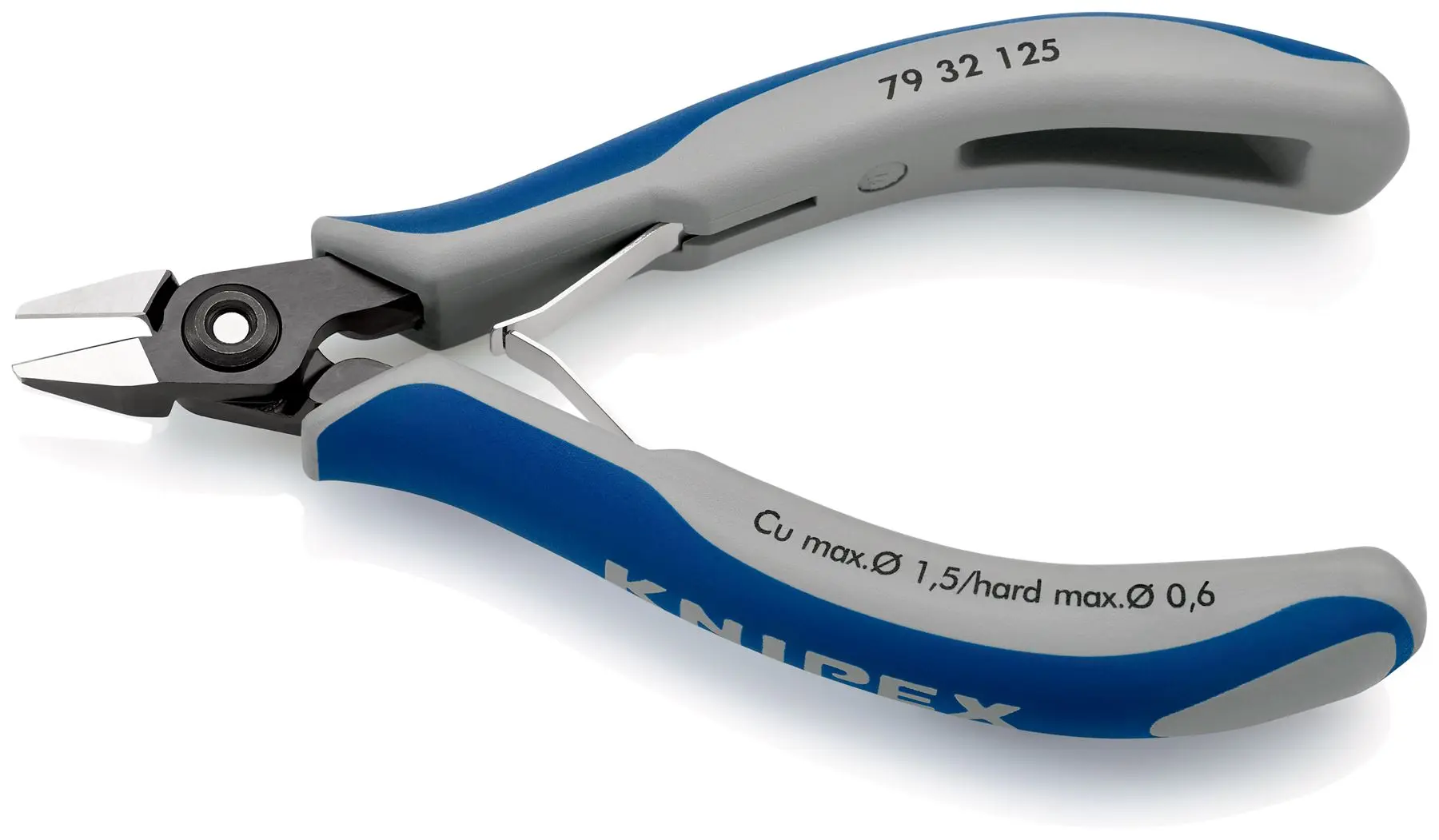

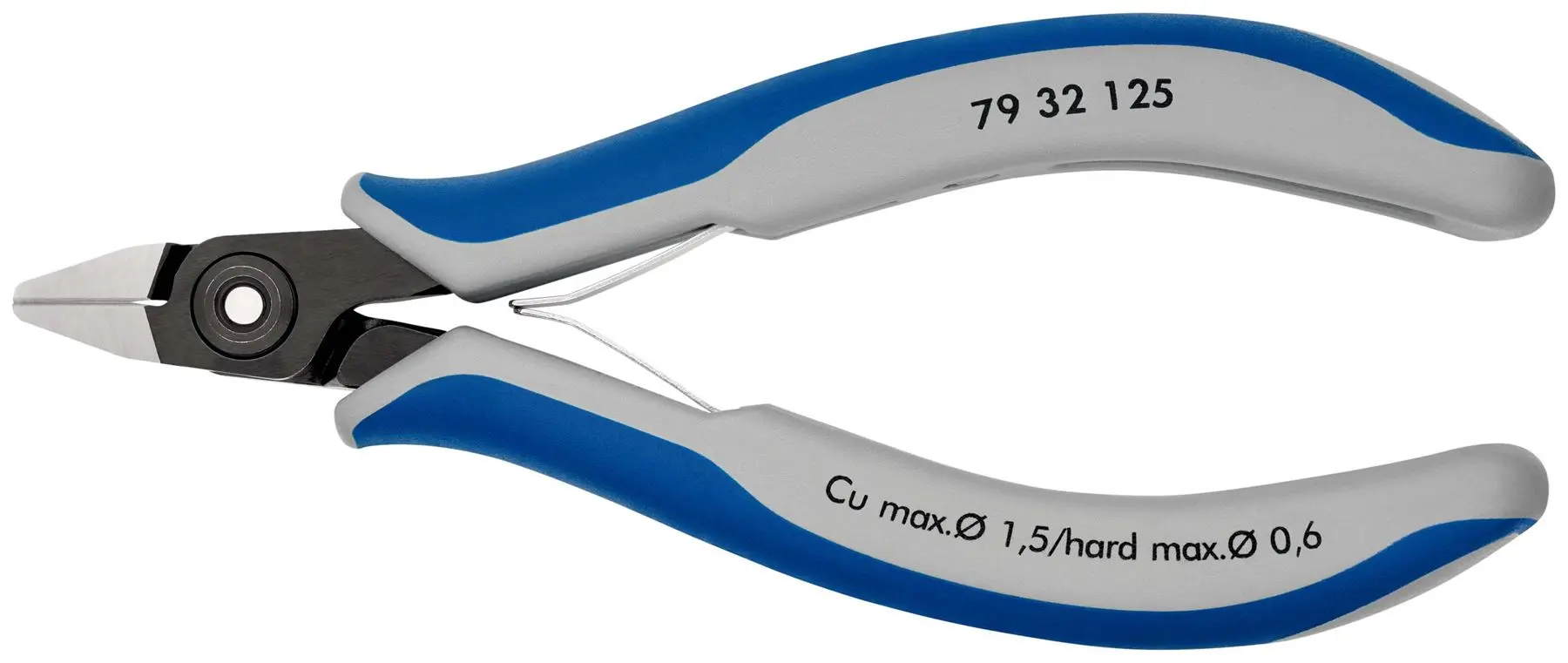

KNIPEX Precision Electronics Diagonal Side Cutting Pliers 125mm Multi Component Grips 79 32 125

79 32 125 Precision Electronics Diagonal Cutter Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting. Cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC. Approx. 20% lighter than conventional electronics pliers. Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range. Smooth-running double spring for a gentle and even opening. Ergonomically optimised multi-component handles. pointed head.

Cutting capacities medium hard wire (diameter): Ø 1.1 mm

Cutting capacities hard wire (diameter): Ø 0.6 mm

Cutting capacities soft wire (diameter): Ø 0.2 – 1.5 mm

Jaw length (B): 11 mm

Jaw thickness (joint) (D): 6.5 mm

Head width (A): 11 mm

Technical Information:

• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components
• Also available without bevel for flush cutting
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
• Approx. 20% lighter than conventional electronics pliers
• Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
• Smooth-running double spring for a gentle and even opening
• Ergonomically optimised multi-component handles

Downloadable Files:

• Data Sheet: View Here
