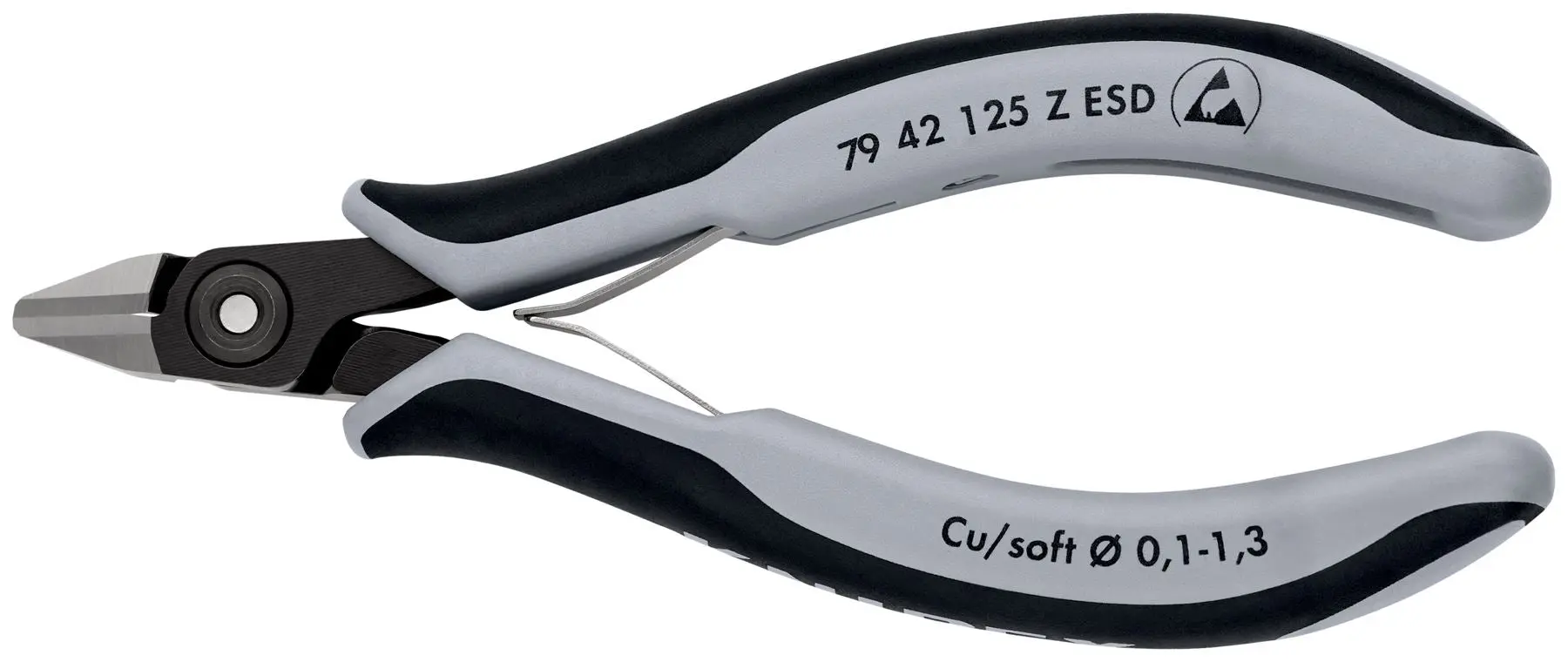

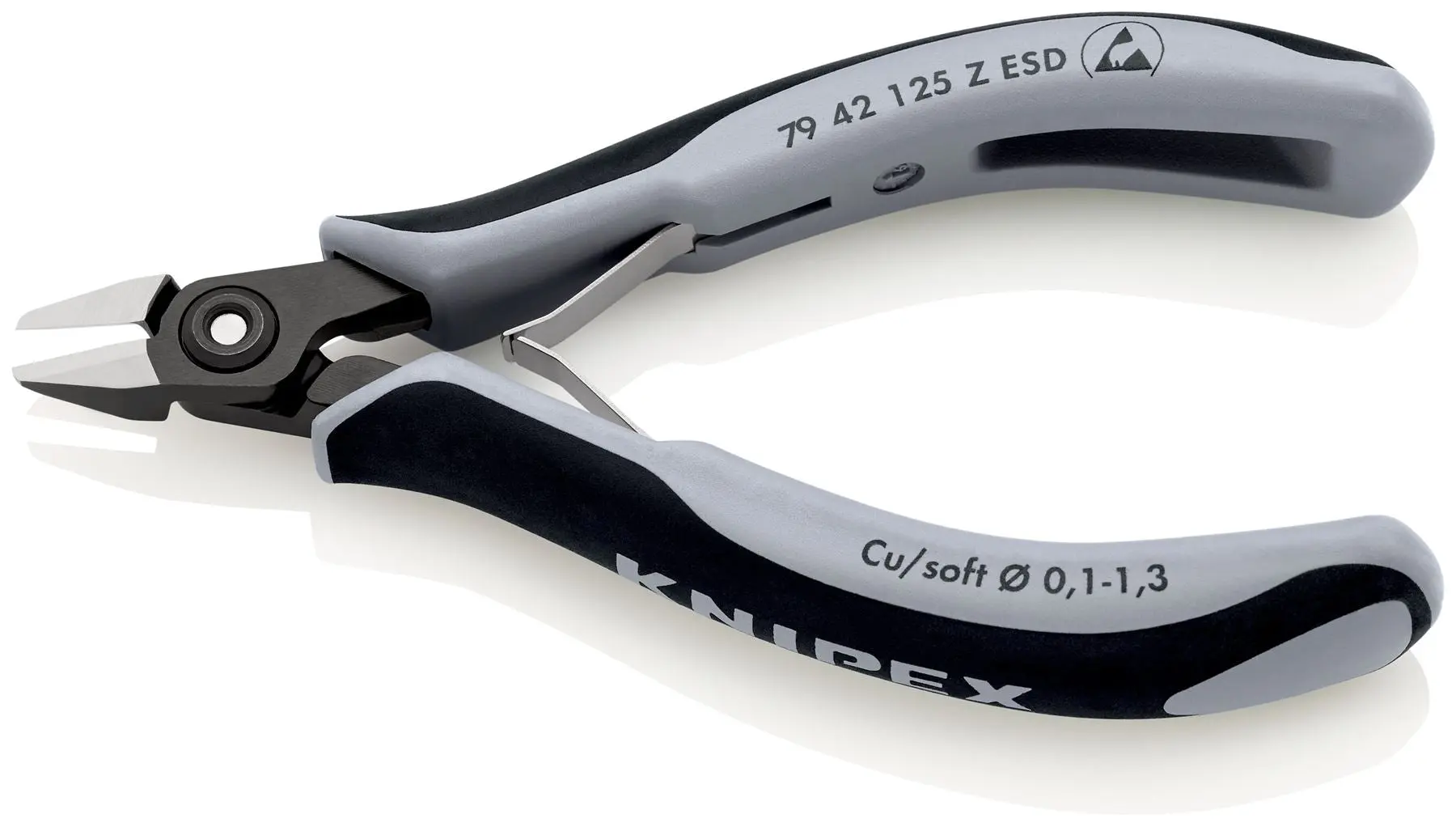

KNIPEX Precision Electronics Side Cutting Pliers 125mm Multi Component Grips 79 42 125 Z ESD

79 42 125 Z ESD Precision Electronics Side Cutter ESD Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Electrically discharging handles - dissipative. Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting. Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC. Approx. 20% lighter than conventional electronics pliers. Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range. Smooth-running double spring for a gentle and even opening. Ergonomically optimised multi-component handles. for an optimised flush cutting result of soft materials. for installations with tight tolerances, for precise configuration of wire ends.

Cutting capacities soft wire (diameter): Ø 0.1 – 1.3 mm

Jaw length (B): 11 mm

Jaw thickness (joint) (D): 6.5 mm

Head width (A): 11 mm

ESD: yes

Technical Information:

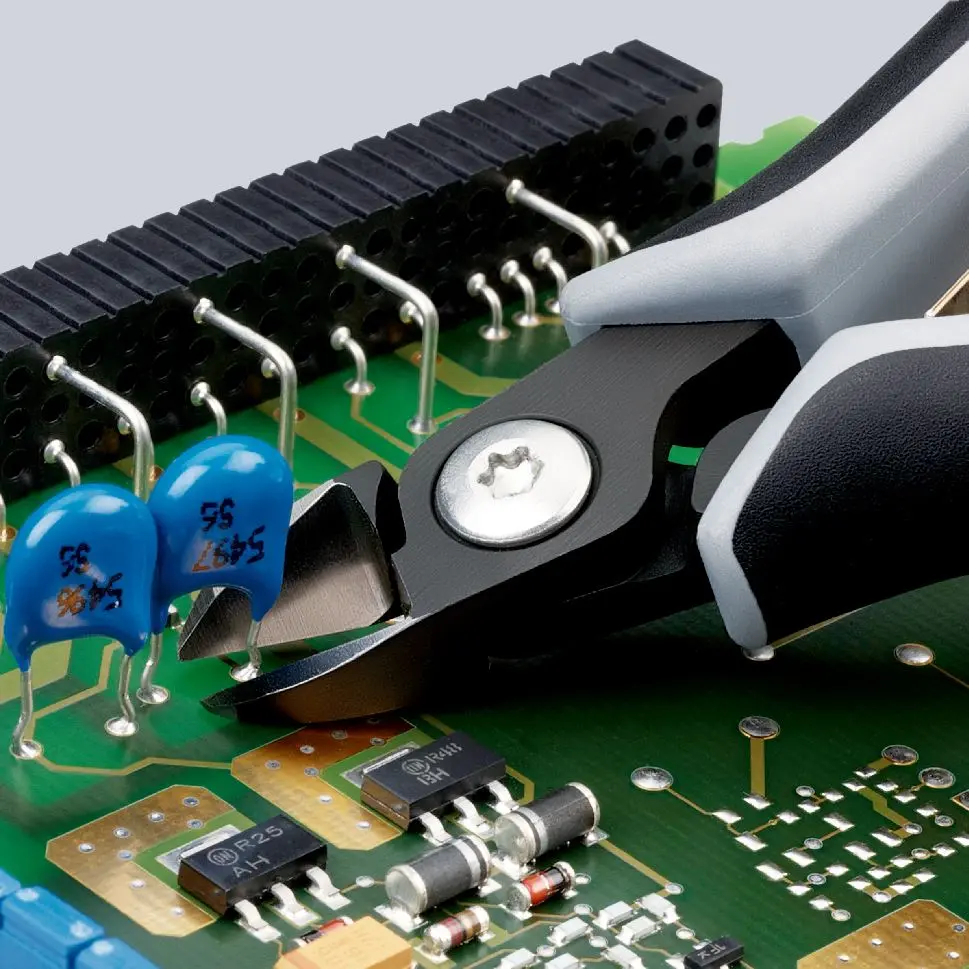

• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Electrically discharging handles - dissipative
• Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components
• Also available without bevel for flush cutting
• Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
• Approx. 20% lighter than conventional electronics pliers
• Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
• Smooth-running double spring for a gentle and even opening
• Ergonomically optimised multi-component handles

Downloadable Files:

• Data Sheet: View Here
