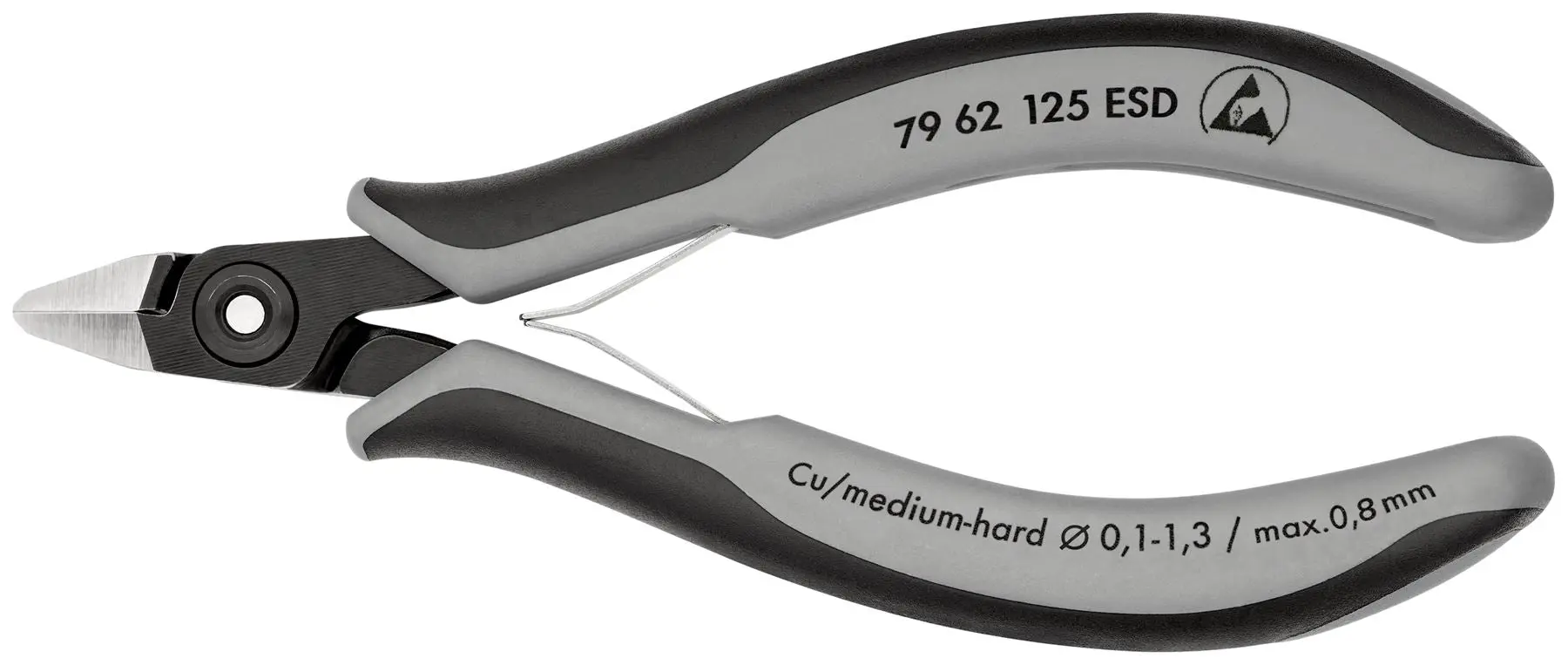

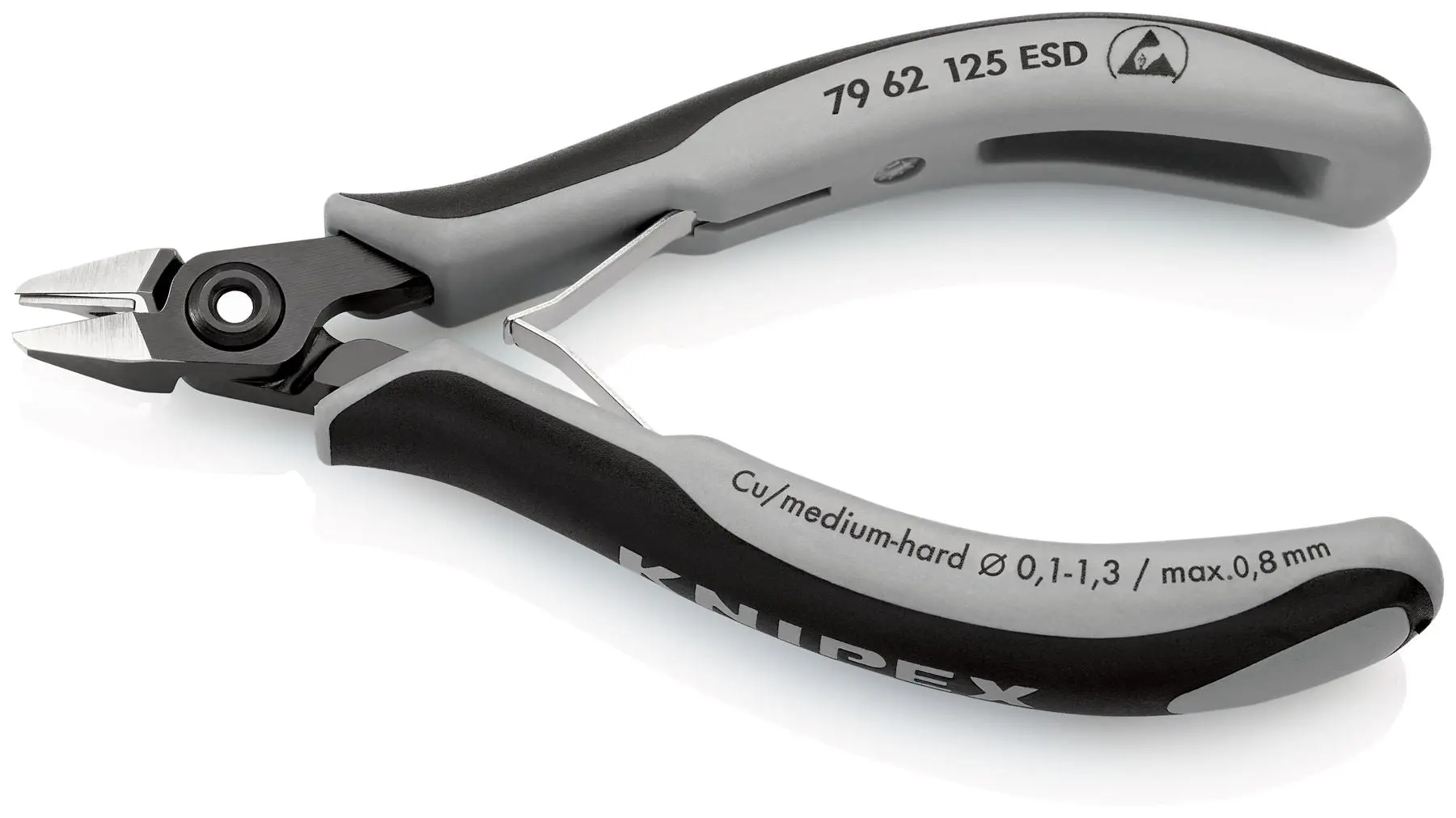

KNIPEX Precision Electronics Side Cutting Pliers 125mm Multi Component Grips 79 52 125 ESD

79 62 125 ESD Precision Electronics Side Cutter ESD Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Electrically discharging handles - dissipative. Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting. Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC. Approx. 20% lighter than conventional electronics pliers. Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range. Smooth-running double spring for a gentle and even opening. Ergonomically optimised multi-component handles. pointed head. with lead catcher - no uncontrolled loss of cut wire ends.

Cutting capacities medium hard wire (diameter): Ø 0.8 mm

Cutting capacities soft wire (diameter): Ø 0.1 – 1.3 mm

Jaw length (B): 11 mm

Jaw thickness (joint) (D): 6.5 mm

Head width (A): 11 mm

ESD: yes

Technical Information:

• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Electrically discharging handles - dissipative
• Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components
• Also available without bevel for flush cutting
• Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
• Approx. 20% lighter than conventional electronics pliers
• Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
• Smooth-running double spring for a gentle and even opening
• Ergonomically optimised multi-component handles

Downloadable Files:

• Data Sheet: View Here
