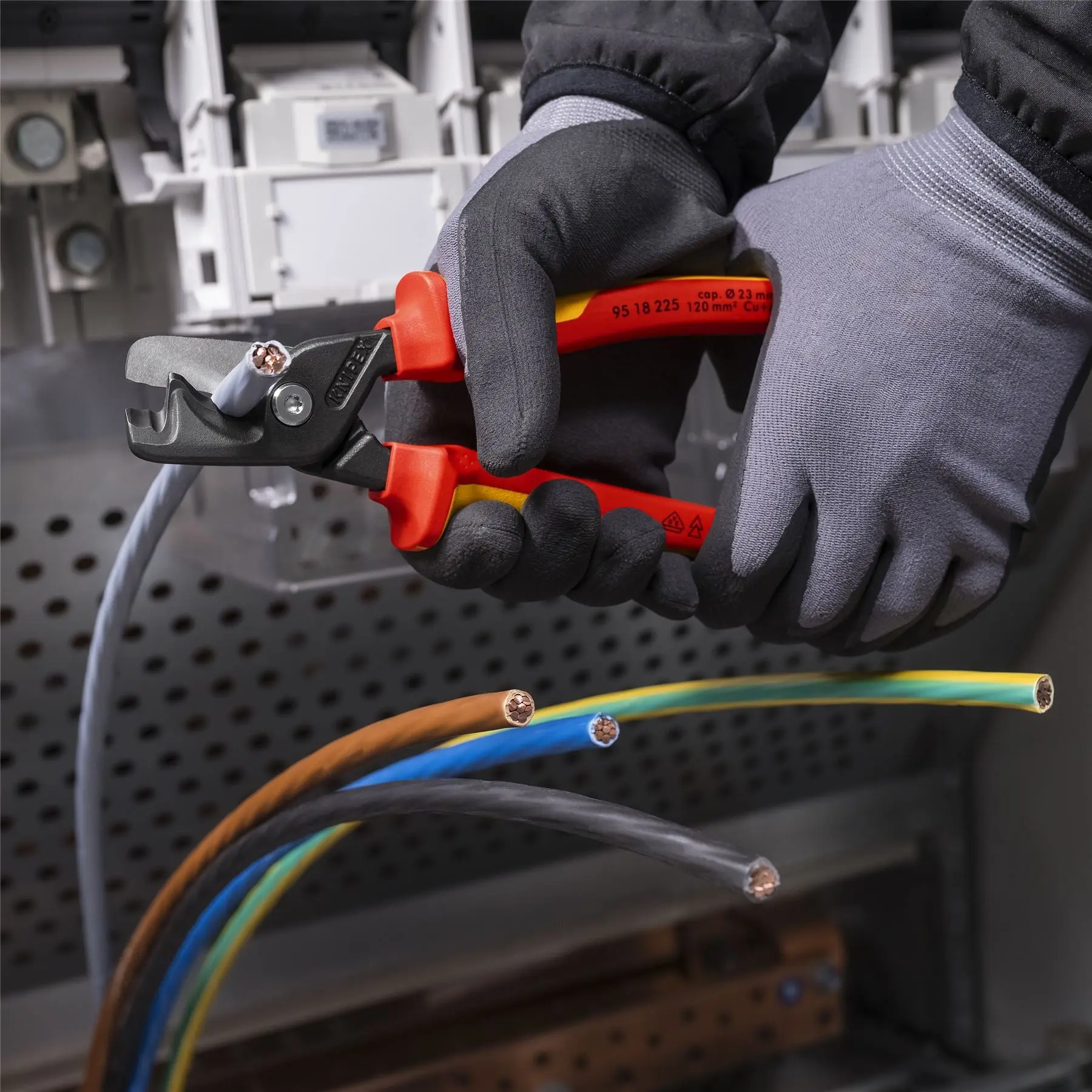

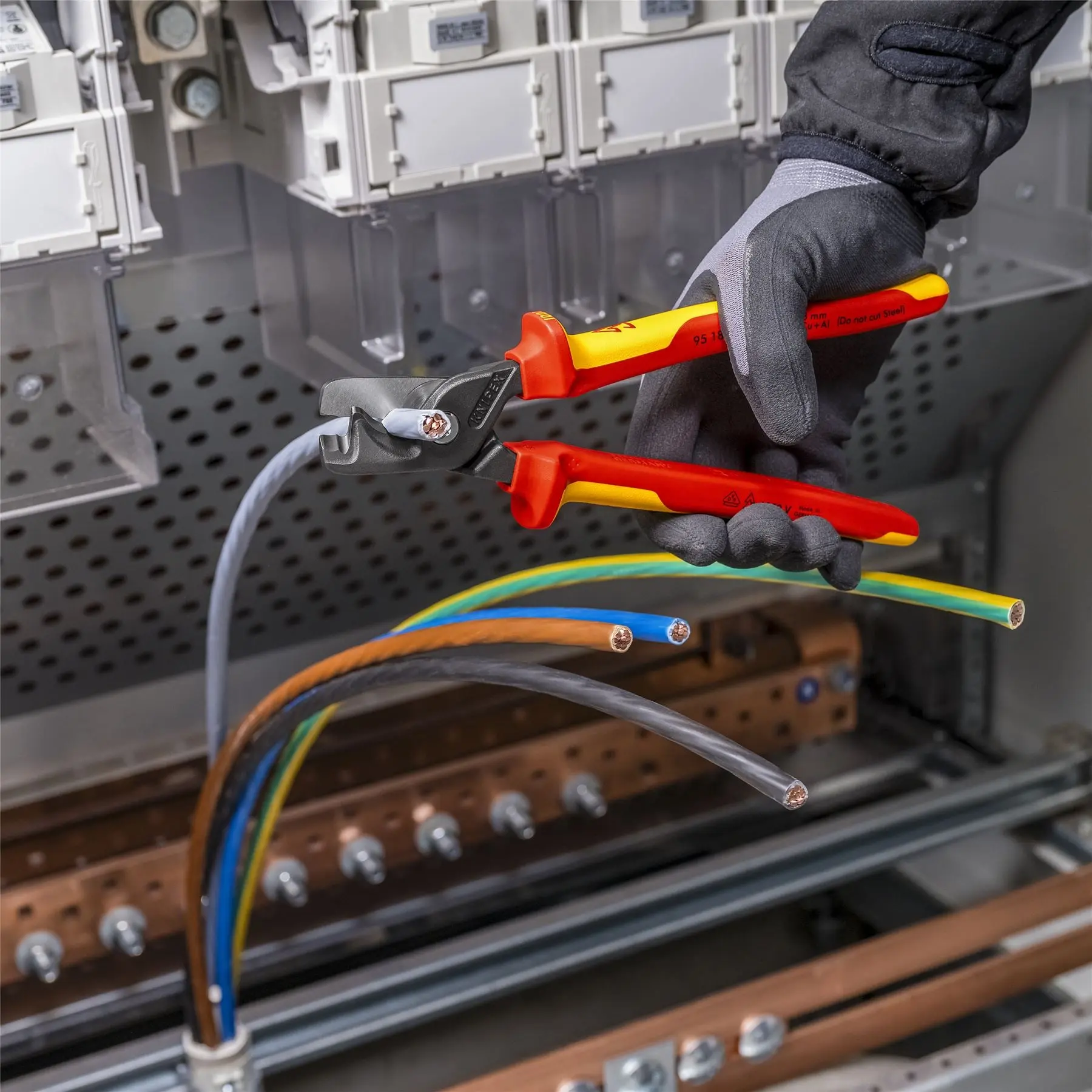

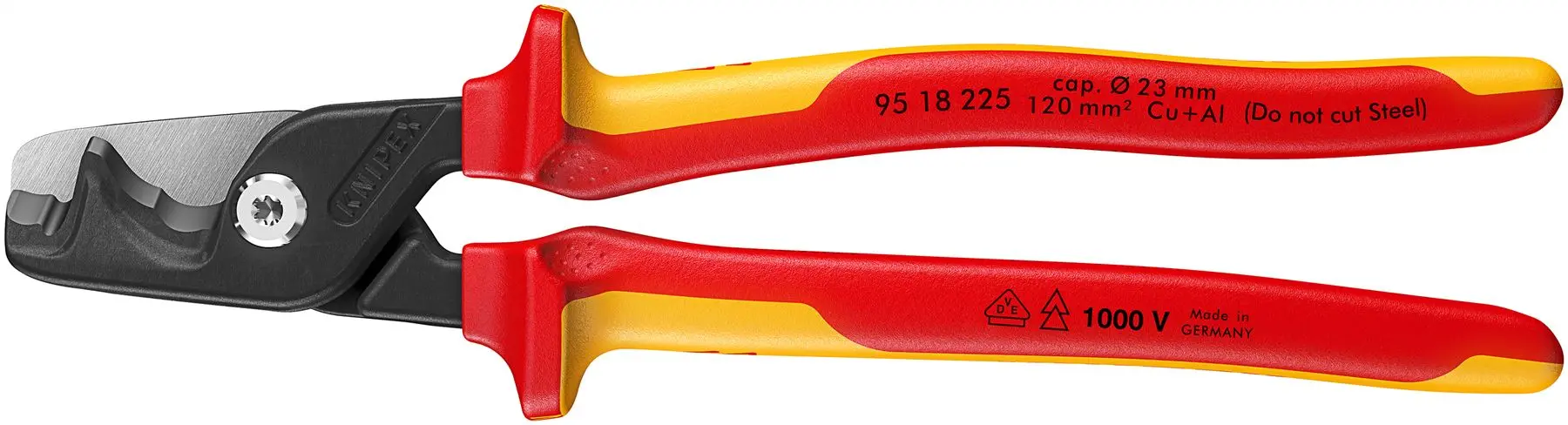

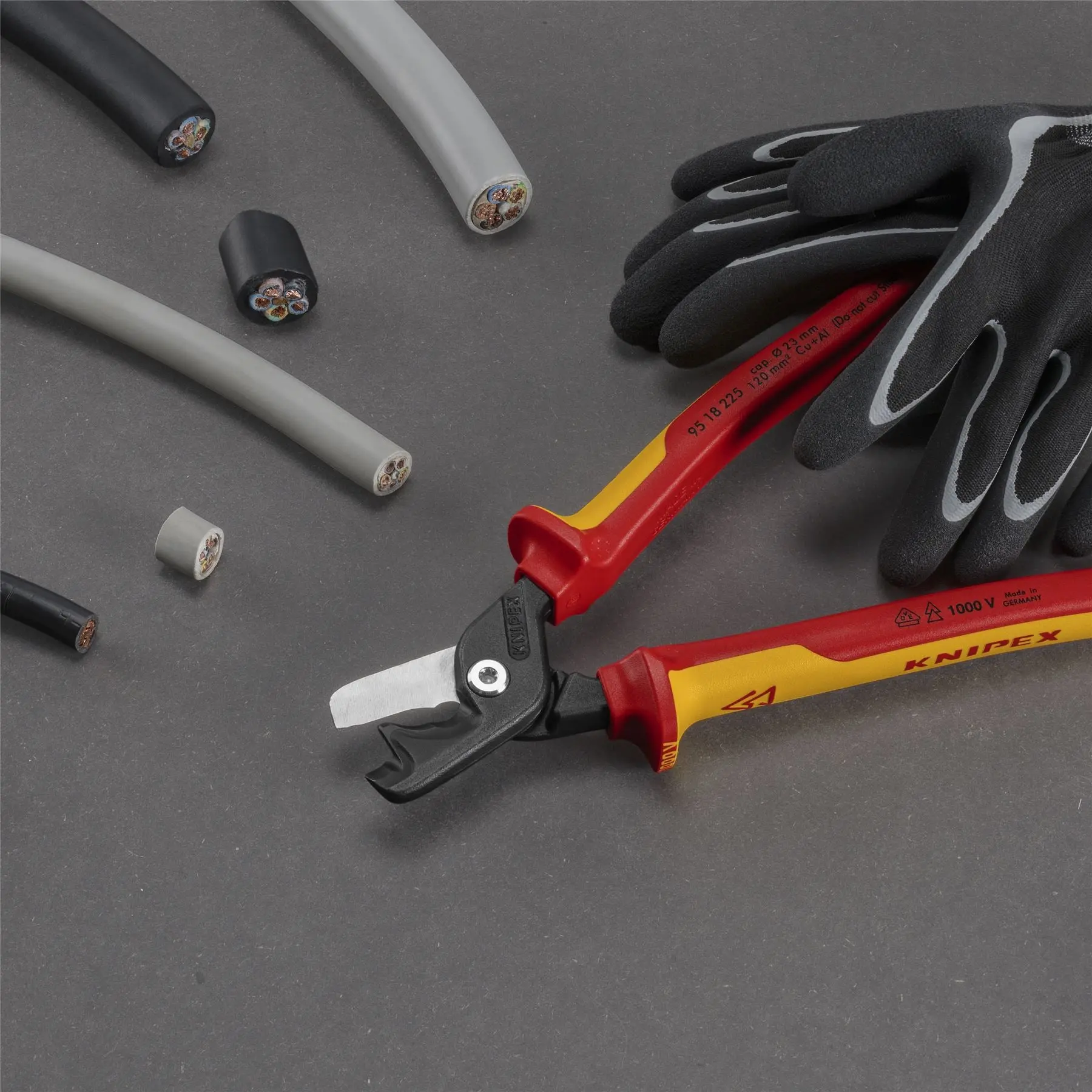

KNIPEX StepCut XL Cable Shears Cutting Pliers 225mm VDE Insulated 1000V 95 18 225 SB

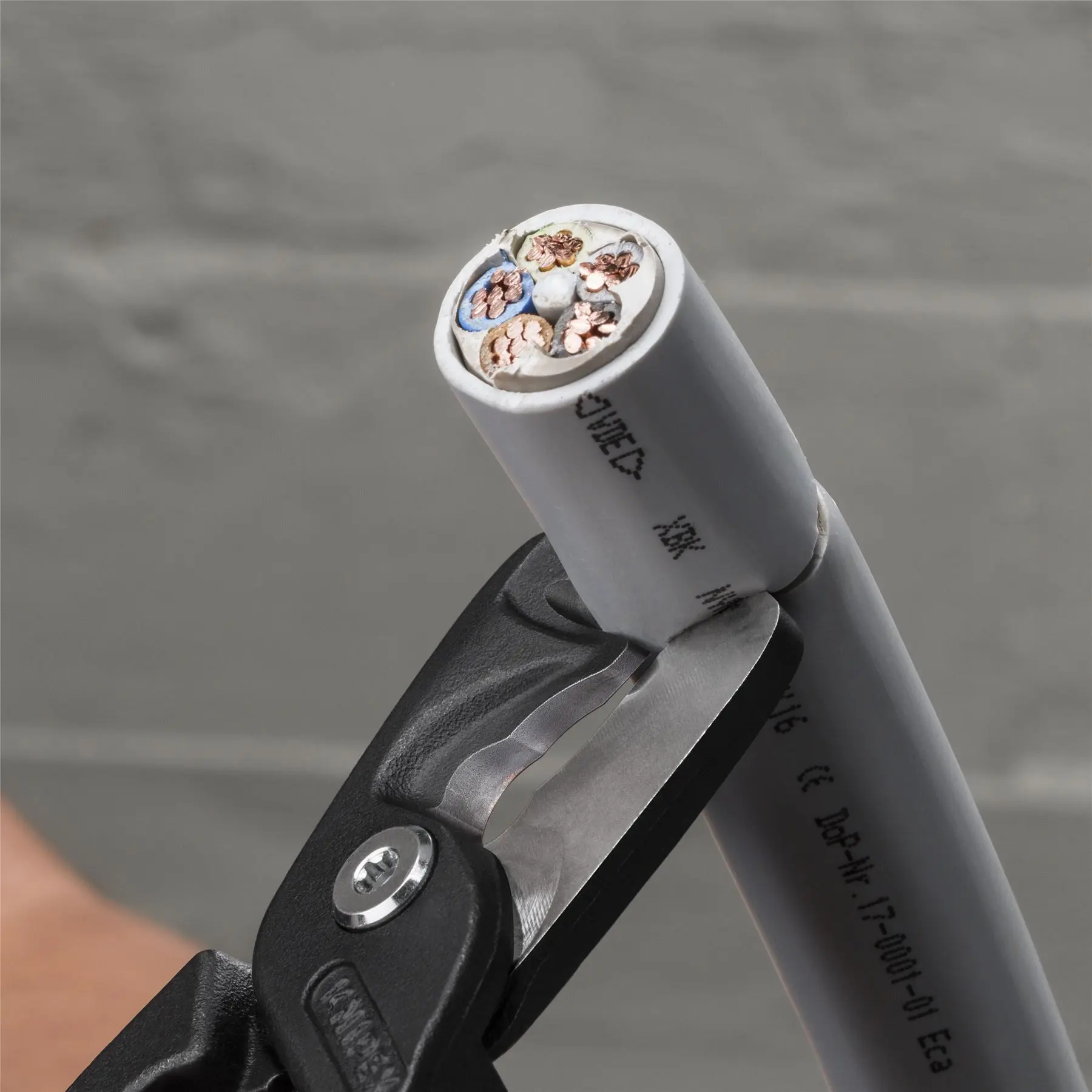

95 18 225 SB KNIPEX StepCut® XL High-leverage joint, long handles and optimised cutting edges: noticeably easier cutting than with compact cable shears. Large cutting capacity: cuts solid copper or aluminium cables up to 35 mm², stranded cables up to 70 mm²and fine stranded cables up to 120 mm². Dual cutting areas: Stepped cutting edge holds small and larger cables close to the joint during the cut; the front cutting edge cuts very large cables step by step. Easy one- or two-handed operation with minimum handle opening for large cable diameters. Adjustable, high-leverage bolted joint provides precise and smooth cutting. Slim head for easier accessibility. Pinch guard prevents operators' fingers being pinched. Not suitable for steel-reinforced cables, e.g. ACSR. Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC. Technical Information:

• Easy one- or two-handed operation with minimum handle opening for large cable diameters
• Adjustable, high-leverage bolted joint provides precise and smooth cutting
• Slim head for easier accessibility
• Pinch guard prevents operators' fingers being pinched
• Not suitable for steel-reinforced cables, e.g. ACSR
• Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC
