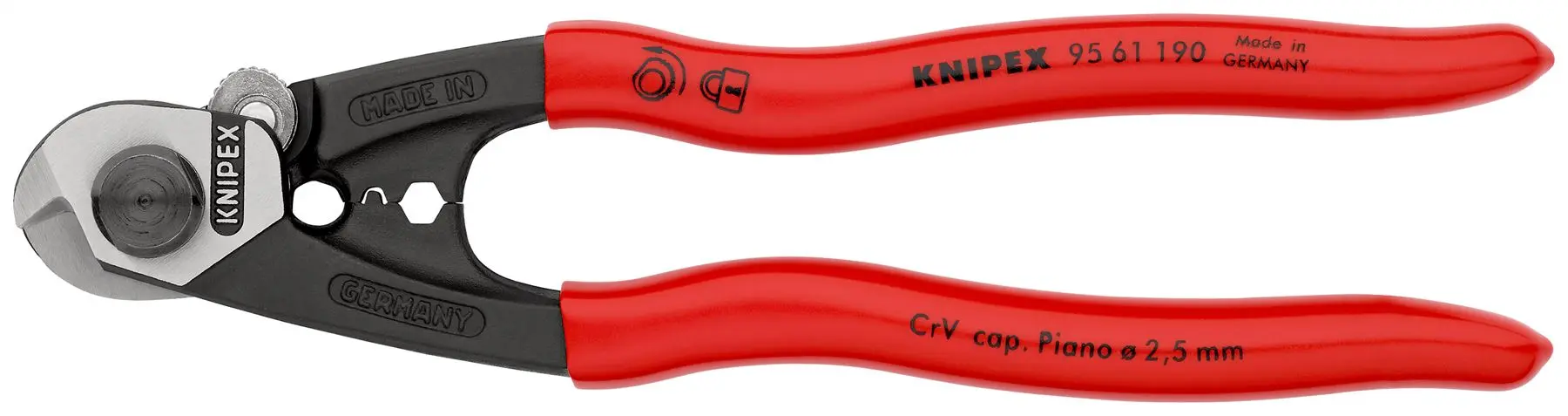

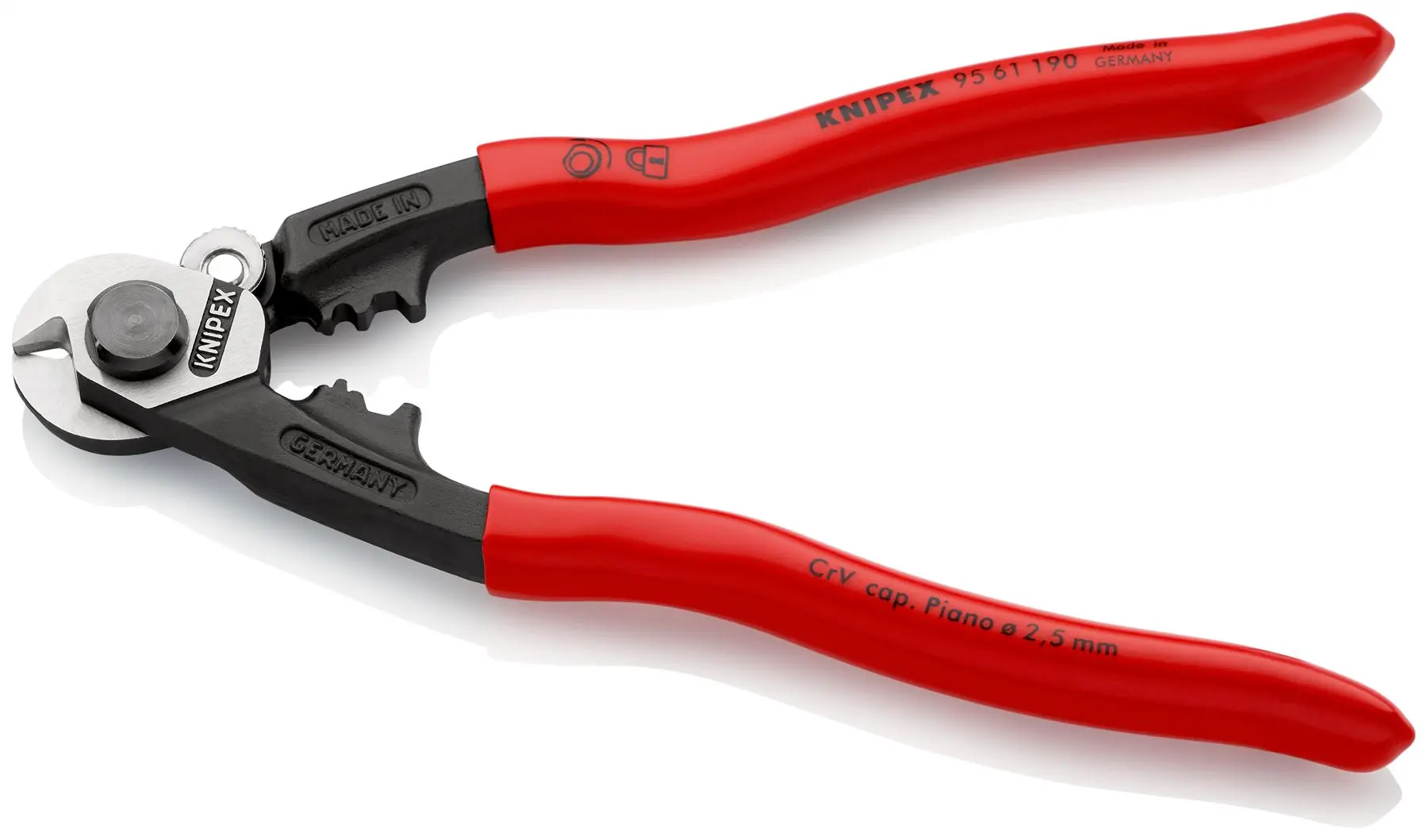

KNIPEX Wire Rope Cutter Forged 190mm Plastic Coated Handles 95 61 190 SB




KNIPEX Wire Rope Cutter Forged 190mm Plastic Coated Handles 95 61 190 SB

95 61 190 SB Wire Rope Cutter

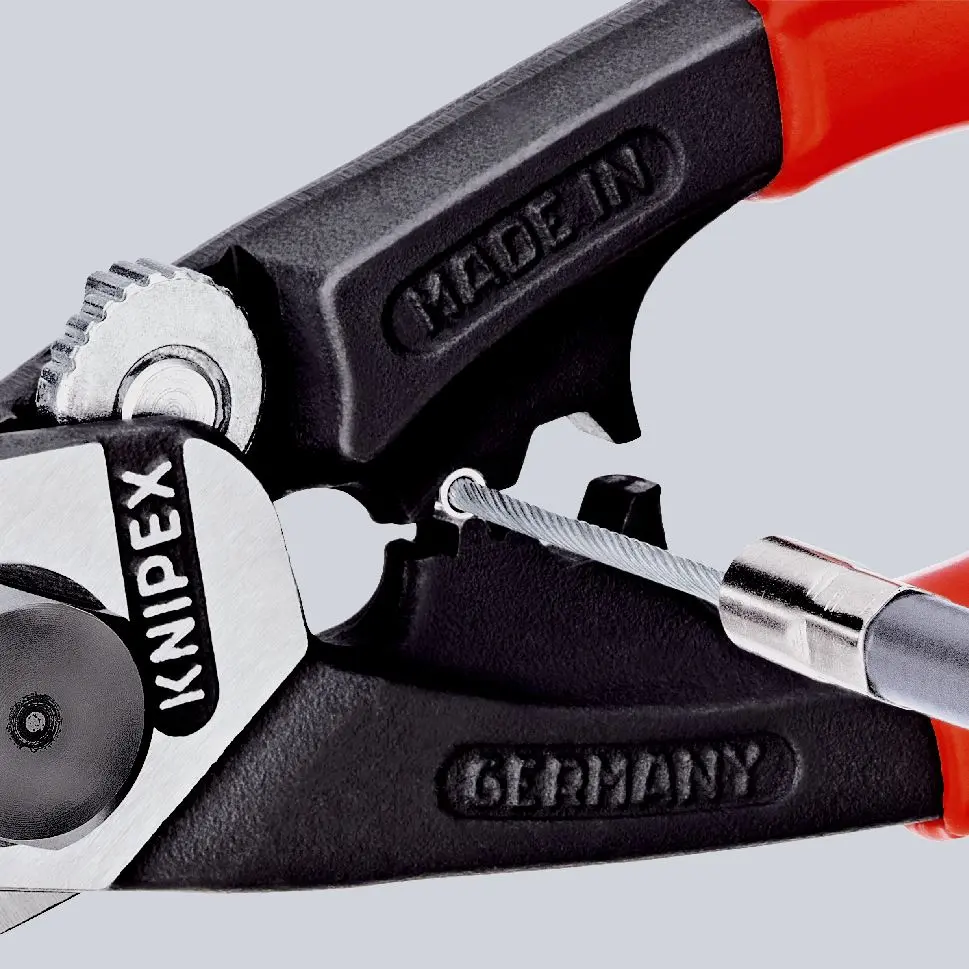

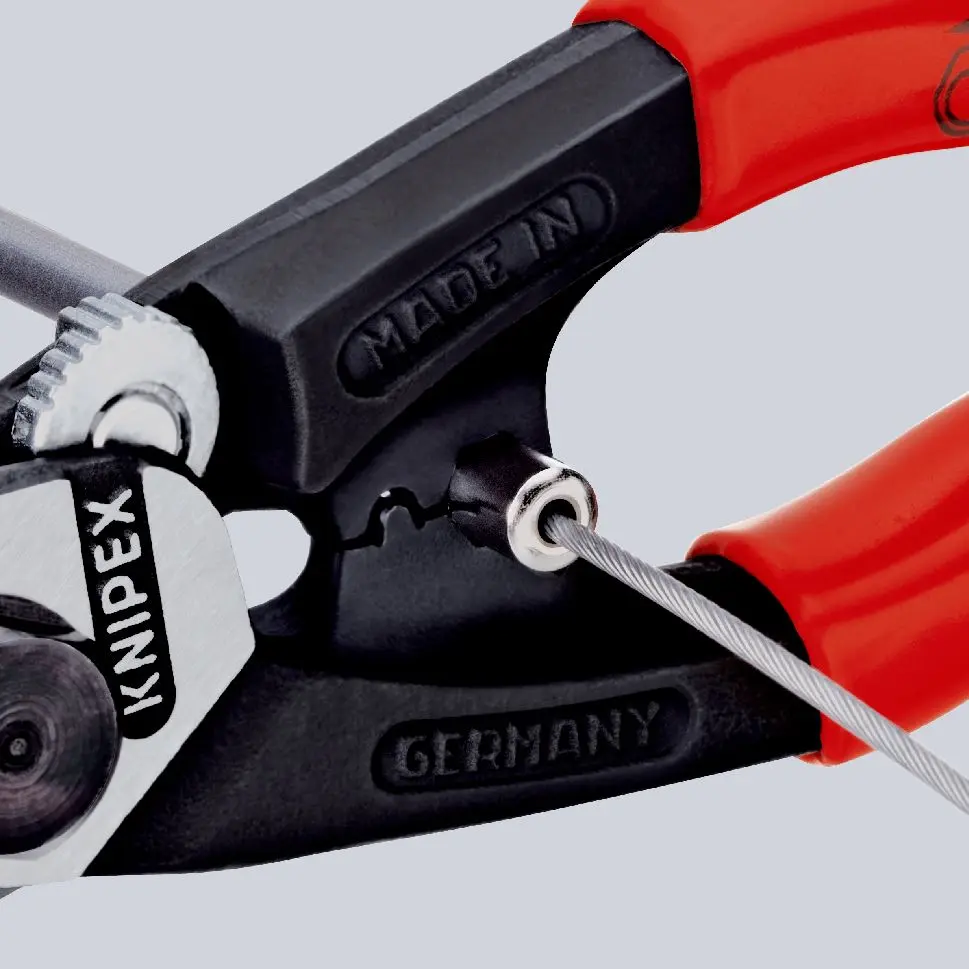

With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables. Comfortable work thanks to handy, slim design and internal opening spring. Bolted joint for precise blade guidance, re-adjustable. High leverage for reduced effort. Cutting edge hardness approx. 64 HRC. self-service card/blister.

  • Cutting capacity copper cable, multiple-stranded: 10 mm²
  • Cutting capacity copper cable, multiple-stranded (diameter): Ø 7.0 mm
  • Cutting capacity copper cable, fine-stranded (diameter): Ø 6.0 mm

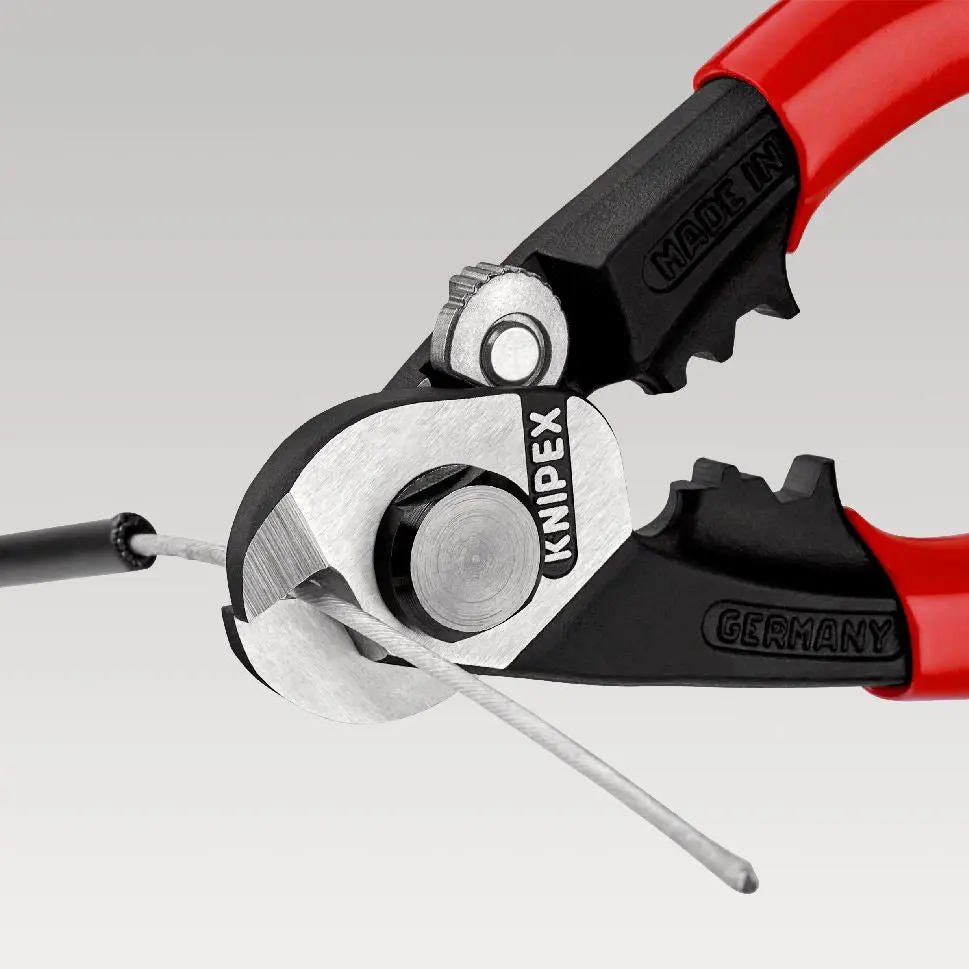

  • Cutting capacities wire rope (diameter): Ø 5.0 mm
  • Cutting capacities medium hard wire (diameter): Ø 4.0 mm
  • Cutting capacities piano wire (diameter): Ø 2.5 mm
  • Cutting capacites iron (diameter): Ø 4 mm
  • AWG: 8


    • Technical Information:
    • bolted joint for precise blade guidance, re-adjustable
    • comfortable work thanks to handy, slim design and internal opening spring
    • cutting edge hardness approx. 64 HRC
    • high leverage for reduced effort
    • with two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables

    Downloadable Files:
    • Data Sheet: View Here




    KNIPEX Wire Rope Cutter Forged 190mm Plastic Coated Handles 95 61 190 SB

    95 61 190 SB Wire Rope Cutter
    With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables. Comfortable work thanks to handy, slim design and internal opening spring. Bolted joint for precise blade guidance, re-adjustable. High leverage for reduced effort. Cutting edge hardness approx. 64 HRC. self-service card/blister.

  • Cutting capacity copper cable, multiple-stranded: 10 mm²
  • Cutting capacity copper cable, multiple-stranded (diameter): Ø 7.0 mm
  • Cutting capacity copper cable, fine-stranded (diameter): Ø 6.0 mm
  • Cutting capacities wire rope (diameter): Ø 5.0 mm
  • Cutting capacities medium hard wire (diameter): Ø 4.0 mm
  • Cutting capacities piano wire (diameter): Ø 2.5 mm
  • Cutting capacites iron (diameter): Ø 4 mm
  • AWG: 8


    • Technical Information:
    • bolted joint for precise blade guidance, re-adjustable
    • comfortable work thanks to handy, slim design and internal opening spring
    • cutting edge hardness approx. 64 HRC
    • high leverage for reduced effort
    • with two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables

    Downloadable Files:
    • Data Sheet: View Here

    $23.22

    Original: $66.35

    -65%
    KNIPEX Wire Rope Cutter Forged 190mm Plastic Coated Handles 95 61 190 SB—

    $66.35

    $23.22

    Description




    KNIPEX Wire Rope Cutter Forged 190mm Plastic Coated Handles 95 61 190 SB

    95 61 190 SB Wire Rope Cutter
    With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables. Comfortable work thanks to handy, slim design and internal opening spring. Bolted joint for precise blade guidance, re-adjustable. High leverage for reduced effort. Cutting edge hardness approx. 64 HRC. self-service card/blister.

  • Cutting capacity copper cable, multiple-stranded: 10 mm²
  • Cutting capacity copper cable, multiple-stranded (diameter): Ø 7.0 mm
  • Cutting capacity copper cable, fine-stranded (diameter): Ø 6.0 mm
  • Cutting capacities wire rope (diameter): Ø 5.0 mm
  • Cutting capacities medium hard wire (diameter): Ø 4.0 mm
  • Cutting capacities piano wire (diameter): Ø 2.5 mm
  • Cutting capacites iron (diameter): Ø 4 mm
  • AWG: 8


    • Technical Information:
    • bolted joint for precise blade guidance, re-adjustable
    • comfortable work thanks to handy, slim design and internal opening spring
    • cutting edge hardness approx. 64 HRC
    • high leverage for reduced effort
    • with two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables

    Downloadable Files:
    • Data Sheet: View Here
