Knipex Wire Rope Cutters Forged Cutting Pliers Polished Head up to 7mm Capacity 190mm 95 61 190

Product image 1
1 / 8
+3

Knipex Wire Rope Cutters Forged Cutting Pliers Polished Head up to 7mm Capacity 190mm 95 61 190




KNIPEX Wire Rope Cutters Forged Cutting Pliers Polished Head up to 7mm Capacity 190mm 95 61 190

95 61 190 Wire Rope Cutter
With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables. Comfortable work thanks to handy, slim design and internal opening spring. Bolted joint for precise blade guidance, re-adjustable. High leverage for reduced effort. Cutting edge hardness approx. 64 HRC.

  • Cutting capacity copper cable, multiple-stranded: 10 mm²
  • Cutting capacity copper cable, multiple-stranded (diameter): Ø 7.0 mm
  • Cutting capacity copper cable, fine-stranded (diameter): Ø 6.0 mm
  • Cutting capacities wire rope (diameter): Ø 5.0 mm
  • Cutting capacities medium hard wire (diameter): Ø 4.0 mm
  • Cutting capacities piano wire (diameter): Ø 2.5 mm
  • Cutting capacites iron (diameter): Ø 4 mm
  • AWG: 8


    • Technical Information:
    • bolted joint for precise blade guidance, re-adjustable
    • Comfortable work thanks to handy, slim design and internal opening spring
    • cutting edge hardness approx. 64 HRC
    • High leverage for reduced effort

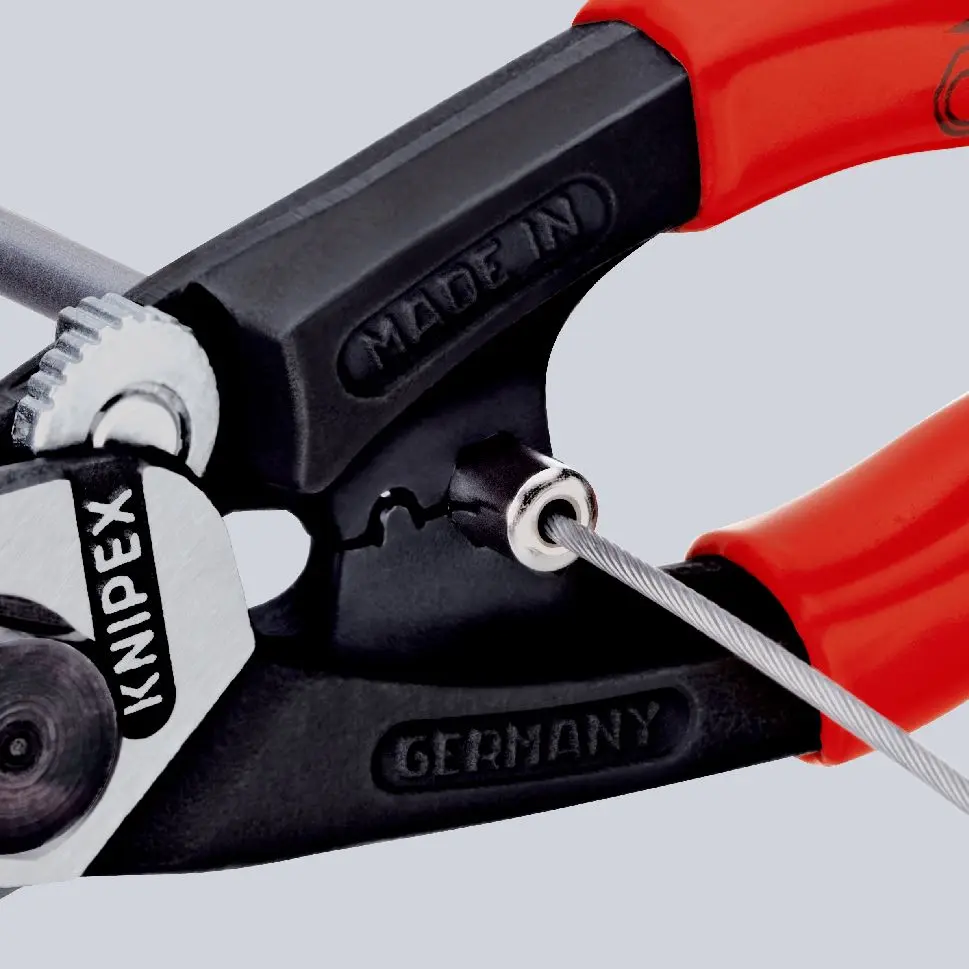

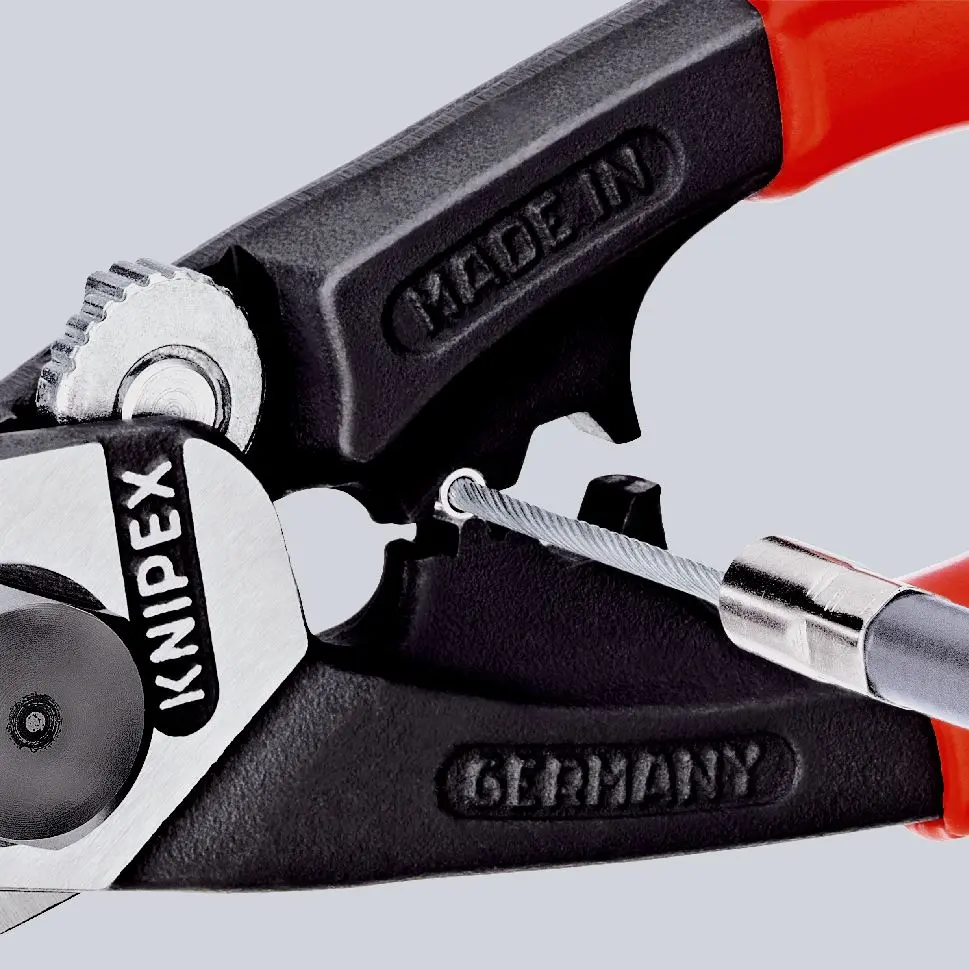

    • with two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables

    Downloadable Files:
    • Data Sheet: View Here




    KNIPEX Wire Rope Cutters Forged Cutting Pliers Polished Head up to 7mm Capacity 190mm 95 61 190

    95 61 190 Wire Rope Cutter
    With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables. Comfortable work thanks to handy, slim design and internal opening spring. Bolted joint for precise blade guidance, re-adjustable. High leverage for reduced effort. Cutting edge hardness approx. 64 HRC.

  • Cutting capacity copper cable, multiple-stranded: 10 mm²
  • Cutting capacity copper cable, multiple-stranded (diameter): Ø 7.0 mm
  • Cutting capacity copper cable, fine-stranded (diameter): Ø 6.0 mm
  • Cutting capacities wire rope (diameter): Ø 5.0 mm
  • Cutting capacities medium hard wire (diameter): Ø 4.0 mm
  • Cutting capacities piano wire (diameter): Ø 2.5 mm
  • Cutting capacites iron (diameter): Ø 4 mm
  • AWG: 8


    • Technical Information:
    • bolted joint for precise blade guidance, re-adjustable
    • Comfortable work thanks to handy, slim design and internal opening spring
    • cutting edge hardness approx. 64 HRC
    • High leverage for reduced effort
    • with two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables

    Downloadable Files:
    • Data Sheet: View Here

    $63.64
    Knipex Wire Rope Cutters Forged Cutting Pliers Polished Head up to 7mm Capacity 190mm 95 61 190—
    $63.64

    Description




    KNIPEX Wire Rope Cutters Forged Cutting Pliers Polished Head up to 7mm Capacity 190mm 95 61 190

    95 61 190 Wire Rope Cutter
    With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables. Comfortable work thanks to handy, slim design and internal opening spring. Bolted joint for precise blade guidance, re-adjustable. High leverage for reduced effort. Cutting edge hardness approx. 64 HRC.

  • Cutting capacity copper cable, multiple-stranded: 10 mm²
  • Cutting capacity copper cable, multiple-stranded (diameter): Ø 7.0 mm
  • Cutting capacity copper cable, fine-stranded (diameter): Ø 6.0 mm
  • Cutting capacities wire rope (diameter): Ø 5.0 mm
  • Cutting capacities medium hard wire (diameter): Ø 4.0 mm
  • Cutting capacities piano wire (diameter): Ø 2.5 mm
  • Cutting capacites iron (diameter): Ø 4 mm
  • AWG: 8


    • Technical Information:
    • bolted joint for precise blade guidance, re-adjustable
    • Comfortable work thanks to handy, slim design and internal opening spring
    • cutting edge hardness approx. 64 HRC
    • High leverage for reduced effort
    • with two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables

    Downloadable Files:
    • Data Sheet: View Here
