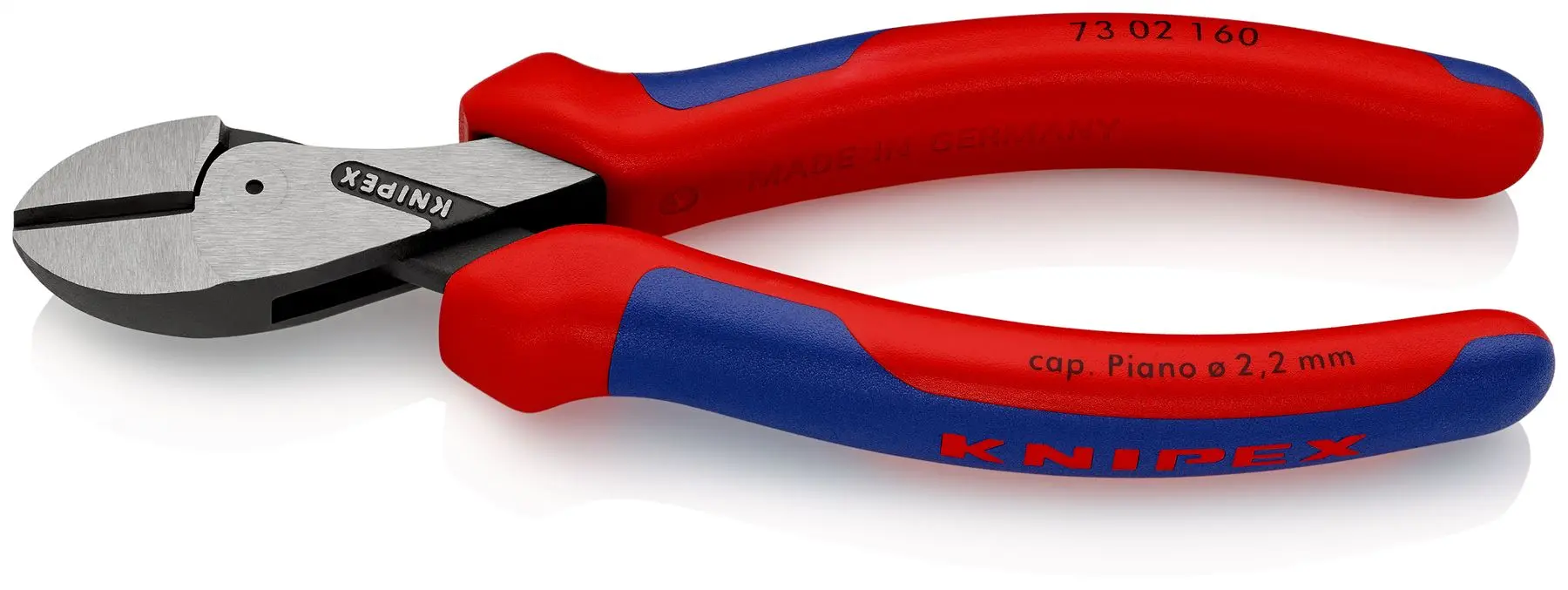

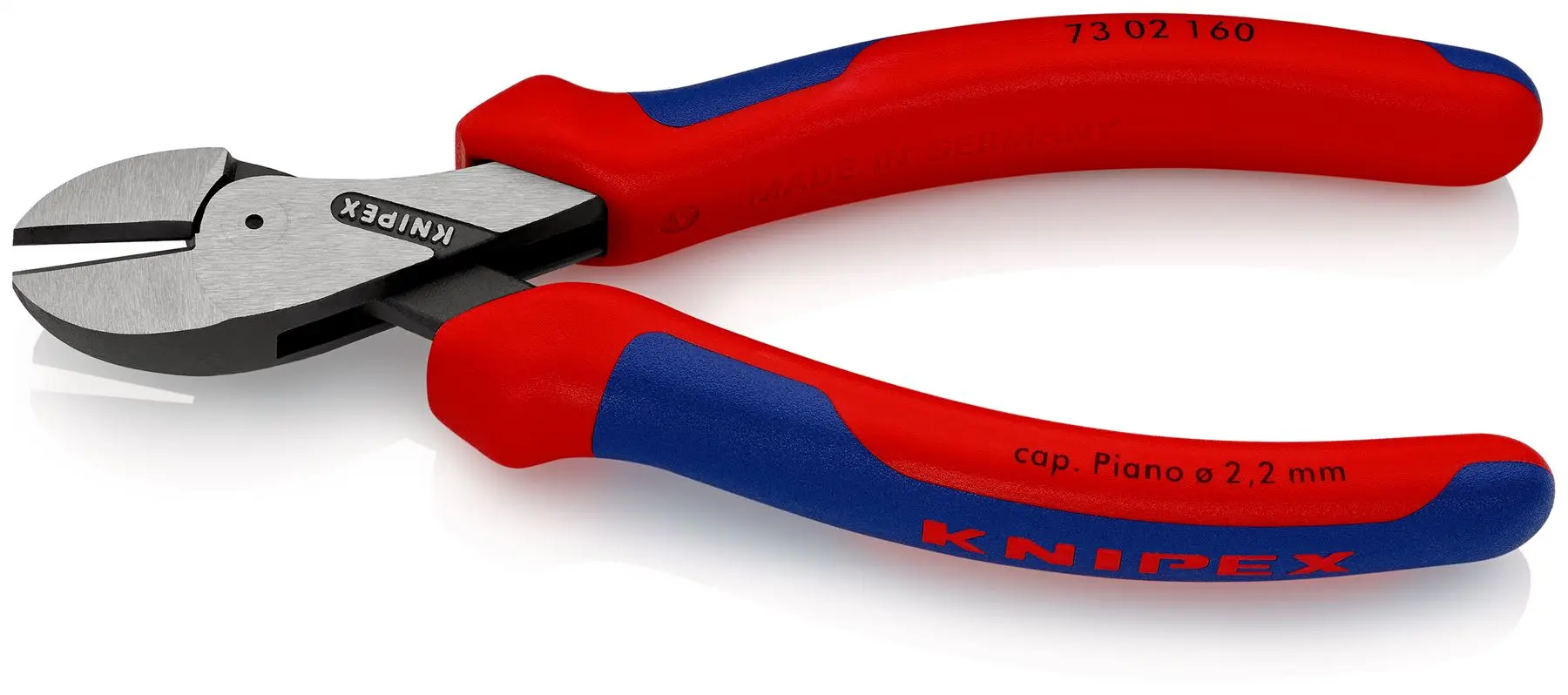

KNIPEX X-Cut Compact Diagonal Side Cutting Pliers 160mm Multi Component Grips 73 02 160 SB

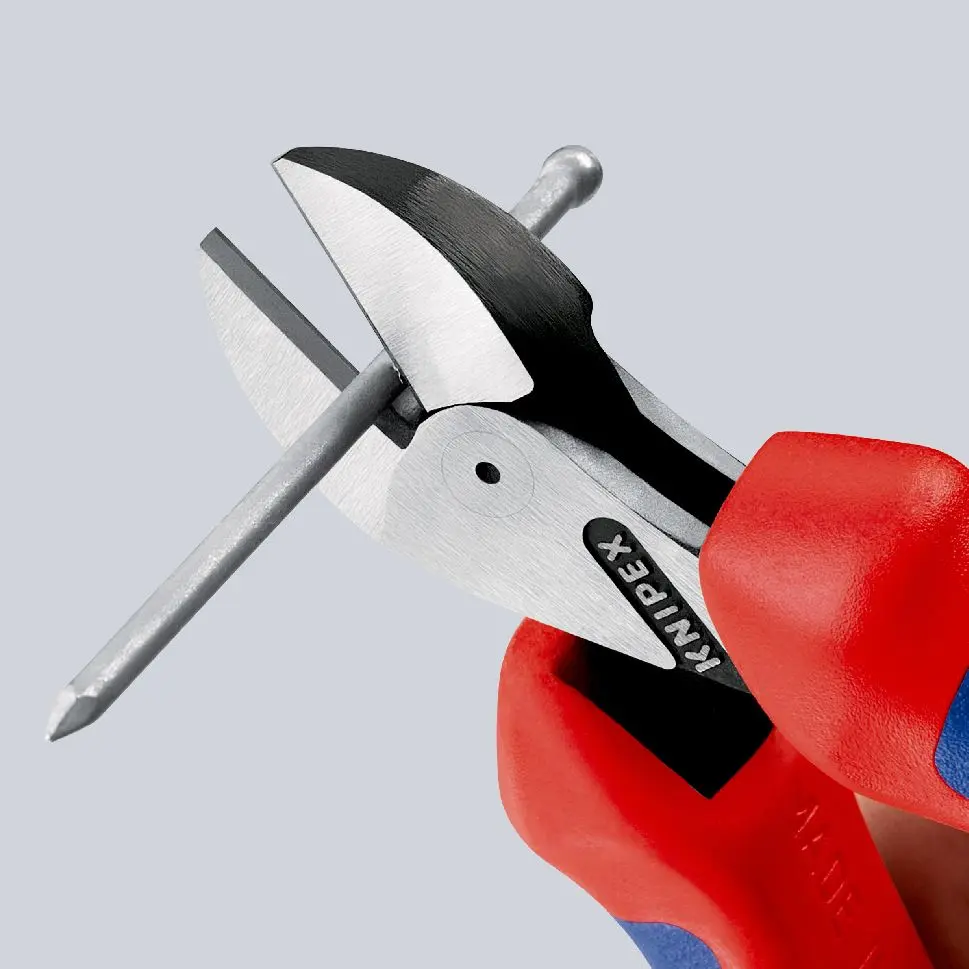

73 02 160 SB KNIPEX X-Cut® cuts finest strands as well as multi-core cables and piano wires. Powerful, light and universal. High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. Box-joint design: highest stability with low weight. Doubly supported joint axis for heavy duty. Large opening width for thicker cables. Cuts precisely, even through fine copper wires. Compact, low-weight construction. Universally usable, in the assembly, maintenance and production. 40% less force required compared with standard diagonal cutters of the same length.

Cutting capacities soft wire (diameter): Ø 4.8 mm

Cutting capacities medium hard wire (diameter): Ø 3.8 mm

Cutting capacities hard wire (diameter): Ø 2.7 mm

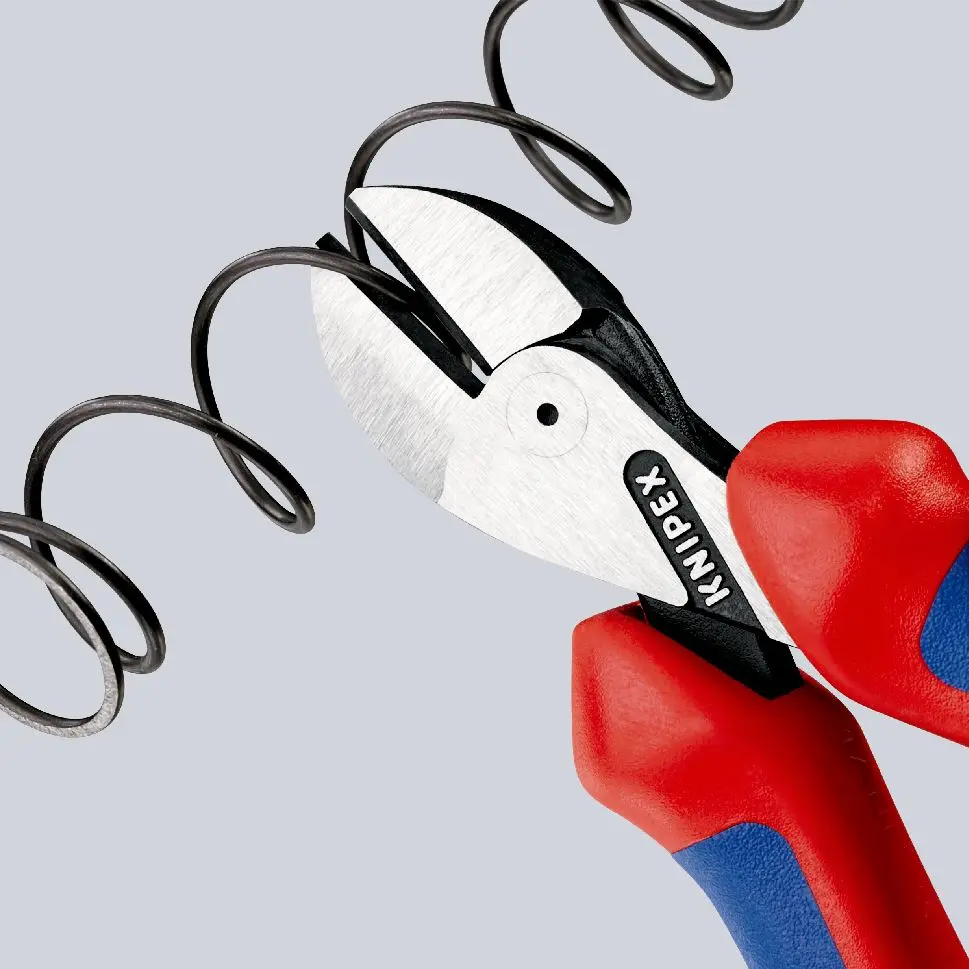

Cutting capacities piano wire (diameter): Ø 2.2 mm

Cutting capacity copper cable, multiple-stranded: Ø 12.0 mm

Technical Information:

• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Box-joint design: highest stability with low weight
• Doubly supported joint axis for heavy duty
• Large opening width for thicker cables
• Cuts precisely, even through fine copper wires
• Compact, low-weight construction
• Universally usable, in the assembly, maintenance and production
• 40% less force required compared with standard diagonal cutters of the same length

Downloadable Files:

• Data Sheet: View Here
