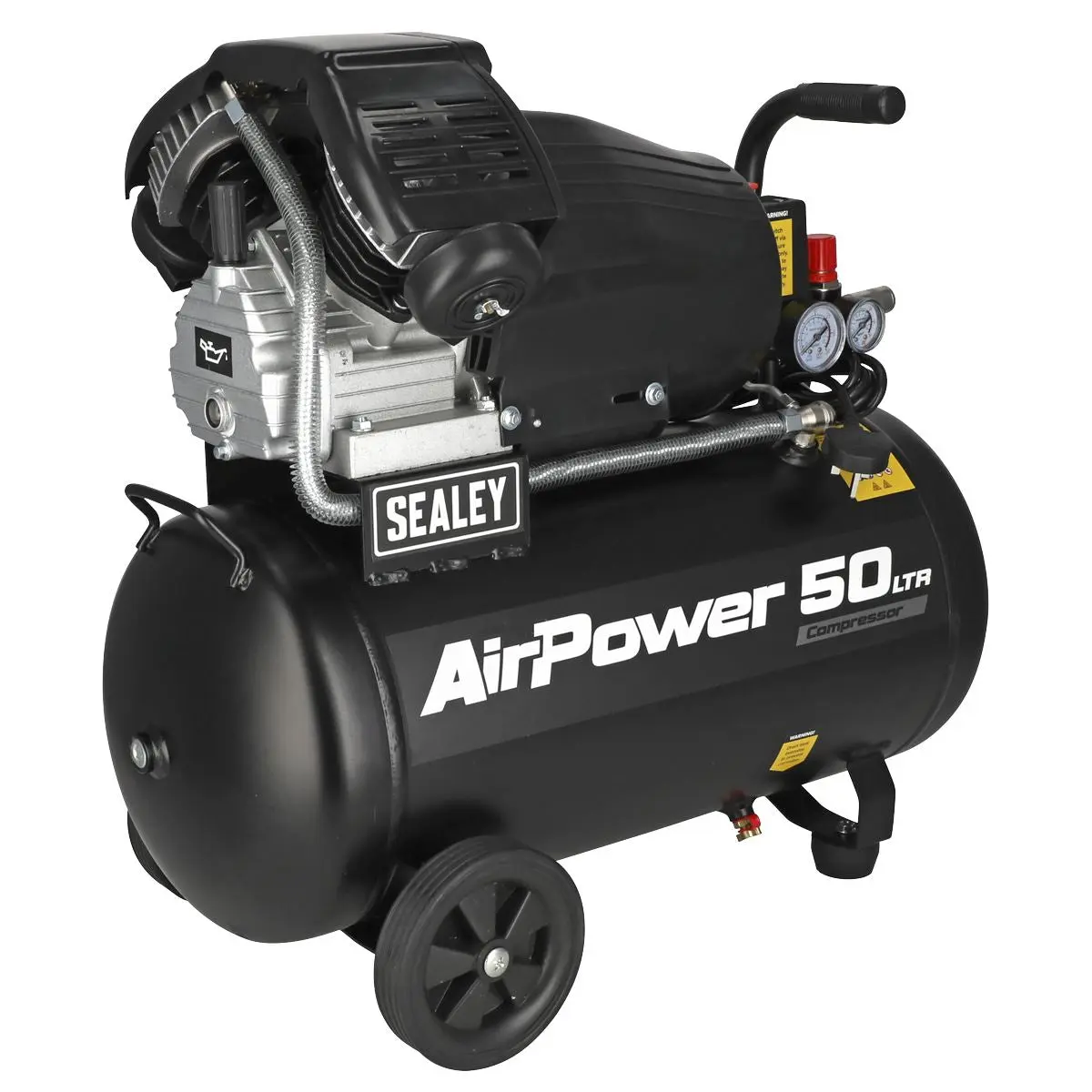

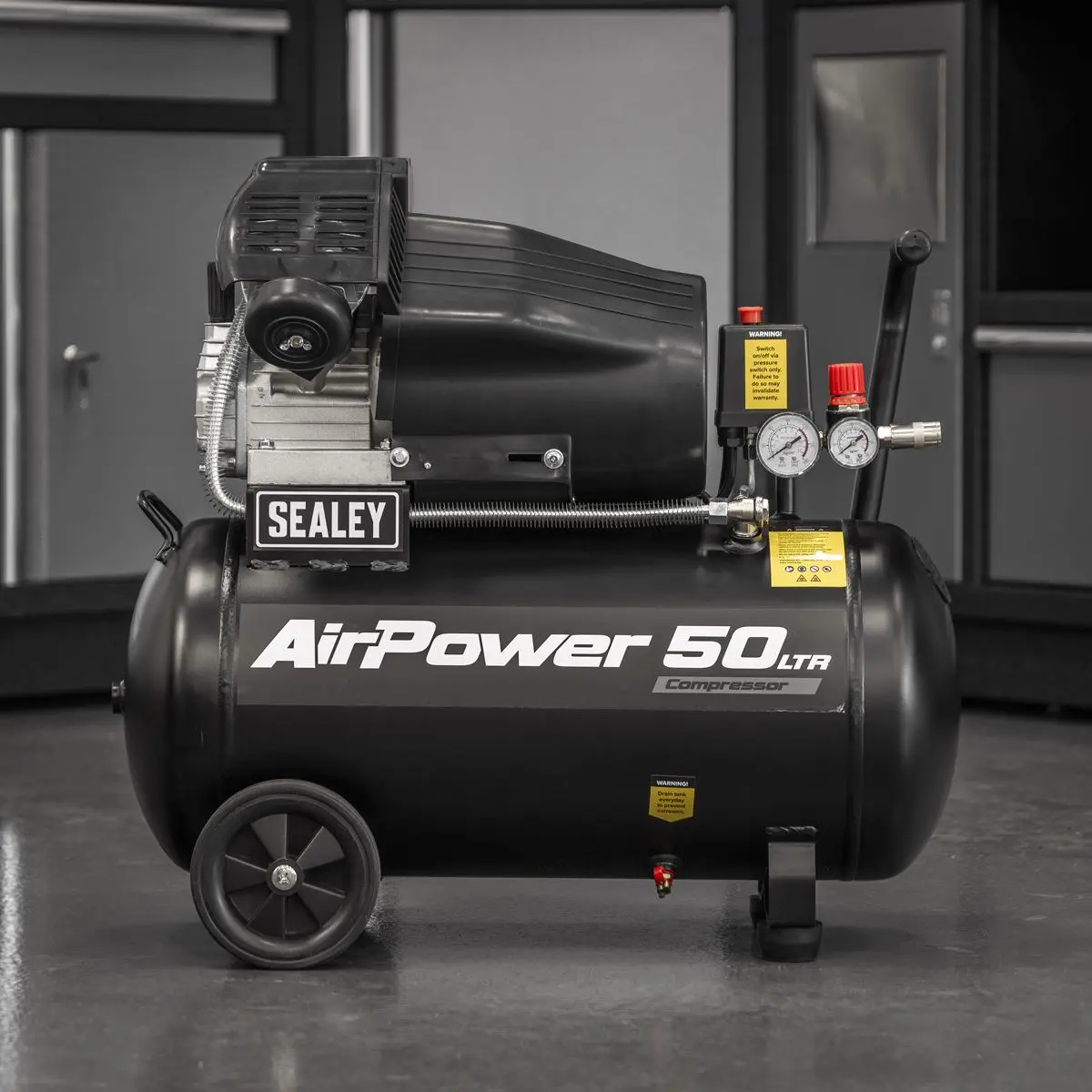

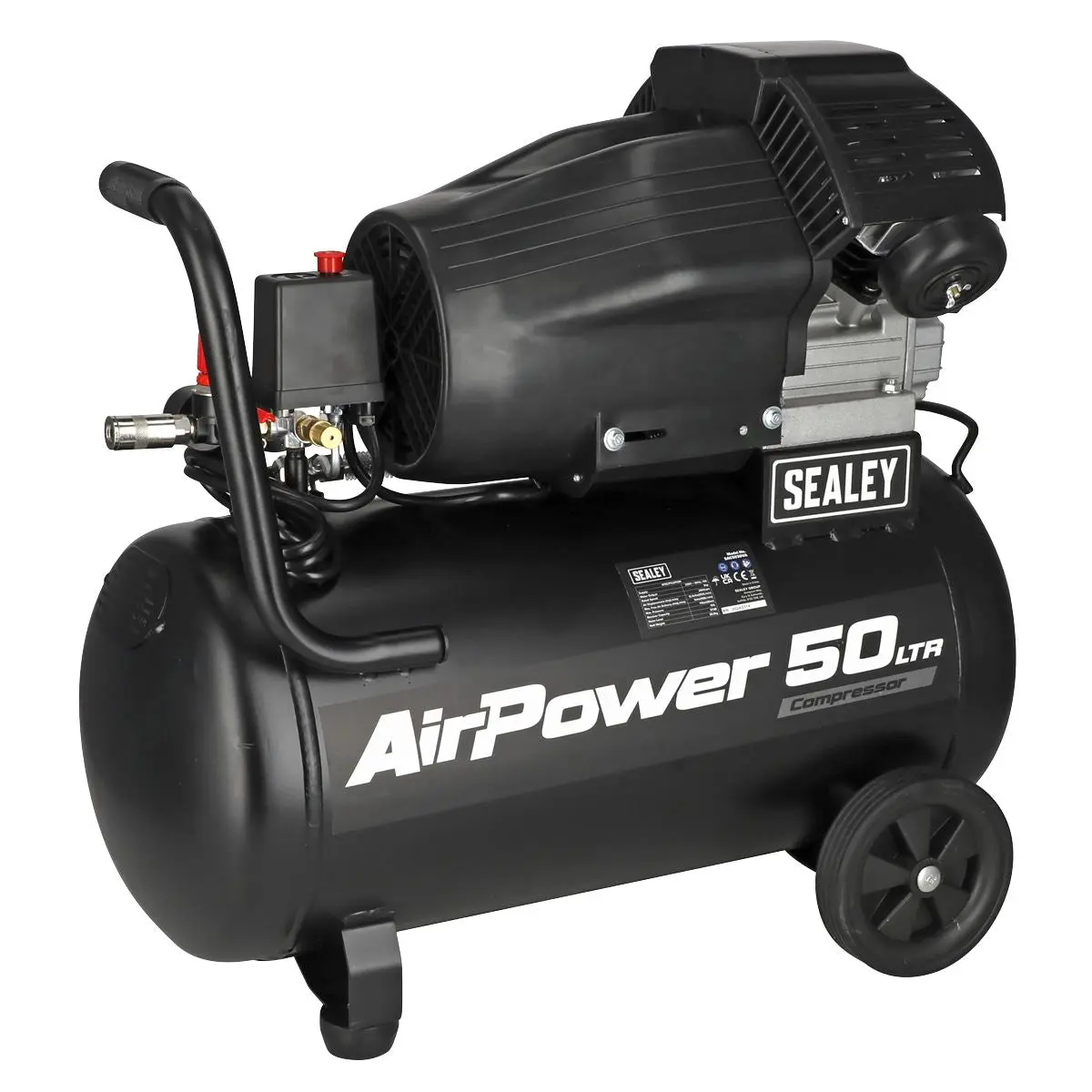

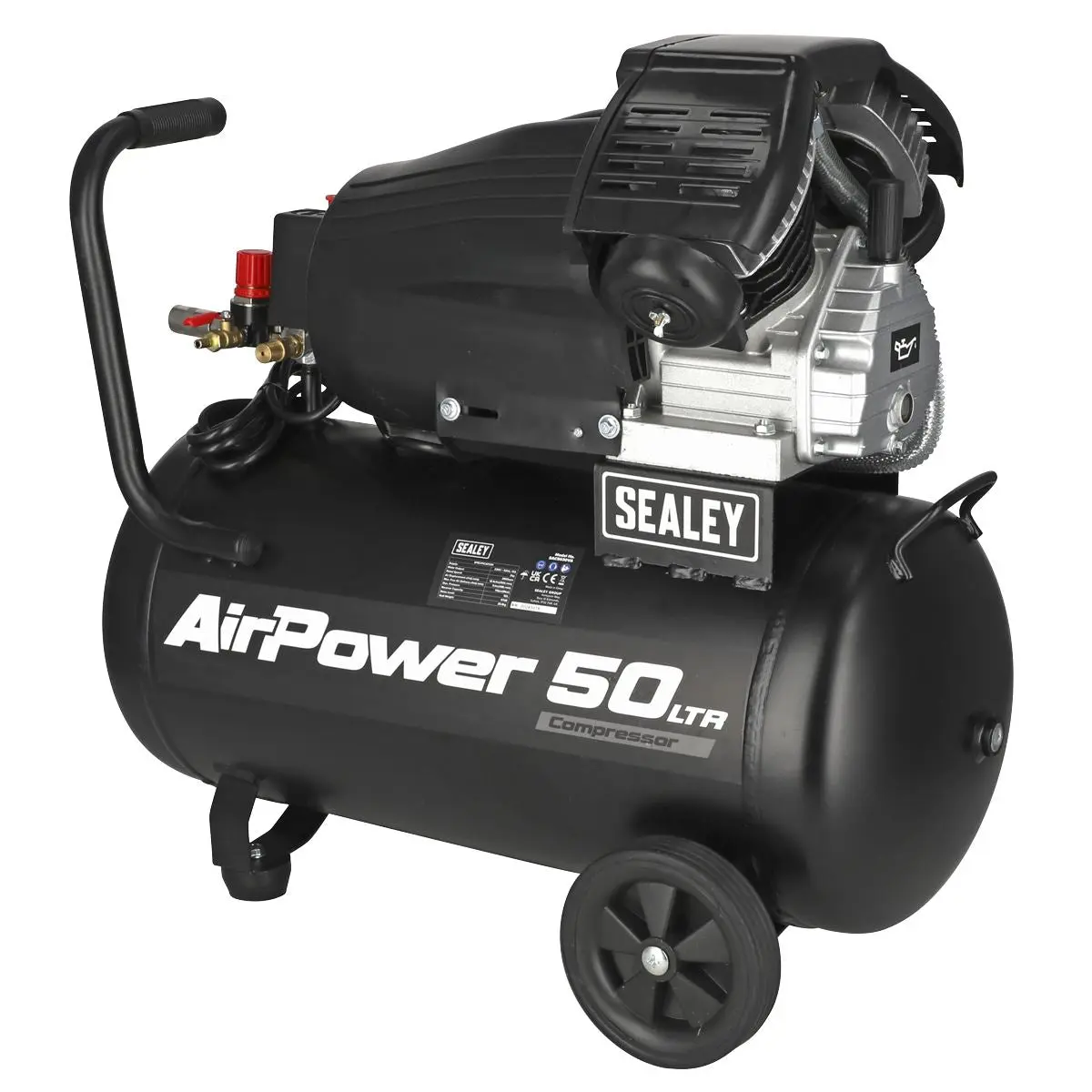

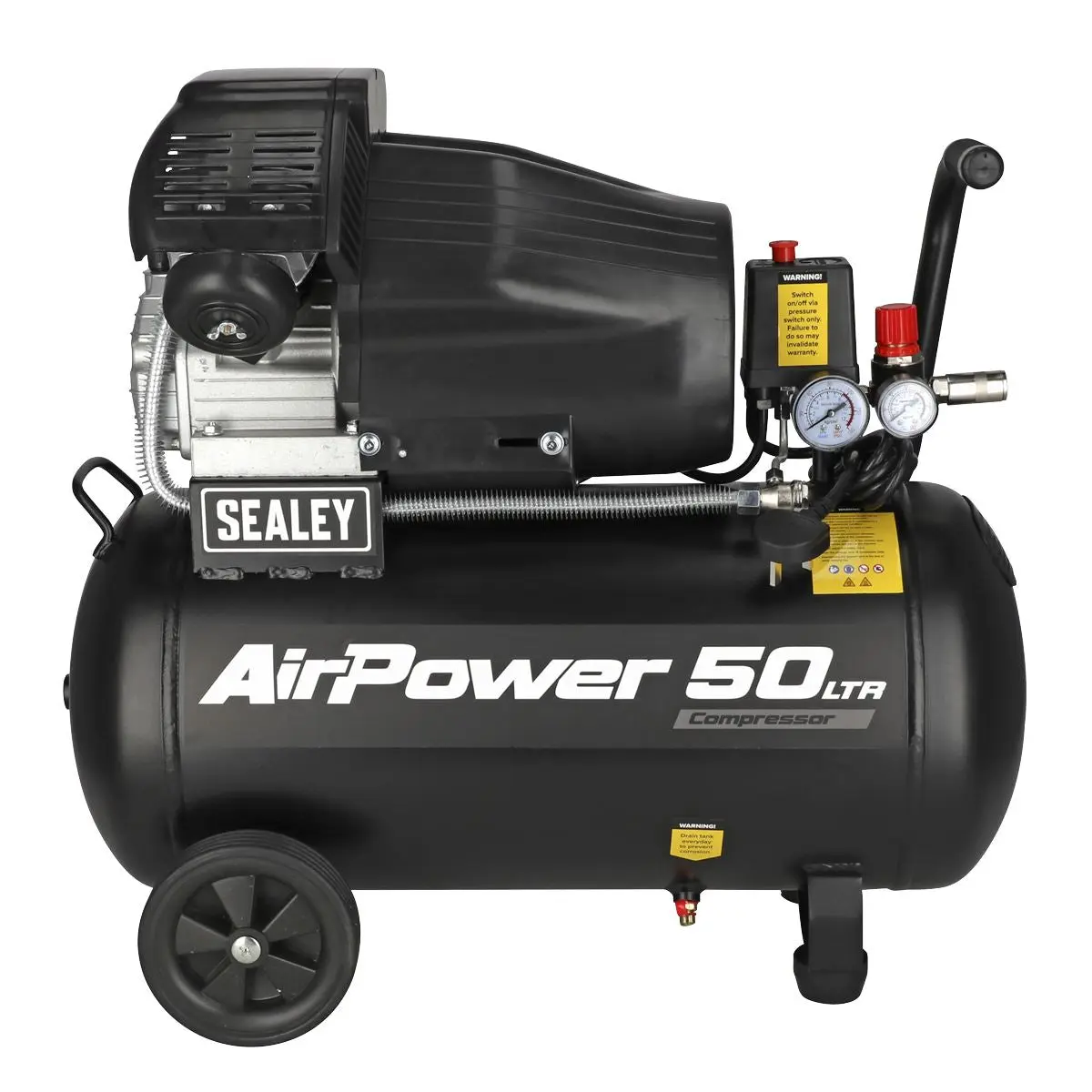

Sealey 50L V-Twin Direct Drive Air Compressor 3hp

ALUMINIUM CONSTRUCTION - V-Twin pump with aluminium cylinder head with cast iron cylinder gives added resistance to wear.

AUTOMATIC CUT-OUT- Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.

RELIABLE AND QUIET - Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.

HIGH QUALITY TANK - Precision welded receiver tank manufactured to meet Pressure Vessel Directive.

PERFECT FOR WORKSHOPS - Suitable for all general-purpose workshop applications.

Specification:

• Model No SAC5030VA
• Air Displacement cfm(L/min): 12.4cfm(350L/min)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 7cfm(198L/min)
• Maximum Pressure: 116psi(8bar)
• Minimum Rated Supply: 13A
• Motor Output: 3hp
• Nett Weight: 38.8kg
• Noise Level: 97dB
• Oil Capacity: 350ml
• Outlet: Quick Release Coupling
• Phase: 1ph
• Receiver Capacity: 50L
• Size (W x D x H): 705 x 335 x 610mm
• Supply: 230V/13A

Product Guarantee: 1 Year
Catalogue Page: Page 1173

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
