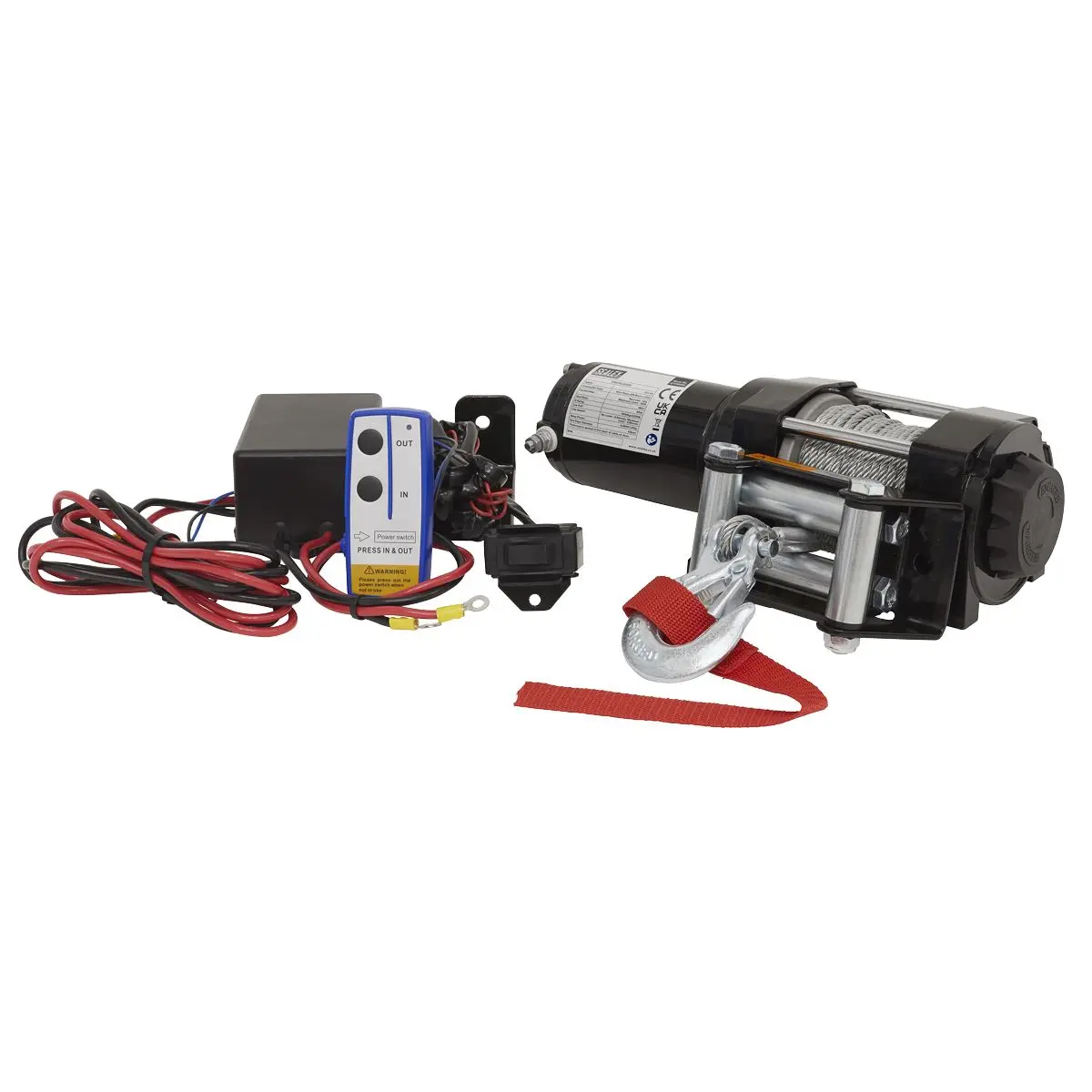

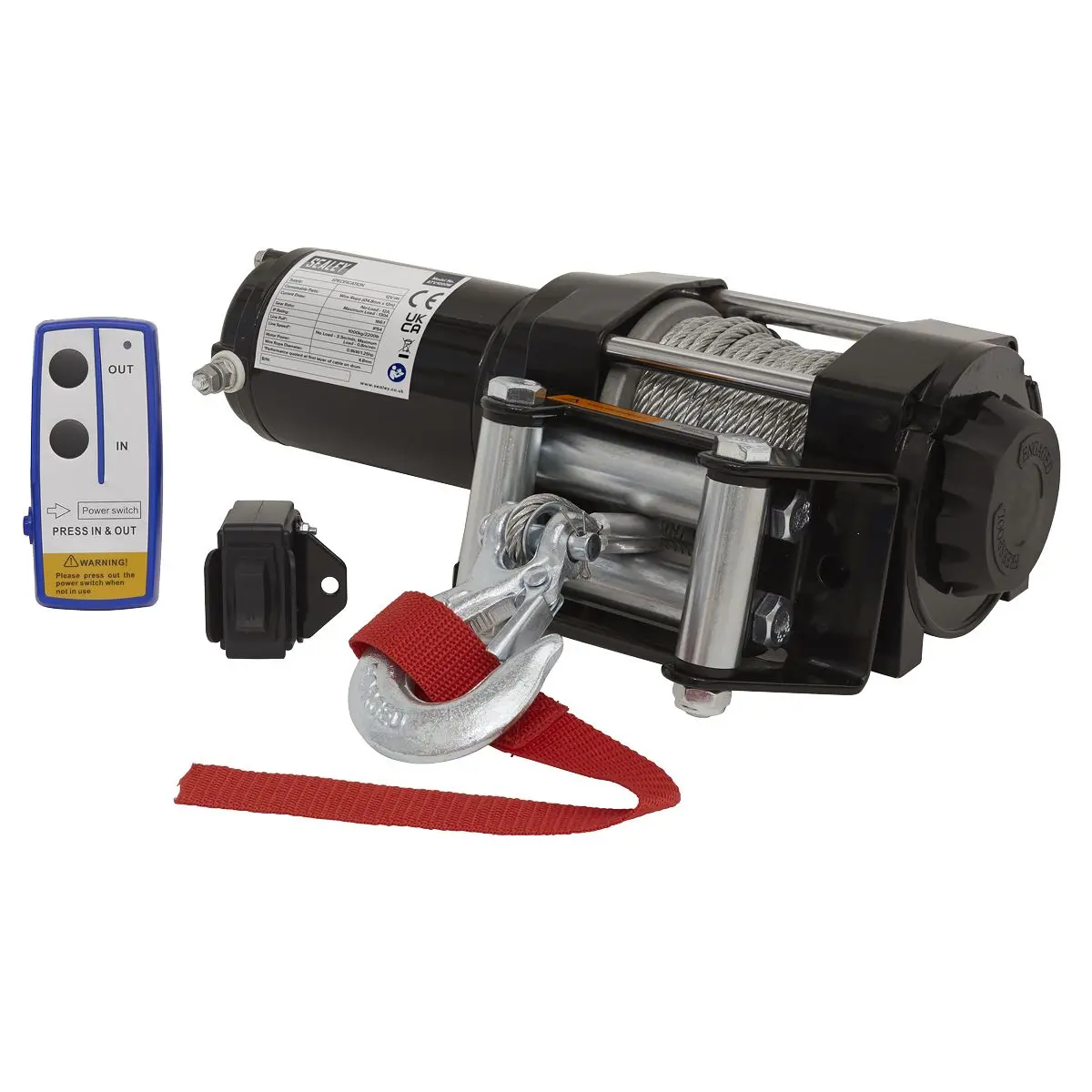

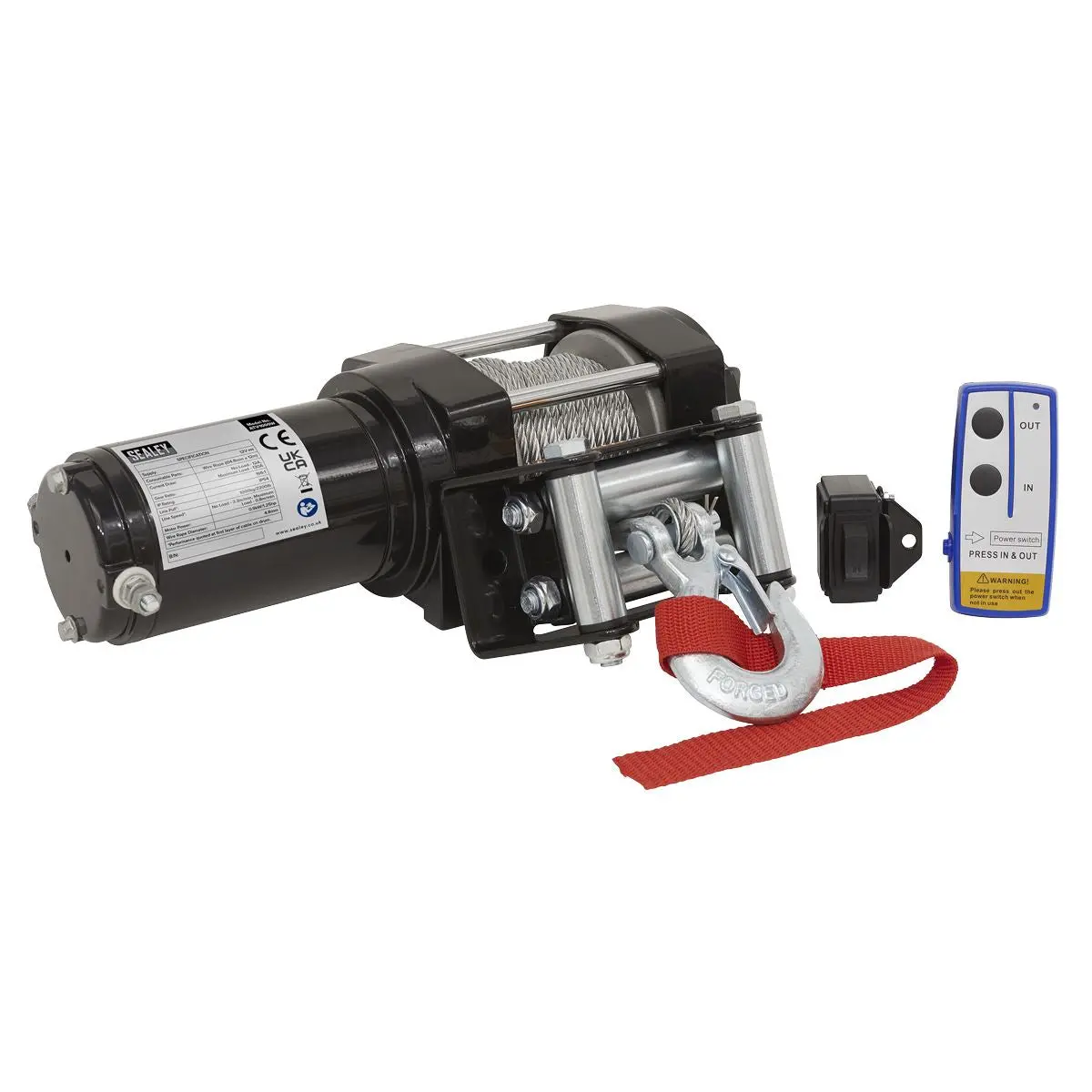

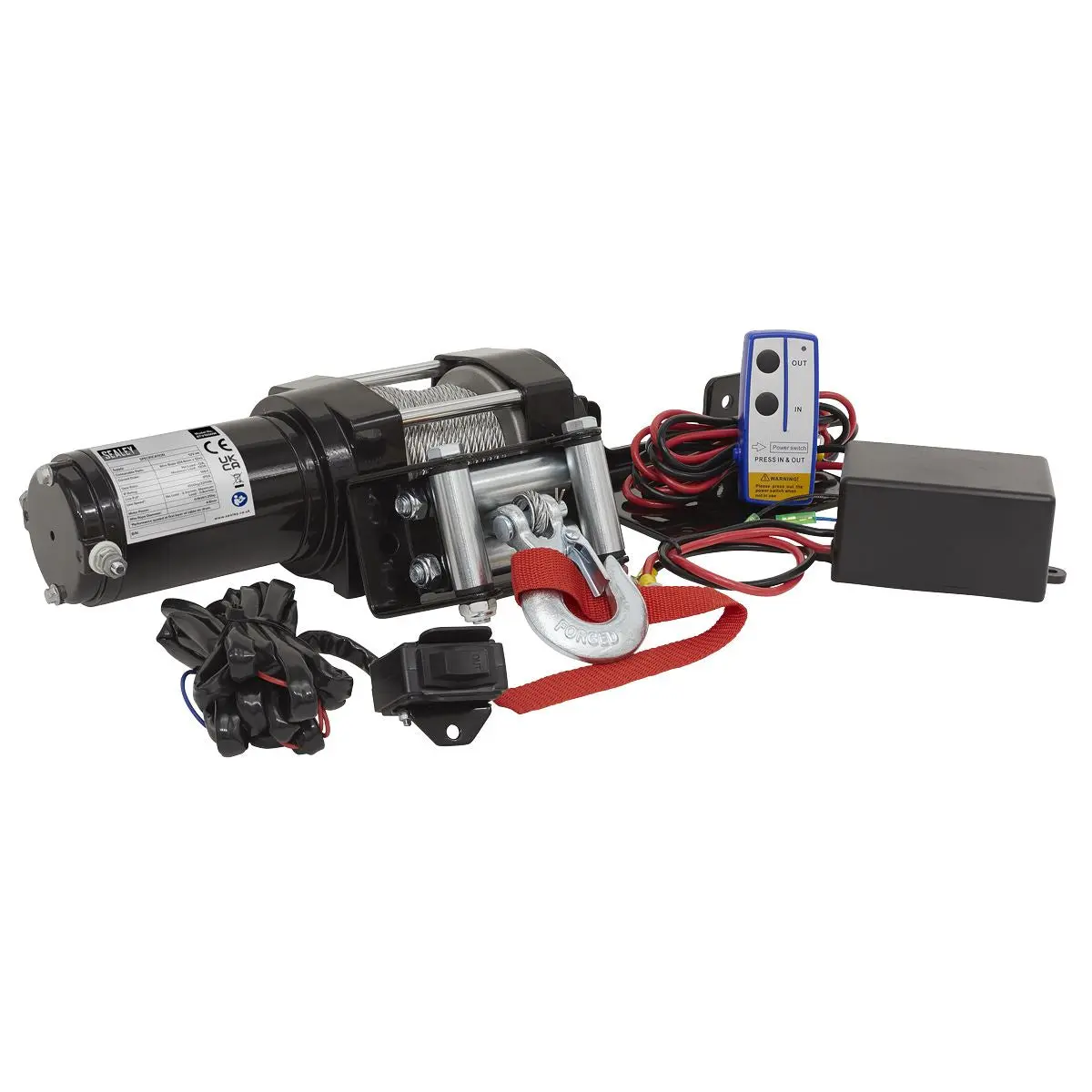

Sealey ATV Winch 1000kg Line Pull 12V

ATV – Perfect for mounting an ATV.

3-STAGE – Use a 3-Stage planetary gearing mechanism.

12 VOLT – 1.2hp Permanent magnet DC powered motor.

CLUTCH – Features a pull and turn clutch.

4-WAY – Roller fairlead for even distribution of cable onto the drum.

WIRELESS – Remote included for use at safe distances.

Specification:

• Model No ATV1000W
• Brand: Sealey
• Consumable Parts: Wire Rope (Ø4.8mm x 12m)
• Current Draw: No-Load - 12A, Maximum Load - 118A
• Gear Ratio: 166:1
• Line Pull*: 1000kg/2200lb
• Line Speed*: No Load - 3.3m/min, Maximum Load - 0.8m/min
• Motor Power: 0.9kW/1.25hp
• Nett Weight: 8.5kg
• Note: *Performance quoted at first layer of cable on drum.
• Supply: 12V
• Wire Rope Diameter: Ø4.8mm

Product Guarantee: 1 Year
Catalogue Page: Page 1458

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
