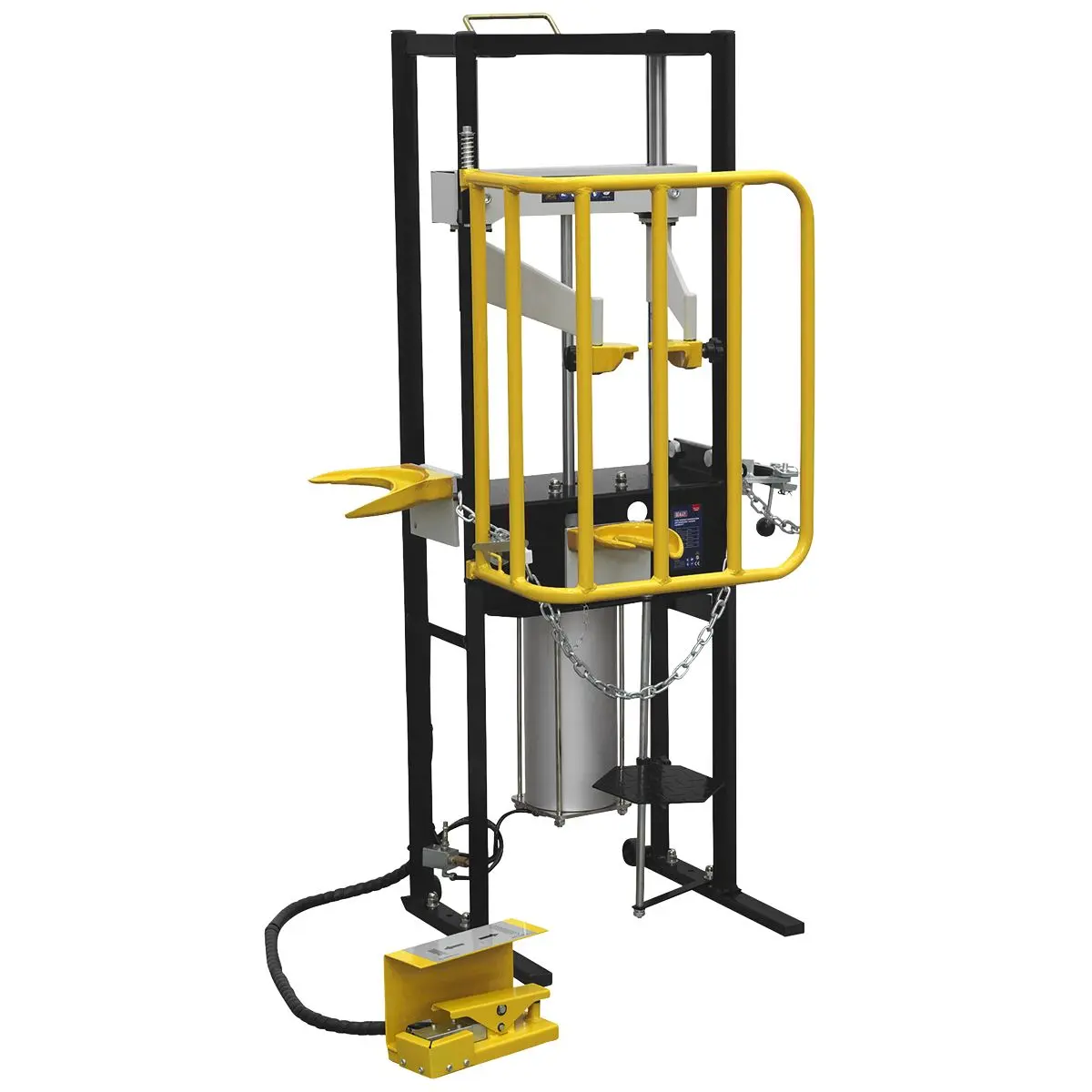

Sealey Air Operated Coil Spring Compressor 1000kg
Sealey Air Operated Coil Spring Compressor 1000kg

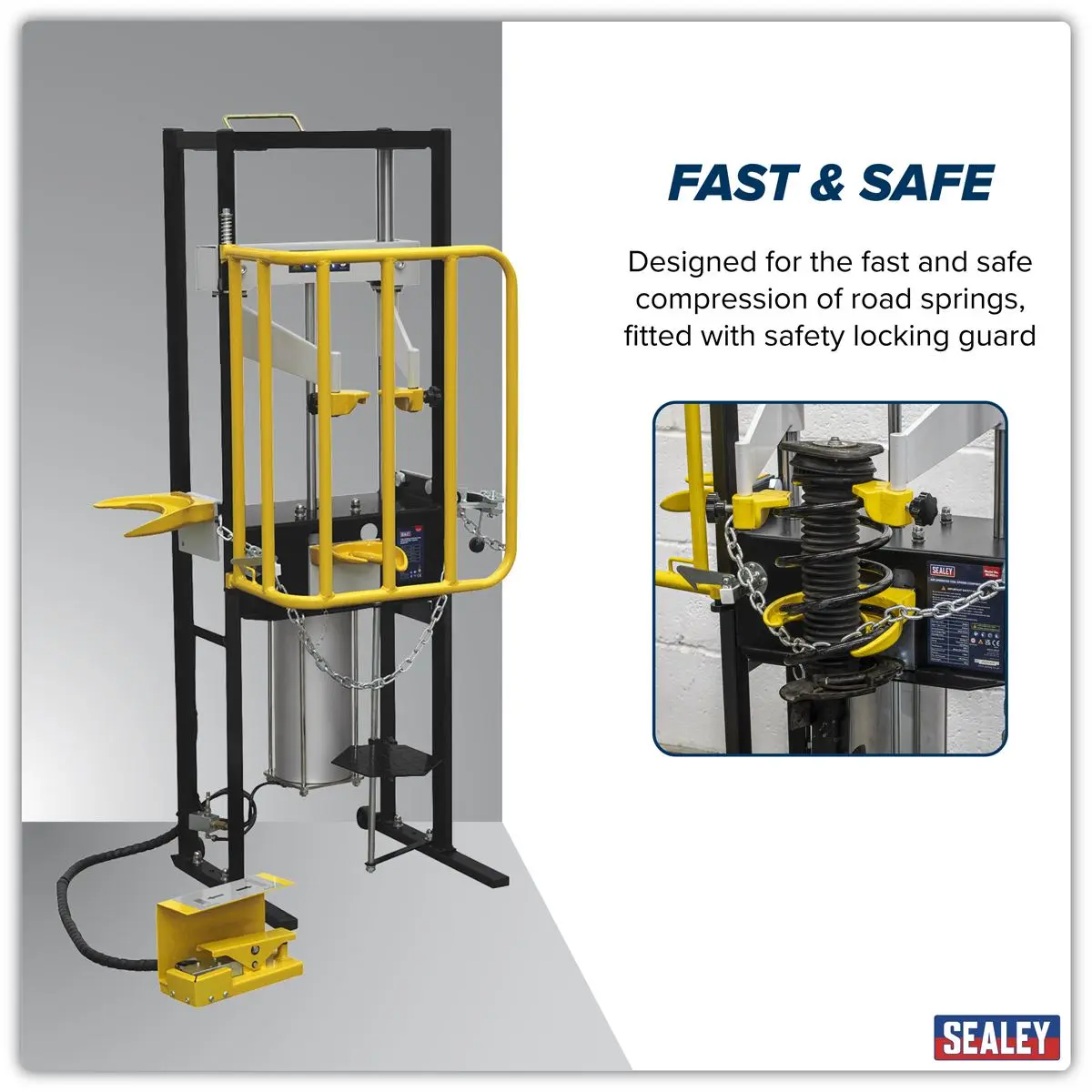

FAST AND SAFE – Designed for the fast and safe compression of road springs, fitted with safety locking guard.

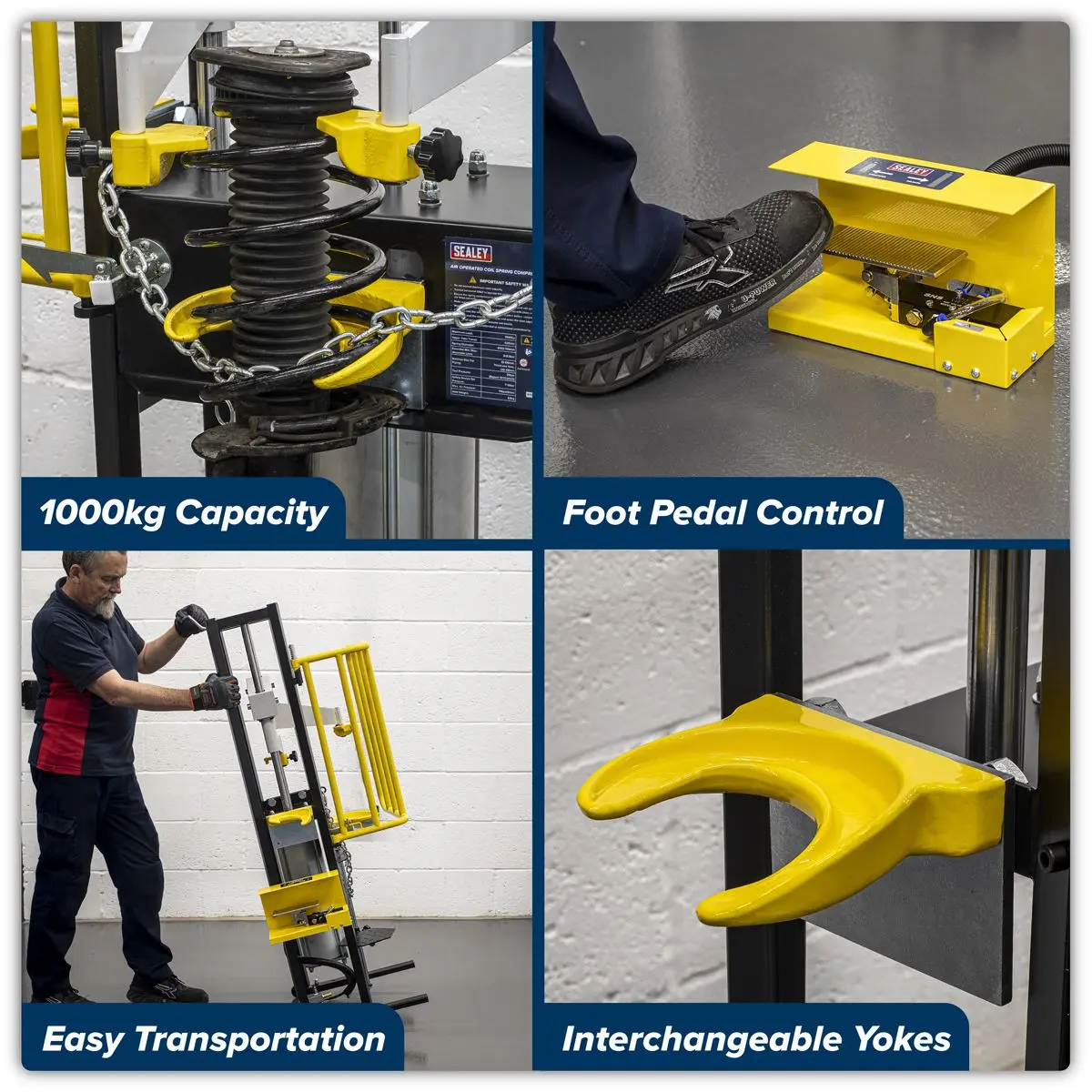

1000KG CAPACITY – Air operated unit with 1000kg capacity.

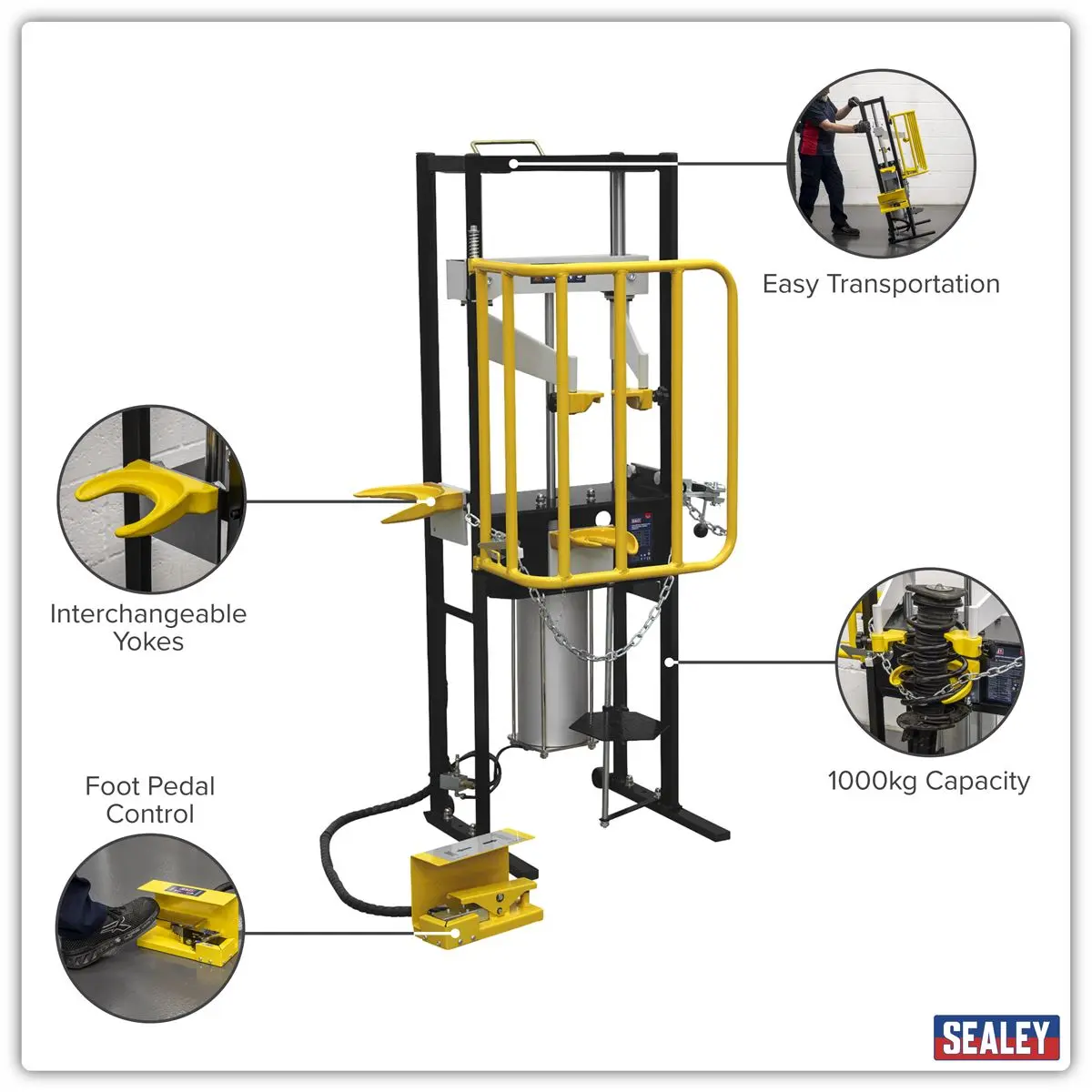

INTERCHANGABLE YOKES – Supplied with two interchangeable plastic-coated yokes and a suspension strut clamp.
WIDE USE OF APPLICATIONS – Fits a wide range of spring configurations and diameters.
FEATURES STRUT LOCATING PLATFORM – For easy movement of the suspension strut to avoid unnecessary lifting.
Specification:
- Model No RE300
- Brand: Sealey
- Nett Weight: 63.4kg
- Maximum Load: 1000kg
- Upper Yoke Travel: 420mm
- Spring Diameter: Ø102-165mm
- Actuation: Foot Pedal
- Maximum Air Pressure: 116psi(8bar)
- Essential Max. Allowable Limit: 8bar
- Essential Min. Allowable Limit: 6.5bar ({IF["Nominal Size for Piping: Inner: Ø6mm Outer: Ø8mm"!=""]})
- Nominal Size for Piping: Inner: Ø6mm Outer: Ø8mm ({ENDIF})
- Safety Device Set Pressure: 8bar
- Output of the Pressure Equipment: 6.5-8bar
Catalogue Page: Page 526
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
