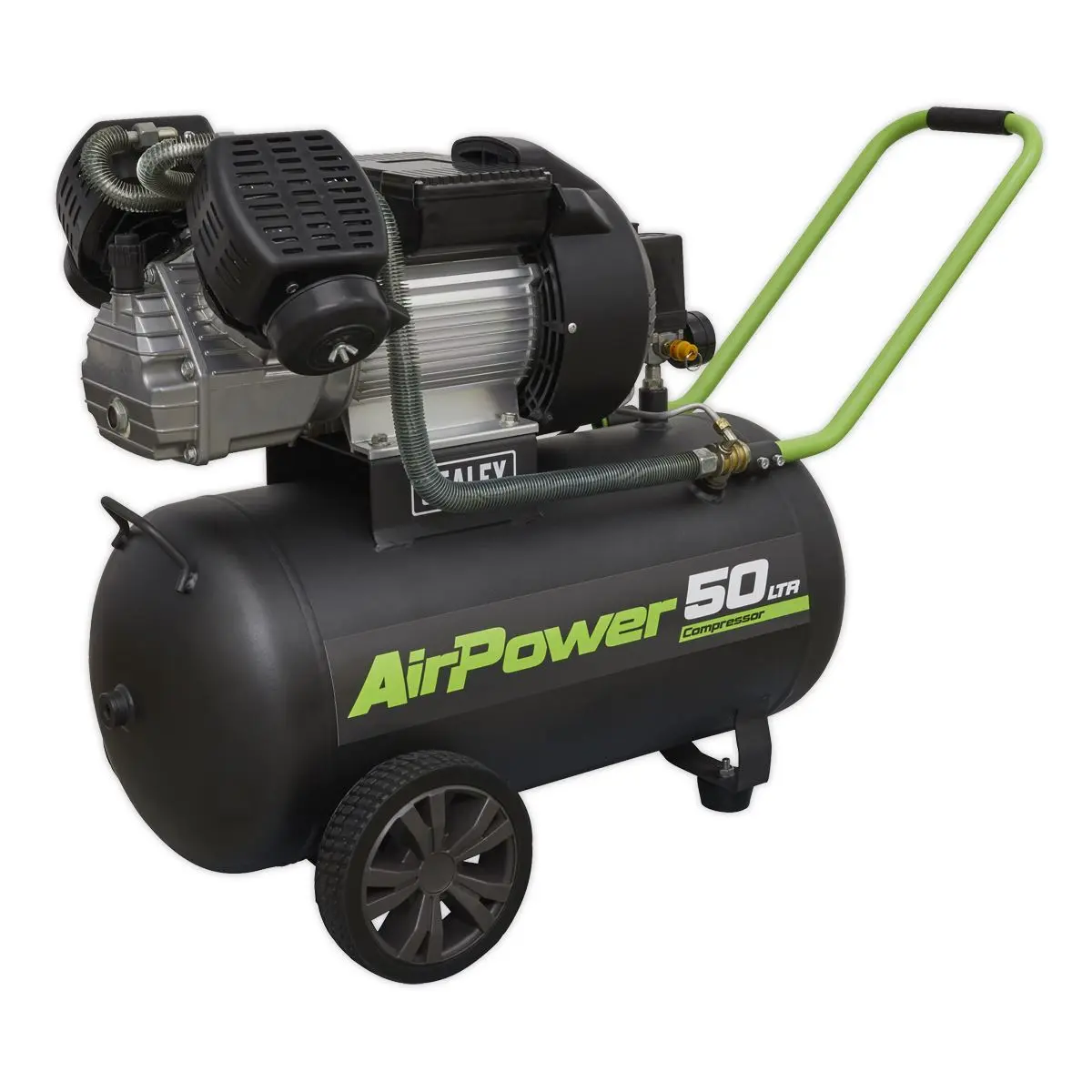

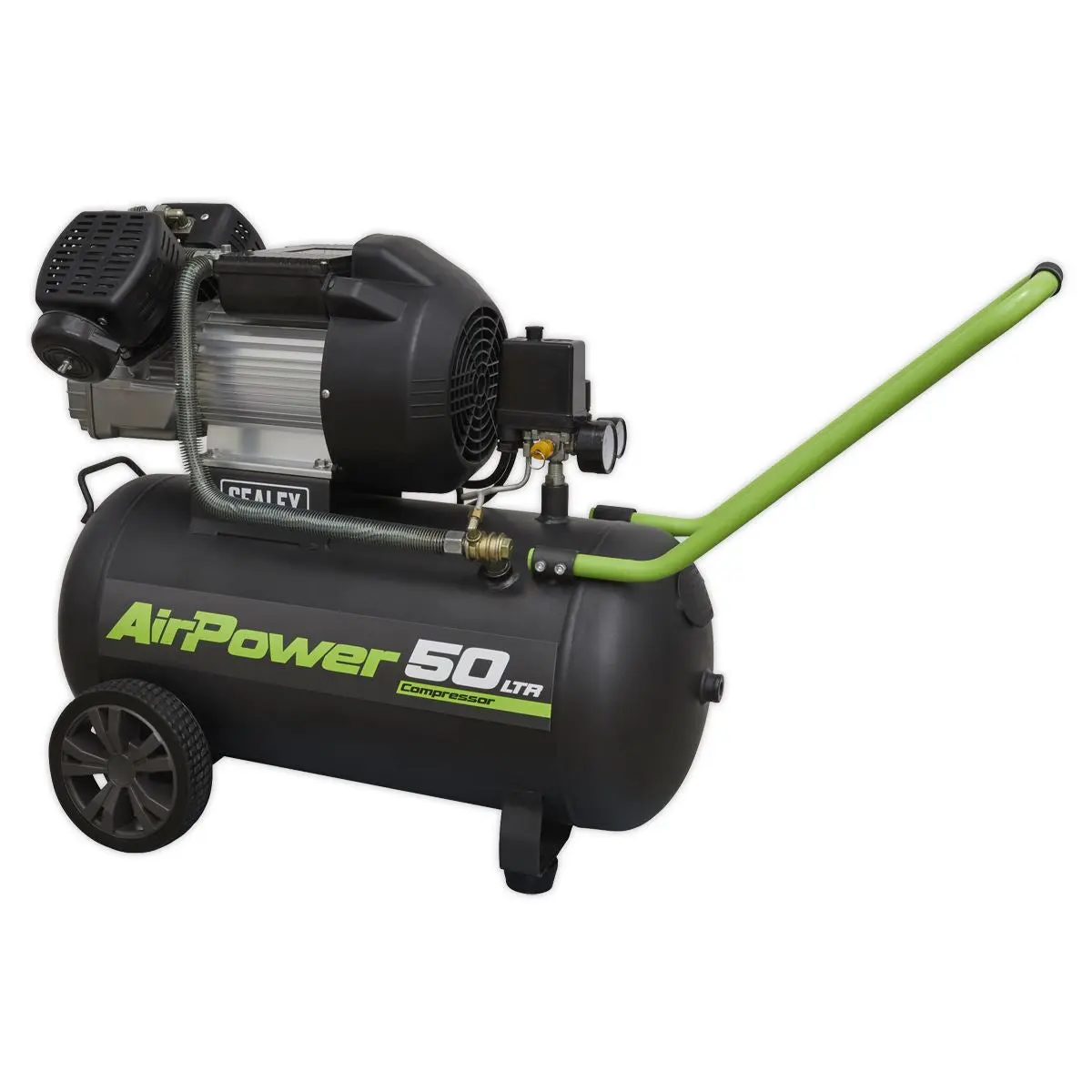

Sealey 50L V-Twin Direct Drive Air Compressor 3hp
Sealey 50L V-Twin Direct Drive Air Compressor 3hp

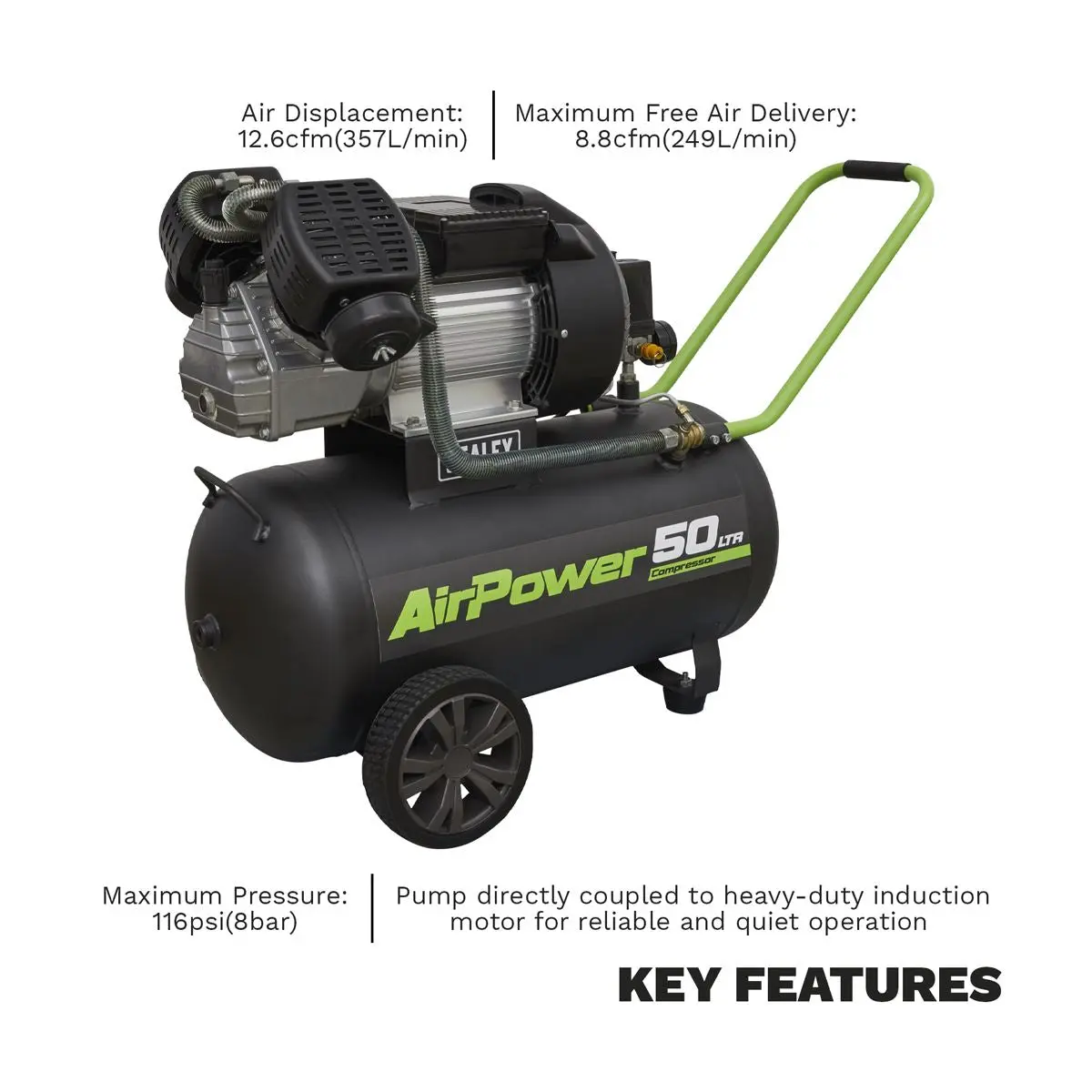

Air Displacement: 12.6cfm(357L/min).
Maximum Free Air Delivery: 8.8cfm(249L/min).
Maximum Pressure: 116psi(8bar).
V-Twin pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear.
Suitable for general-purpose workshop applications.
Pump directly coupled to heavy-duty induction motor for reliable and quiet operation.

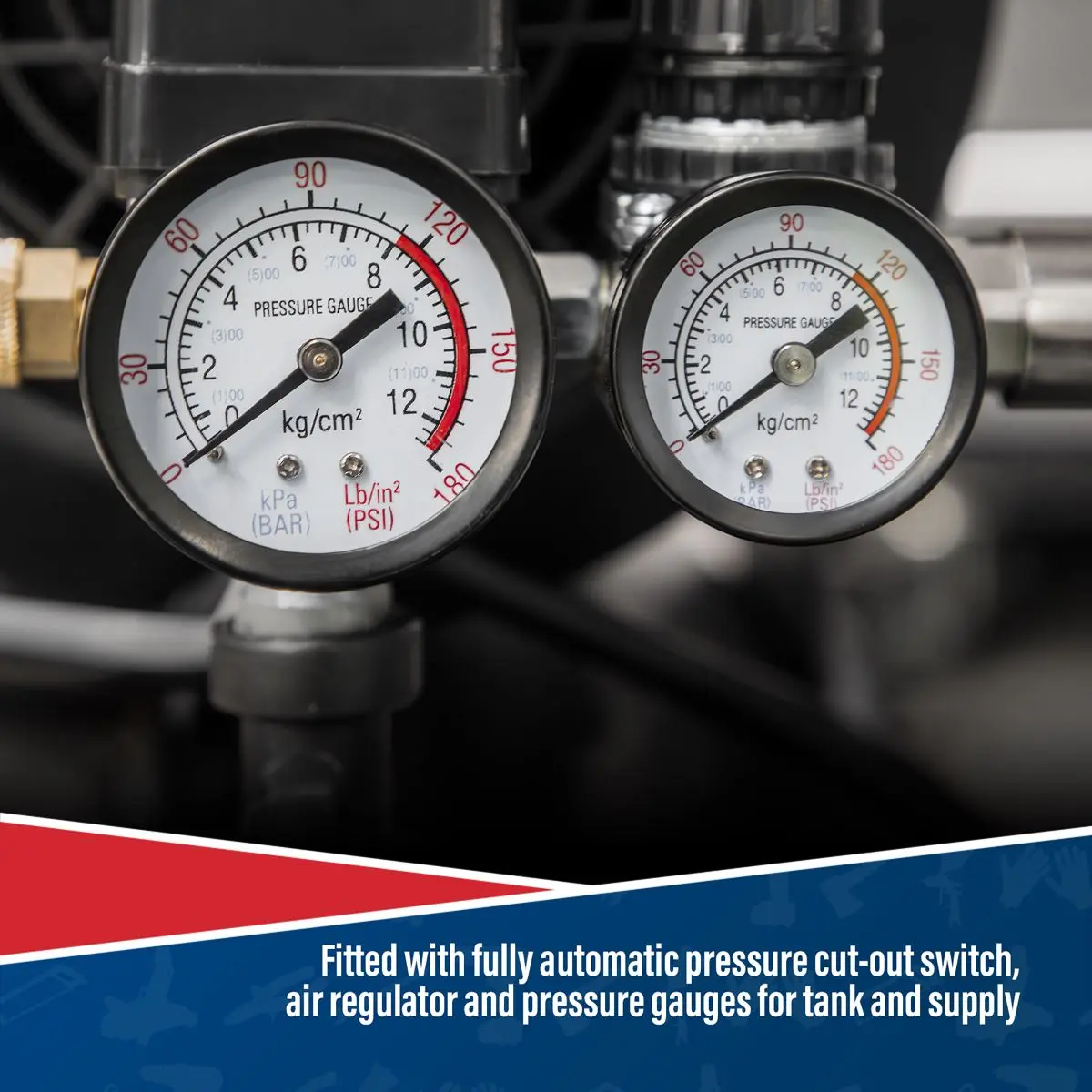

Fitted with fully automatic pressure cut-out switch, air regulator and pressure gauges for tank and supply.
Supplied with handle and wheels.
Fitted with 3-pin plug.
Specification:
- Model No SAC5030VE
- Air Displacement cfm(L/min): 12.6(357)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 8.8(249)
- Maximum Pressure: 116psi(8bar)
- Minimum Rated Supply: 13A
- Motor Output: 3hp
- Nett Weight: 39kg
- Noise Level: 97dB(A)
- Oil Capacity: 0.35L
- Outlet: Quick Release Coupling
- Phase: 1ph
- Receiver Capacity: 50L

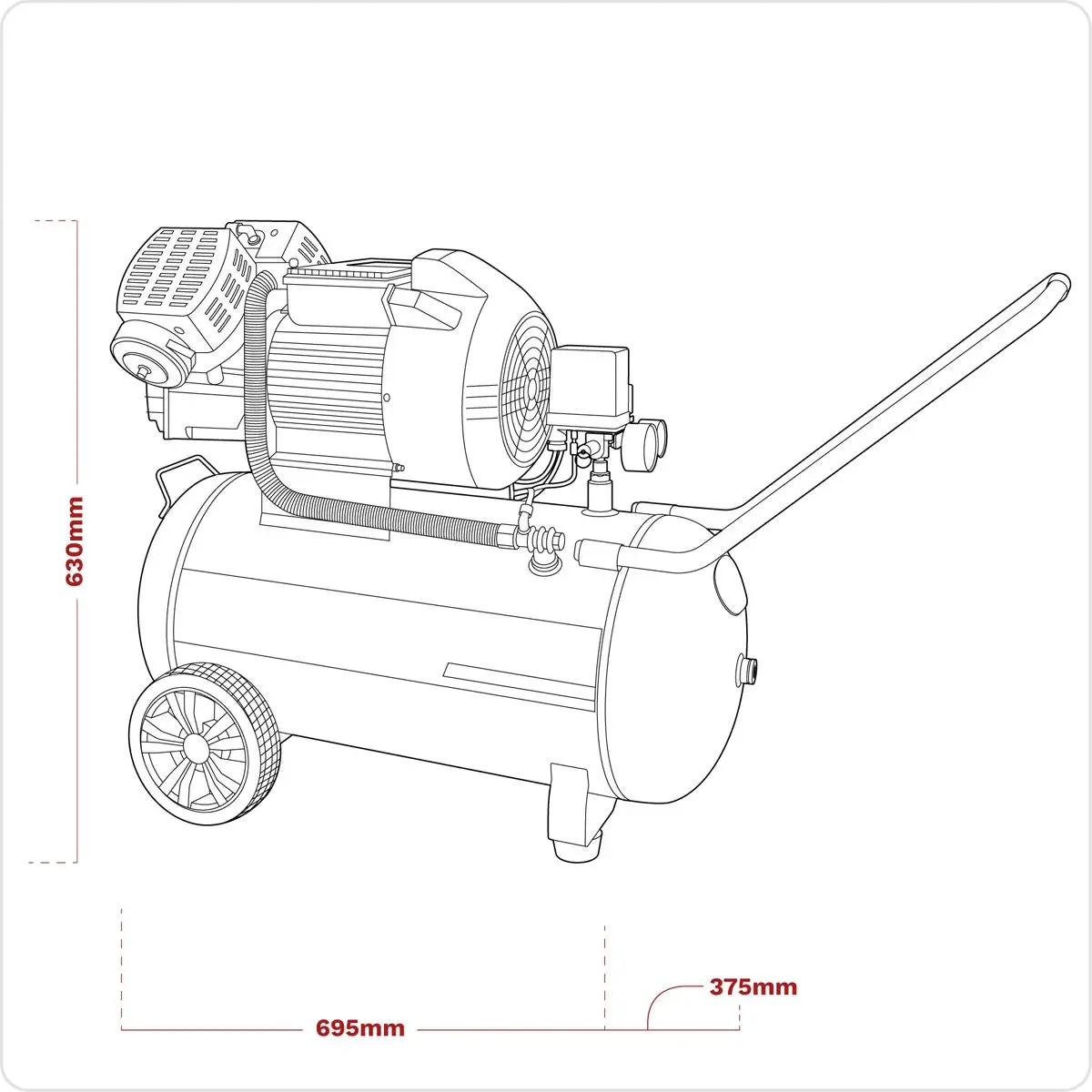

- Size (W x D x H): 695 x 375 x 630mm
- Supply: 230V/13A
Catalogue Page: Page 1175
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
