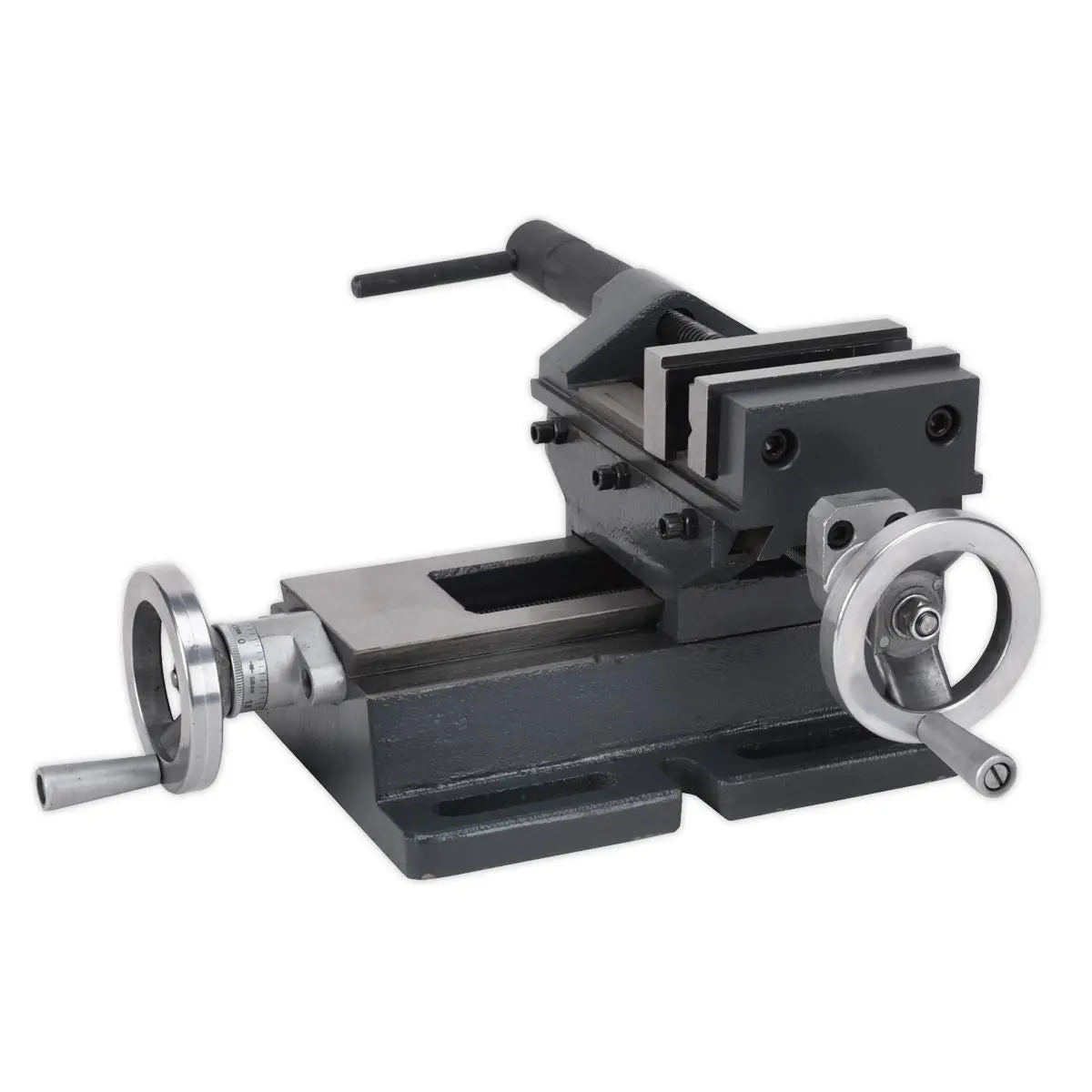

Sealey Cross Vice 100mm Professional
Sealey Professional Cross Vice 100mm
Fixed base (X + Y Axis) cast iron construction for strength and durability.

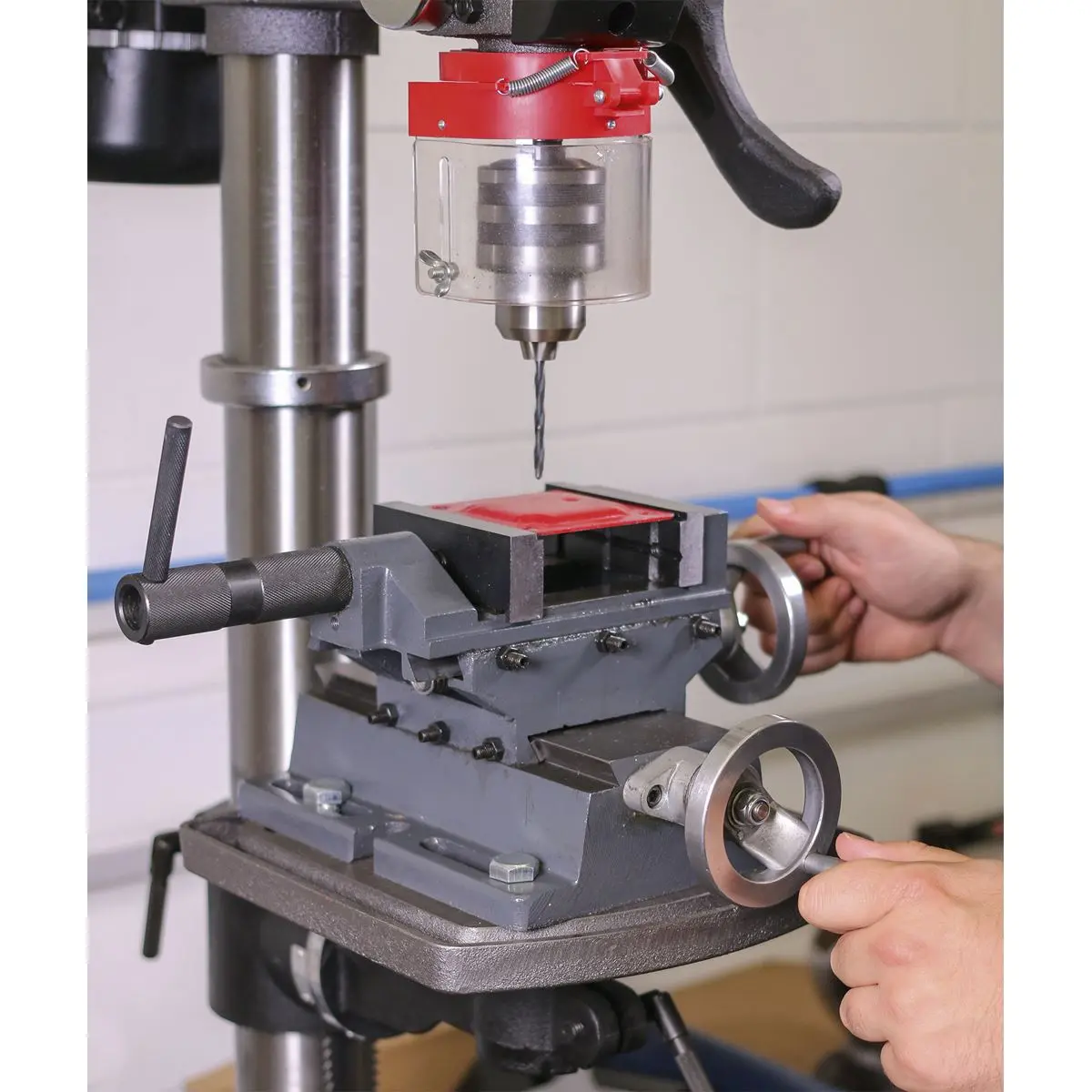

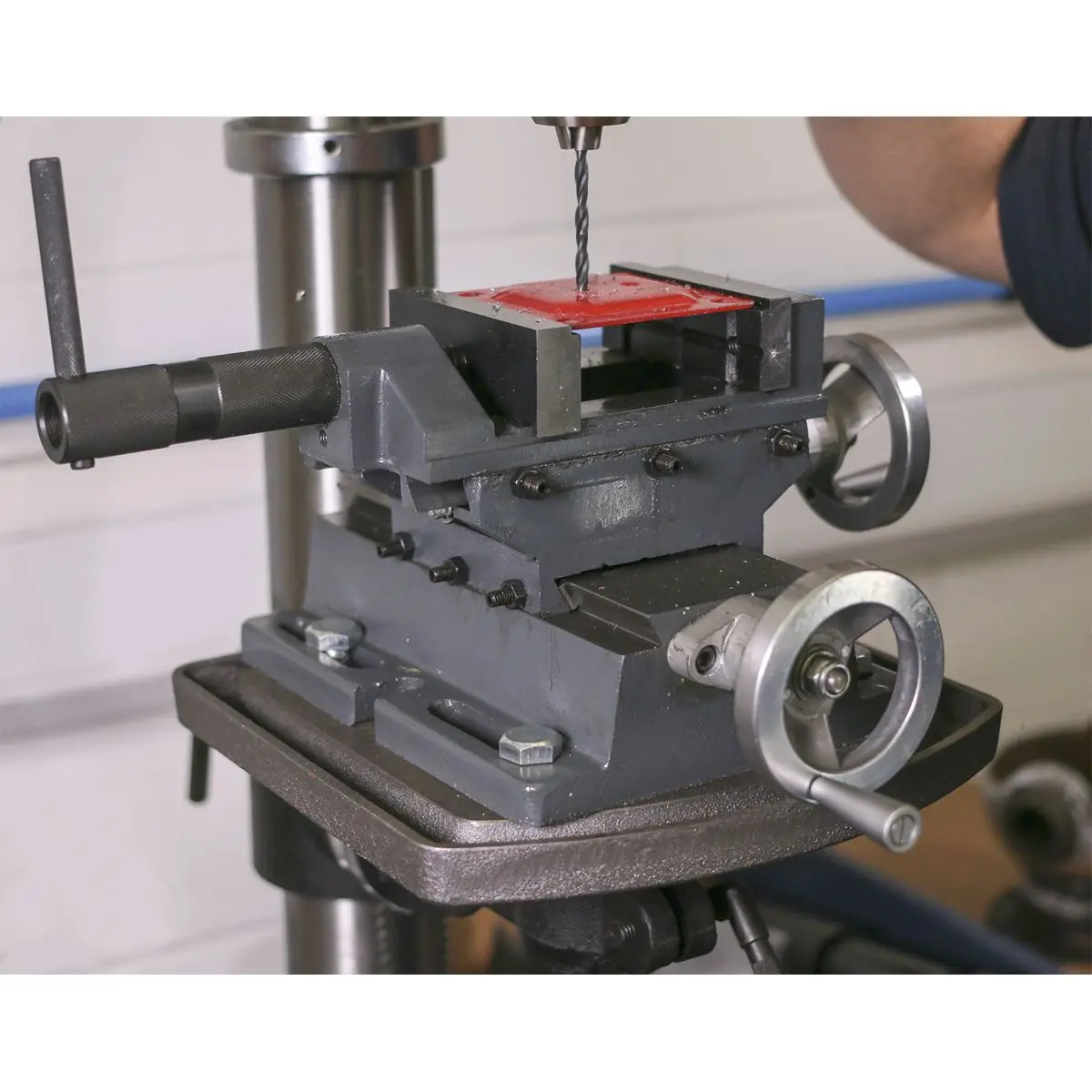

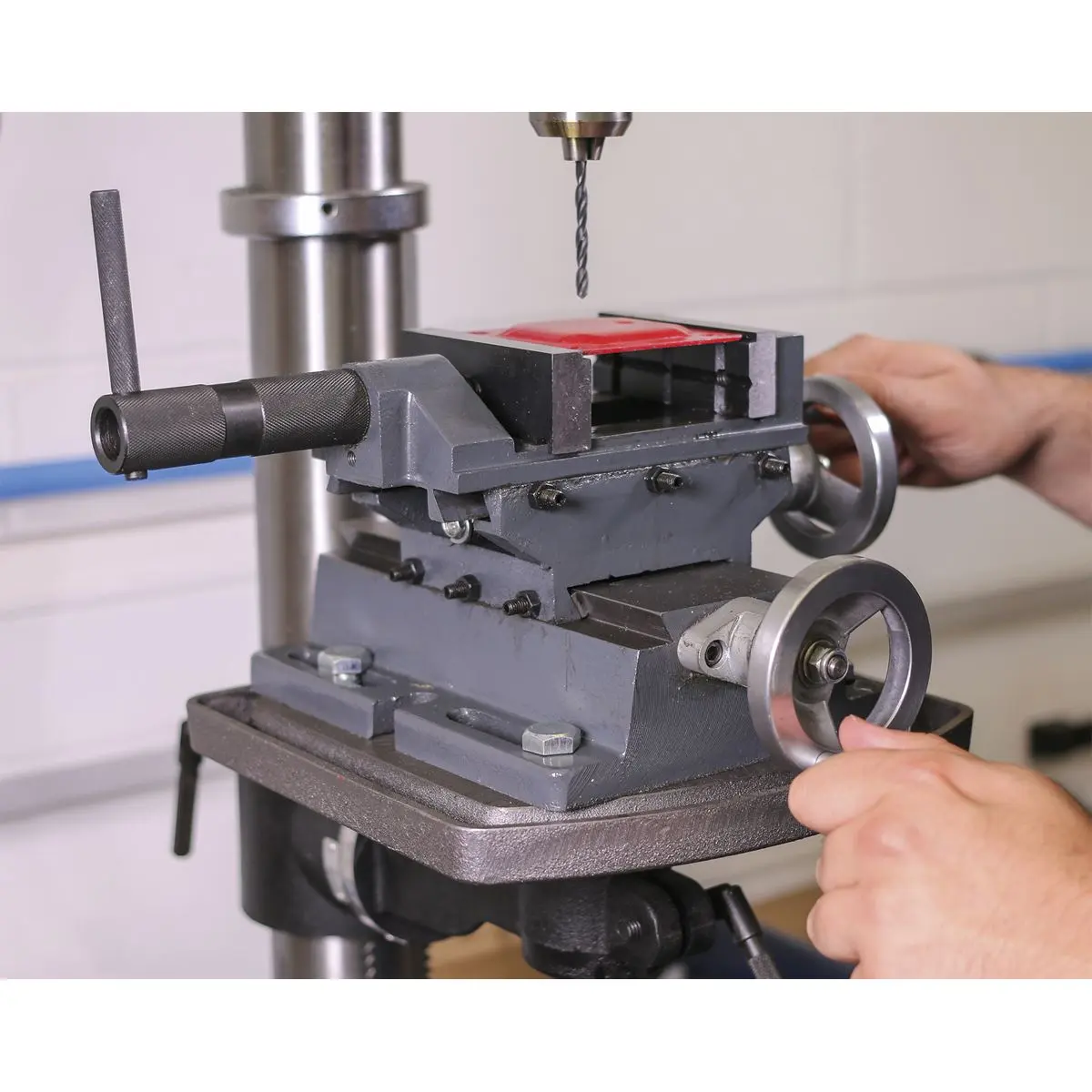

Ideal for drilling and milling operations.
Built with greater tolerances and finer threads with clear and accurate (±0.05mm) lateral and longitudinal scales, allowing more precise setting of the workpiece.
Jaw Width/Depth/Opening: 100/35/75mm.
Lateral/Longitudinal Travel: 120/80mm.
Specification:
- Model No CV4P
- Brand: Sealey
- Jaw Opening: 75mm
- Jaw Width: 100mm
- Nett Weight: 10kg
- Overall Height: 155mm
- Throat Depth: 35mm
- Travel: Longitudinal; 80mm, Lateral; 120mm
Catalogue Page: Page 933
Downloadable Files:
- Parts Diagram: View Here
