Sealey Dial Bore Gauge 10-18mm

Precision mechanism with Ø50mm dial and locking rotating bezel, offering an accurate method of measuring a bore or detecting a taper or ovality.

Measuring Range: 10-18mm.

Will indicate the deviation from set size by up to 5mm with an accuracy of 0.01mm.

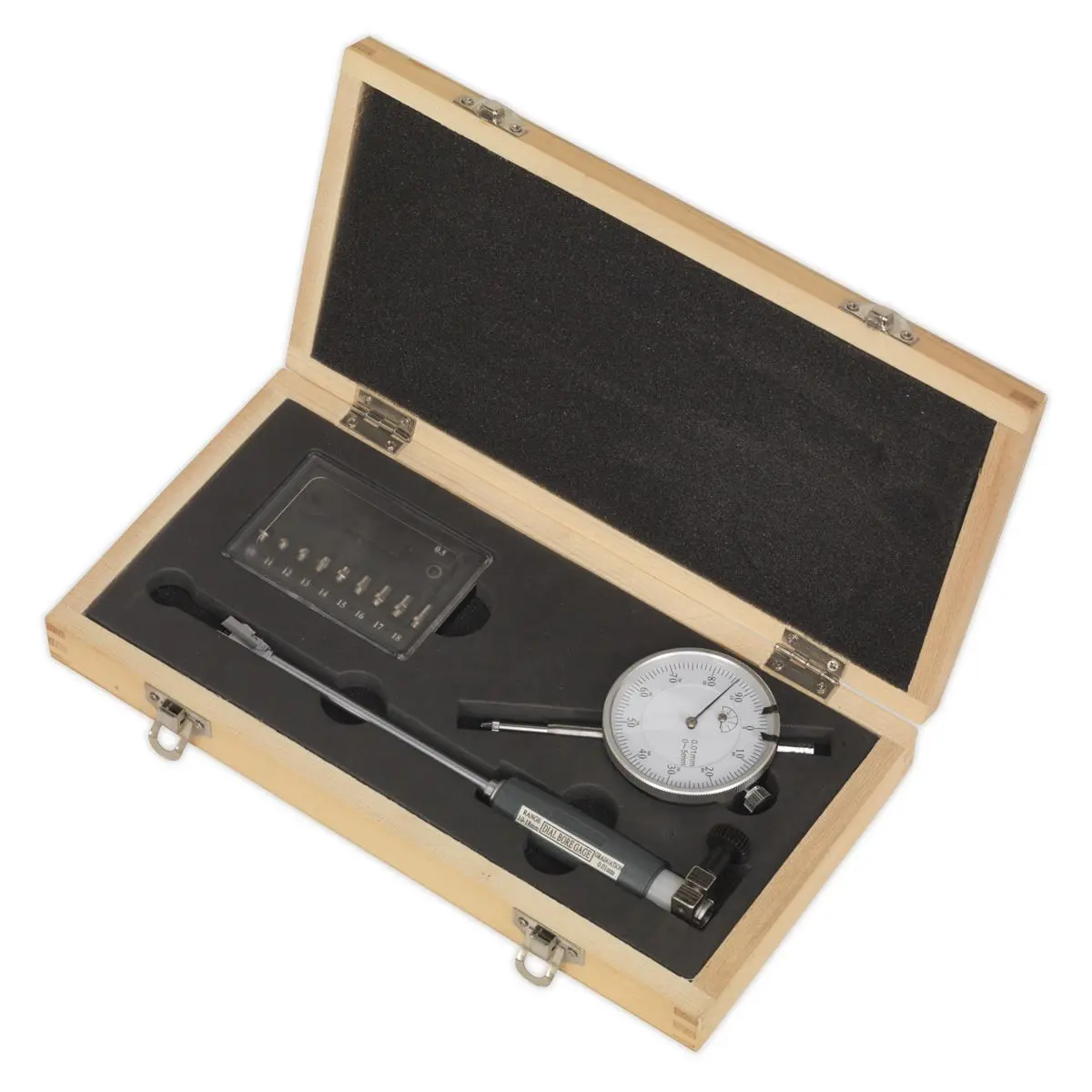

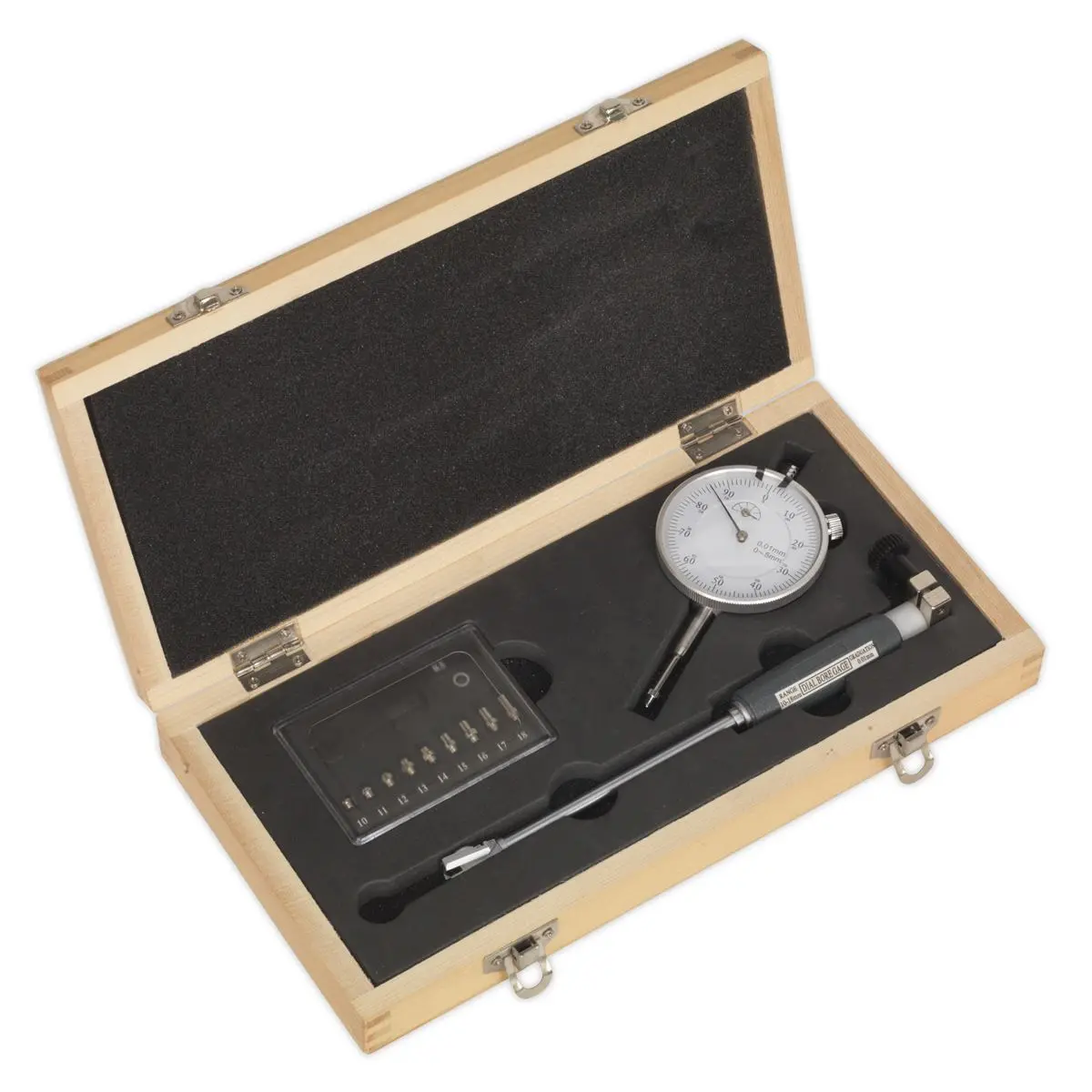

Probe body, dial indicator, anvil and spacer rings are also included.

Supplied in wooden storage case.

Specification:

• Model No DBG507
• Brand: Sealey
• Dial Diameter: Ø50mm
• Maximum Deviation Measurement with Stem: 1mm
• Maximum Deviation Measurement, Gauge: 5mm
• Nett Weight: 0.50kg
• Range: 10-18mm
• Resolution: 0.01mm

Product Guarantee: 1 Year
Catalogue Page: Page 1236

Downloadable Files:

• Instructions: View Here
