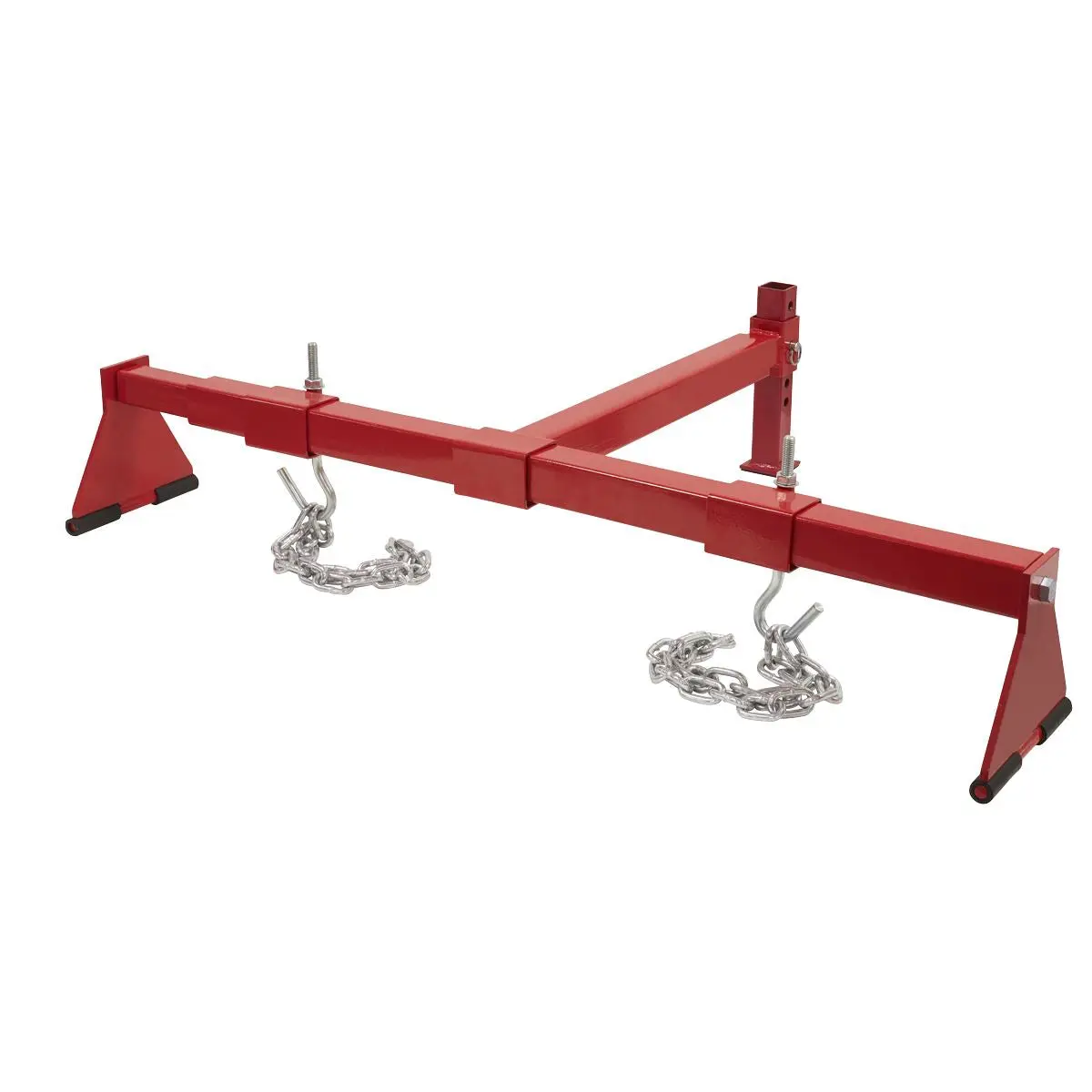

Sealey Heavy-Duty Engine Support Beam 600kg

HEAVY-DUTY - Suitable for heavy engines including 6-cylinder variants.

REASSURED - Supports engine during maintenance operations including engine mounting replacement.

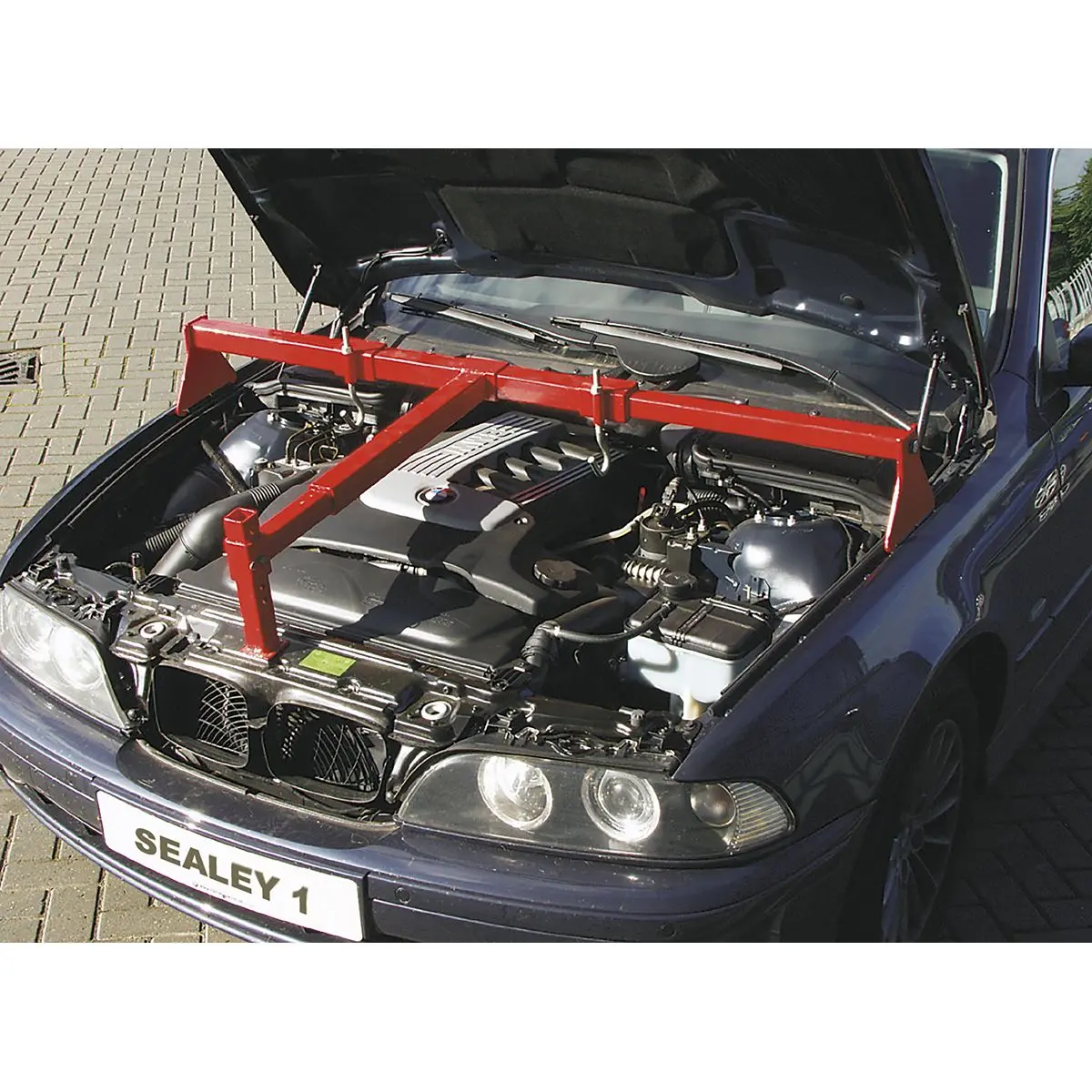

SECURE - Beam is supported on two rubber covered feet with third, height-adjustable foot, resting on the front of the vehicle.

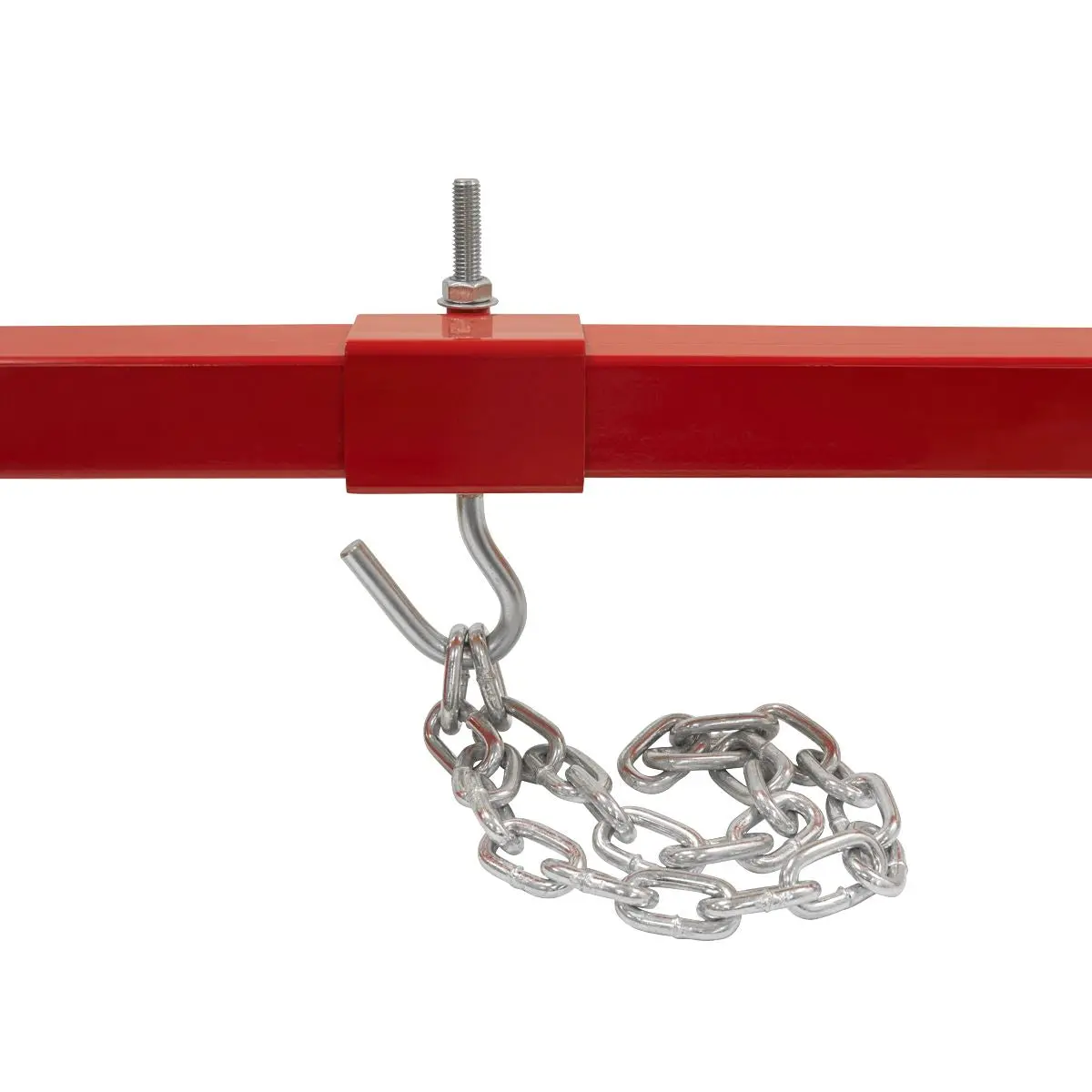

CONTENTS - Supplied with two lengths of chain.

Specification:

• Model No ES600
• Brand: Sealey
• Capacity: 600kg
• Maximum Length: 875mm
• Maximum Width*: 1210mm
• Minimum Length: 600mm
• Minimum Width: 1010mm
• Nett Weight: 17kg
• Screw Travel: 65mm
• Screw Travel: 65mm

Product Guarantee: 1 Year
Catalogue Page: Page 890

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
