Sealey Hydraulic Bush & Bearing Removal/Installation Kit 18 Tonne
Sealey Hydraulic Bush & Bearing Removal/Installation Kit 18 Tonne
INSTALLATION/REMOVAL - Suspension bushes and bearings on passenger and commercial vehicles.

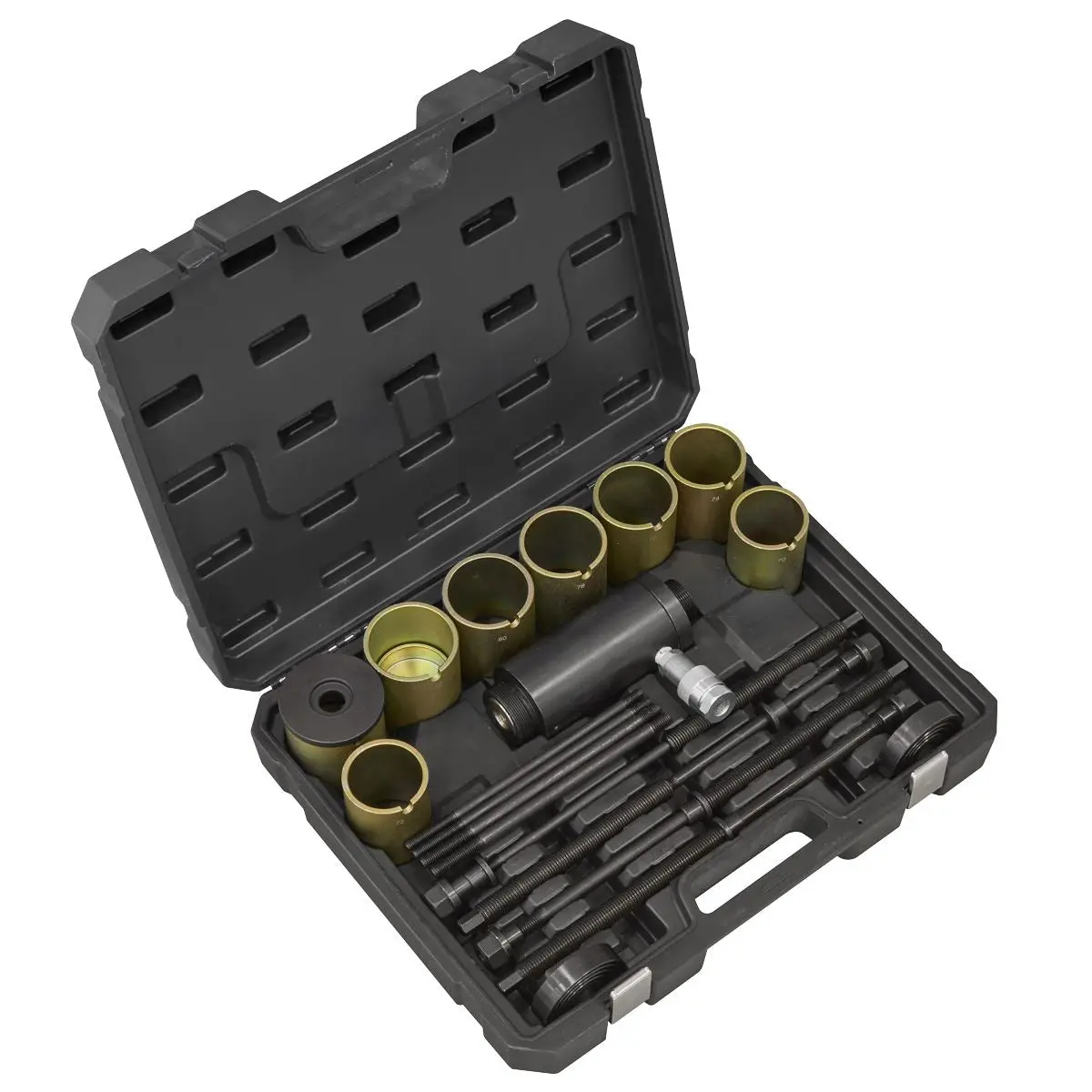

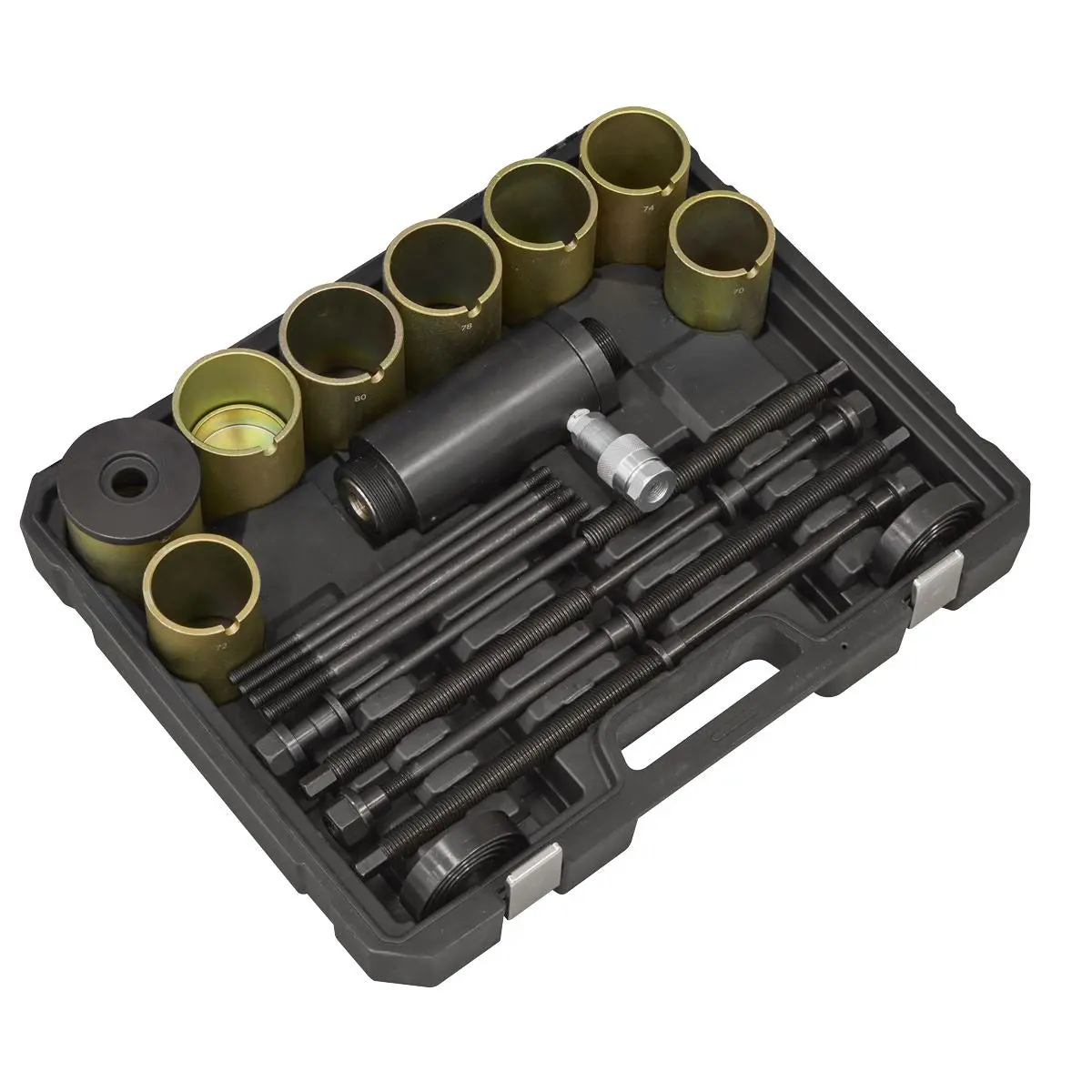

POWERFUL 18 TONNE HYDRAULIC CYLINDER - Hydraulic pump and hose not included.
COMPATIBLE - With Sealey air hydraulic pump RE109, hydraulic pump RE110 and hydraulic hose RE111.
PROTECTS - The bush uses parallel working tension elements.
SLEEVE VIEWING WINDOW – To gauge the correct fitment of the bush or bearing.
APPLICATION: - 26-82mm press sleeves in 2mm increments and an 85/87mm press sleeve.
INCLUDES - Four force screws and three press sleeve adaptors.

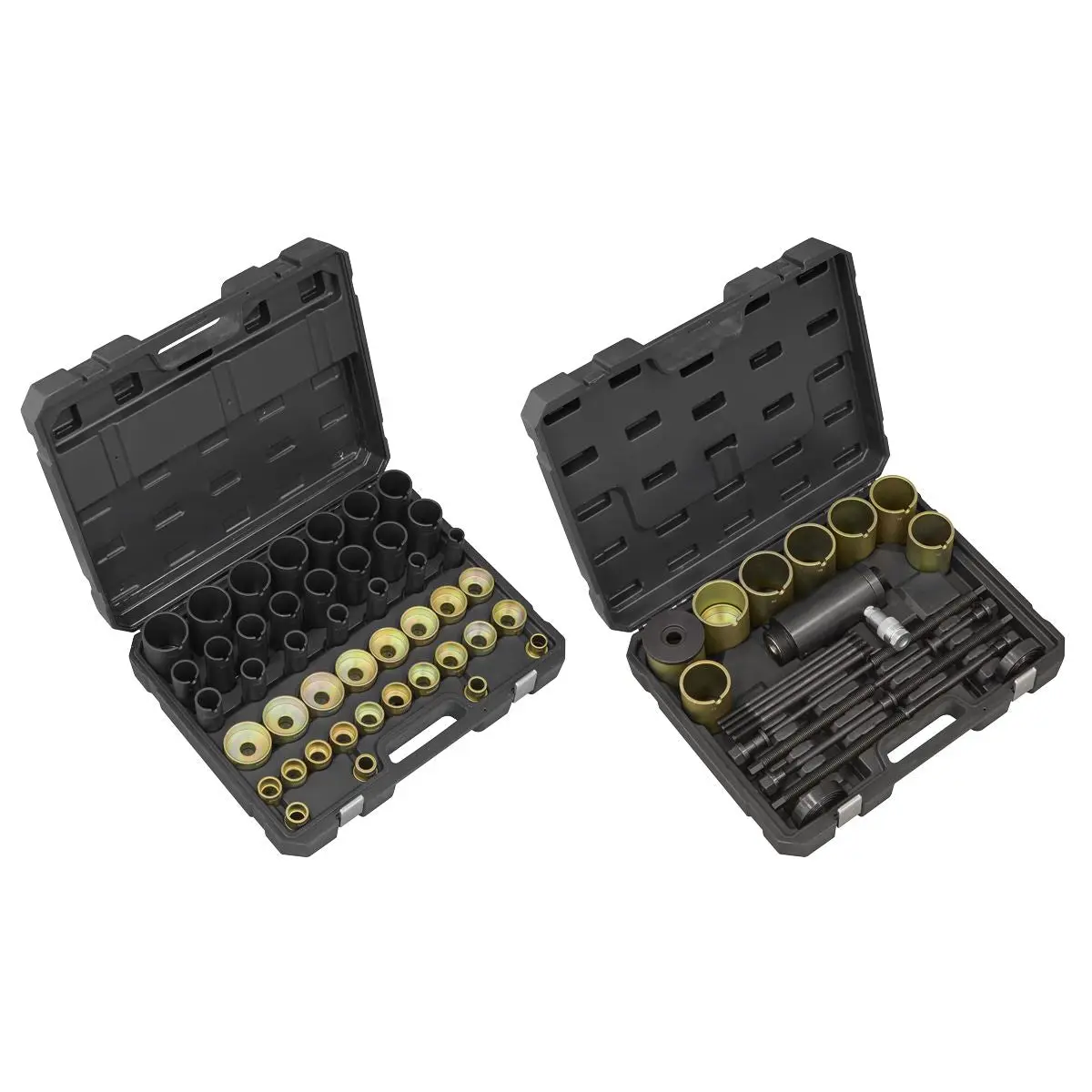

SUPPLIED IN TWO STORAGE CASES - For easy transportation.
Specification:
- Model No VS7034
- Brand: Sealey
- Force Screw Length: Hydraulic Ram Force Screws 450mm x 4, Manual Force Screws 250mm x 4
- Force Screw Threads: Manual Force Screws M10 x 1.5mm x2, M12 x 1.75mm x2
- Nett Weight: 39.50kg
- Max Capacity: 25 tonne
- Working Capacity: 18 tonne

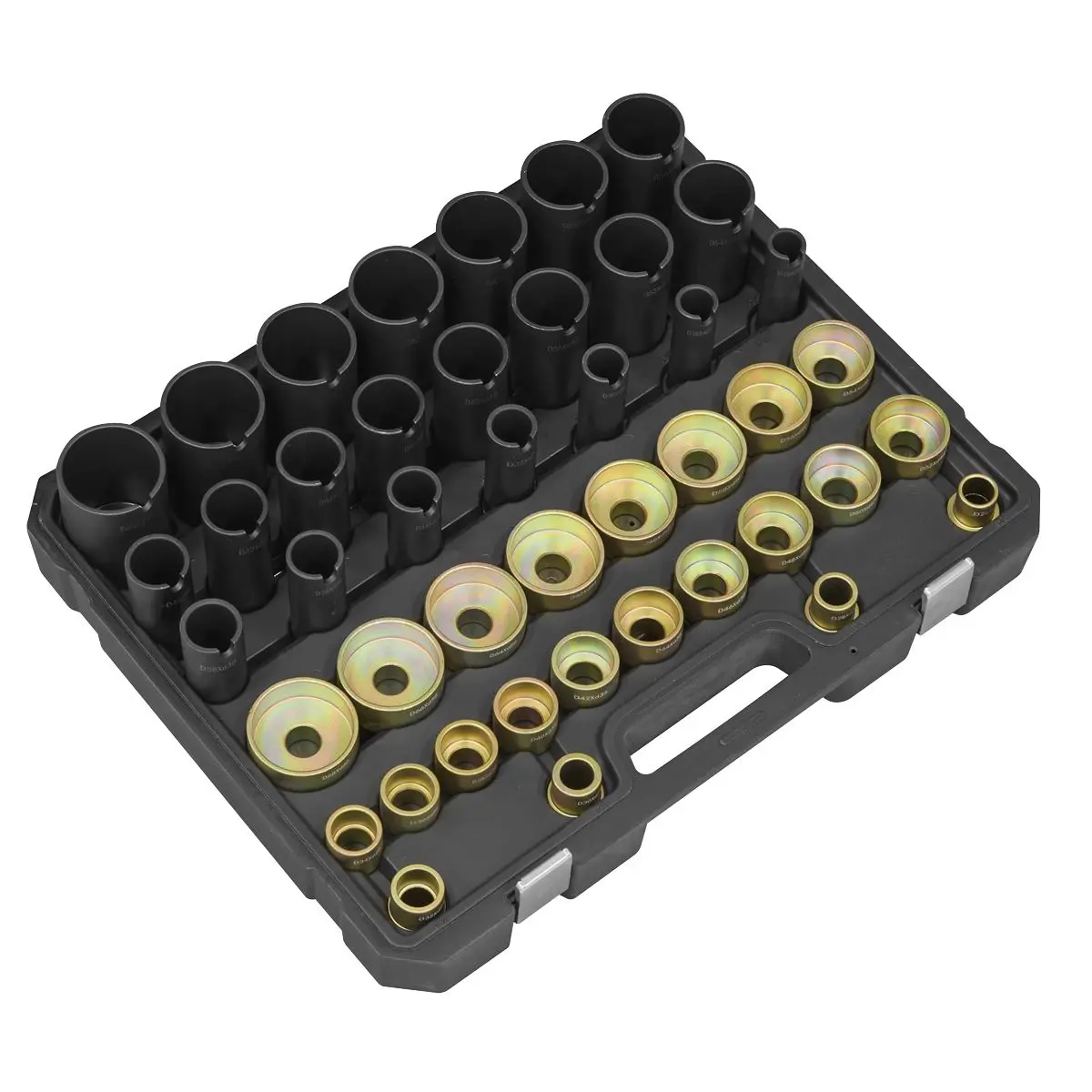

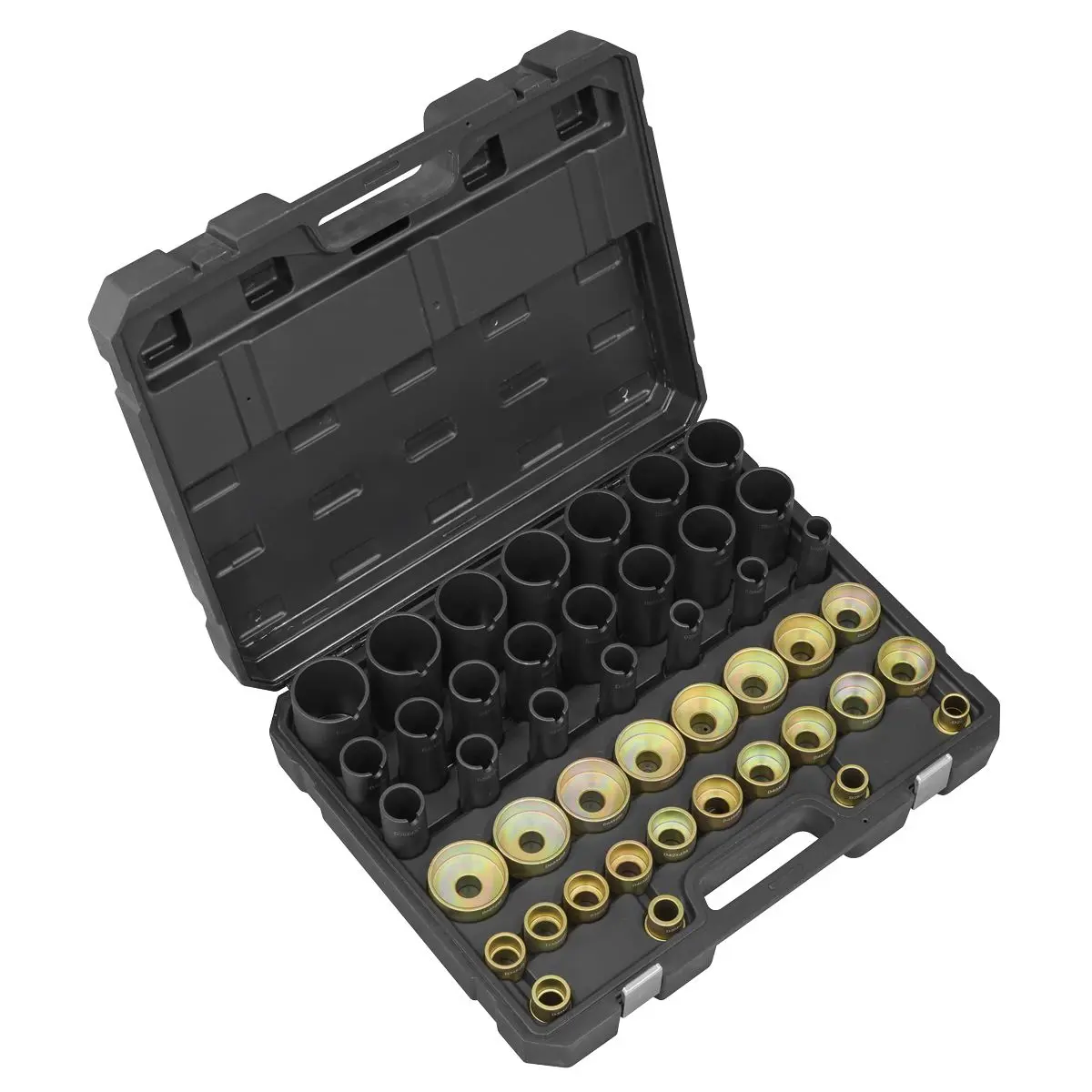

- 40mm Press Sleeve: 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74mm
- 96mm Press Sleeve: 70, 72, 74, 76, 78, 80, 82, 85/87mm. used in conjunction with a press sleeve adaptor
- 110mm Press Sleeve: 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68mm
- Instructions: View Here
