Sealey Hydraulic Pipe Bender 16 Tonne

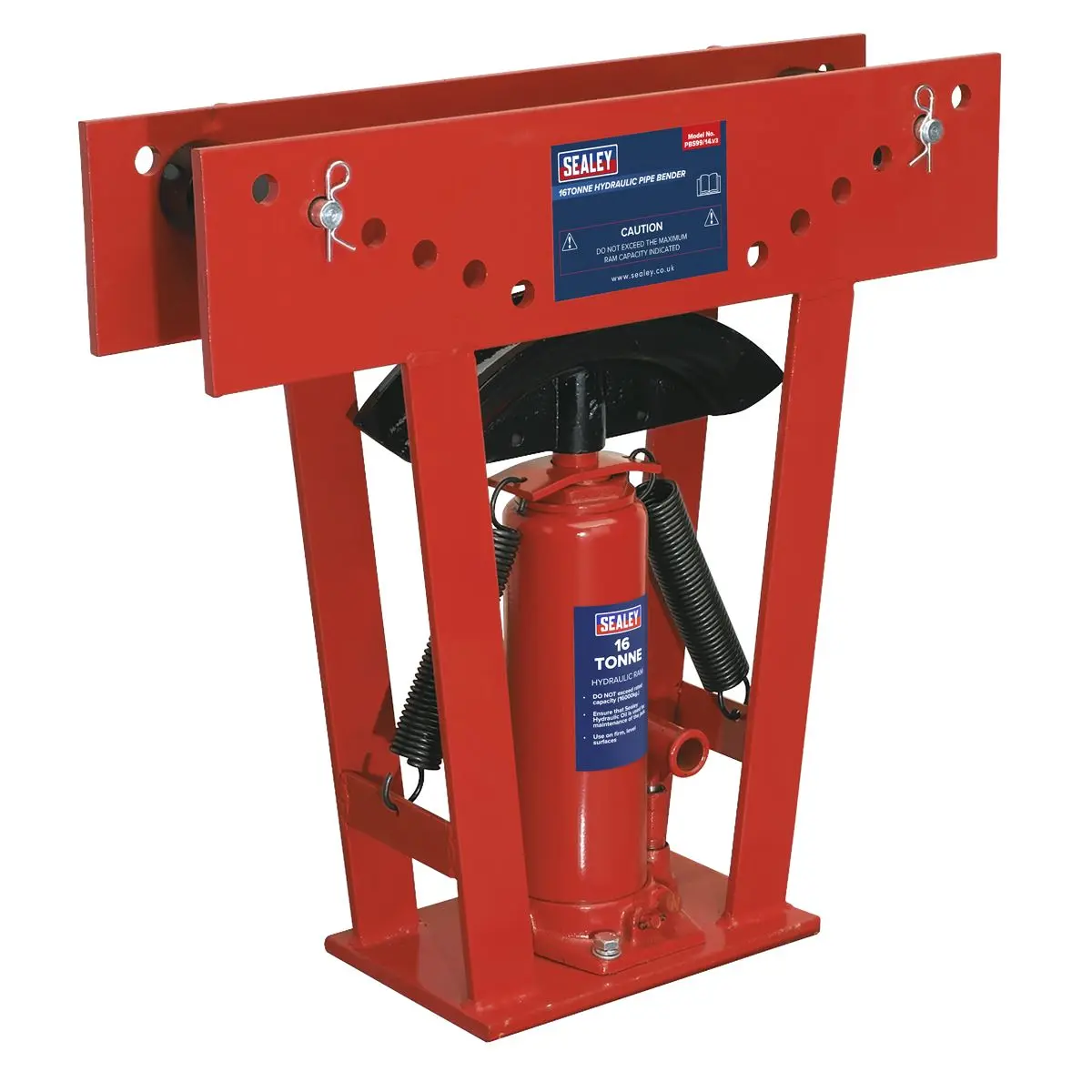

Floor standing pipe bender with fabricated steel chassis and heavy-duty 16 Tonne hydraulics with integral pump and reservoir.

Fitted with externally mounted return springs.

Suitable for bending gas and air pipe from Ø13mm up to Ø51mm(2").

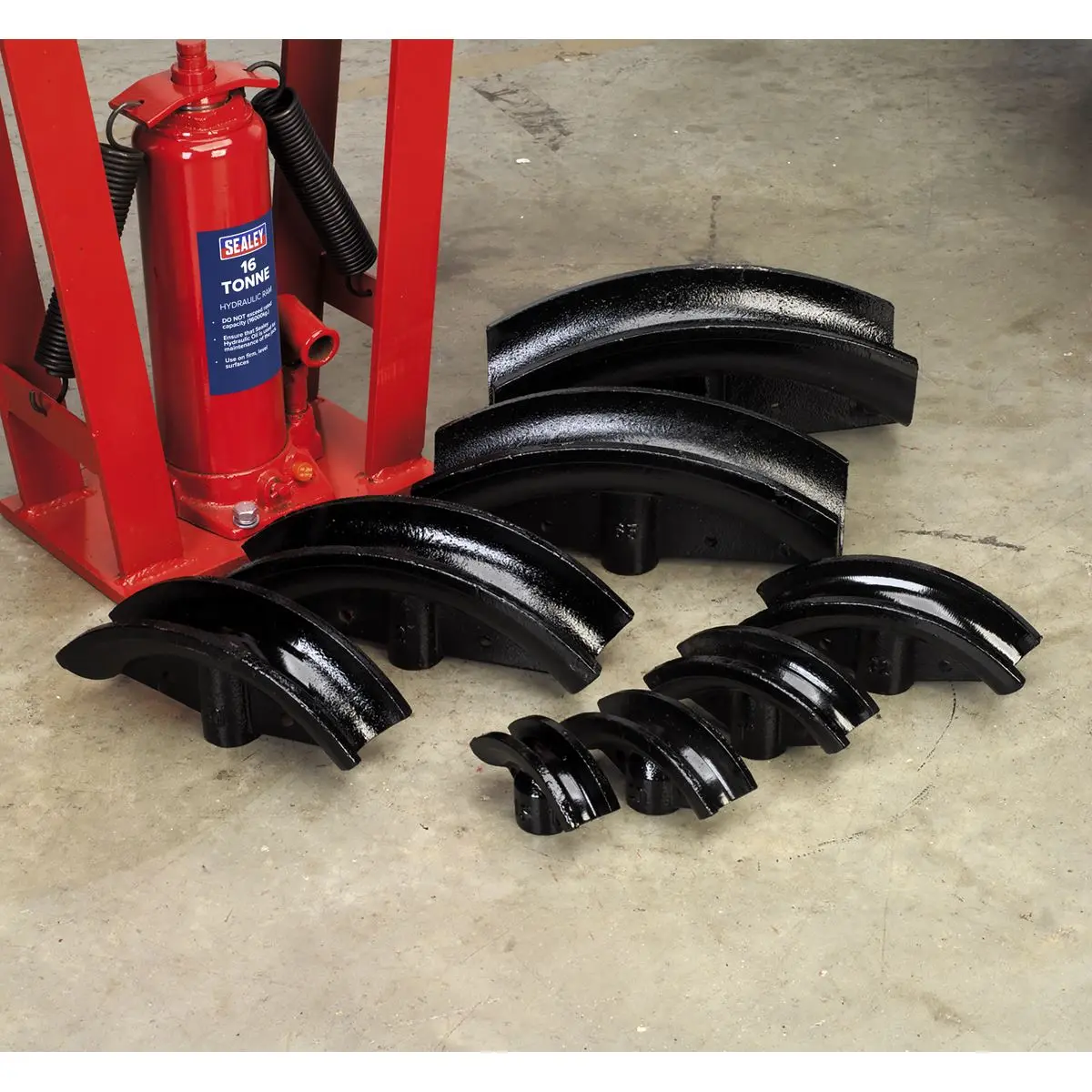

Supplied with eight steel dies to help prevent pipe distortion.

Bends up to 180° (3 x 60° bends).

Die Sizes: 13mm(1/2"), 20mm(3/4"), 25mm(1"), 32mm(1-1/4"), 40mm(1-1/2"), 51mm(2"), 63mm(2-1/2"), 75mm(3").

Specification:

• Model No PBS99/14
• Brand: Sealey
• Die Sizes: 13mm(1/2"), 20mm(3/4"), 25mm(1"), 32mm(1-1/4"), 40mm(1-1/2"), 51mm(2"), 63mm(2-1/2"), 75mm(3")
• Height: n/a
• Maximum Load: 16 Tonne
• Maximum Pipe Diameter: 75mm
• Nett Weight: 62kg

Product Guarantee: 1 Year
Catalogue Page: Page 902

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
