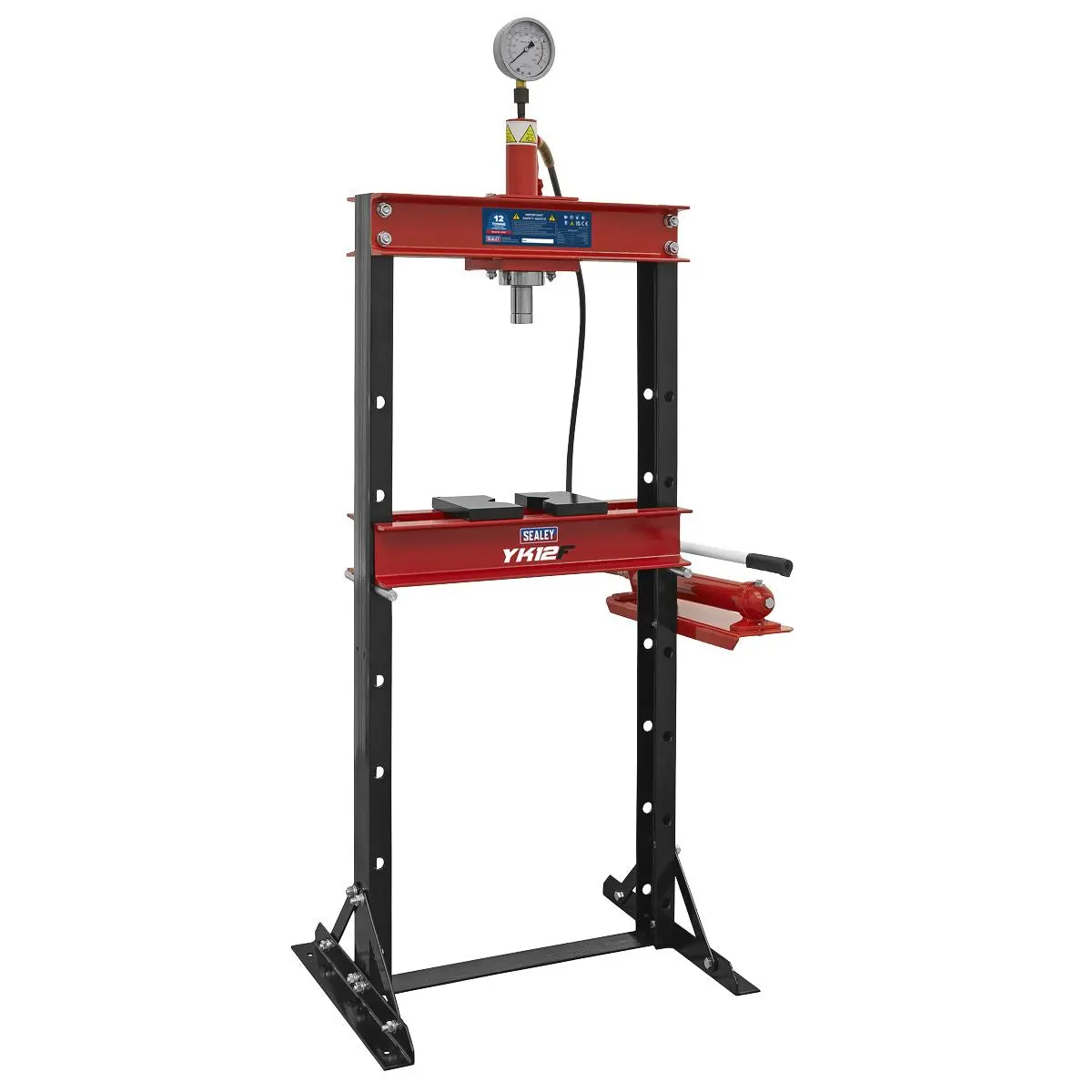

Sealey Hydraulic Floor Type Press 12 Tonne

SOLID FRAME/TABLE - Made from high quality steel with a powder coated paint finish to help corrosion resistance.

DETACHABLE PUMP AND RAM - Allowing hydraulics to be used for other purposes when press is not in use.

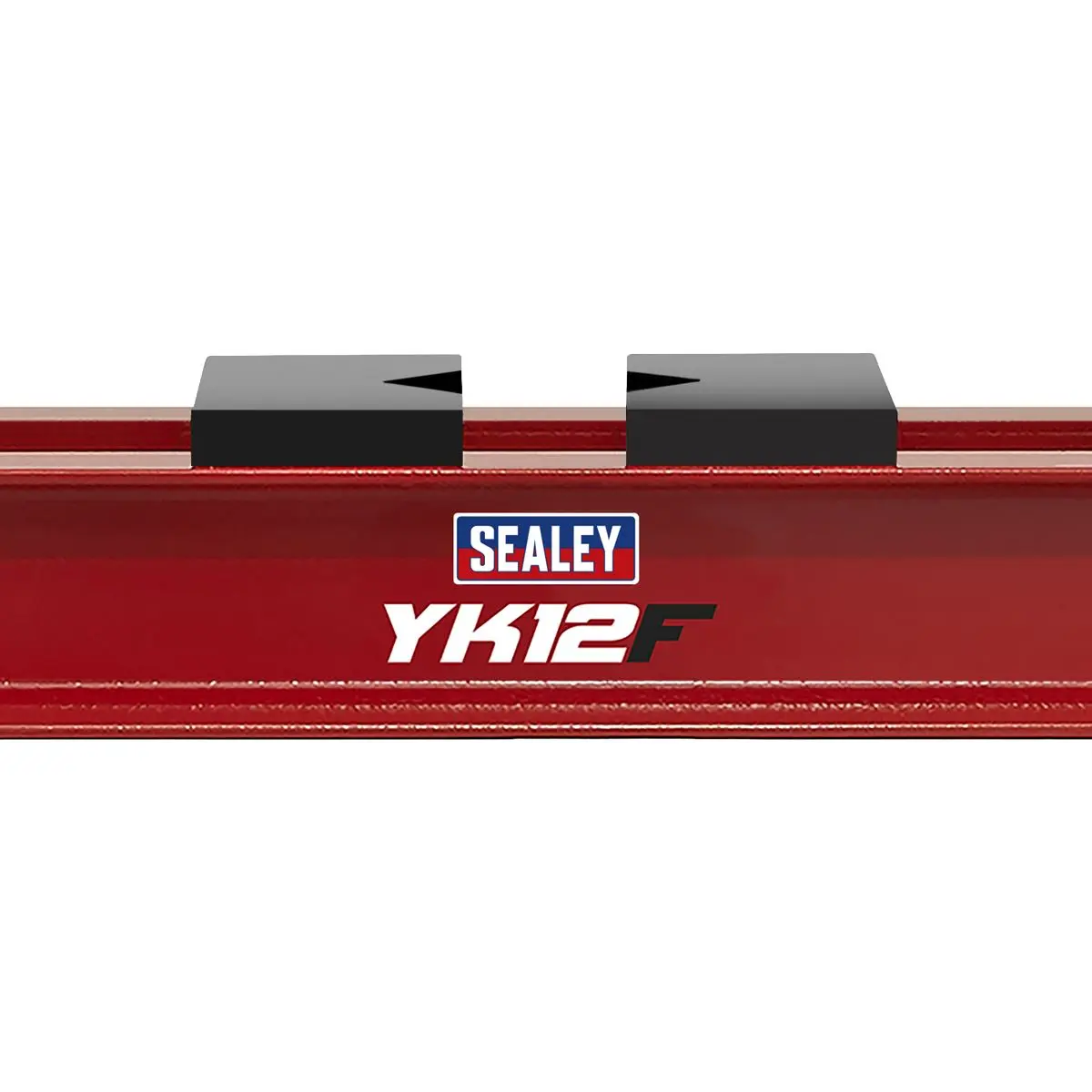

INCLUDES - Two table plates.

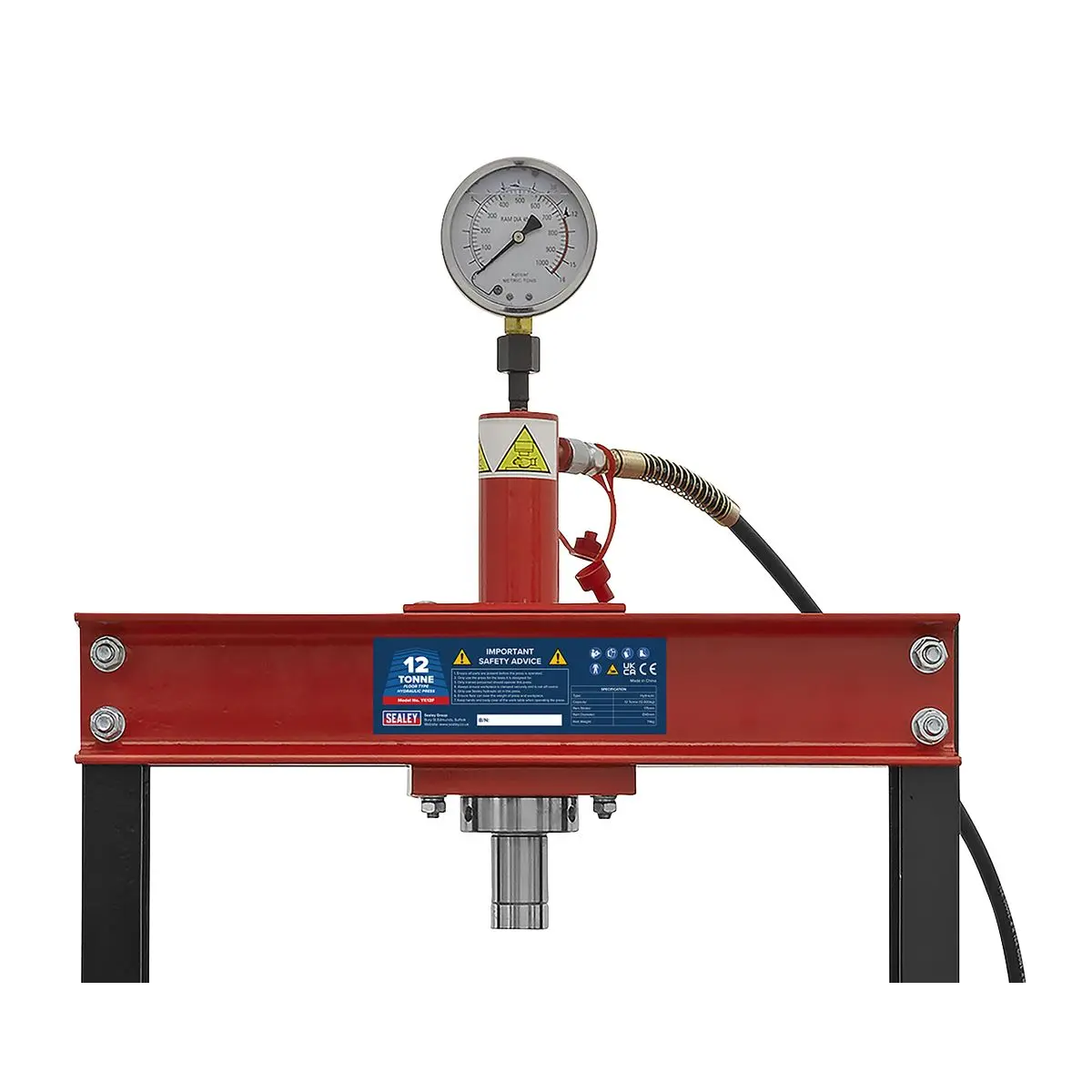

SUPPLIED - With gauge.

Specification:

• Model No YK12F

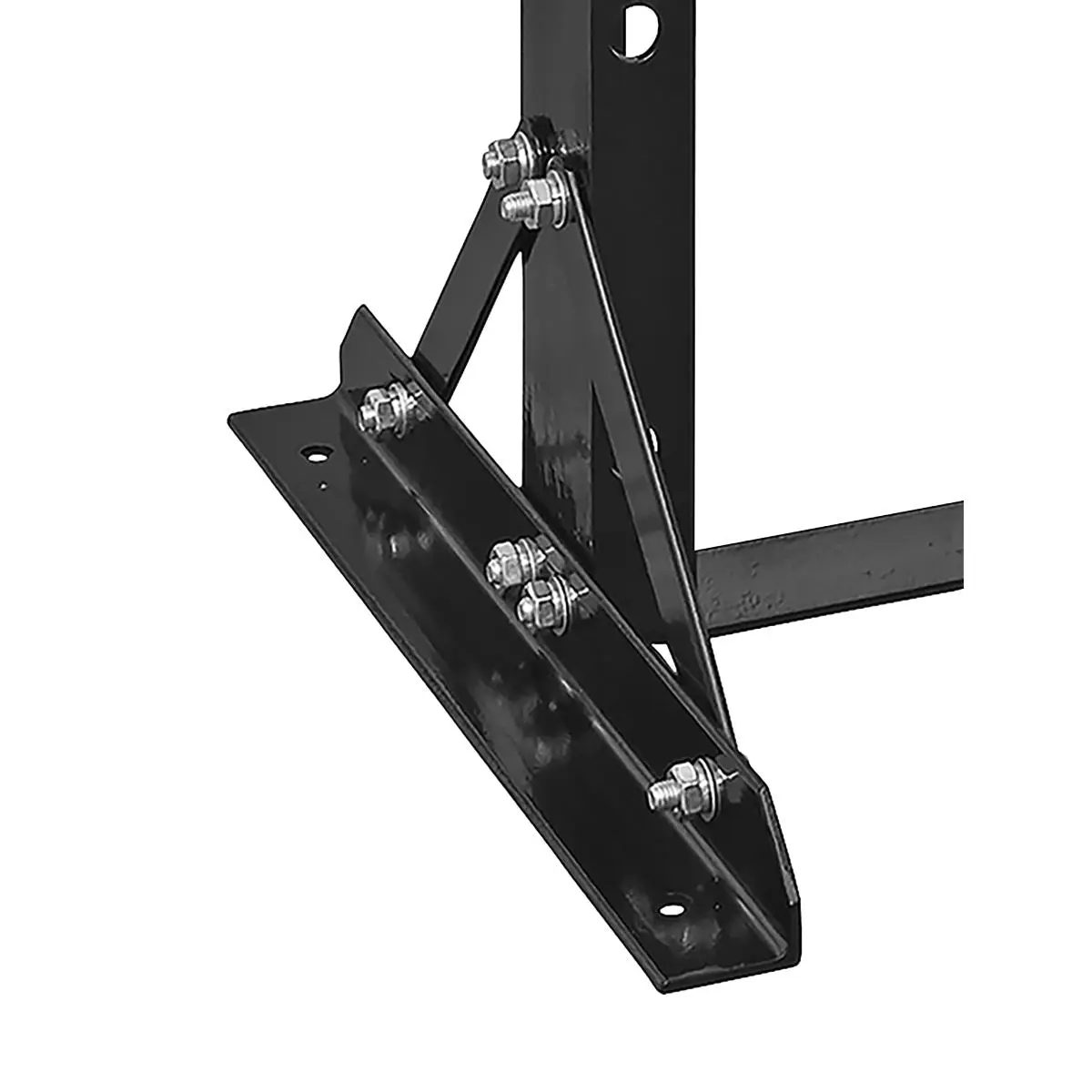

• Bench or Floor Mounting: Floor
• Brand: Sealey
• Capacity: 12 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 305mm
• Maximum Height - Ram to Table: 800mm
• Minimum Height - Ram to Table: 80mm
• Nett Weight: 74kg
• Operating Table Width: 455mm
• Optional Accessories: n/a
• Overall Height: 1657mm
• Ram Diameter: Ø40mm
• Ram Stroke: 175mm
• Screw Extension: n/a
• Table Aperture: 84mm
• Type: Hydraulic
• Working Table Depth: 180mm
• Working Table Width: 540mm
• Working Table Width: 455mm

Product Guarantee: 1 Year
Catalogue Page: Page 897

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
