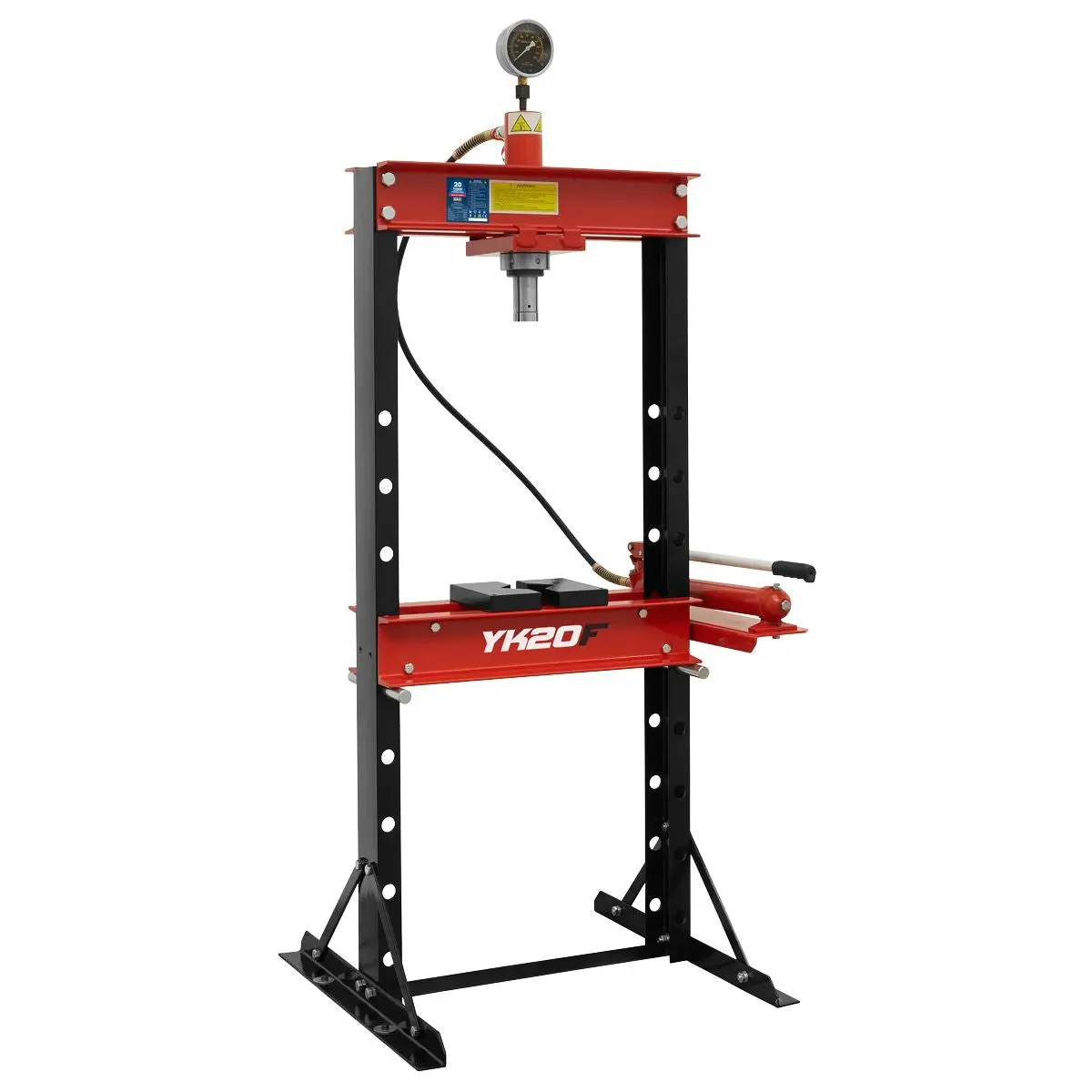

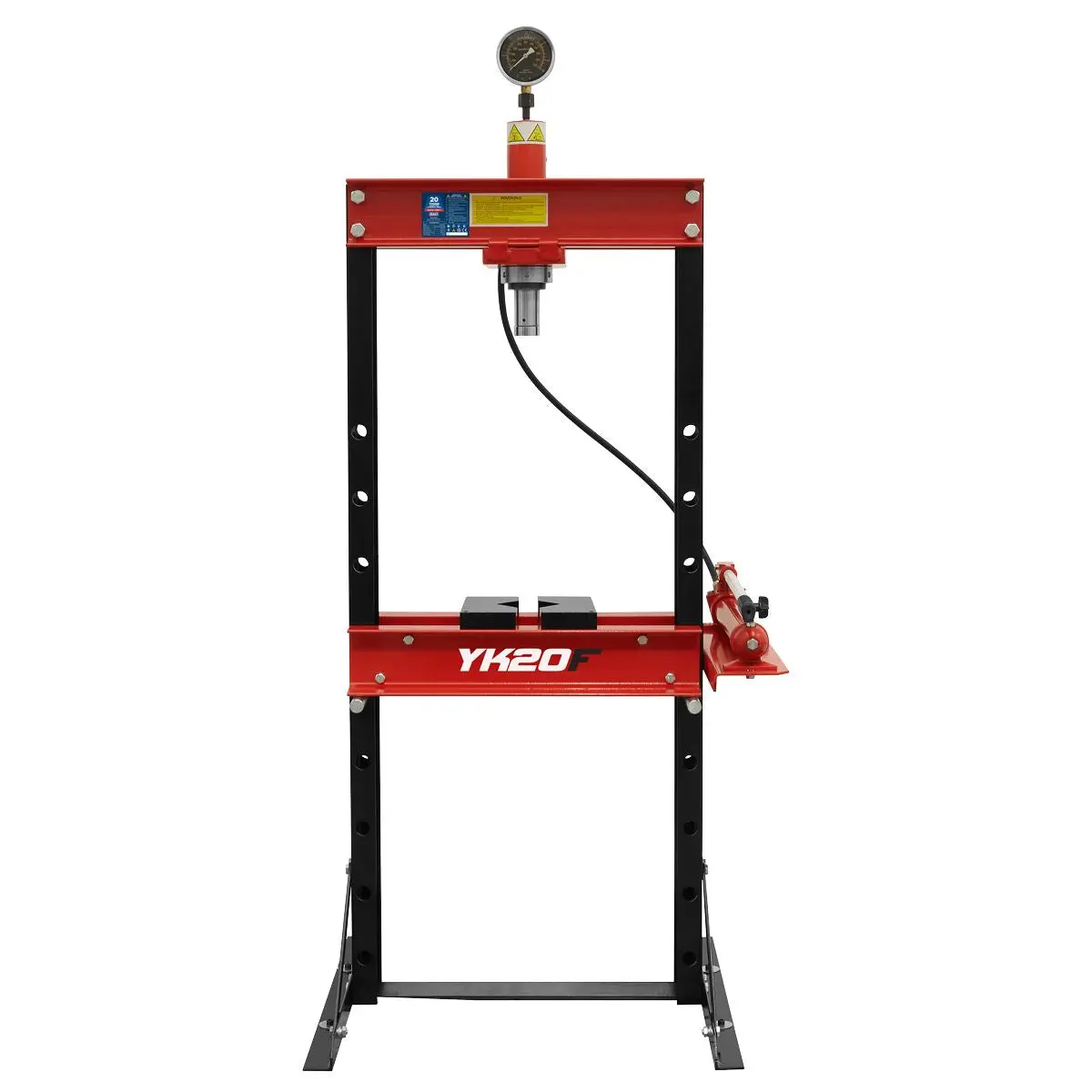

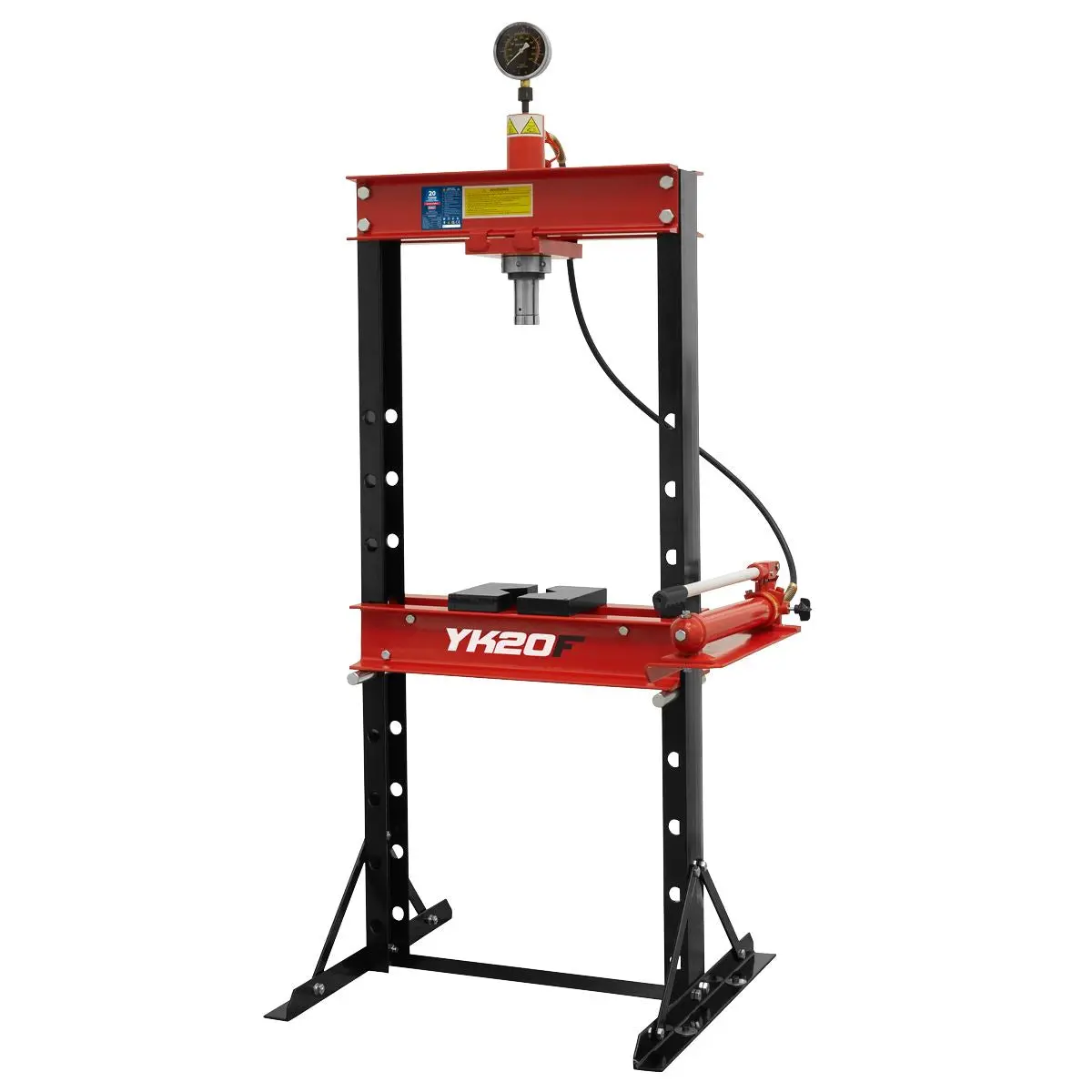

Sealey Hydraulic Floor Type Press 20 Tonne

Steel frame construction with side mounted hydraulic pump unit.

Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications.

Fitted with ram pressure gauge.

Supplied with flat pressing plate/V-blocks.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No YK20F
• Bench or Floor Mounting: Floor Mounted
• Brand: Sealey
• Capacity: 20 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 403mm
• Maximum Height - Ram to Table: 1018mm
• Minimum Height - Ram to Table: 58mm
• Nett Weight: 92.5KG
• Operating Table Width: 545mm
• Optional Accessories: YKPP8 - Press Pin Set
• Overall Height: 1796mm
• Ram Diameter: Ø48mm
• Ram Stroke: 185mm
• Table Aperture: 100mm
• Type: Hydraulic
• Type: Hydraulic
• Working Table Width: 545mm

Product Guarantee: 1 Year
Catalogue Page: Page 897

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
