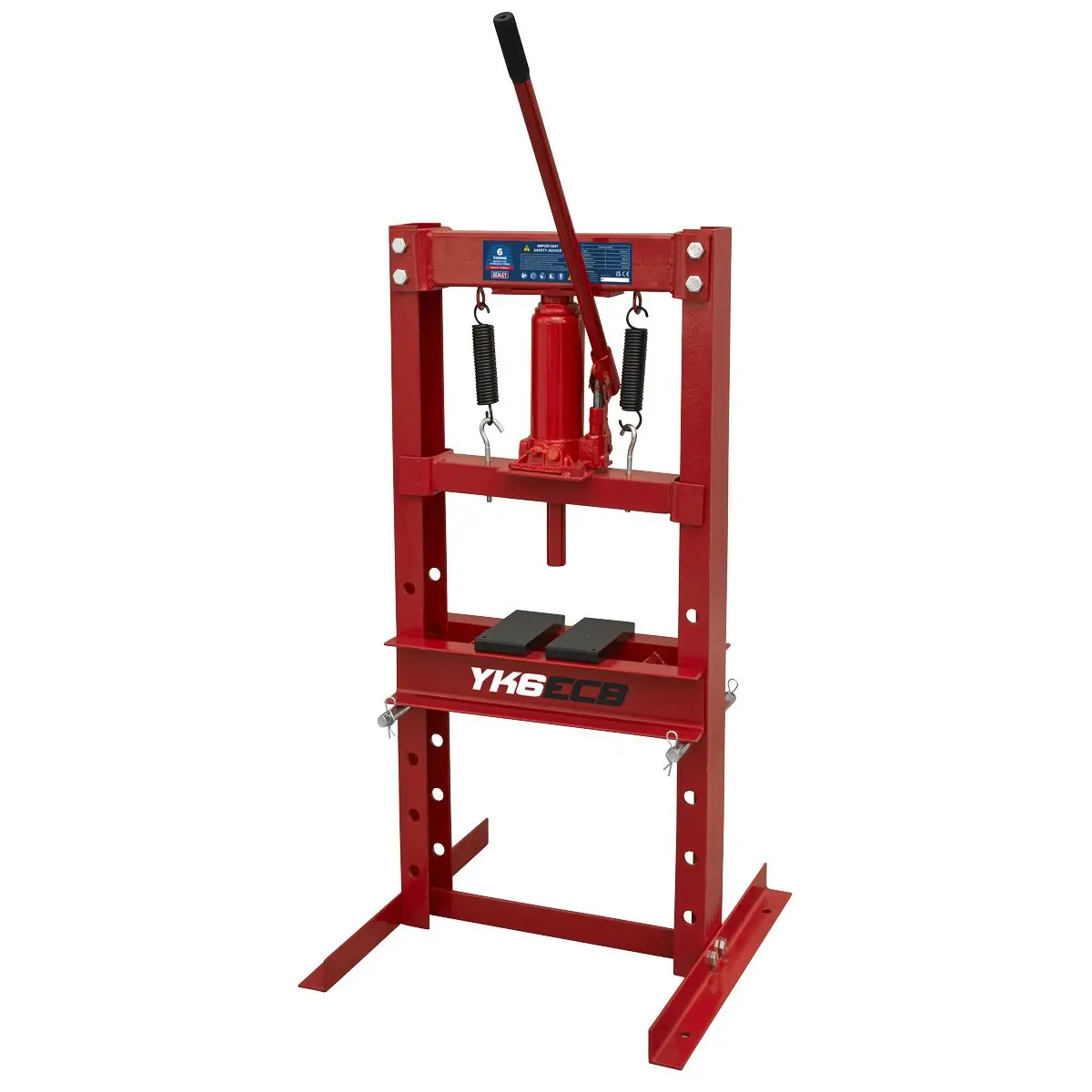

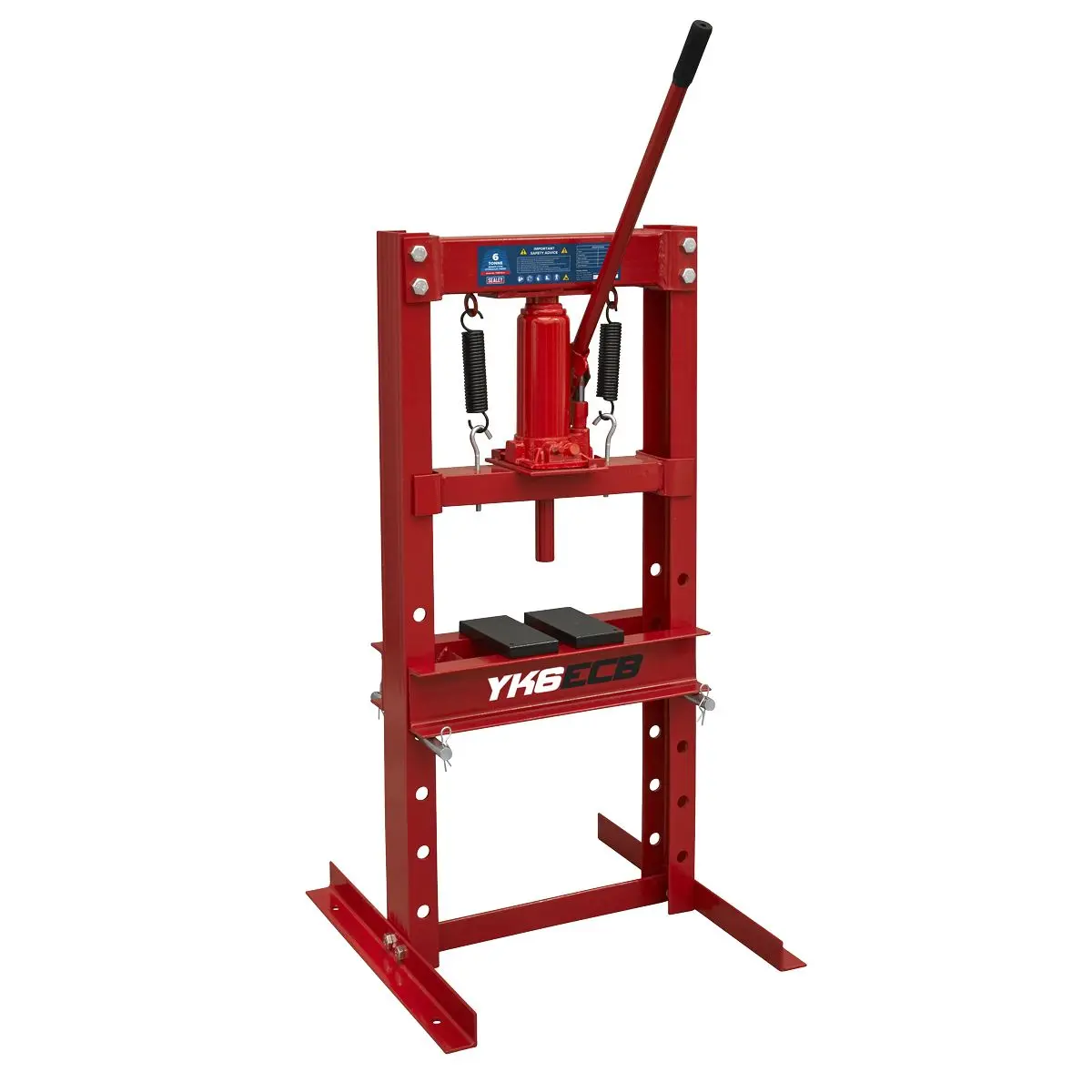

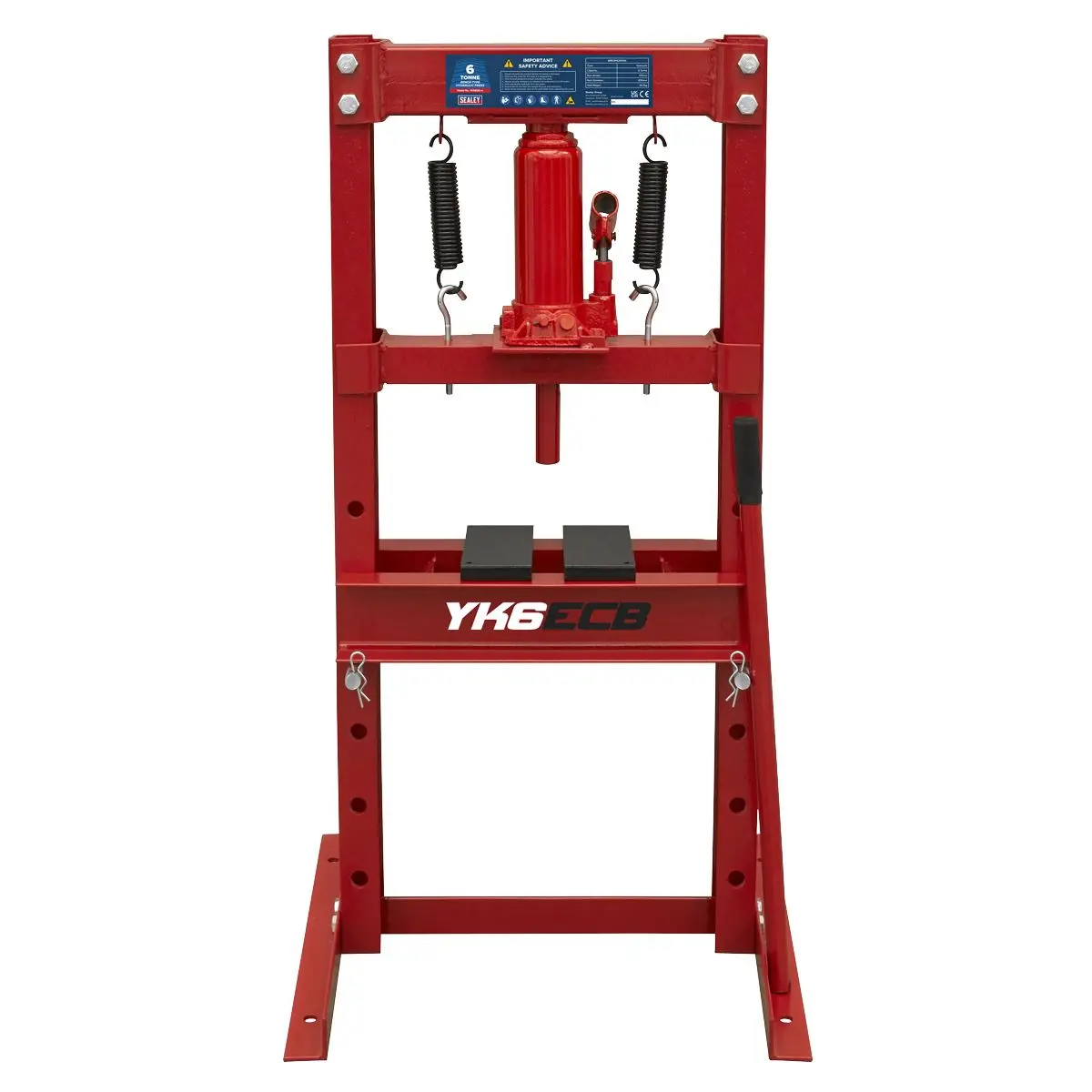

Sealey Hydraulic Bench Type Press 6 Tonne

SOLID STEEL CONSTRUCTION - Made from high quality steel, with a powder coated paint finish, preventing corrosion for years to come.

ADJUSTABLE TABLE - Simple relocation of two pins allows the table to be set at your optimum working height.

MULTI FUNCTIONAL - Designed to remove and install bushings, bearings, ball joints, universal joints, pulleys and gears.

TWO ARBOR PLATES INCLUDED - Assisting alignment, and strengthening the press point position.

Specification:

• Model No YK6ECB
• Bench or Floor Mounting: Bench
• Brand: Sealey
• Capacity: 6 Tonne
• Gauge Included: No
• Lateral Ram Travel: n/a
• Maximum Height - Ram to Table: 300mm
• Minimum Height - Ram to Table: -202mm
• Nett Weight: 36kg
• Operating Table Width: 345mm
• Overall Height: 920mm
• Ram Diameter: Ø32mm
• Ram Stroke: 127mm
• Screw Extension: 70mm
• Table Aperture: 80mm
• Working Table Depth: 165mm
• Working Table Width: 420mm

Product Guarantee: 1 Year
Catalogue Page: Page 896

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
