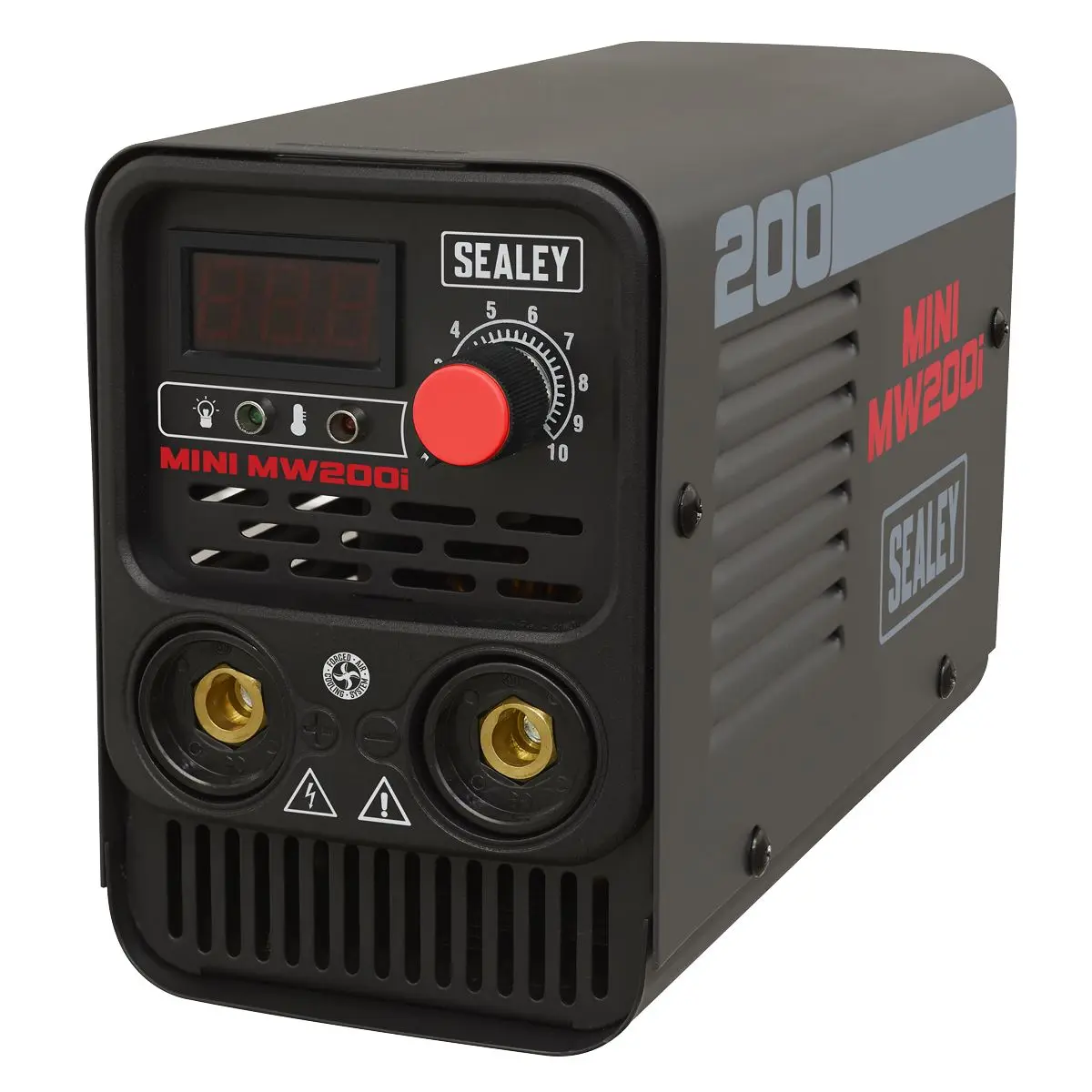

Sealey Inverter Welder 200A/230V

ULTRA COMPACT AND LIGHTWEIGHT - Ultra-compact and lightweight unit weighing just 4kg approx.

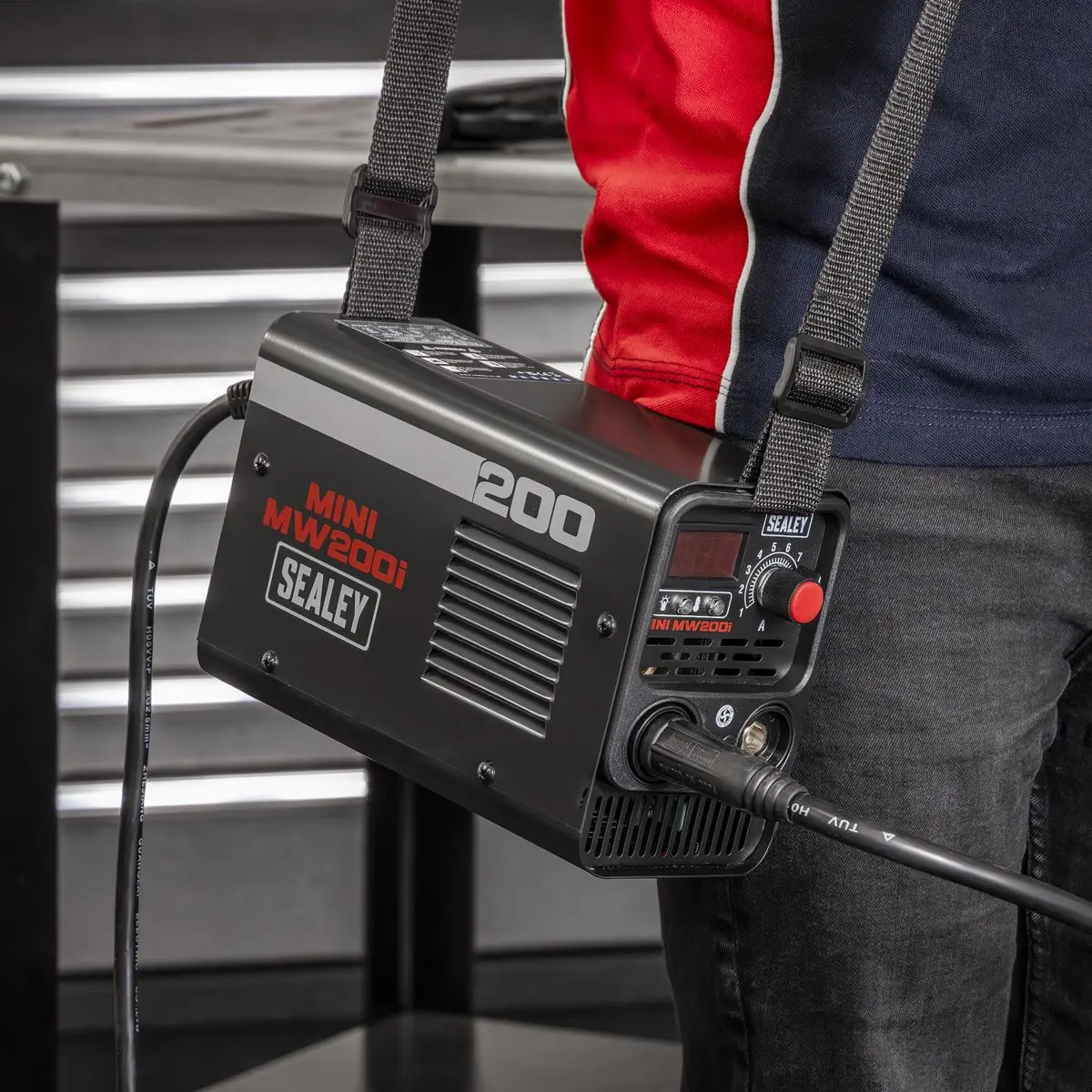

IDEAL FOR A MOBILE TECHNICIAN - Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.

SUITABLE FOR MOST ARC/MMA WELDING RODS - Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø5mm.

USER FRIENDLY FUNCTIONS - Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.

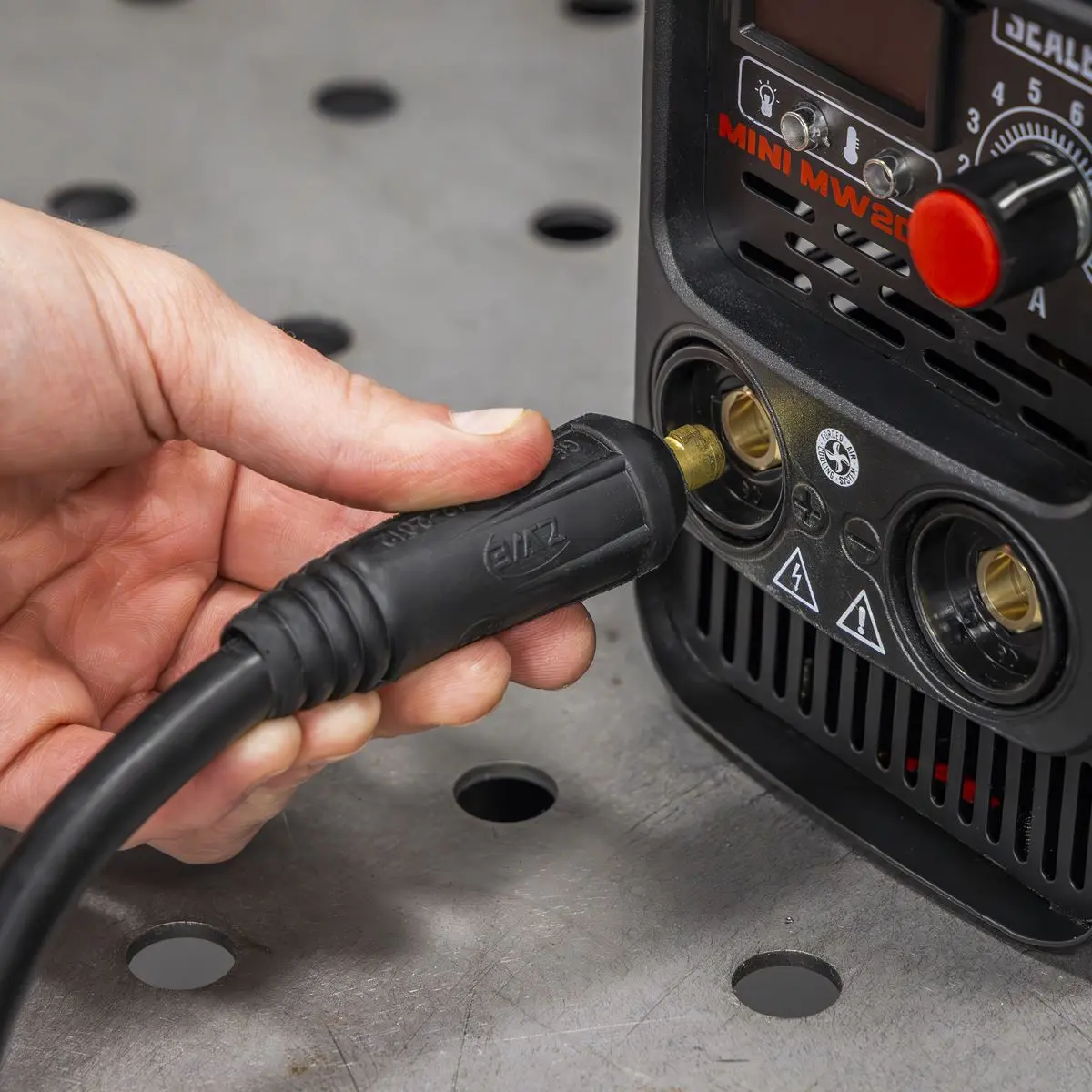

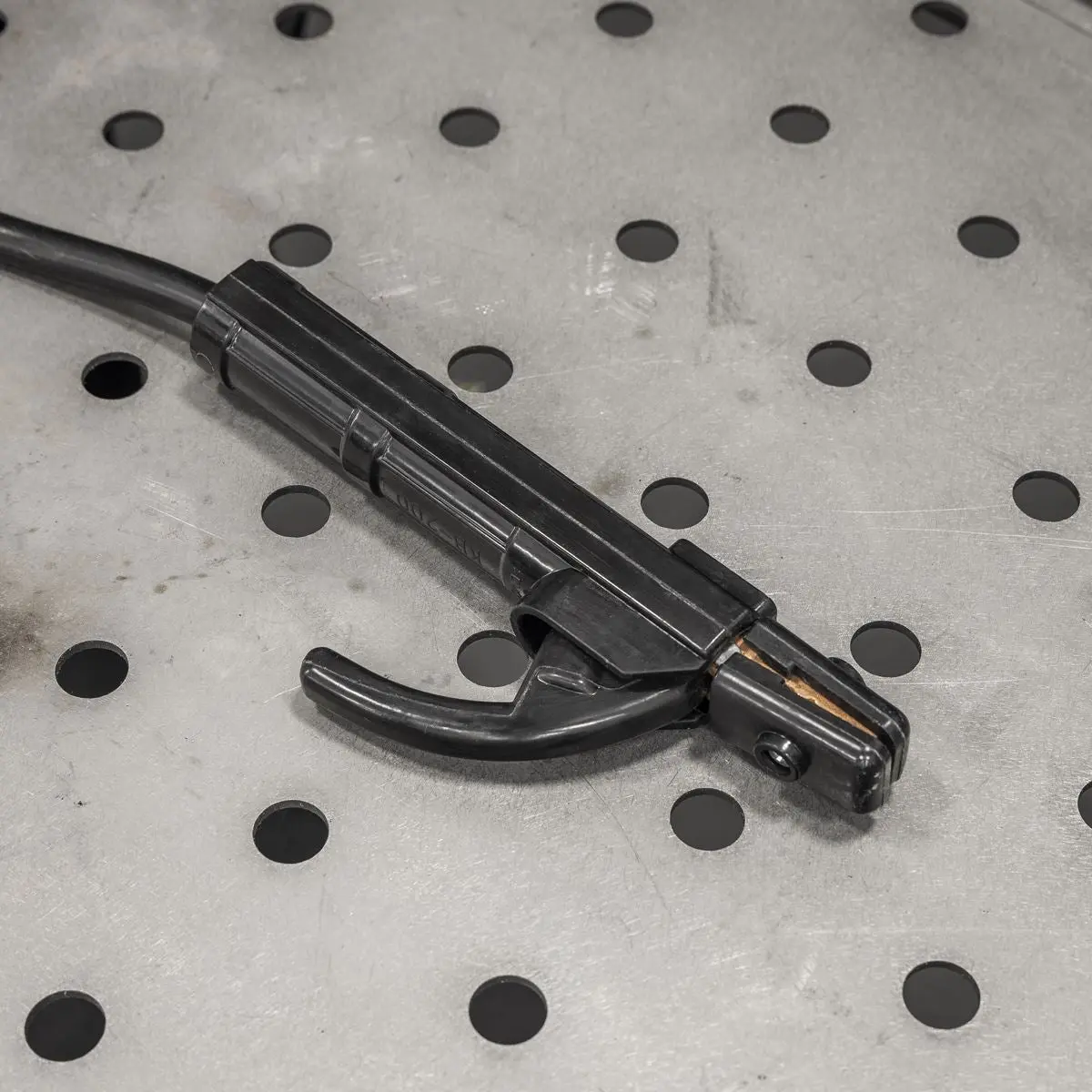

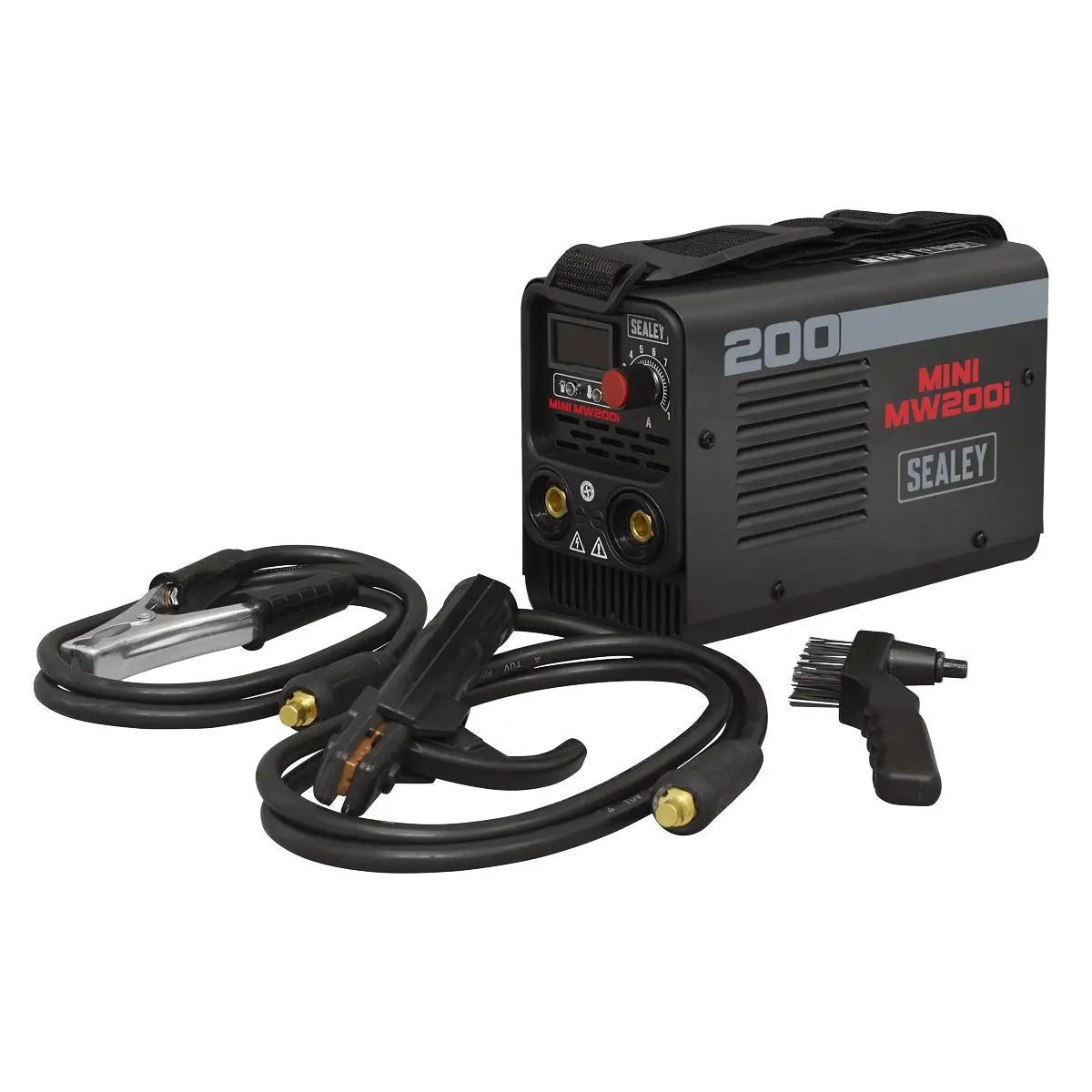

SUPPLIED WITH - Supplied with 1.6m 25mm² cable with electrode holder and a 1.4m 25mm² earth clamp and cable, both with 10-25 dinse connectors.

Specification:

• Model No MINIMW200i
• Brand: Sealey
• Nett Weight: 4.8kg
• Welding Current: 20-200A
• Duty Cycle: 60% @ 200A, 100% @ 155A
• Absorbed Power: 9kW
• Electrode Capacity: 1.6-5mm
• Supply: 230V - 16A*
• Plug Type: Bare Wire
• Power Supply Cable Length: 2m
• IP Rating: IP21S
• Weight: 4.8kg
• *Note To achieve maximum power a 16A supply may be required.

Product Guarantee: 1 Year
Catalogue Page: Page 994

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
