Sealey Lever Hoist Steel 1500kg

HEAVY-DUTY GEARING - Rugged construction features drop-forged and heat treated pinion gear with totally enclosed mechanisms.

DURABLE SAFE OPERATION - Equipped with heavy-duty brake and high quality alloy steel chain.

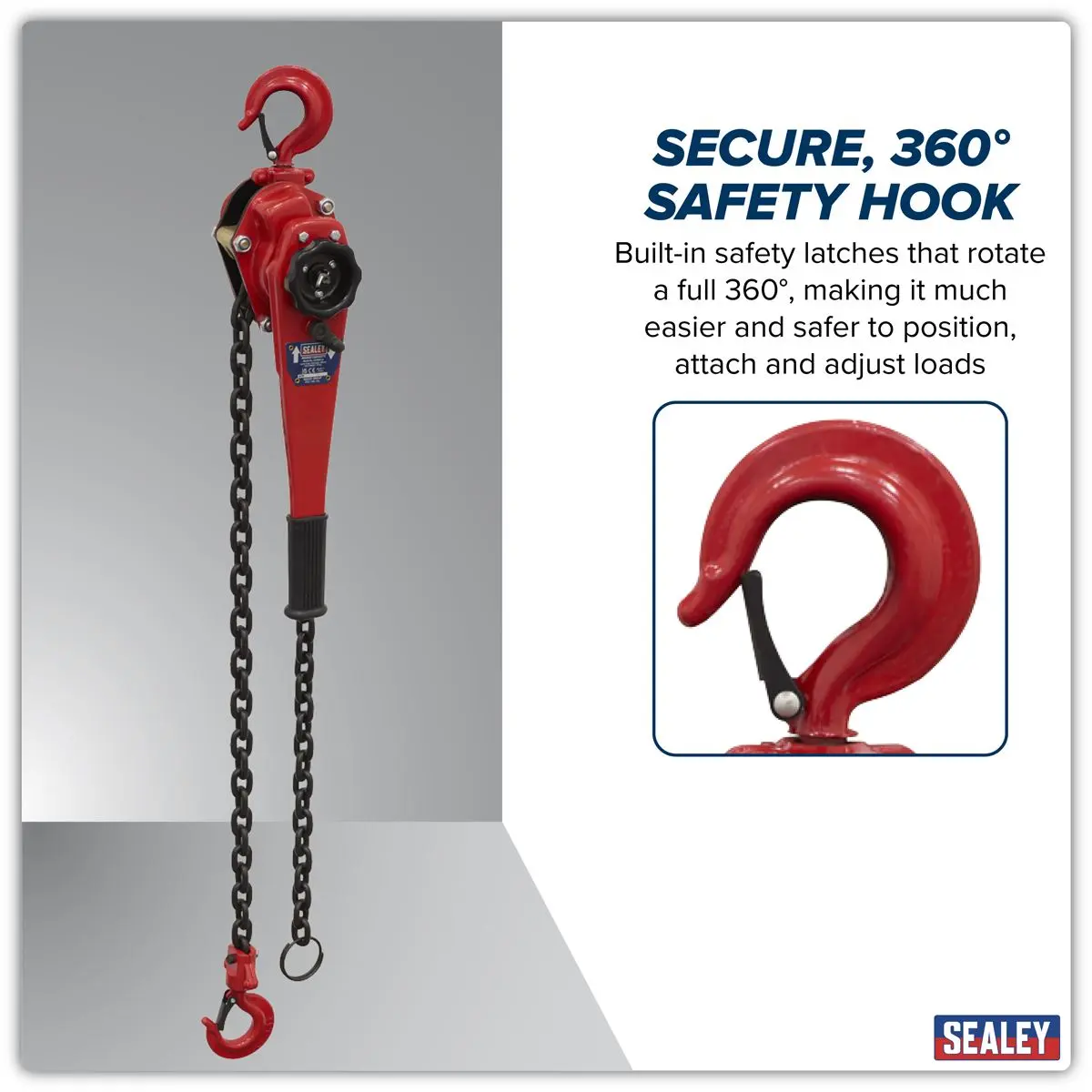

SAFE AND ANTI-TWIST - Hooks fitted with safety latches and rotate 360°.

QUICK AND SIMPLE - Free-chaining feature permits slack in the load chain to be taken up by hand before engaging the ratchet arm.

PRECISE - Provides total control on the load position.

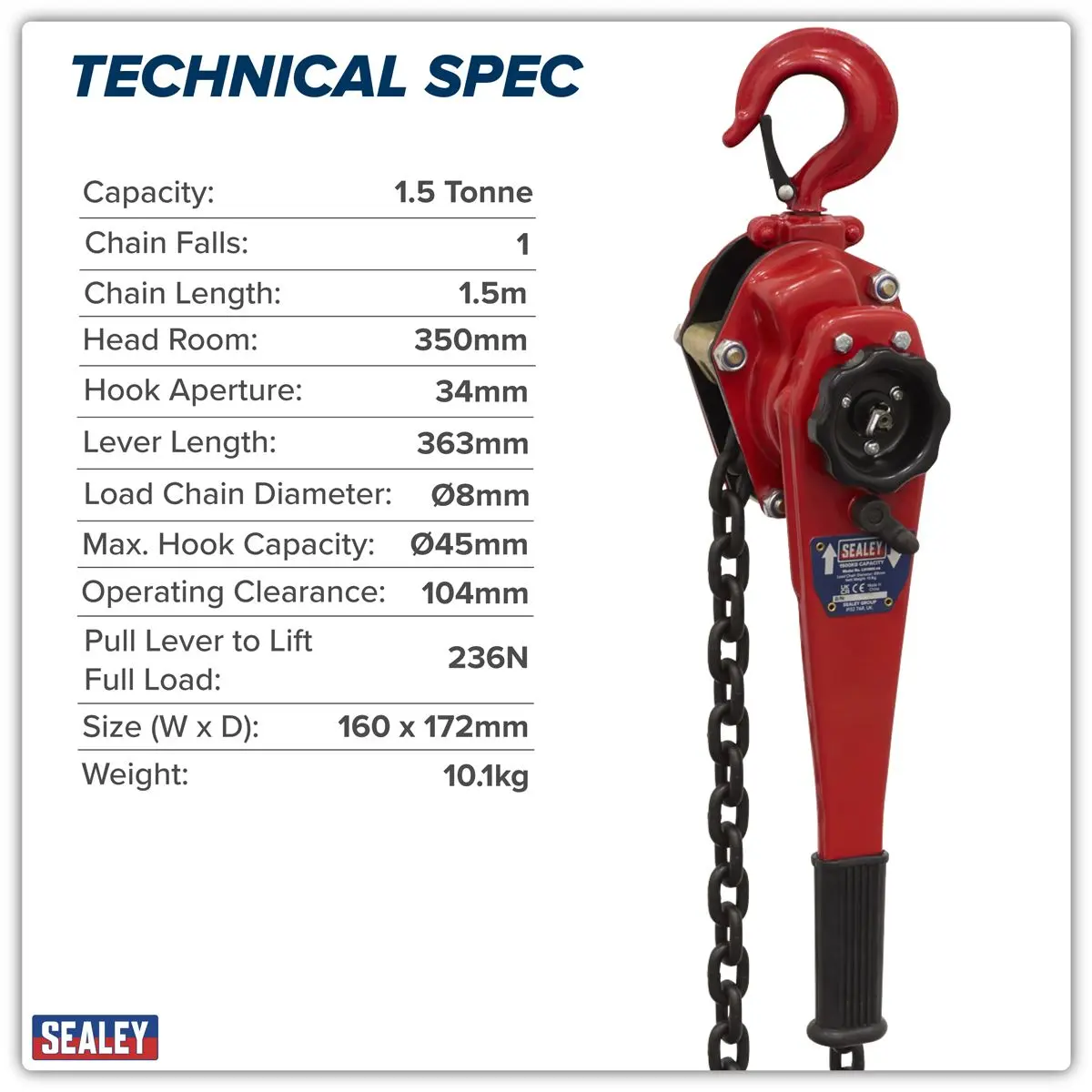

Specification:

• Model No LH1500
• Brand: Sealey
• Capacity: 1500kg
• Chain Falls: 1
• Chain Length: 1.5m
• Head Room: 350mm
• Hook Aperture: 34mm
• Lever Length: 363mm
• Load Chain Diameter: Ø8mm
• Maximum Hook Capacity Ø: 45mm
• Nett Weight: 10.1kg
• Operating Clearance: 104mm
• Pull on Lever to Lift Full Load: 236N
• Size (W x D): 160 x 172mm
• Test Load: 2250kg

Product Guarantee: 1 Year
Catalogue Page: Page 893

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
