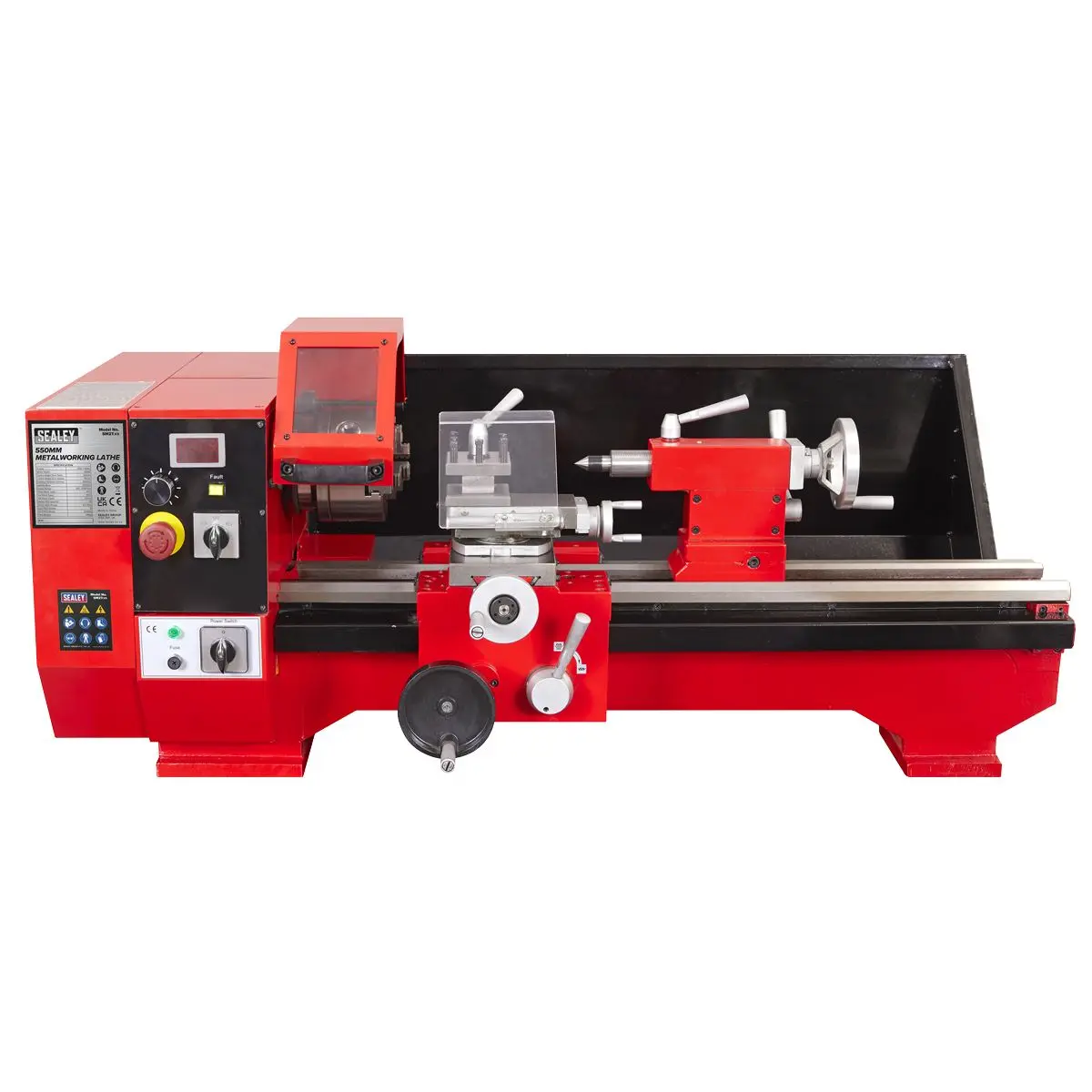

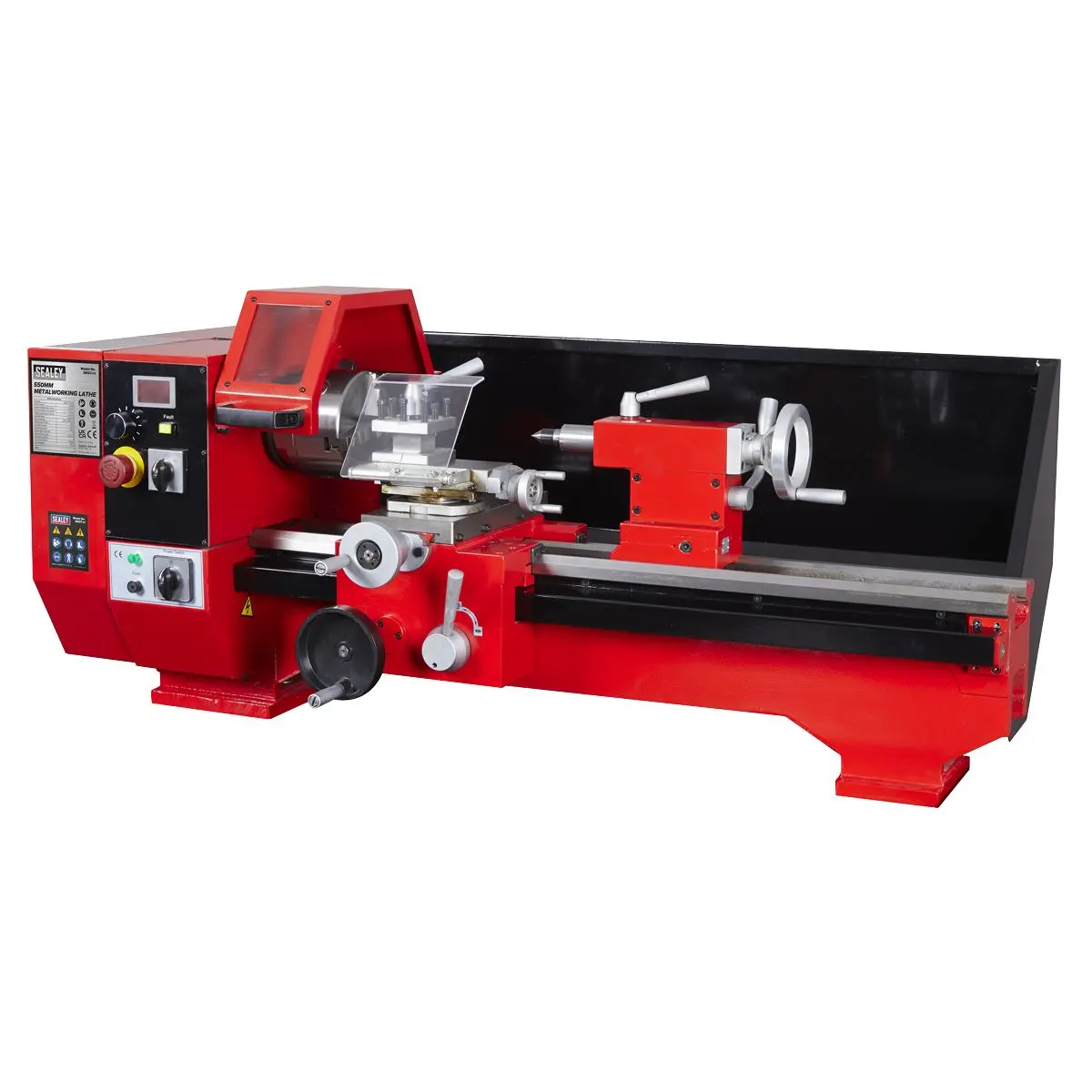

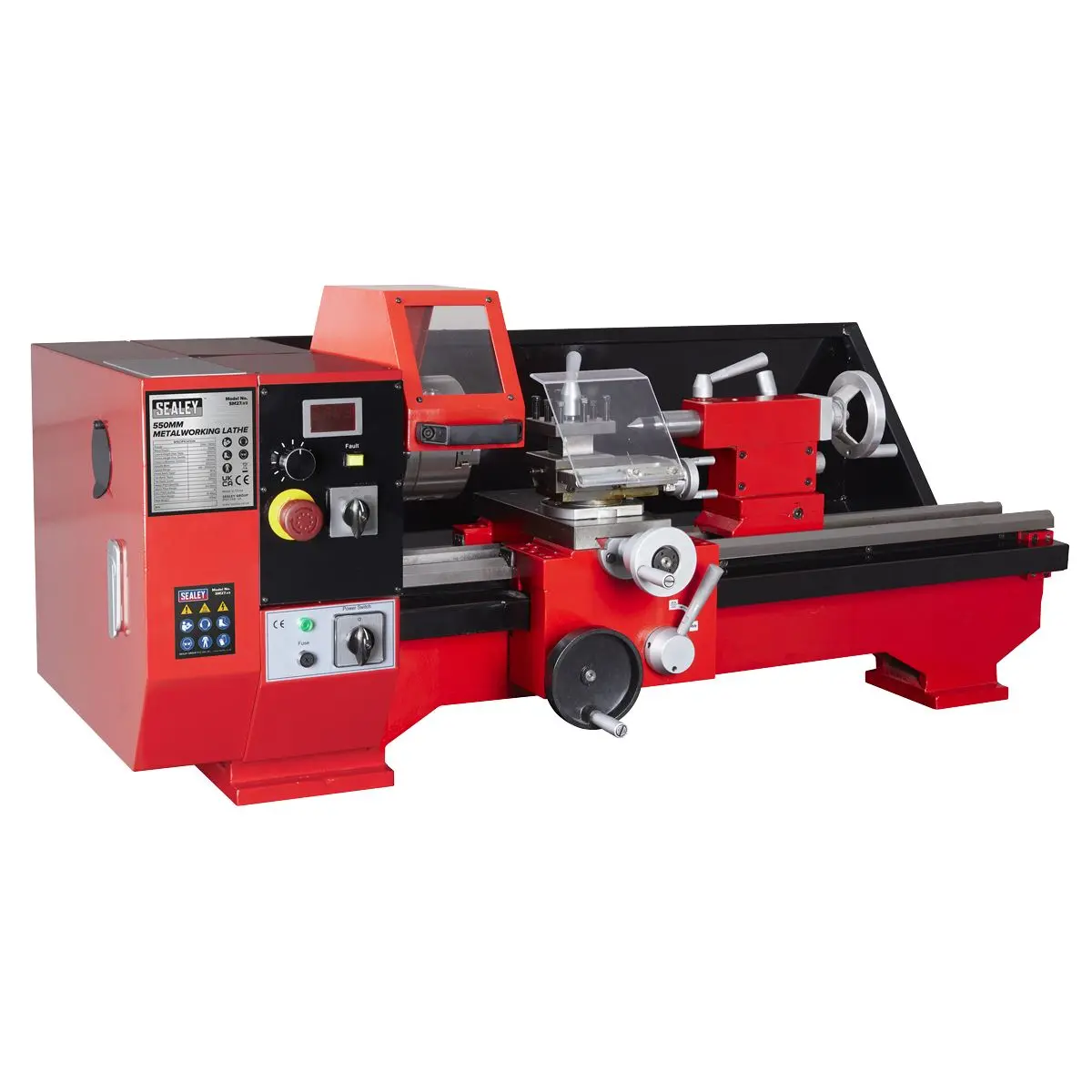

Sealey Metalworking Lathe 550mm Between Centres

HIGH QUALITY - Workshop lathe suitable for a wide range of turning and drilling applications.

VARIABLE SPEED - 550W Motor through infinitely variable speed gearbox.

SELF-CENTERING - 3-jaw chuck and dead centre.

POWER FEED - For even surface finish and thread cutting.

FAST TOOL CHANGE - 4-Way tool post mounted on compound slide mechanism enables fast interchange of cutting tools with accurate feed.

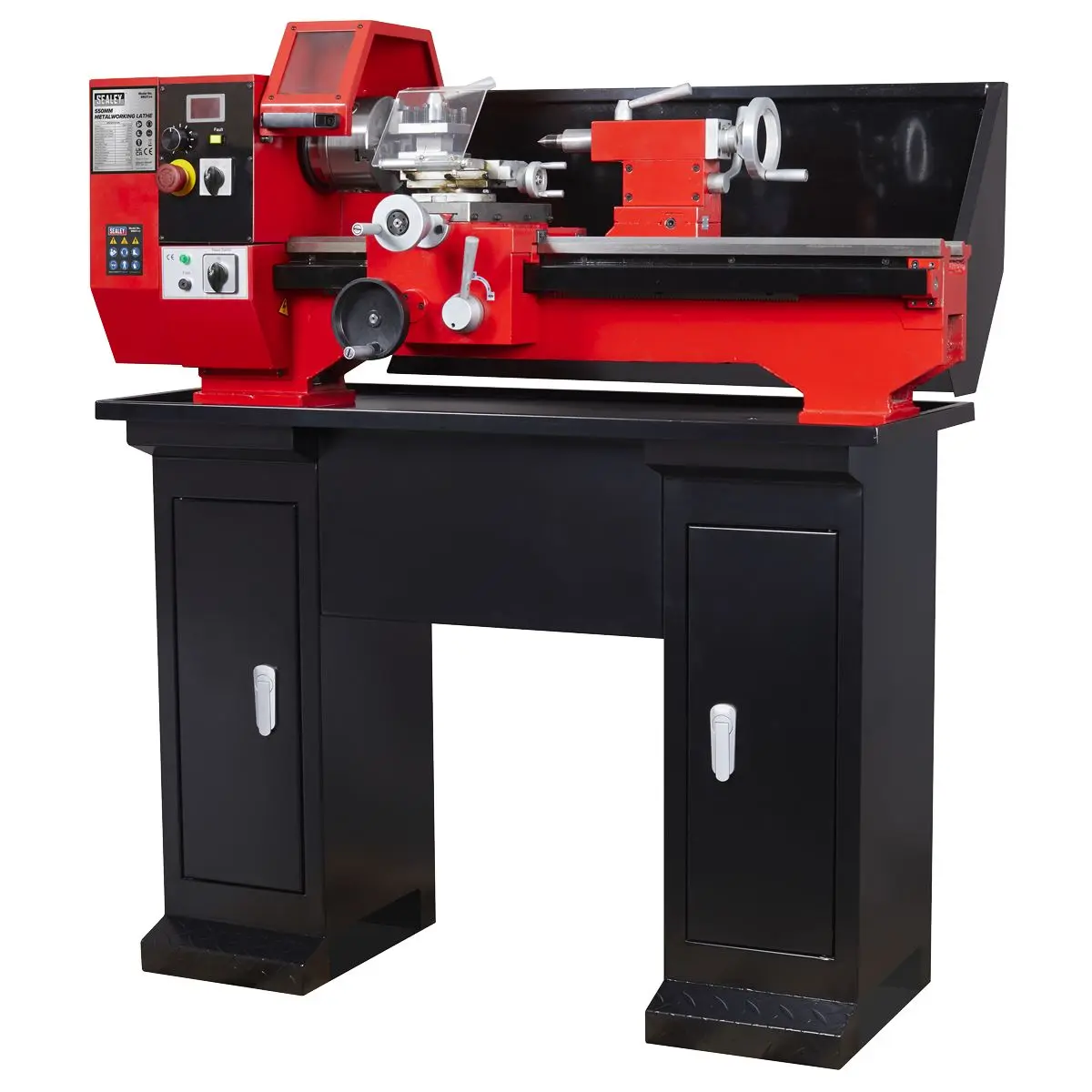

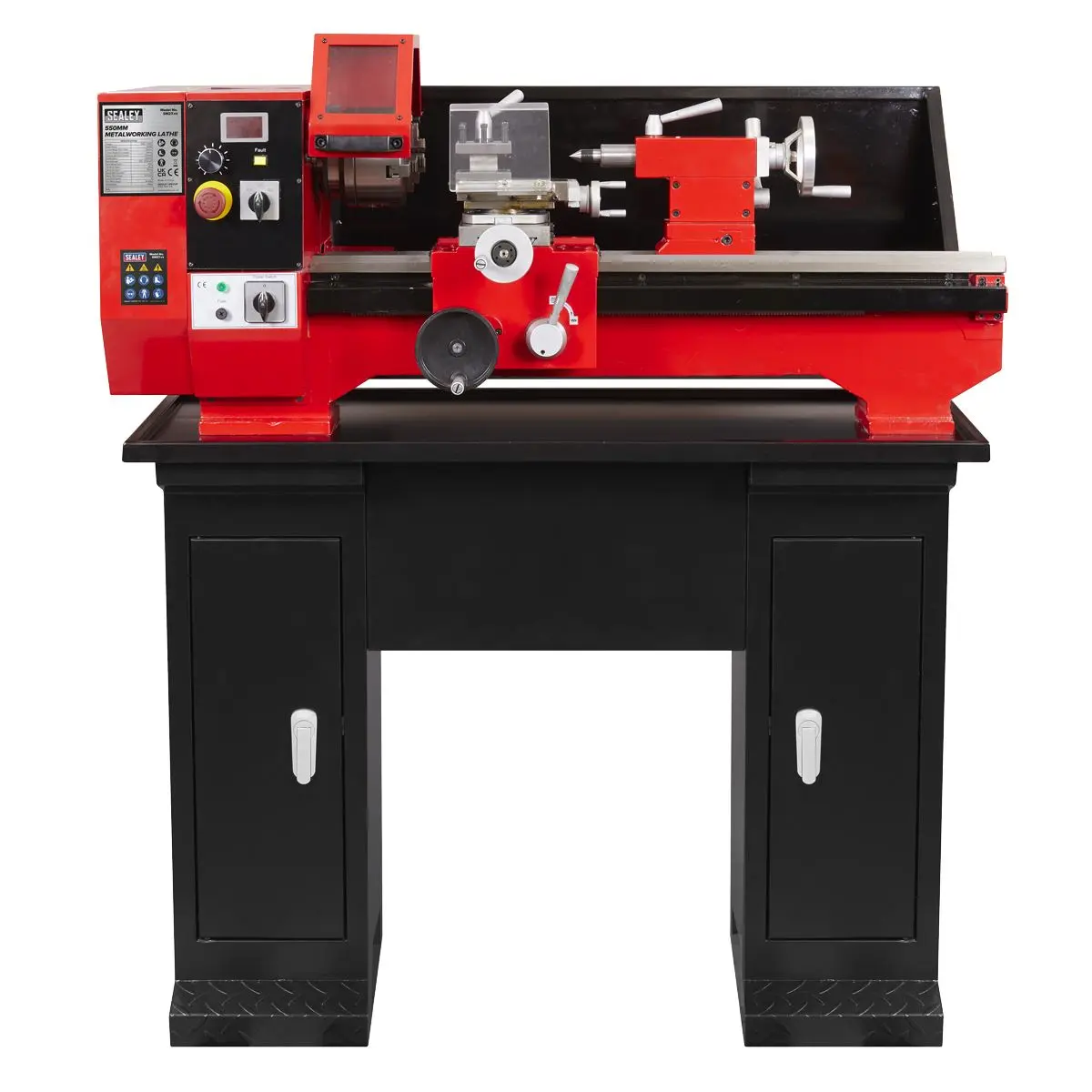

OPTIONAL STAND - Workshop stand available as an extra, order Model No. SM27ST.

NOTE - This item is heavy. Extra assistance must be provided at the delivery point to help.

Specification:

• Model No SM27
• Brand: Sealey
• Nett Weight: 145kg
• Centre Height Over Table: 120mm
• Centre Height Over Saddle 110mm
• Distance Between Centres: 550mm
• Spindle Bore: Ø26mm
• Speed Range: 100-2000rpm
• Head Stock Taper: MT4
• Tail Stock Taper: MT2
• Tail Stock Travel: 70mm
• Metric Pitch Quantity: 12
• Metric Pitch Range: 0.4-3mm
• Inch Pitch Quantity: 8
• Inch Pitch Range: 10-44tpi
• Motor Power: 550W
• Supply: 230V

Product Guarantee: 1 Year
Catalogue Page: Page 915

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
