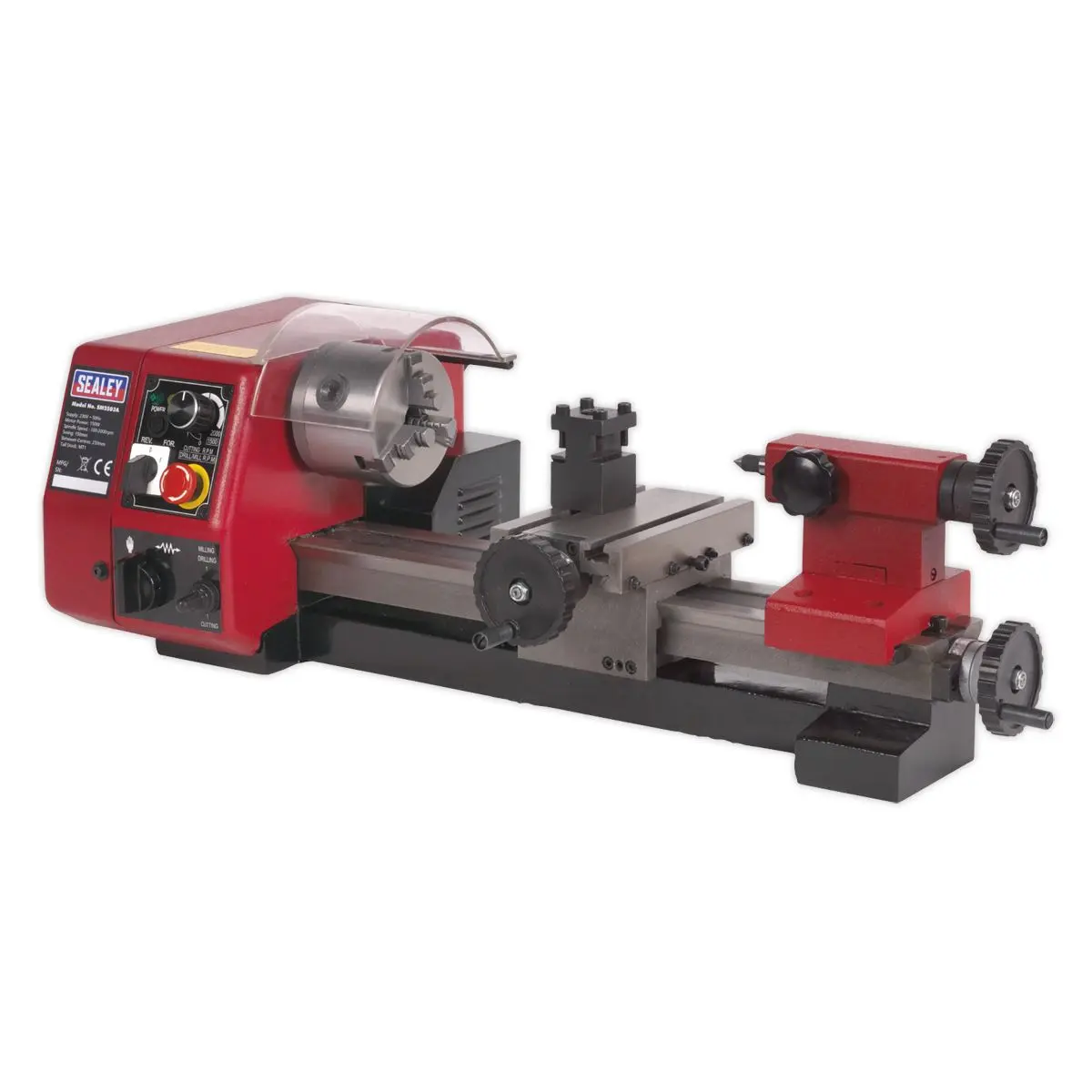

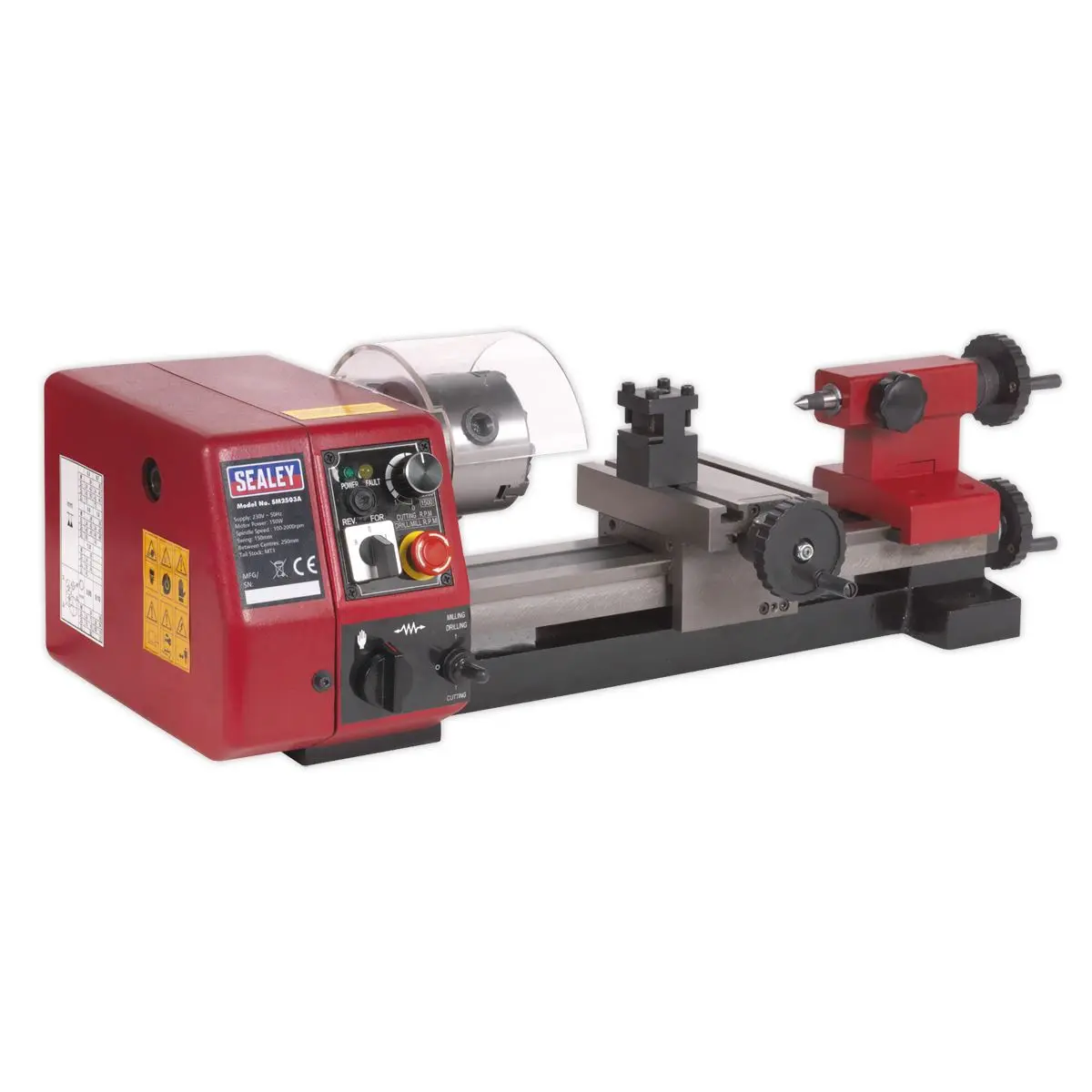

Sealey Metalworking Mini Lathe 250mm

Bench mounting miniature lathe, small enough to fit into the corner of a workshop.

Light enough to be truly portable.

Construction is predominately cast iron and steel.

Fitted with 150W high torque motor.

Capacities: 150mm swing over bed and 250mm between centres.

Features variable speed control, manual or powered lead screw feed, over-load protection.

Extensive range of accessories available.

Supplied with Ø80mm 3-jaw self-centring chuck, tailstock centre and service tools.

Specification:

• Model No SM2503A
• Brand: Sealey
• Nett Weight: 26.2kg
• Swing Over Bed: 150mm
• Distance Between Centres: 250mm
• Spindle Hole Taper: MT2
• Cross Slide Travel: 50mm
• Tailstock Taper: MT1
• Spindle Speed (Variable): 100-2000rpm
• Range of Metric Threads: 5 Pitches (0.5-1.25mm)
• Motor Power: 150W - 230V
• Weight: 26.2kg

Product Guarantee: 1 Year
Catalogue Page: Page 912

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
