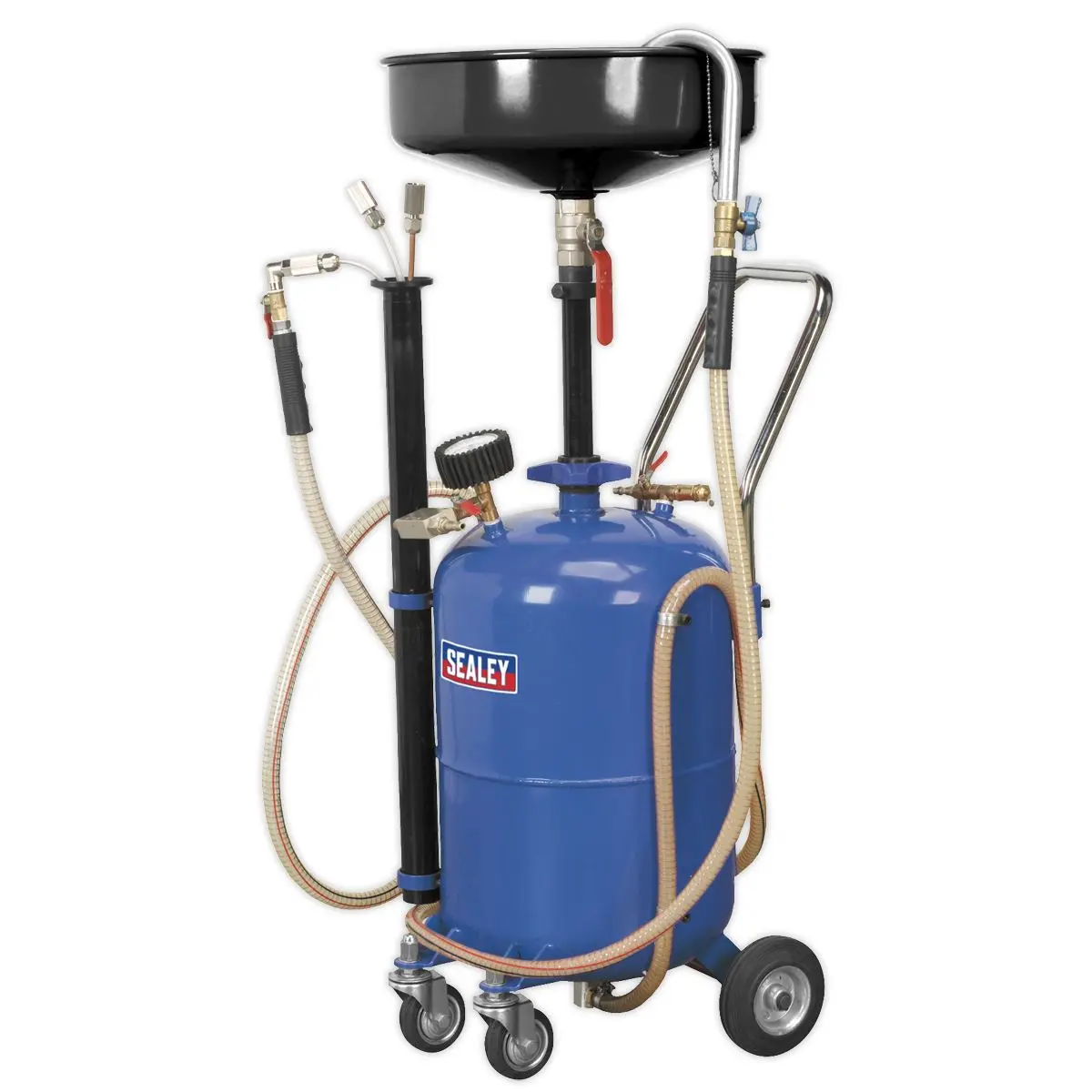

Sealey Air Discharge Mobile Oil Drainer with Probes 35L

Steel fabricated 35L reservoir.

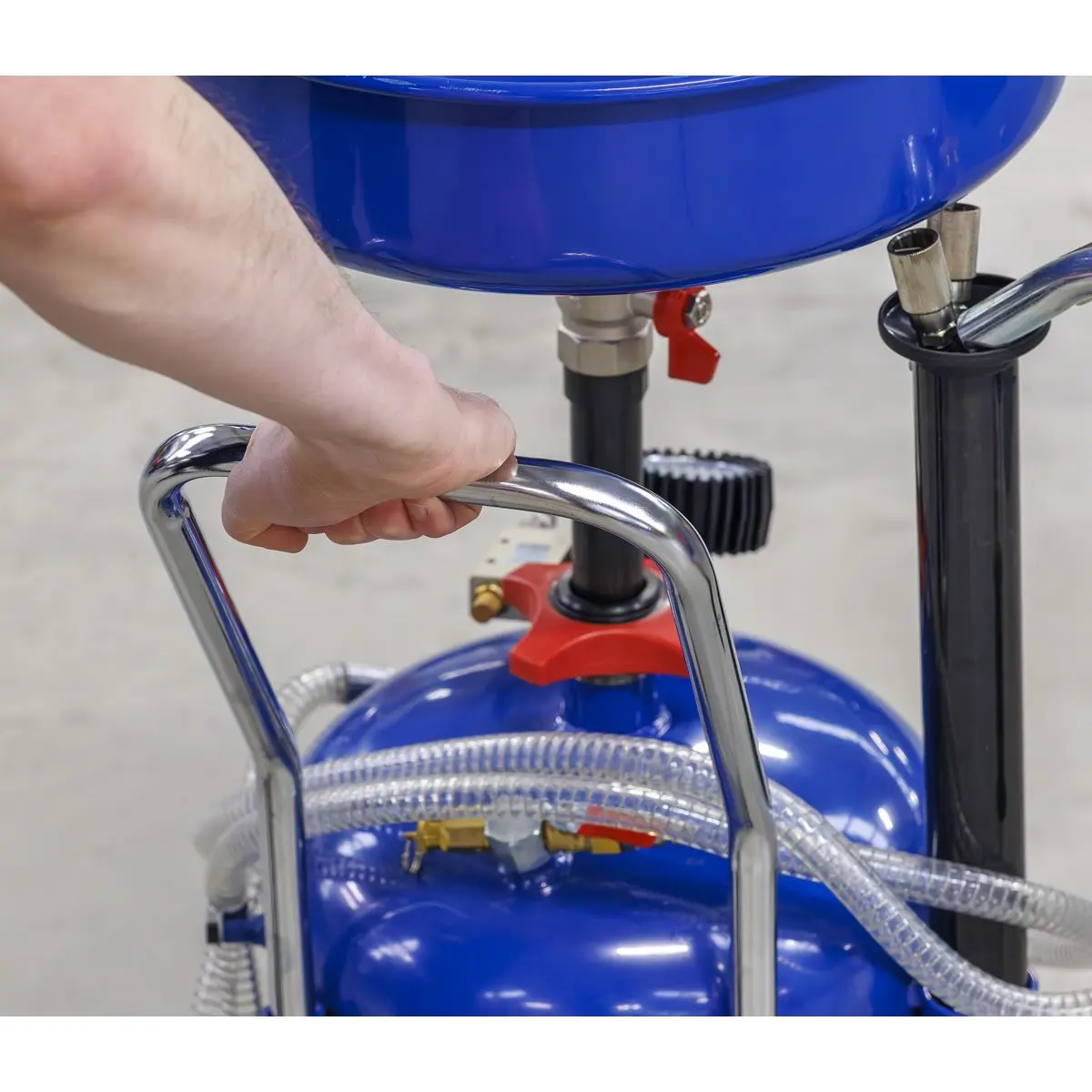

Height-adjustable steel drain pan, fitted with grid filter.

Features gravity feed reservoir with air discharge hose.

Includes quick release oil dipstick probes, powered by venturi suction pump.

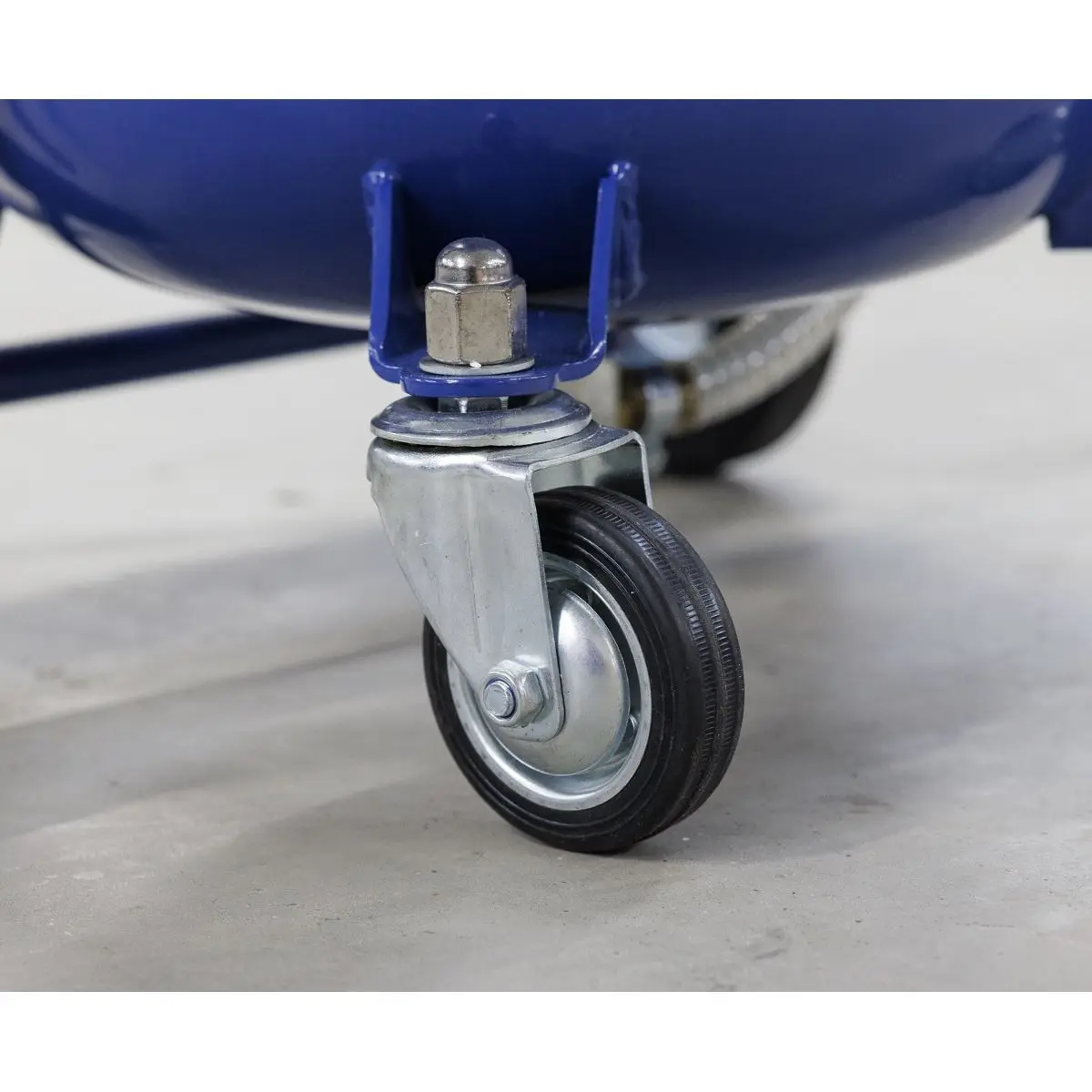

Fitted with heavy-duty wheels and castors for easy mobility.

Min./Max. Pan Height: 935/1420mm.

Specification:

• Model No AK456DX
• Air Discharge: Yes
• Air Inlet Size: 1/4"
• Brand: Sealey
• Capacity: 35L
• Collection Bowl Capacity (L): 18L
• Gravity Discharge: No
• Gravity Feed: Yes
• Maximum Height to Pan: 1420mm
• Maximum Inlet Pressure: 7bar
• Minimum Height to Pan: 935mm
• Nett Weight: 15.6kg
• Oil Discharge Pressure (bar): 0.5bar
• Pump Discharge: No
• Suction Probe: Yes
• Temperature Range: <80°C

Product Guarantee: 1 Year
Catalogue Page: Page 949

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
