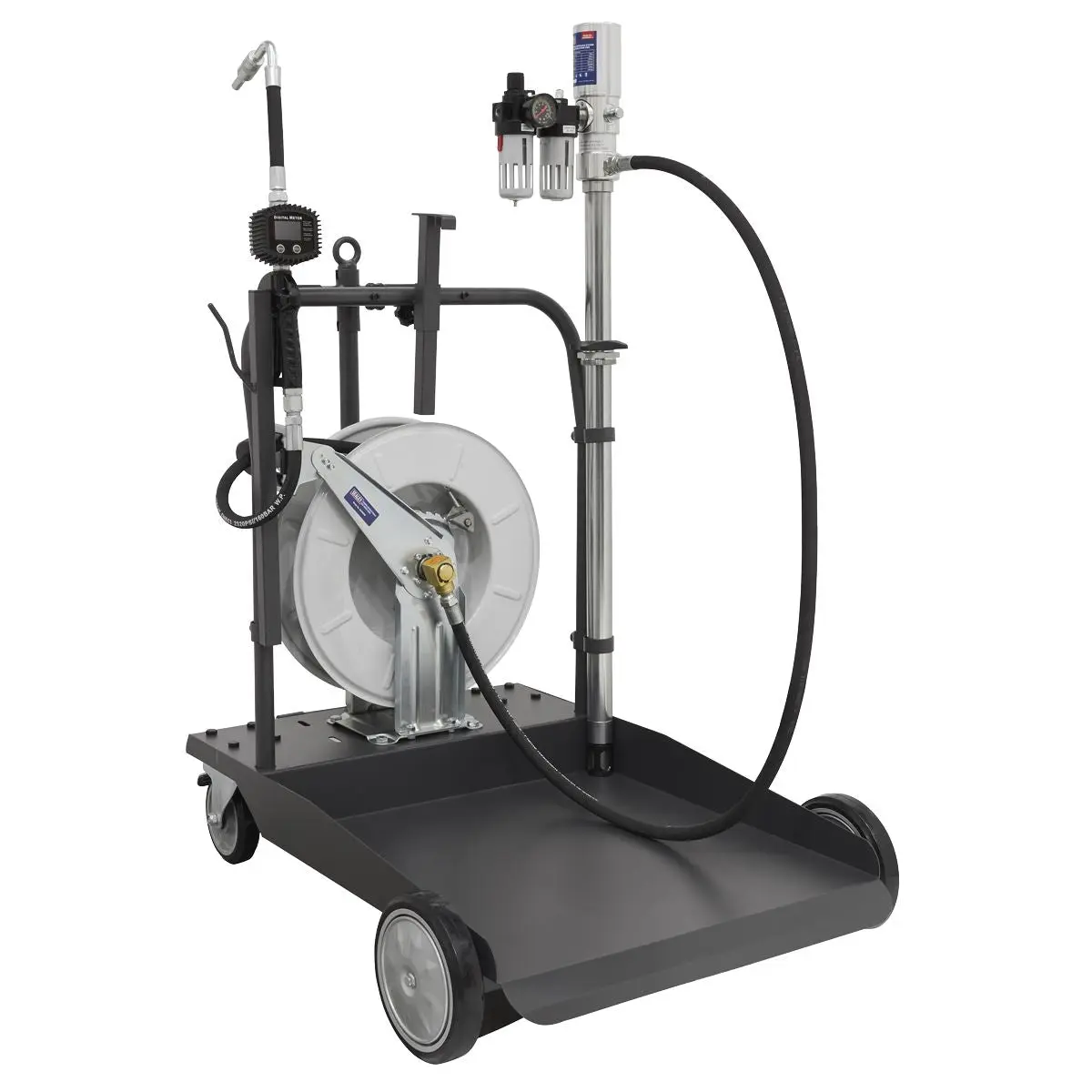

Sealey Air Operated Oil Dispensing System with 10m Retractable Hose Reel

Mobile oil dispensing unit with air operated 3:1 double acting pump for barrels or tanks with 2"BSP fittings.

Pump is supplied with air management system connected to a 940mm rigid suction probe with non-return valve.

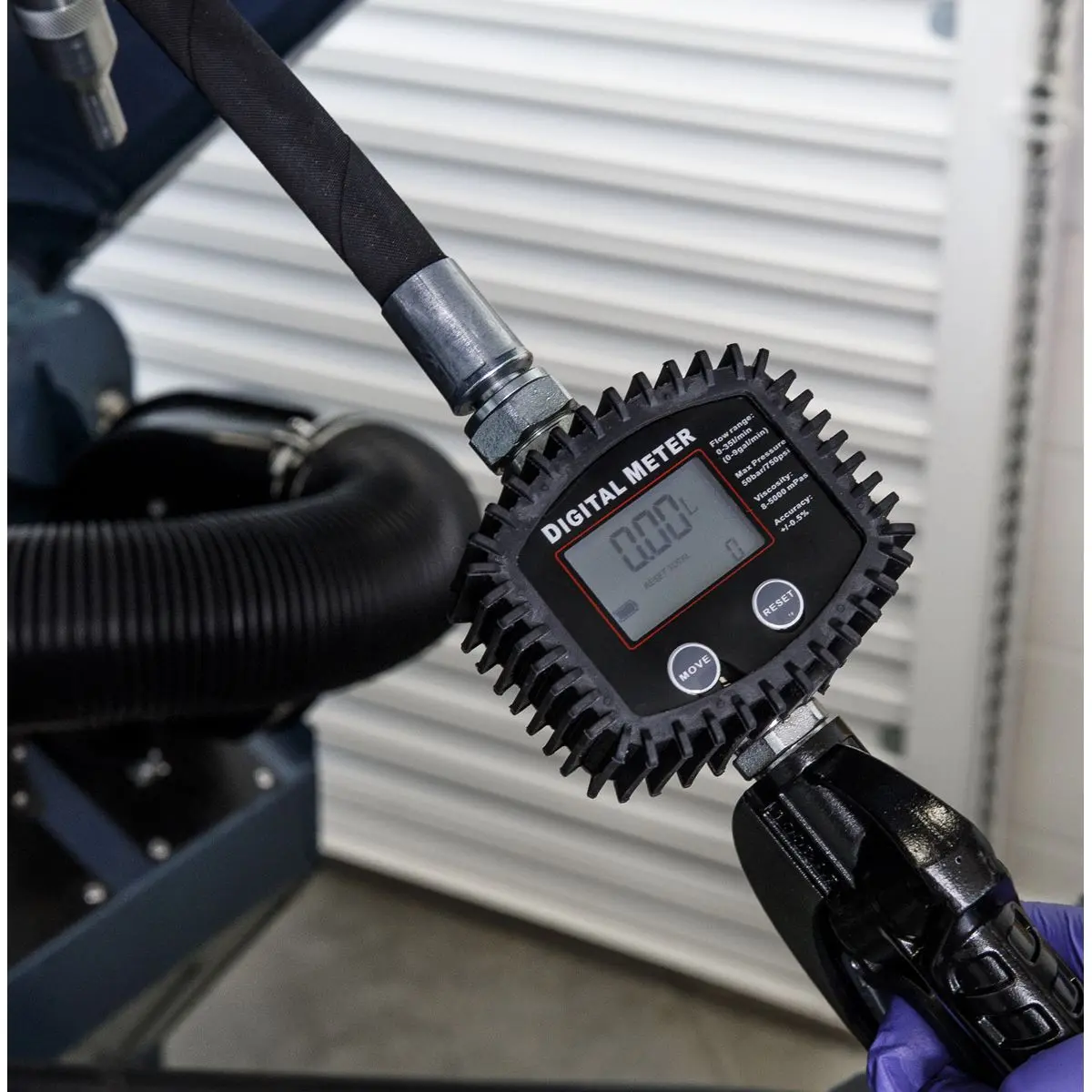

Features trolley, 10m retractable hose reel (Model No. AK4567D supplied) and digital oil meter (Model No. AK4565D supplied).

Suitable for use with 205L drums and engine, hydraulic, synthetic, gear and transmission oils up to SAE150.

Specification:

• Model No AK4562D
• Brand: Sealey
• Maximum Air Pressure: 115psi
• Maximum Flow Rate: 12L/min
• Maximum Output Pressure: 350psi
• Maximum Trolley Capacity: 220kg
• Maximum Viscosity: SAE150
• Nett Weight: 59.40kg
• Outlet Size: 1/2"BSP
• Pump Ratio: 3:1
• Recommended Air Pressure: 70psi

Product Guarantee: 1 Year
Catalogue Page: Page 962

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
