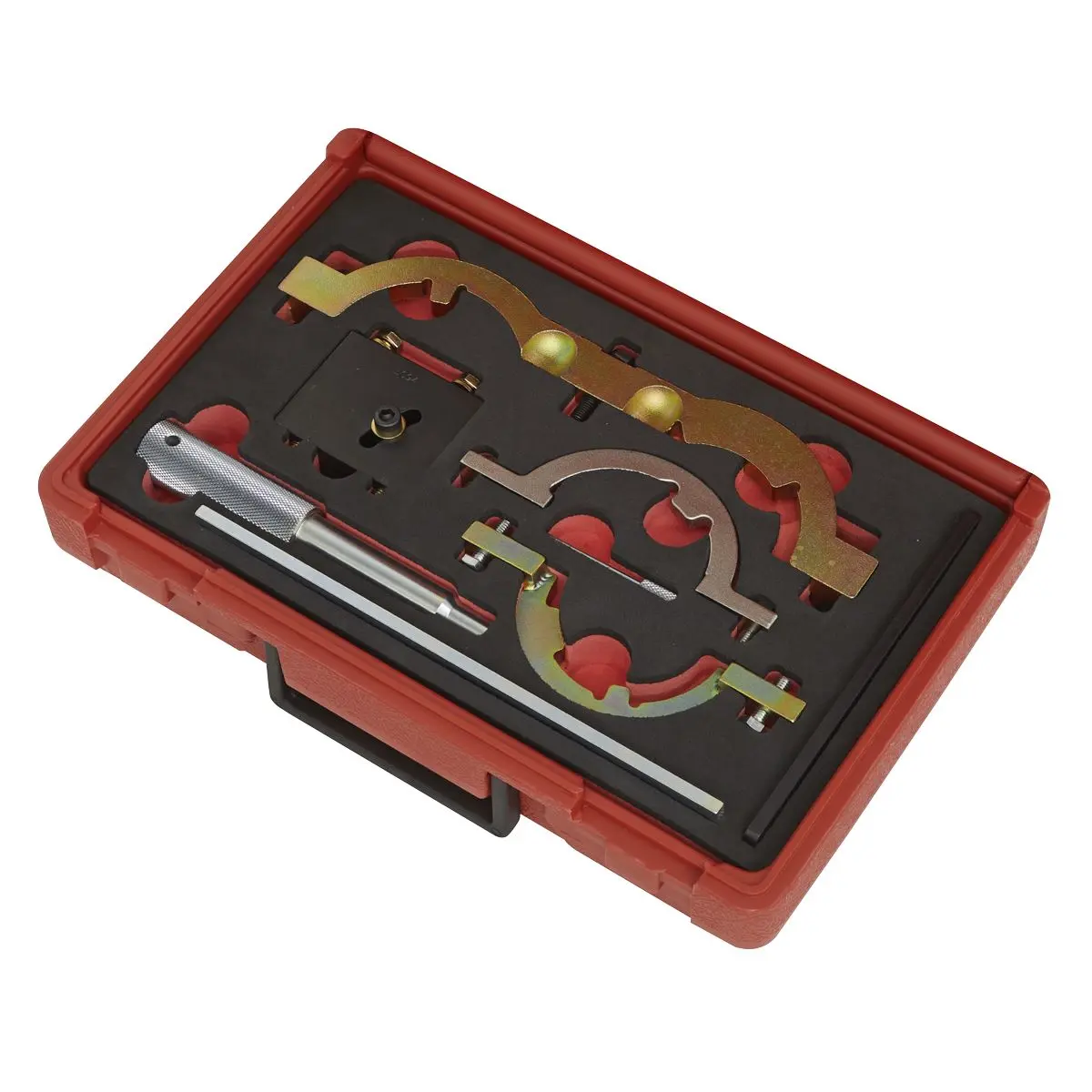

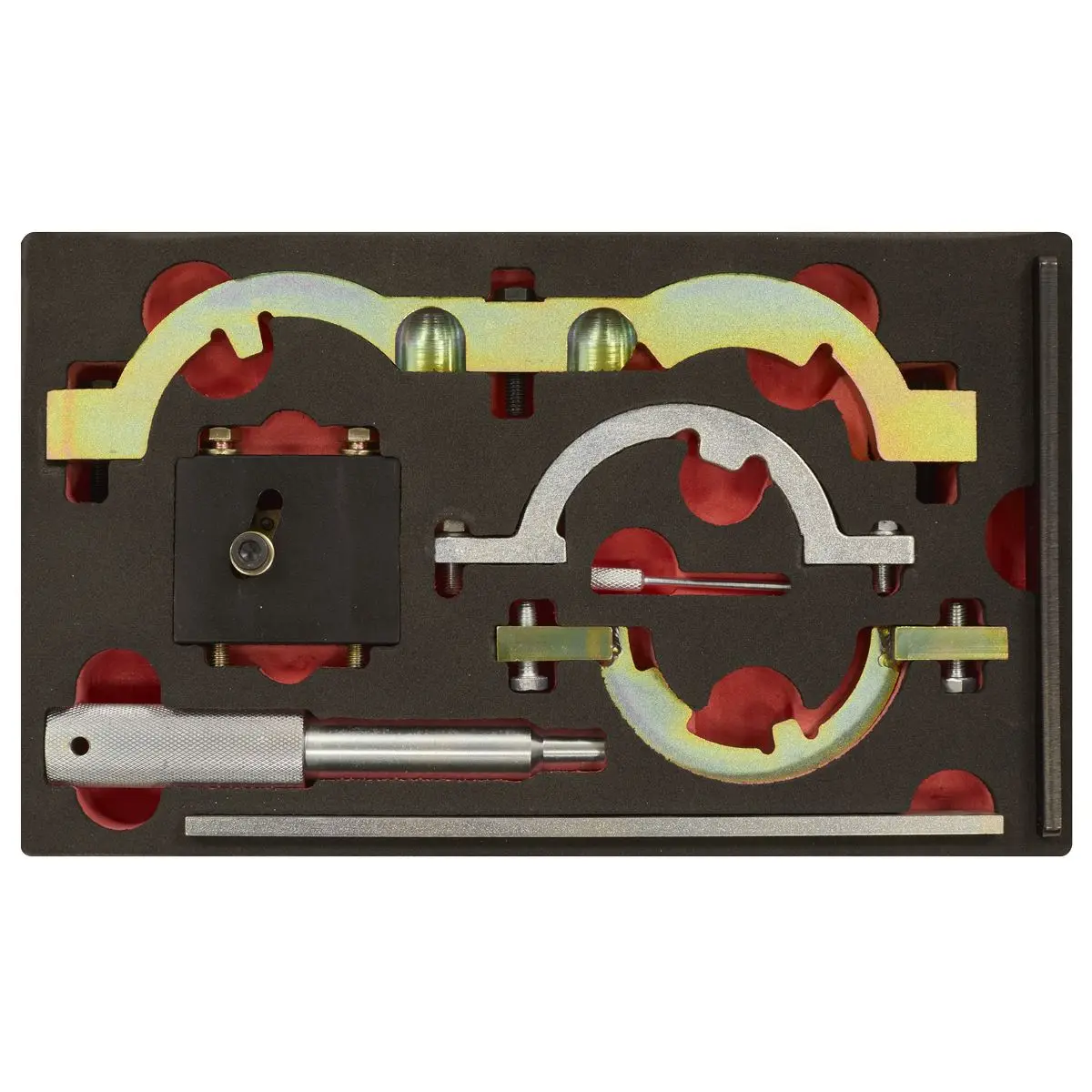

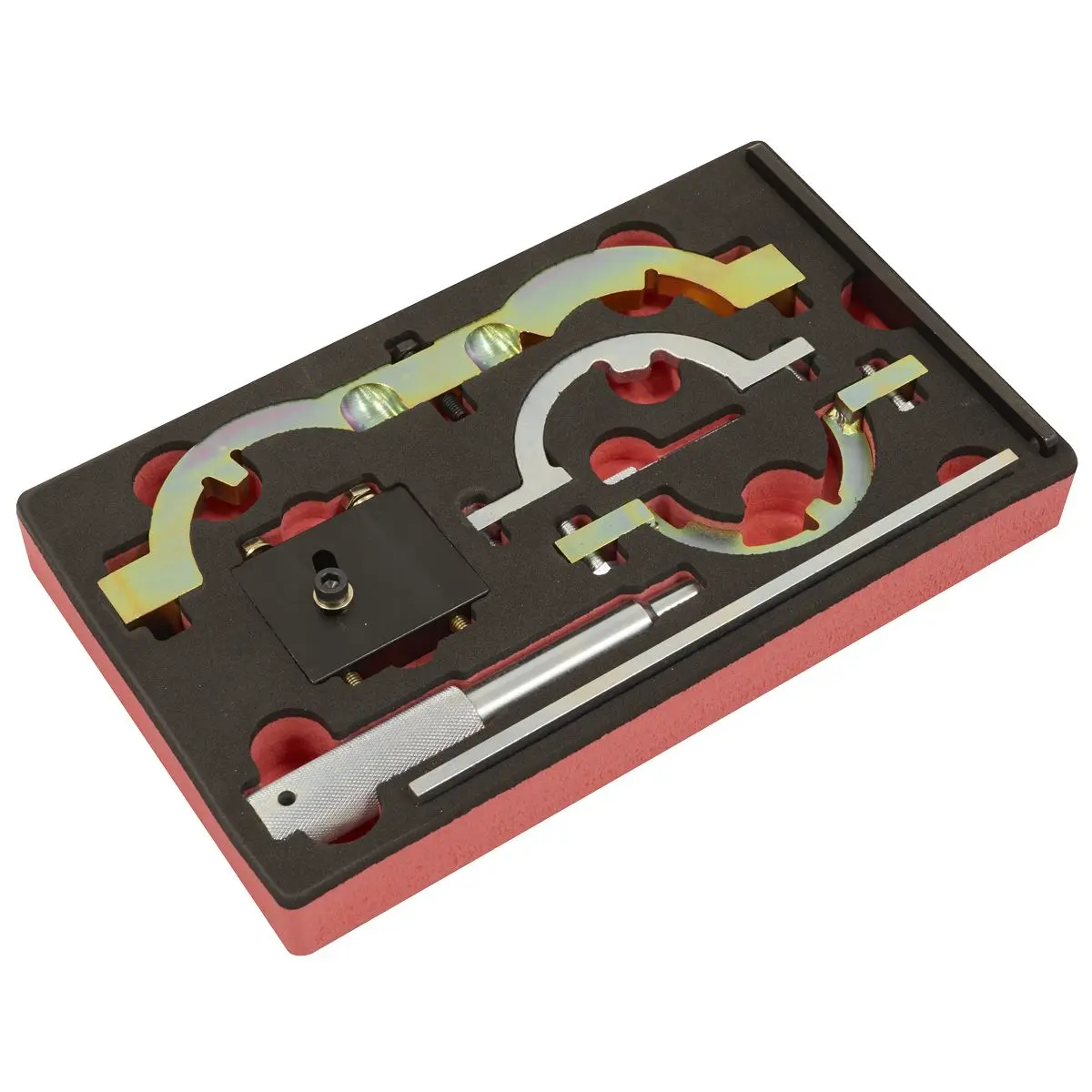

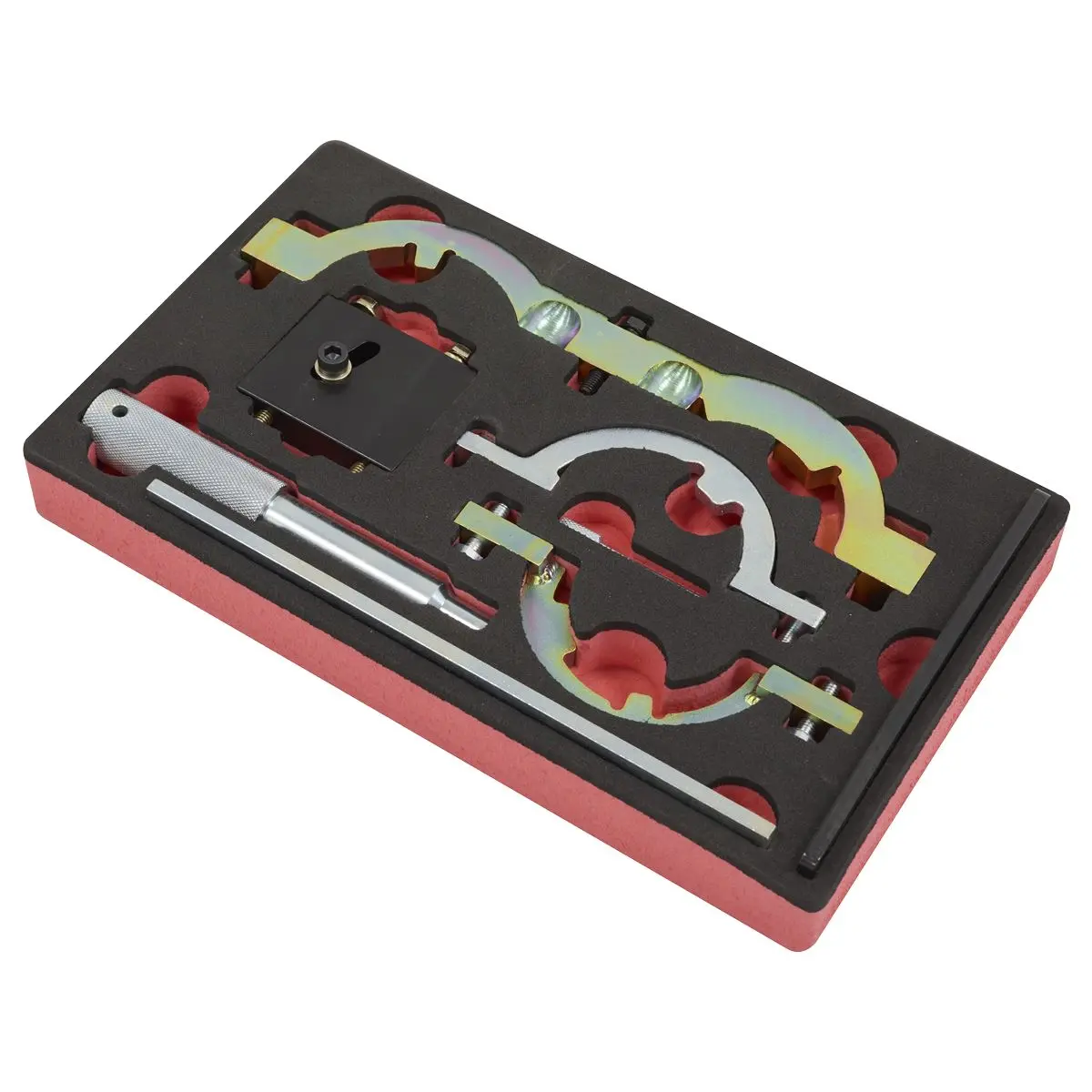

Sealey Petrol Engine Timing Tool Kit for GM, Chevrolet, Suzuki 1.0/1.2/1.4/1.6 - Chain Drive

Covers a wide range of Vauxhall/Opel and Chevrolet petrol engines.

Includes the necessary tools for setting and locking the camshafts and crankshaft.

Also includes the pins for locking the timing chain tensioner, locking tools for 1.0, 1.2, 1.4, 1.6 EcoTec/ecoFLEX (codes X and Z) chain engines, and the timing disc position gauge for the timing sensor on the inlet camshaft.

Supplied in storage case with instructions and a warning tag.

Specification:

• Model No VS5235
• Application(s):
• Vauxhall/Opel: Agila (00-08), Agila-B (08-10), Adam (12-18), Adam Rocks (14-18), Ampera (11-16), Astra-G (98-06), Astra G Classic II (03-10), Astra-H (04-11), Astra-J (09-18), Cascada (13-18), Combo (04-12), Corsa-B (97-00), Corsa-D (06-14), Corsa-C (00-14), Corsa-E (15-18), GTC (15-18), Insignia (11-17), Meriva-A (04-10), Meriva-B (10-17), Mokka (12-16), Mokka X (16-18), Tigra-B (04-10), Zafira-C Tourer (12-18)
• Chevrolet: Aveo (11-15), Cruze (11-15), Orlando (11-15), Trax (13-15), Volt (12-14)
• Holden: Volt (12-14)
• Cadillac: ELR (14)
• Suzuki: Wagon R (05-08)
• Brand: Sealey
• Engine Codes:
• 1.0: A10XEP
• 1.2: A12XEL, A12XER, LWD/A12XEL, L2Q/A12XEL, LWD/B12XEL
• 1.4: A14XEL, A14XER, LUJ/A14NET, LDD/A14XEL, LDD/A14XER, L2Z/A14XEL, LDD/B14XEJ, LDD/B14XEL, LDD/B14XER, LUJ/B14NEH, LUH/A14NEL, LUJ/A14NEL, LUJ/B14NEL, LUJ/A14NET, LUJ/B14NET, LDD, LUU
• 1.6: LDE/A16XER, LDE/B16XER
• Nett Weight: 1.95kg
• OEM Tool(s):
• GM: EN-499-78, EN-49977-100, EN-49977-200, KM-6130, KM-952, KM-953, KM-953-A, KM-954, KM-955, KM-955-1, KM-955-2
• Suzuki: 09919-08310, 09919-58310, 09912-38310, 09919-58320

Product Guarantee: 1 Year
Catalogue Page: Page 338

Downloadable Files:

• Instructions: View Here
