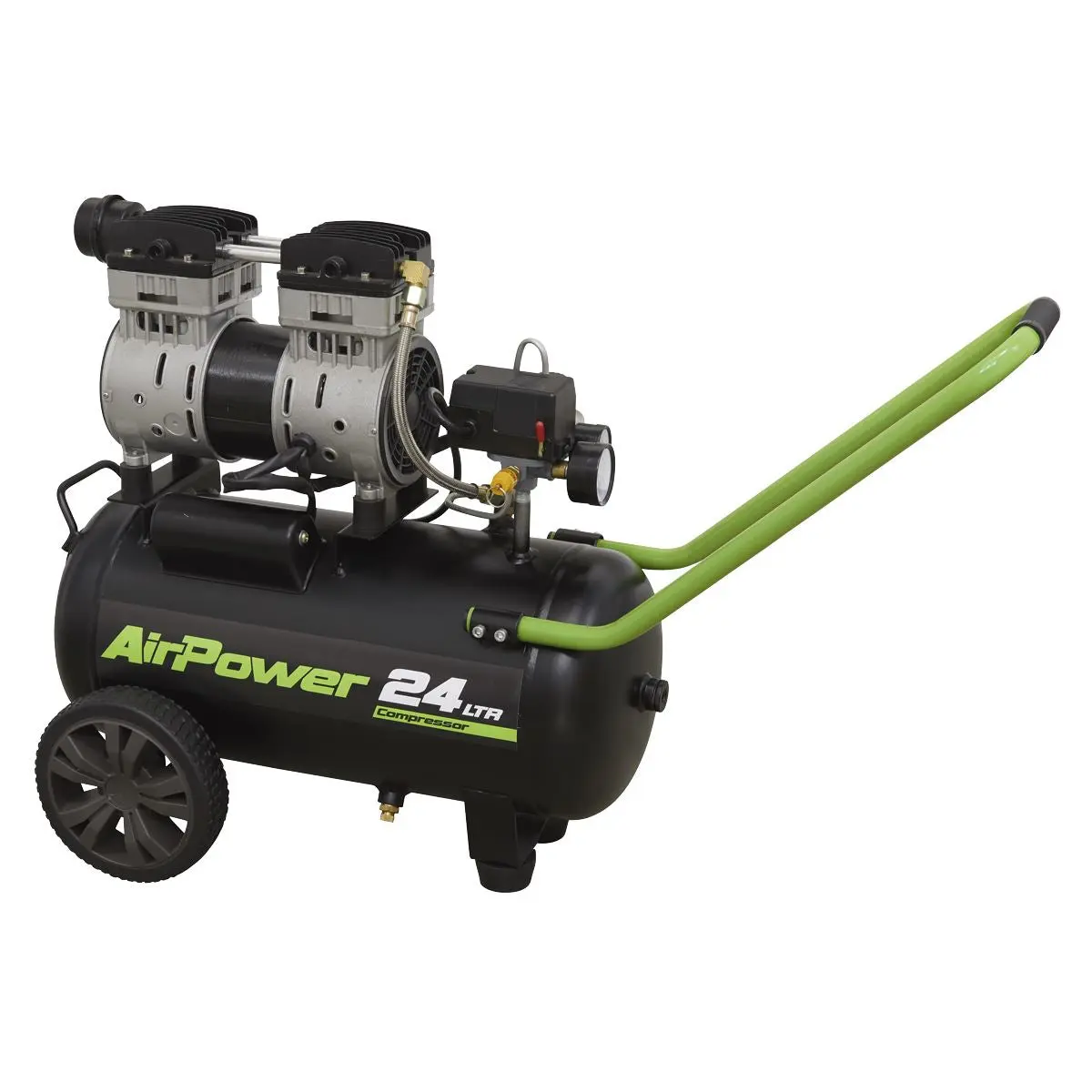

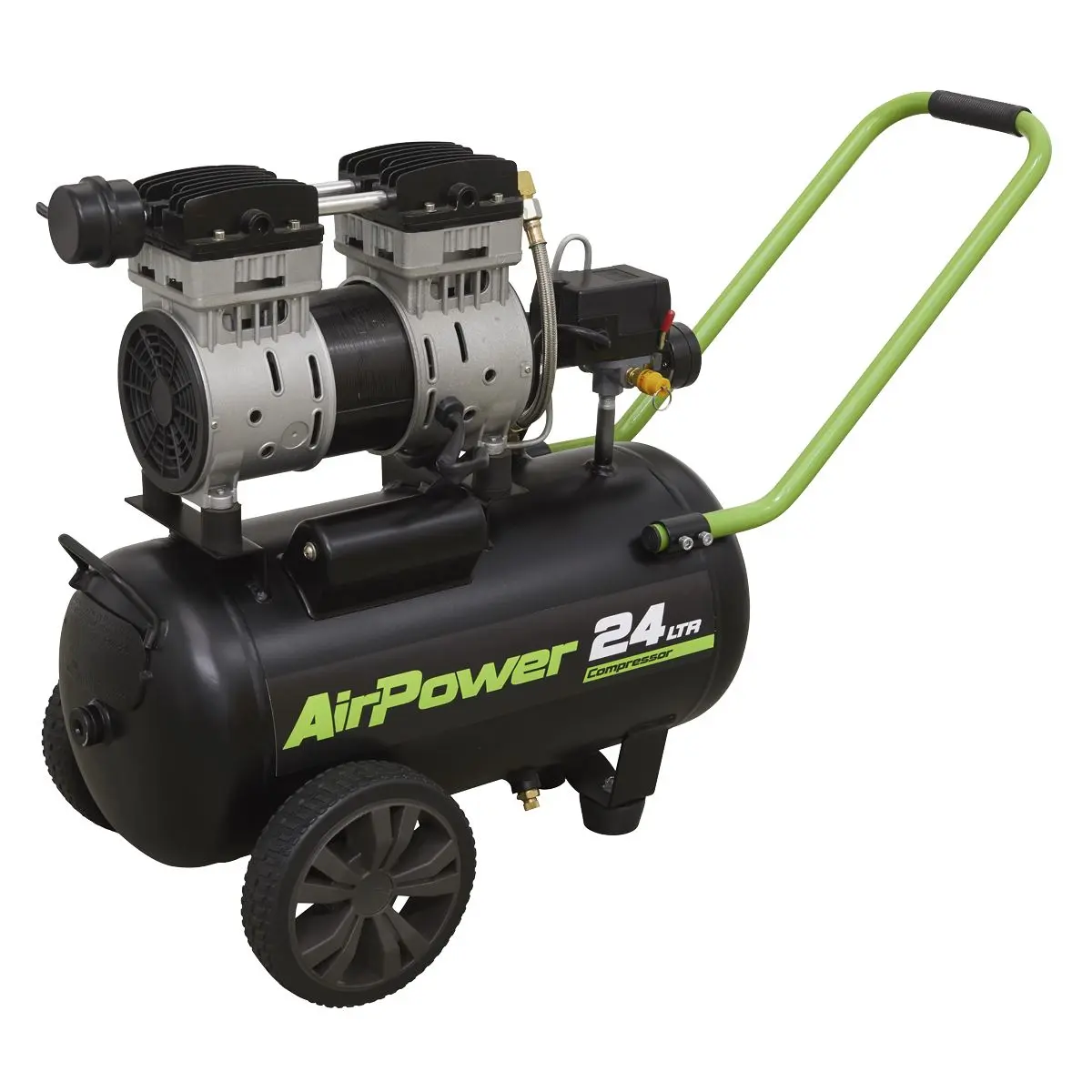

Sealey 24L Low Noise Direct Drive Air Compressor 1hp
Sealey 24L Low Noise Direct Drive Air Compressor 1hp
Air Displacement: 5.3cfm(150L/min).
Maximum Free Air Delivery: 2.6cfm(73L/min).
Maximum Pressure: 116psi(8bar).
Low noise compressor runs at only 79dB(A), suitable for places where a standard compressor would disturb work or people in the vicinity.
Ideal for use where an oil free air delivery is required.
Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
Suitable for general-purpose workshop applications.
Precision welded receiver tank manufactured to meet Pressure Vessel Directive.

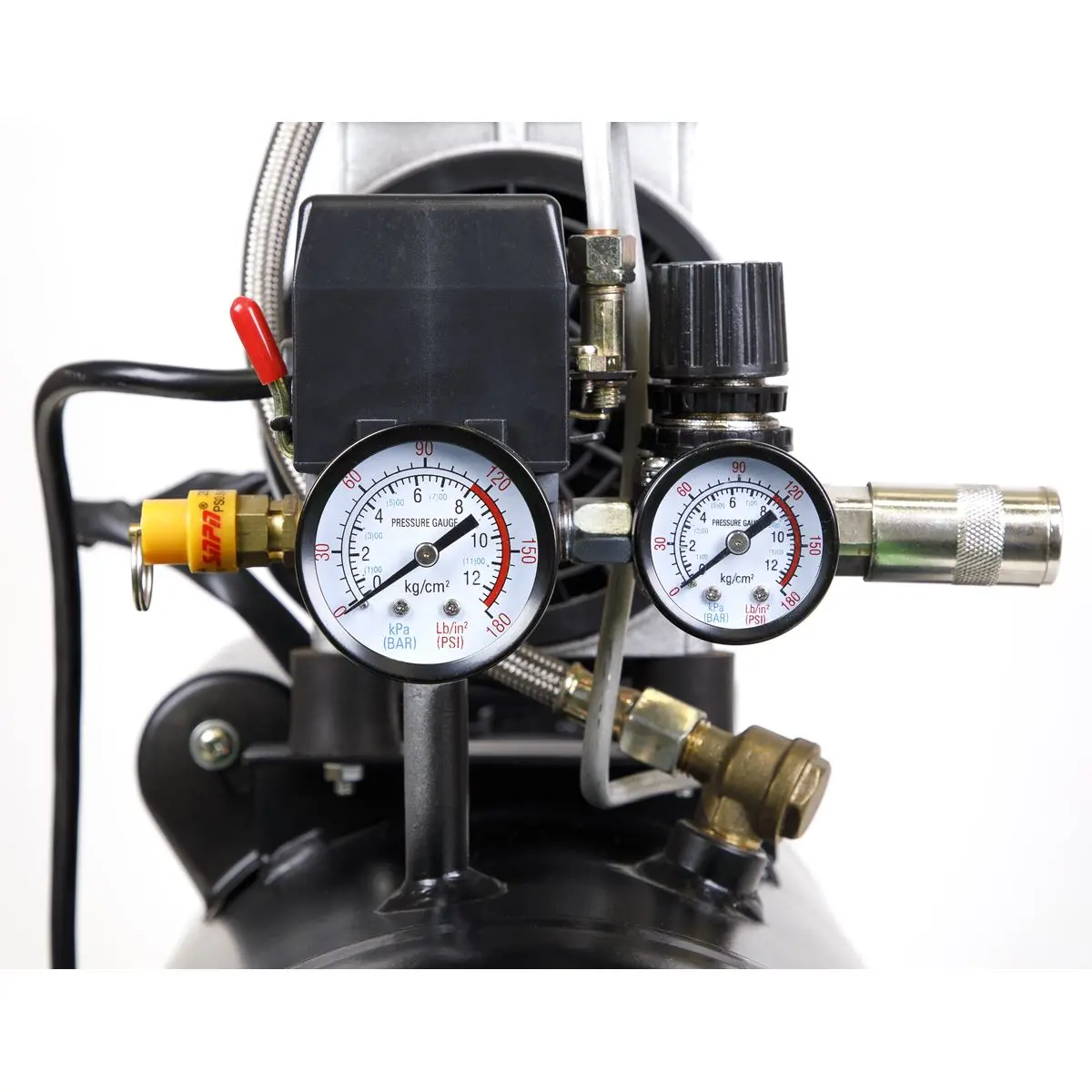

Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
Fitted with 3-pin plug.
Specification:
- Model No SAC2410S
- Air Displacement cfm(L/min): 5.3(150)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 2.6(73)
- Maximum Pressure: 116psi(8bar)
- Minimum Rated Supply: 13A
- Motor Output: 1hp
- Nett Weight: 23kg
- Noise Level: 79dB(A)
- Outlet: Quick Release Coupling
- Phase: 1ph
- Receiver Capacity: 24L
- Size (W x D x H): 610 x 290 x 640mm
- Supply: 230V/13A
Catalogue Page: Page 771
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
