Sealey Timing Tool & Fuel Injection Pump Kit - Ford, PSA, LDV

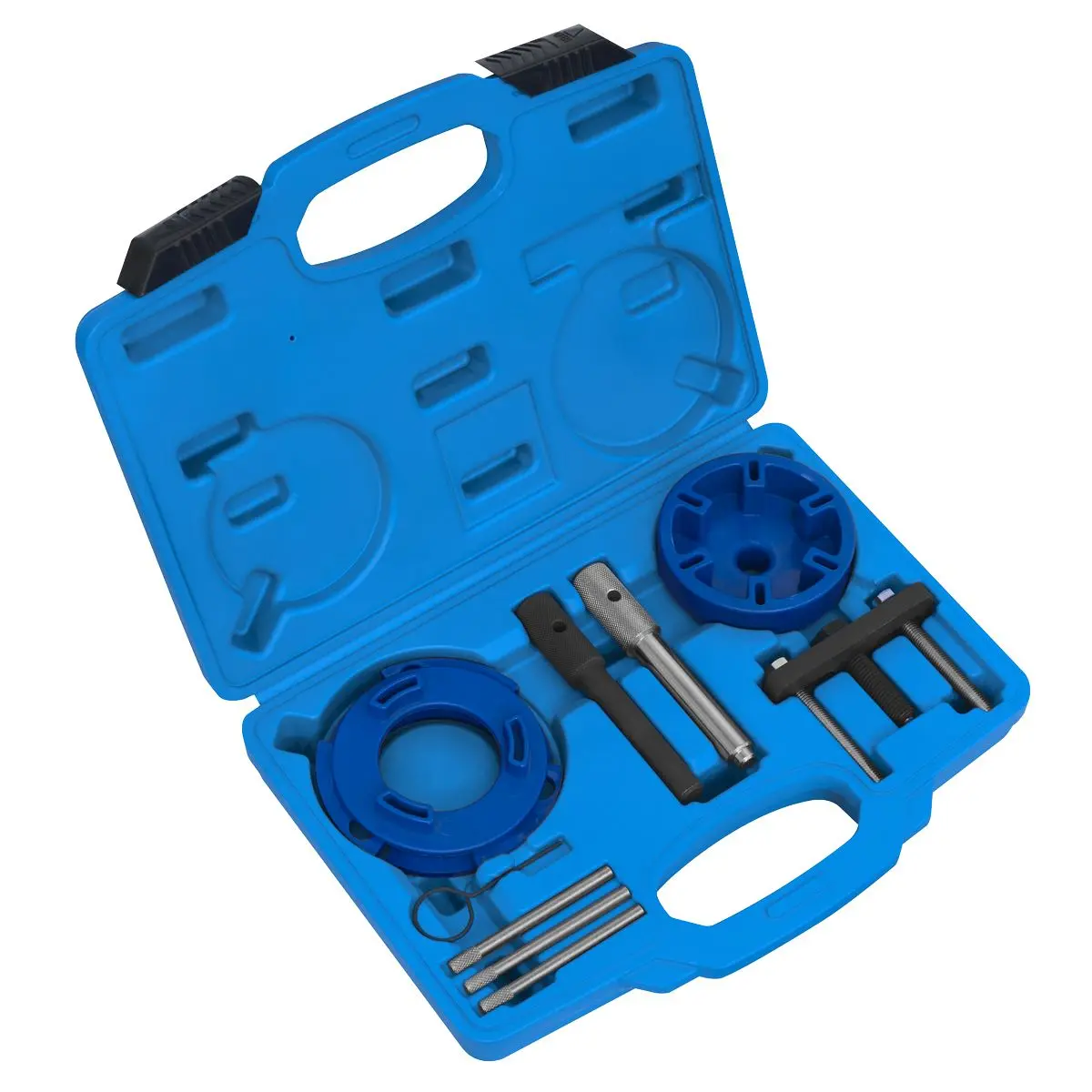

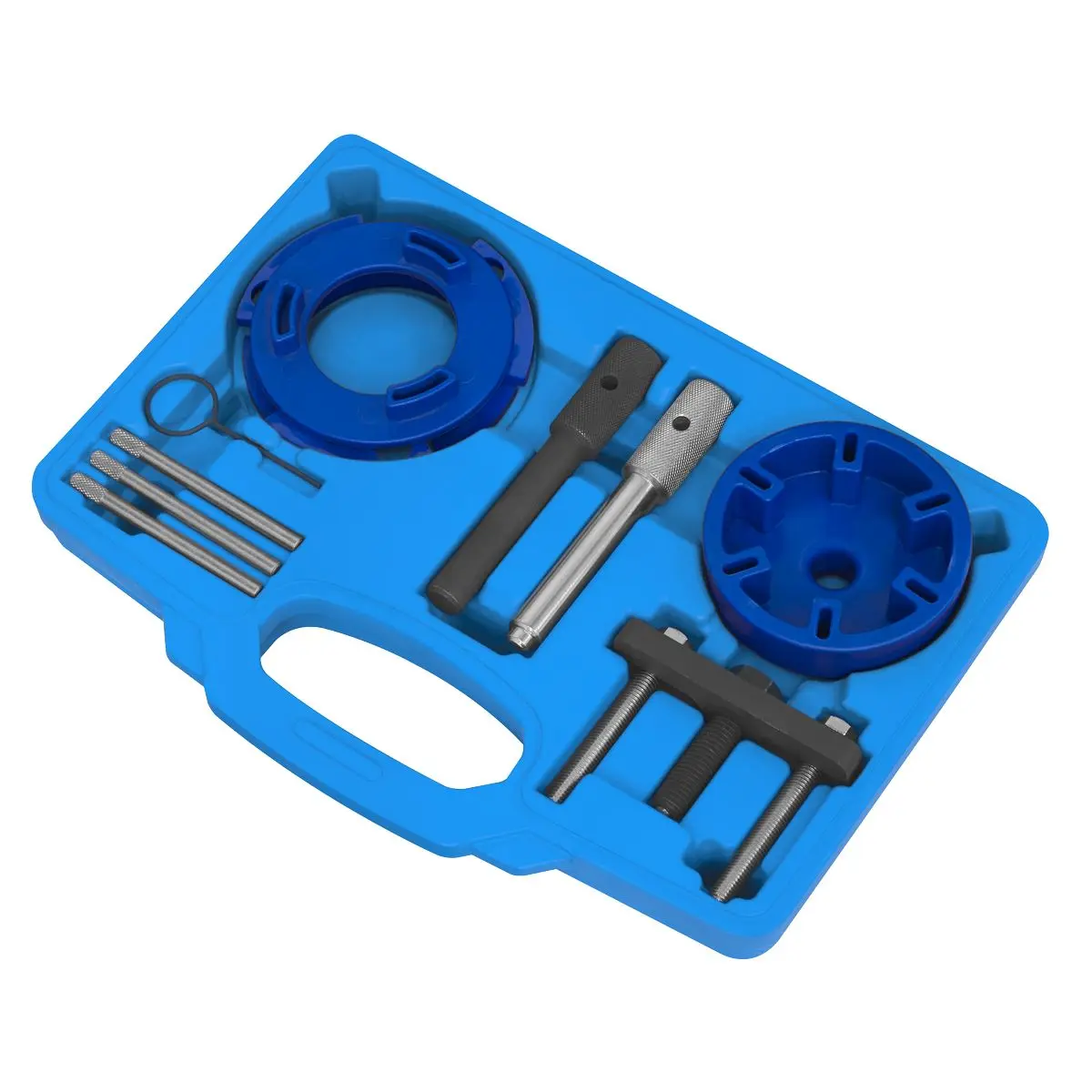

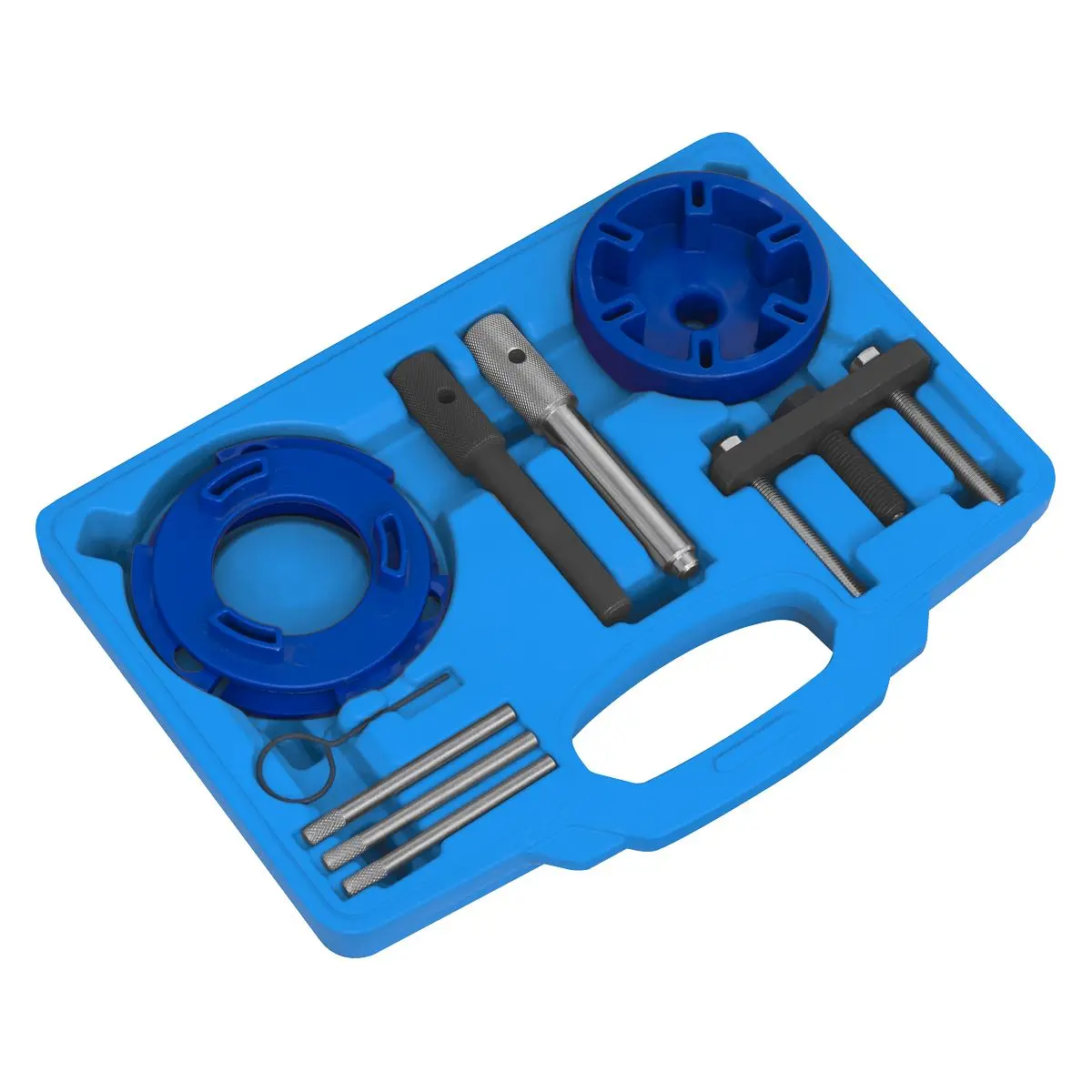

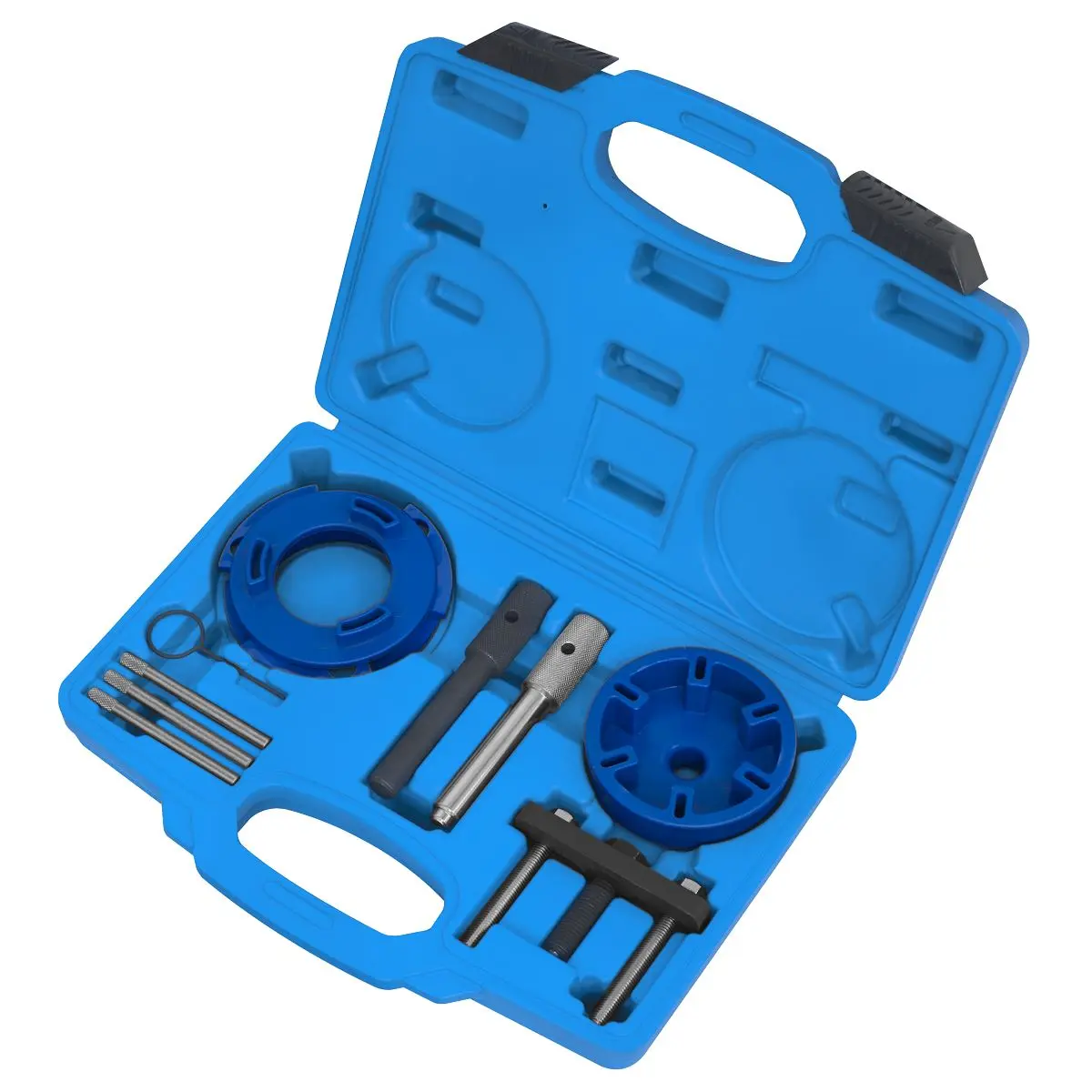

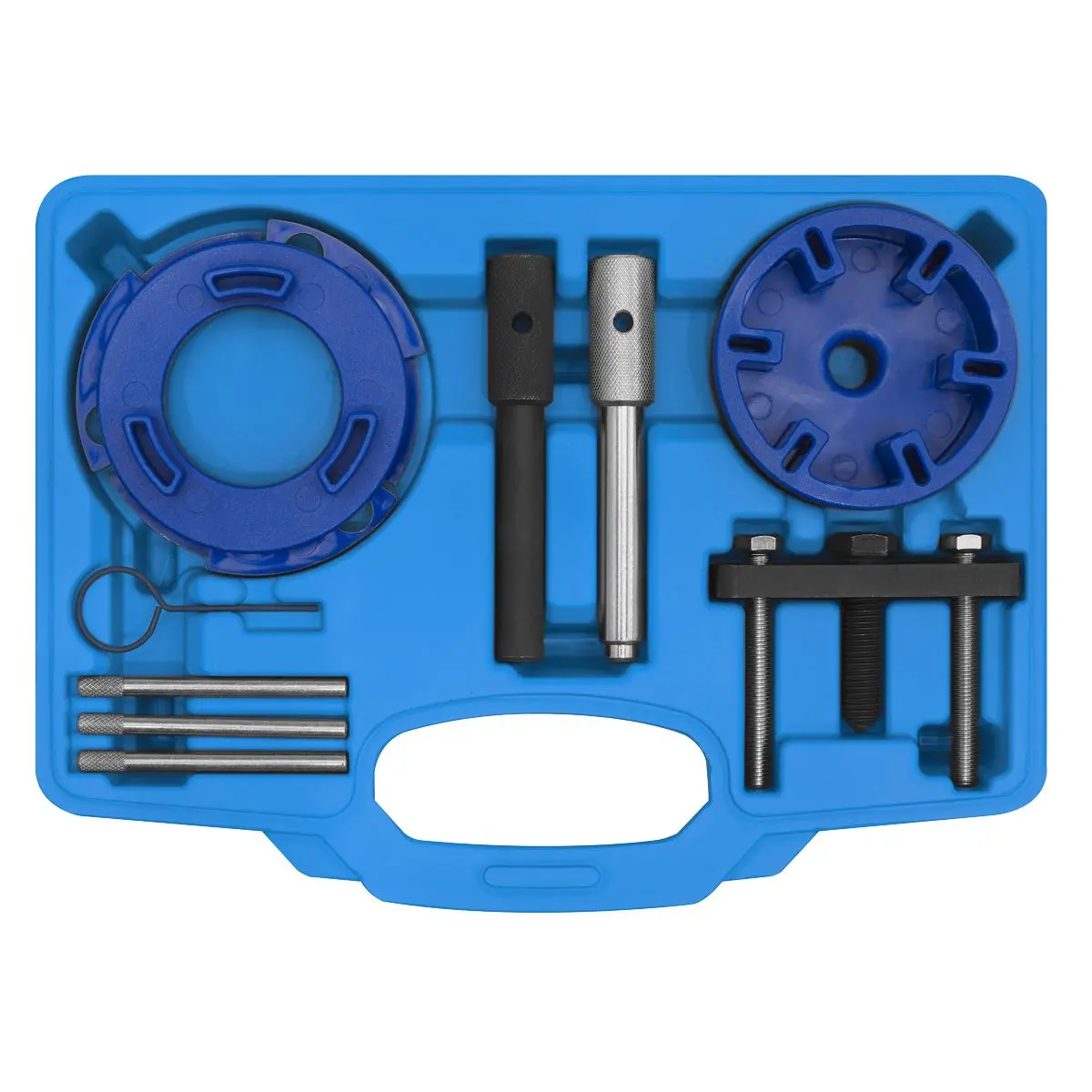

Comprehensive timing tool kit for 2.0D, 2.2D and 2.4D Duratorq chain driven diesel engines fitted in Citroen, Fiat, Ford, Jaguar, Land Rover, LDV and Peugeot vehicles.

Kit includes sprocket retaining plates for both early and later engines and access cover removal tools for injection pump removal/installation.

Supplied in storage case with a warning tag.

Specification:

• Model No VSE6940
• Citroen: Relay/Jumper III (06-13)
• Fiat: Ducato (06-11)
• Ford: Mondeo (00-07), Transit (00-14)
• Jaguar: X-Type (03-10)
• Land Rover: Defender TD4 (06-11)
• LDV: Convoy (02-06)
• Peugeot: Boxer III (06-12)
• Brand: Sealey
• 2.0D Di/TDdi/TDCi: ABFA, D3FA, F3FA, D5BA, D6BA, FIFA, FMBA, FMBB, HJBA, HJBB, HJBC, HJBE, N7BA, N7BB
• 2.2D TDCi/ECOnetic: BG, CYFA, CYFB, CYFC, DRFA, DRFB, DRFC, P8FA, P8FB, PGFA, PGFB, QJBA, QJBA (BG), QJBB, QJBC, QJBD, QVFA, QWFA, SRFA, SRFB, SRFC, SRFD, SRFE, UHFA
• 2.2D HDi/JTD: P22DTE (4HM), P22DTE (4HU), P22DTE (4HV)
• 2.4D Di/TDCi: DOFA, D2FA, D2FB, D4FA, F4FA, FXFA, H9FA, H9FB, H9FD, JXFA, JXFC, PHFA, PHFC
• 2.4D TD/TDi: ZSD 424
• Nett Weight: 0.84kg
• Ford: 303-698, 303-675, 303-679A, 303-1151
• PSA: 189-B2, 0189-A, 0188-P, 0189-J
• Fiat: 2.000.016.500, 2.000.018.000
• Jaguar: 303-698, 303-675, 303-679A, 303-1151
• Land Rover: 303-698, 303-675, 303-679A, 303-1151
• LDV: LDV167, LDV173

Product Guarantee: 1 Year
Catalogue Page: Page 325
