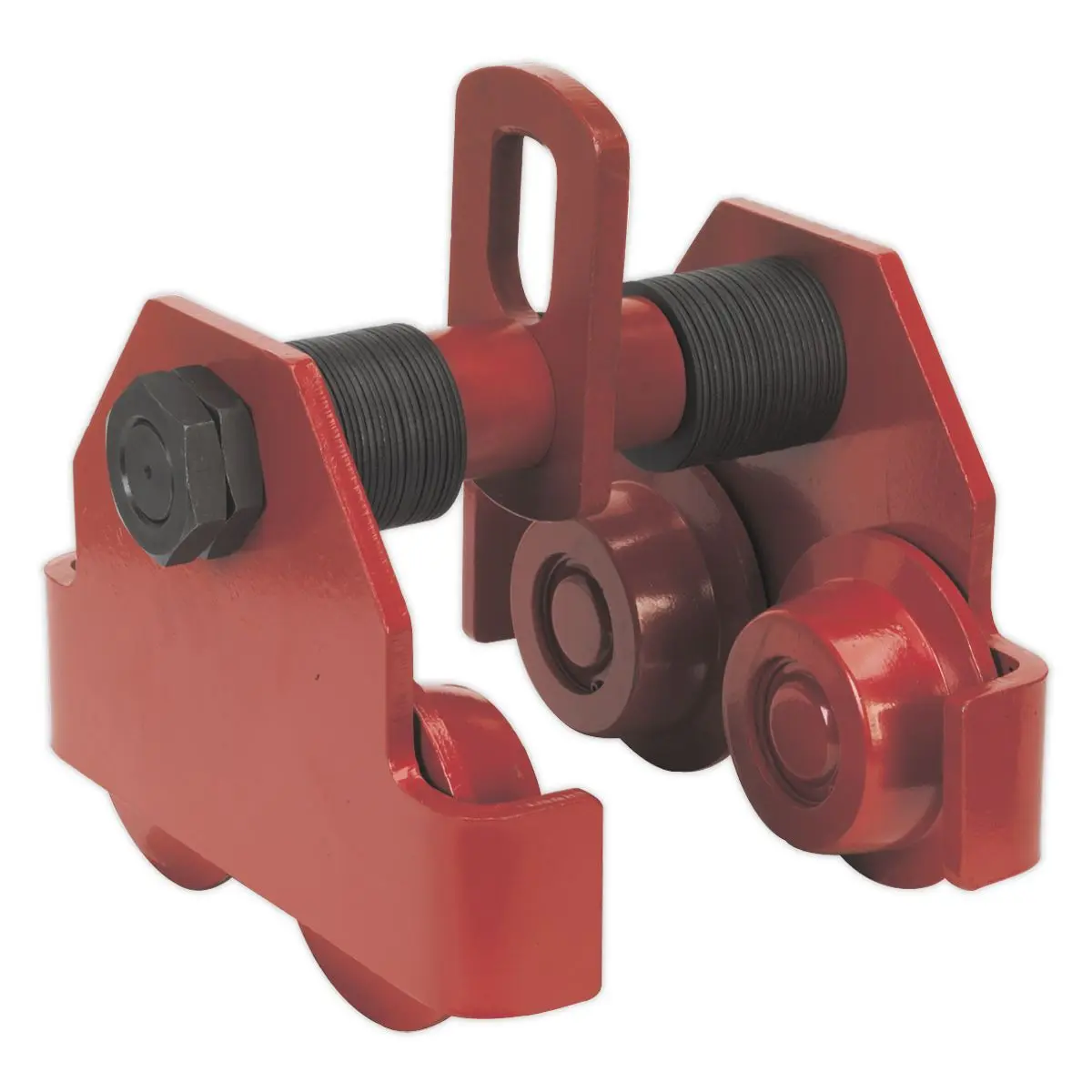

Sealey Plain Trolley 3 Tonne

Suitable for use with our lever hoists or chain blocks.

Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.

Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

Specification:

• Model No PT3000
• Brand: Sealey
• Nett Weight: 31kg
• Capacity: 3000kg
• Test Load: 4500kg
• Track Width Adjustable Ranges: 76-203mm
• Minimum Curve Radius: 1500mm
• A: 344mm
• B: 172mm
• C: 172mm
• D: 145mm
• E: 186mm
• Weight: 31kg
• Minimum Standard I-Beam Dimensions (D x W x Web): 200 x 100 x 7mm
• Maximum Distance Between Spans: 2700mm
• Maximum Standard I-Beam Dimensions (D x W x Web): 850 x 150 x 9mm
• Maximum Distance Between Spans: 4500mm
• Refer to catalogue for diagram:

Product Guarantee: 1 Year
Catalogue Page: Page 324

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
