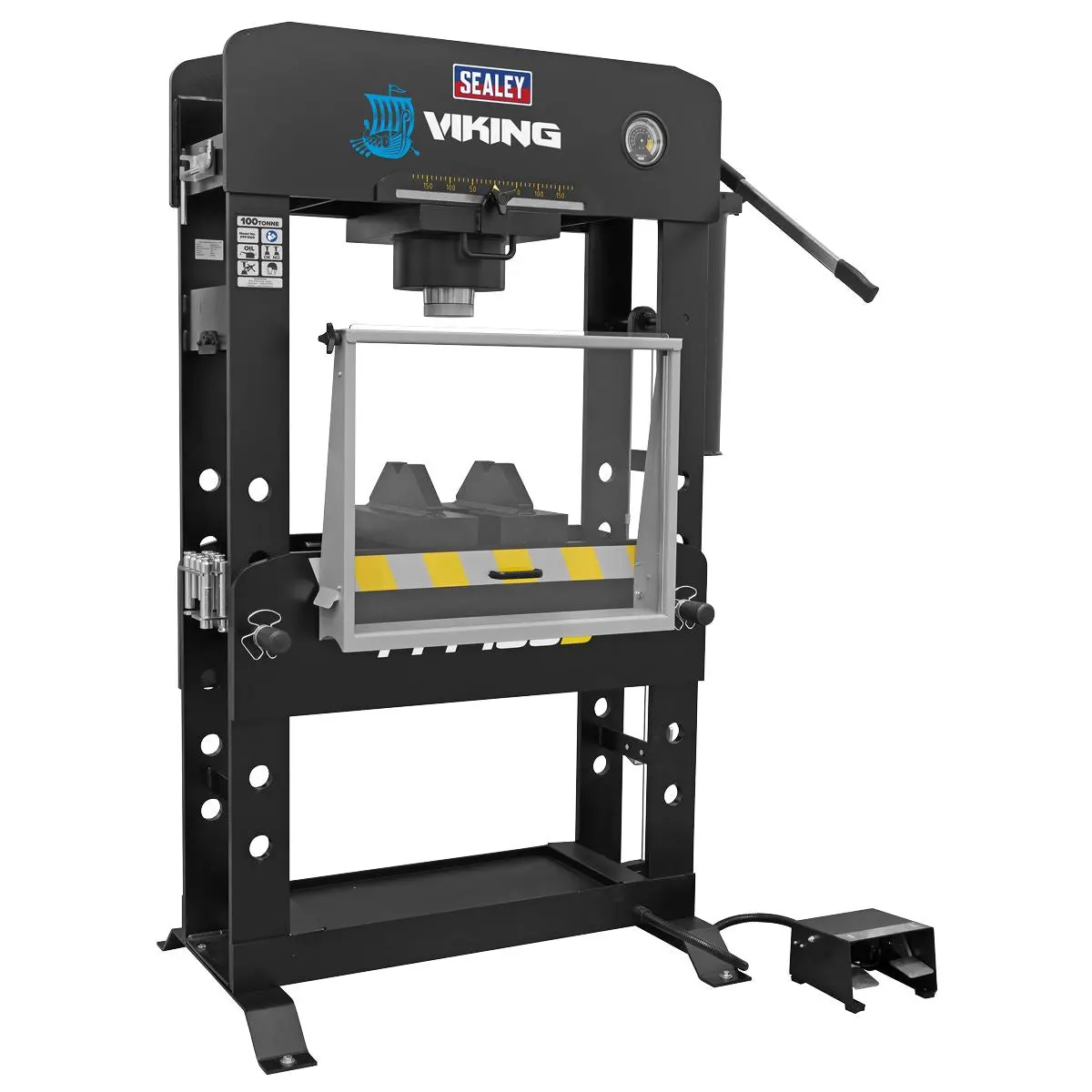

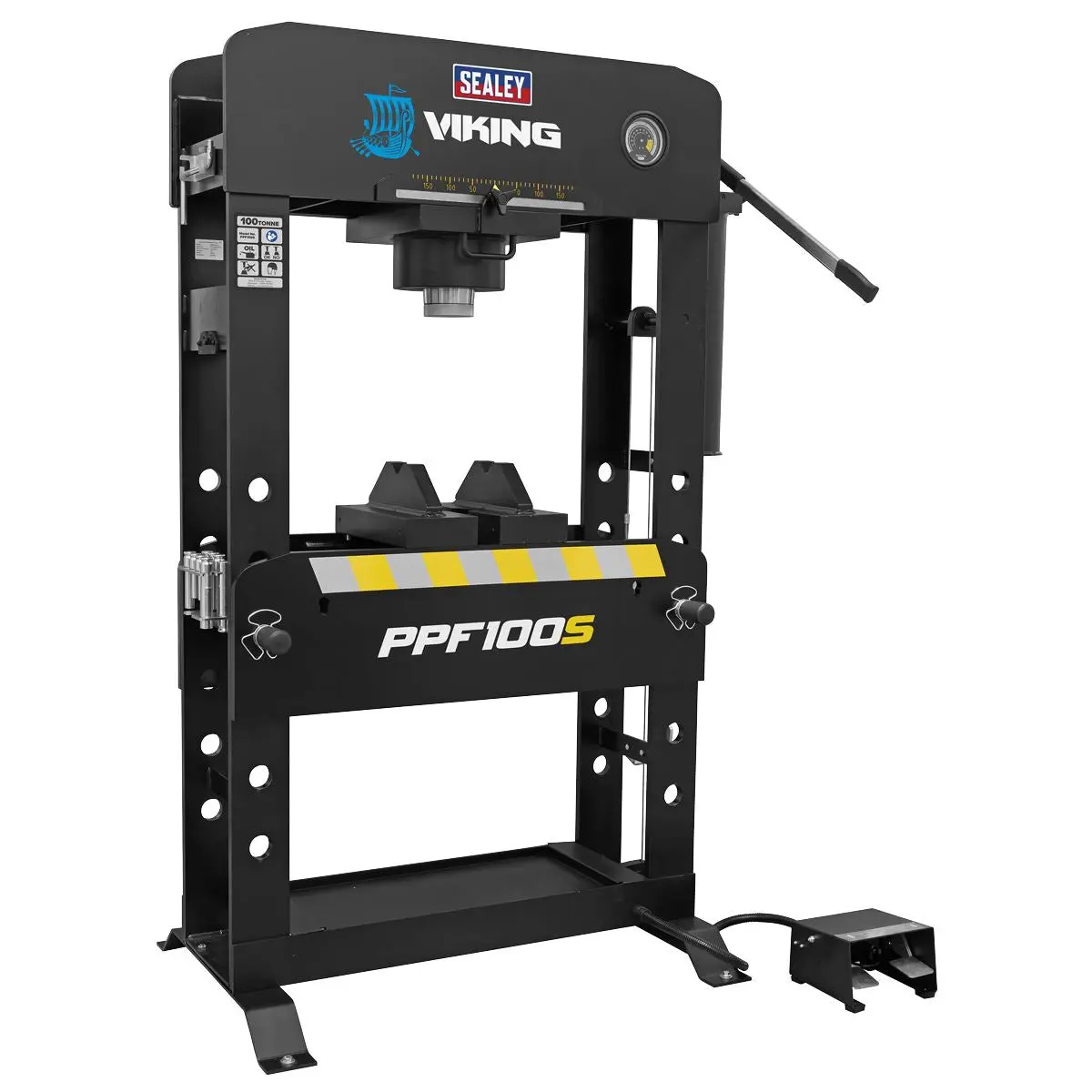

Sealey Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 100 Tonne

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.

Adjustable work area with removable tray.

Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications.

Frame head fitted with ram pressure gauge.

Winch assisted press table adjustment.

Storage for press pins included in frame (pins not included).

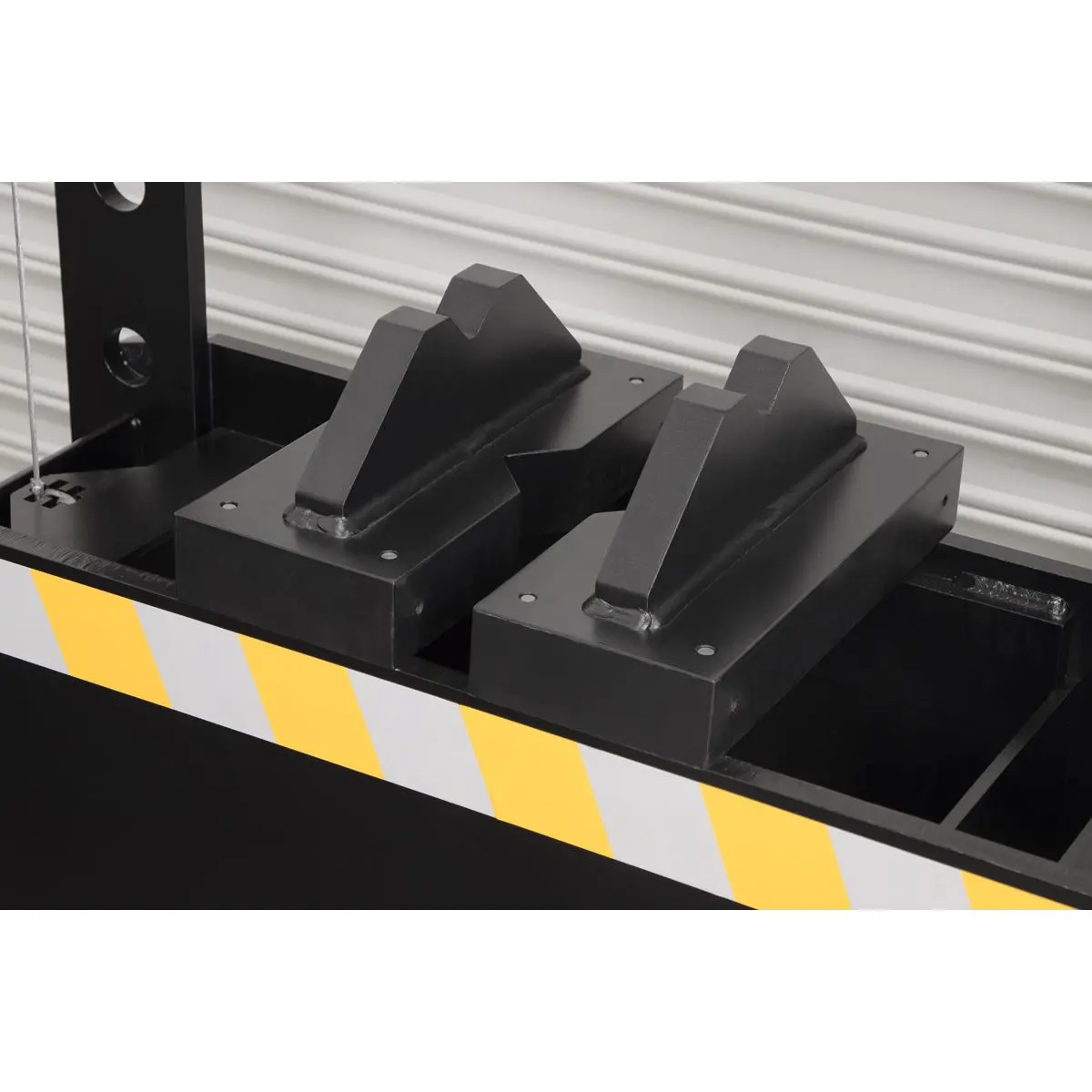

Supplied with flat pressing plate/V-blocks.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

A forklift must be available at the delivery point to unload this item.

5 Year guarantee*.

Specification:

• Model No PPF100S
• Air Consumption: 6.5cfm
• Bench or Floor Mounting: Floor
• Brand: Viking
• Capacity: 100 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 360mm
• Maximum Height - Ram to Table: 885mm
• Minimum Height - Ram to Table: 185mm
• Nett Weight: 682kg
• Operating Table Width: 850mm
• Overall Height: 1938mm
• Ram Diameter: Ø179mm
• Ram Stroke: 300mm
• Screw Extension: n/a
• Table Aperture: 324mm
• Type: Air/Hydraulic
• Working Table Depth: 364mm
• Working Table Width: 1090mm
• Working Table Width: 850mm

Product Guarantee: 5 Years
Catalogue Page: Page 901
