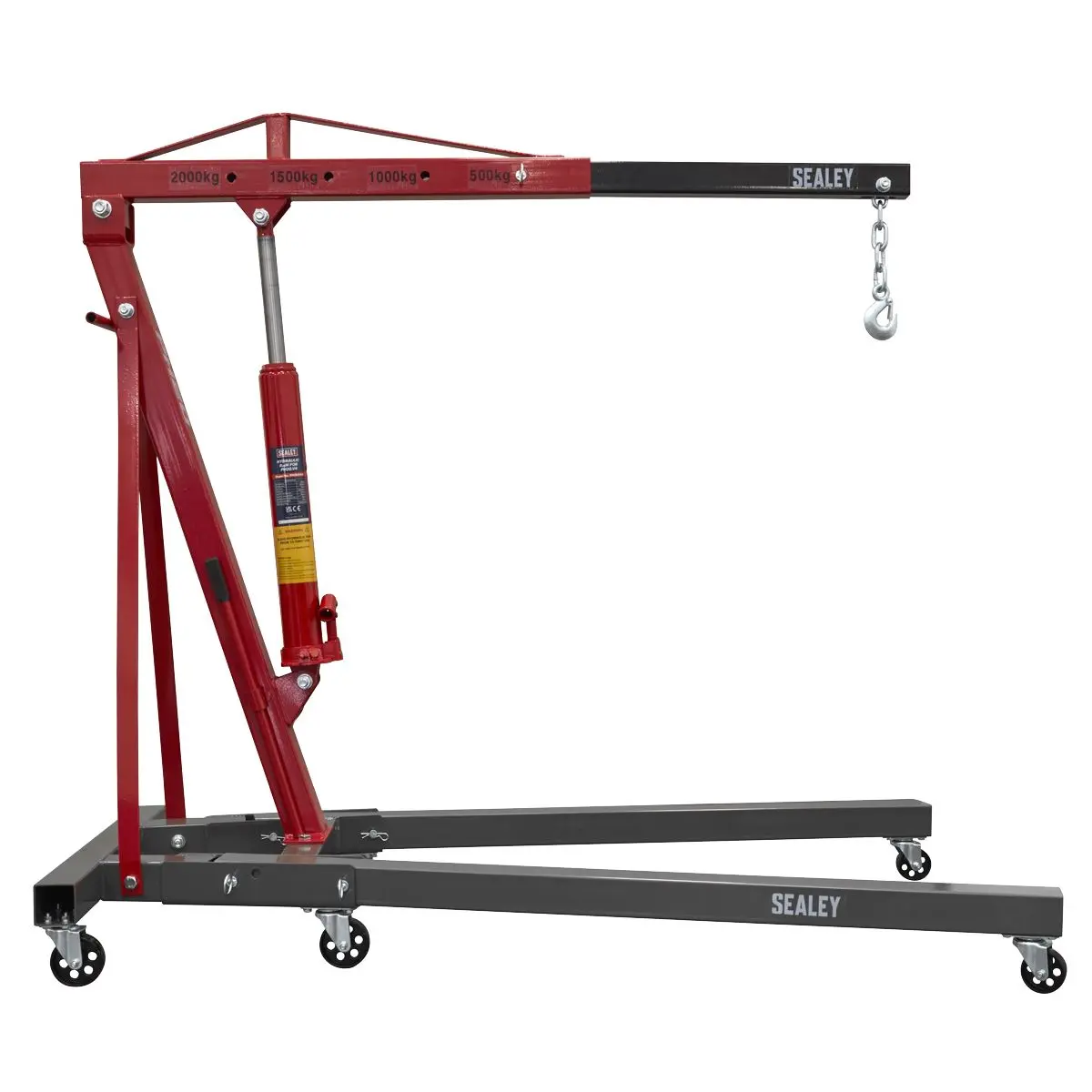

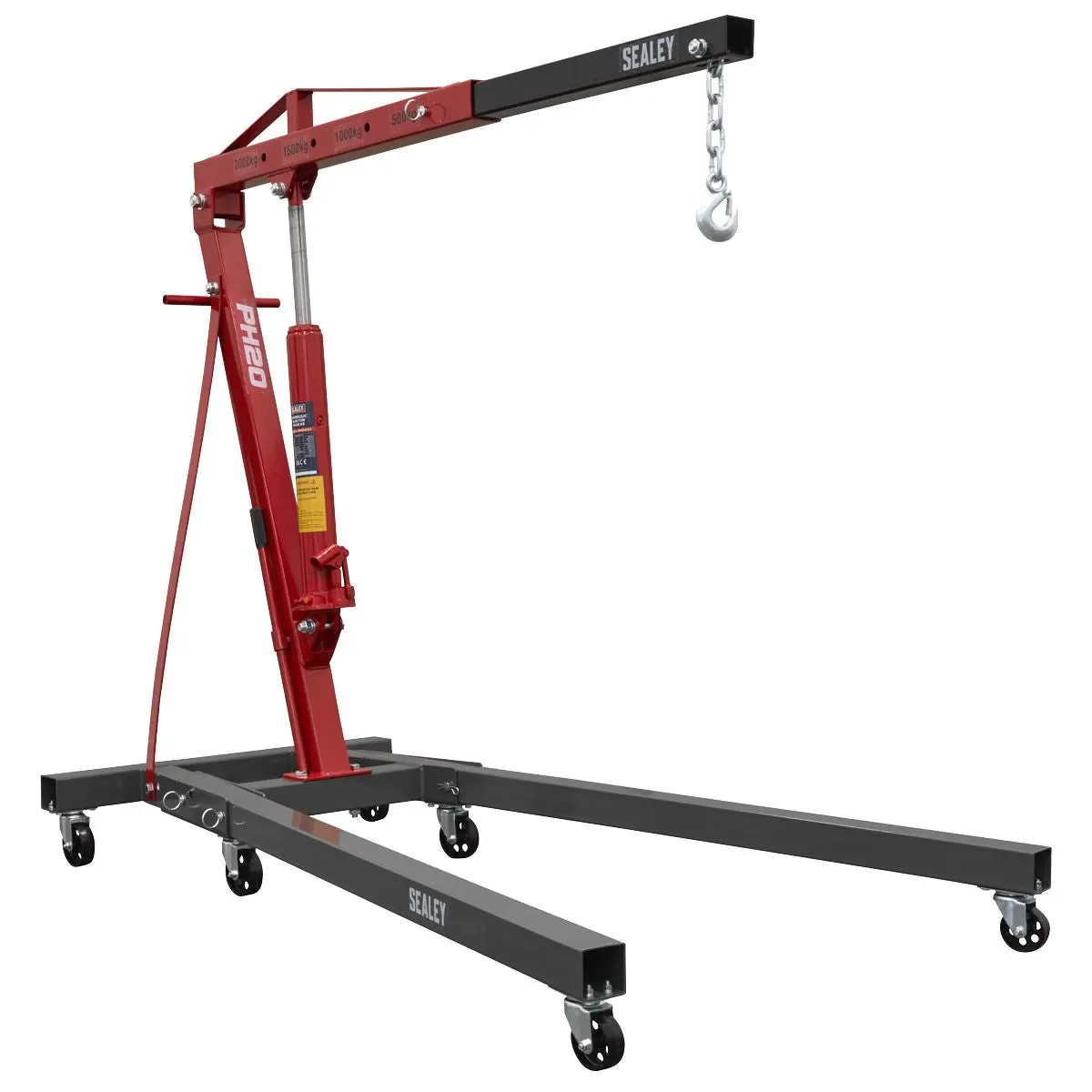

Sealey Folding Engine Crane 2 Tonne

HIGH CAPACITY - Lifts 2000kg at 860mm jib extension.

EASY MANOEUVRABILITY - Six heavy-duty castor wheels.

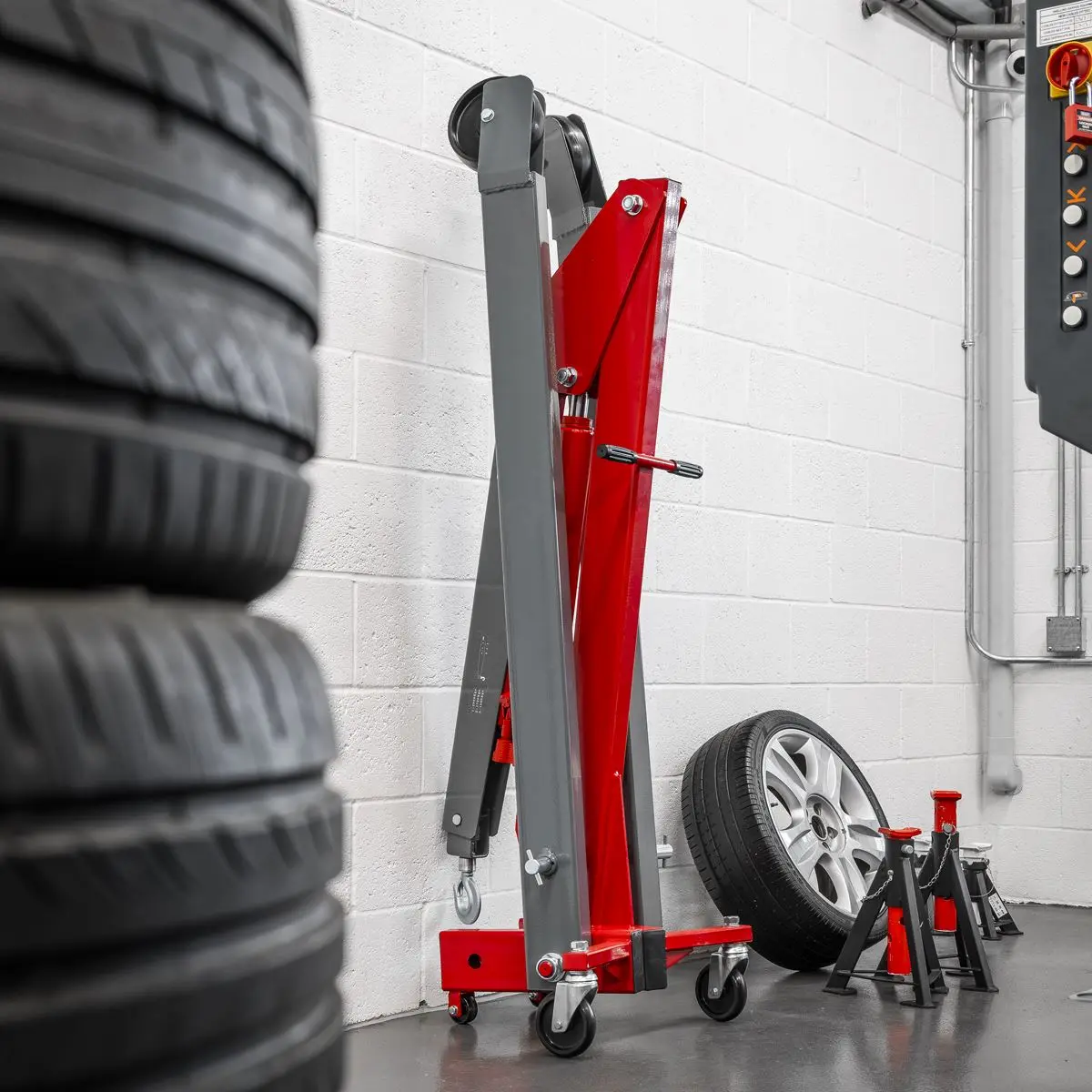

SPACE SAVING - Folds for easy storage, freeing valuable workshop space when not in use.

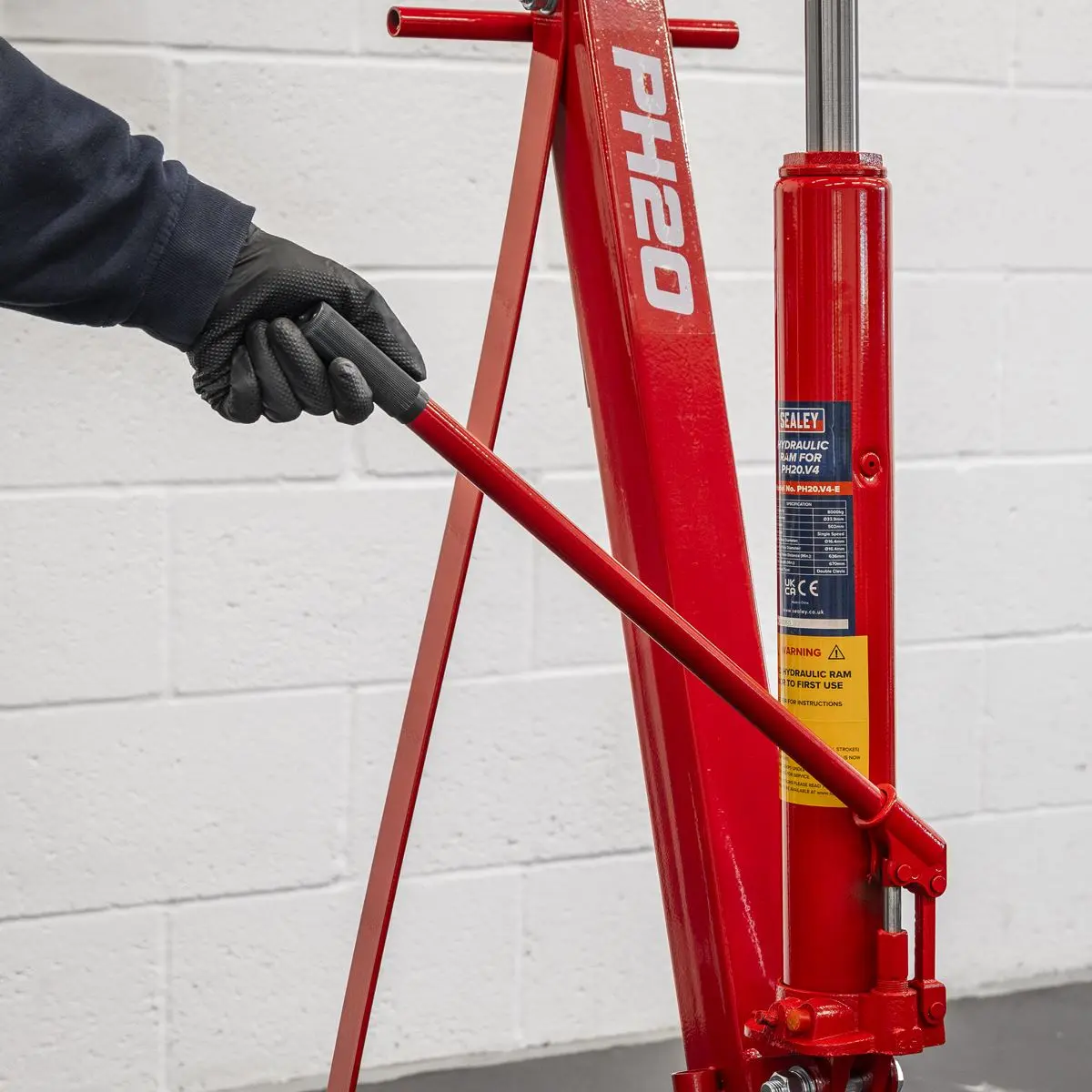

SIMPLE ACCESS - Pump access from the side for safe handling of heavy loads.

Delivered in knock-down form for reduced freight cost.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No PH20
• Brand: Sealey
• Height Jib Down: 1460mm
• Height Legs Folded: 1565mm
• Height of Frame: 185mm

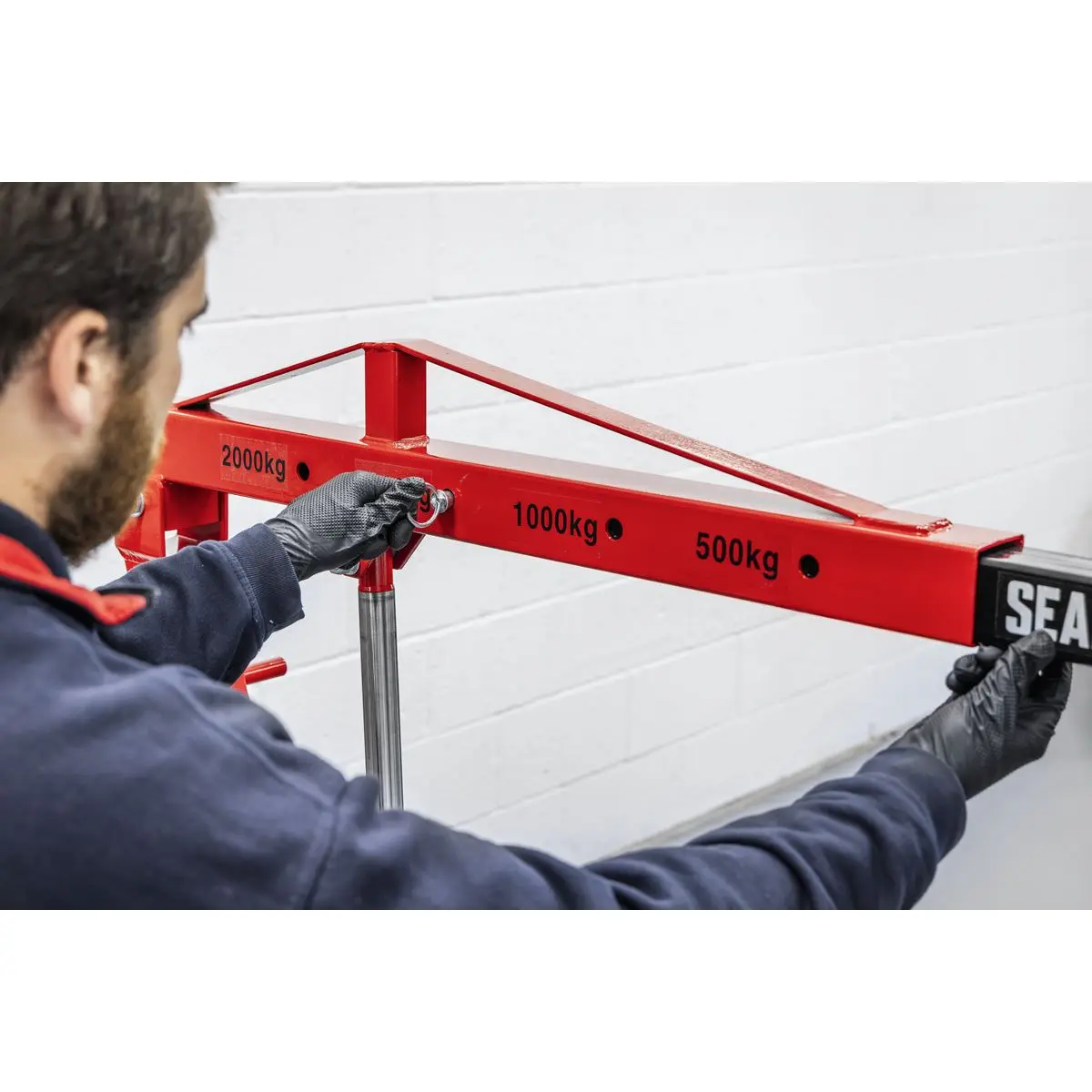

• Length of Jib Position 1: 860mm
• Length of Jib Position 2: 1020mm
• Length of Jib Position 3: 1180mm
• Length of Jib Position 4: 1340mm
• Length: 1750mm
• Lifting Capacity in Position 1: 2000kg
• Lifting Capacity in Position 2: 1500kg
• Lifting Capacity in Position 3: 1000kg
• Lifting Capacity in Position 4: 500kg
• Max. Lift Ht at Jib Position 1: 1820mm
• Max. Lift Ht at Jib Position 2: 1940mm
• Max. Lift Ht at Jib Position 3: 2080mm
• Max. Lift Ht at Jib Position 4: 2210mm
• Nett Weight: 79.65kg
• Rear Width: 850mm
• Width Front Frame: 1055mm
• Width Inside Front Frame: 915mm
• Nett Weight: 77kg
• Rear Width: 850mm
• Width Front Frame: 1055mm
• Width Inside Front Frame: 915mm

Product Guarantee: 1 Year
Catalogue Page: Page 887

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
