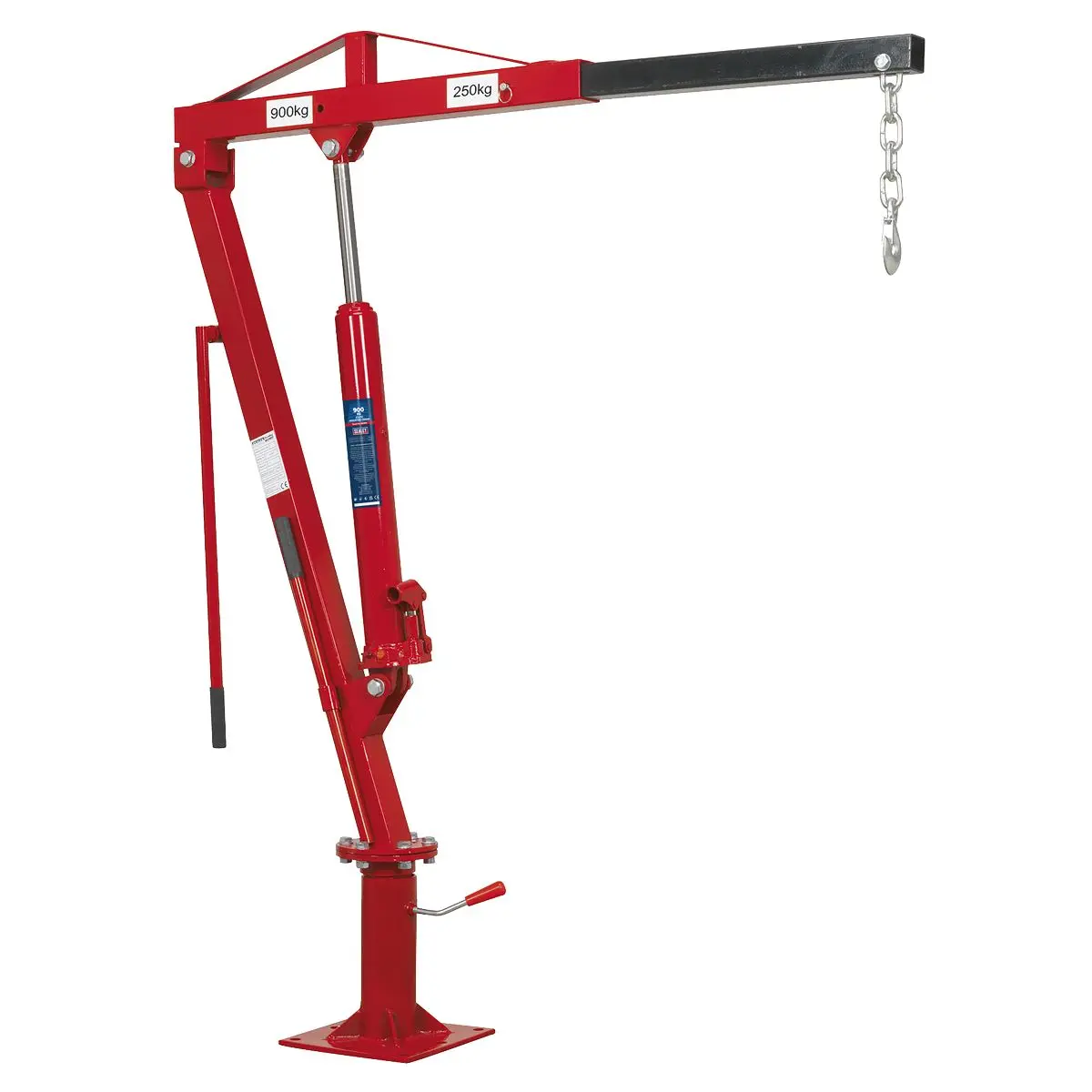

Sealey Static Mounted Crane 900kg

Manufactured from heavy-duty steel with a powder coated finish for added corrosion resistance.

Features a unique 360° swivel base for easy rotation.

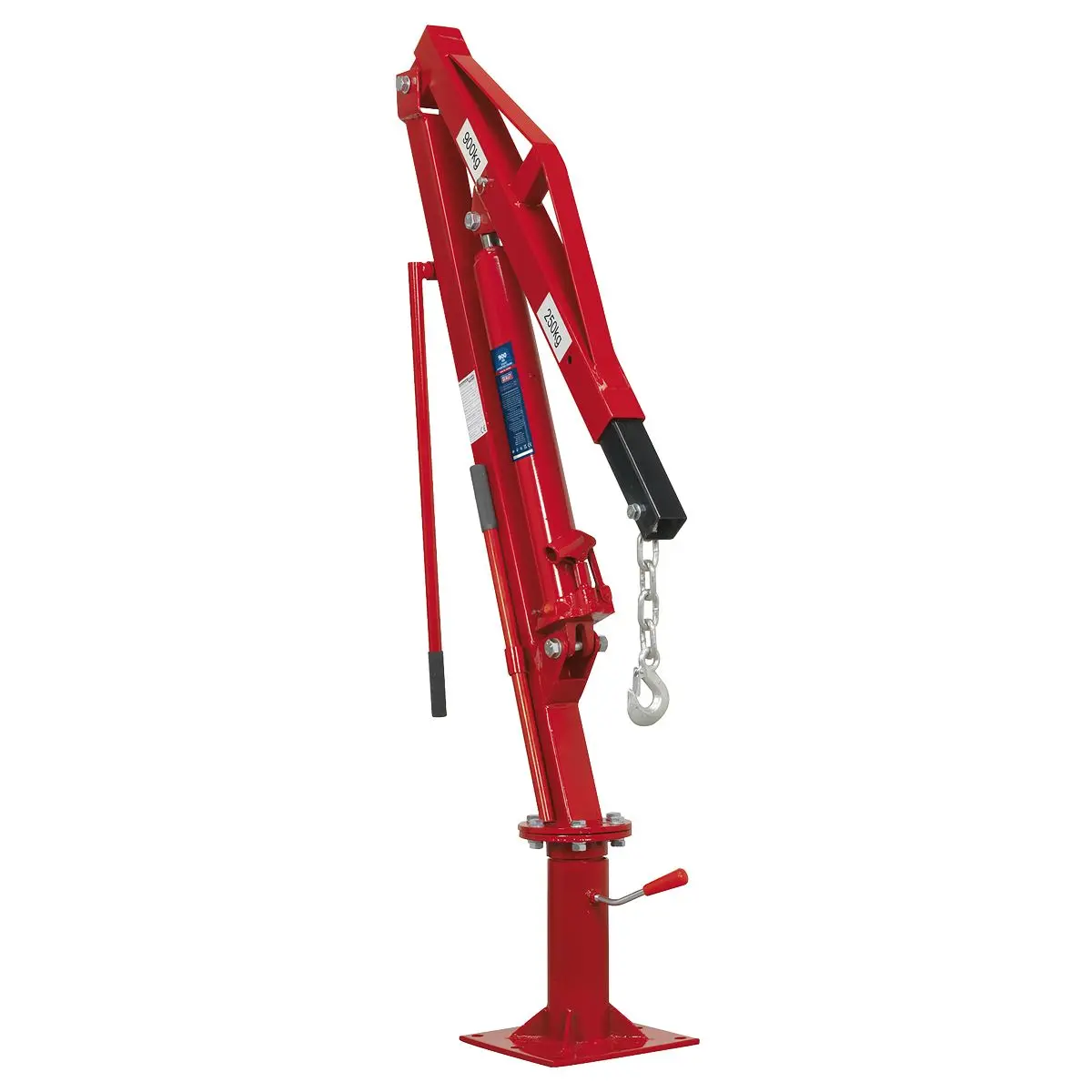

Threaded locking arm allows the crane to be locked in place when not in use.

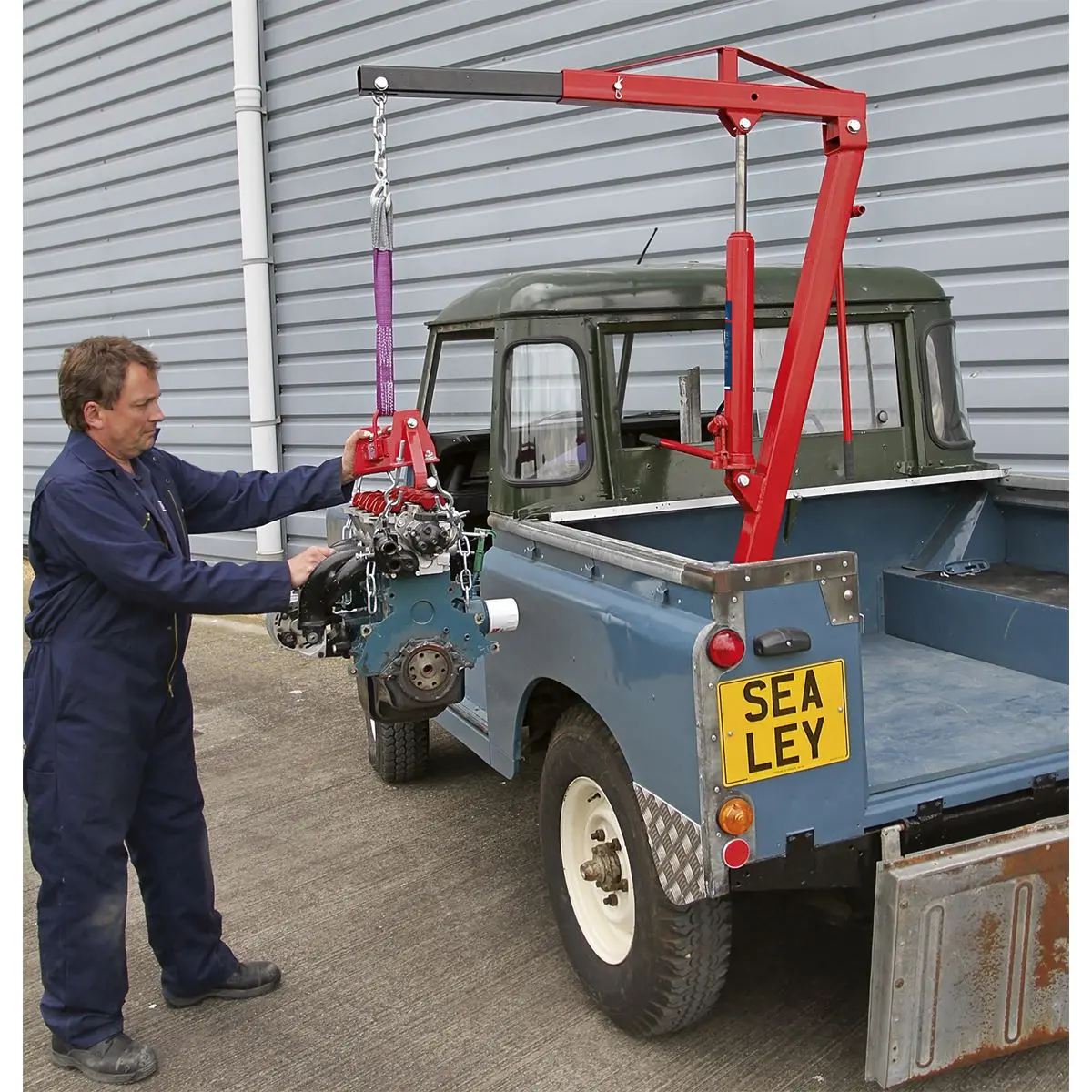

Mounts easily onto any strong and stable surface including loading bays, 4x4s, flatbed trucks and trailers.

Robust lifting ram enables a maximum capacity of 900kg when the lifting boom is retracted and 250kg when fully extended.

Includes heavy-duty chain and hook.

Hook features safety clip to help prevent load sling from slipping.

Specification:

• Model No SSC900
• Brand: Sealey
• Height Jib Down: 1530mm
• Height Legs Folded: n/a
• Height of Frame: n/a
• Length Legs Extended: n/a
• Length of Jib Position 1: 825mm
• Length of Jib Position 2: 1180mm
• Length of Jib Position 3: n/a
• Length of Jib Position 4: n/a
• Length of Jib Position 5: n/a
• Length: n/a
• Lifting Capacity in Position 1: 900kg
• Lifting Capacity in Position 2: 250kg
• Lifting Capacity in Position 3: n/a
• Lifting Capacity in Position 4: n/a
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Jib Position 1: 2060mm
• Max. Lift Ht at Jib Position 2: 2350mm
• Max. Lift Ht at Jib Position 3: n/a
• Max. Lift Ht at Jib Position 4: n/a
• Max. Lift Ht at Jib Position 5: n/a
• Nett Weight: 47kg
• Rear Width: n/a
• Width Front Frame: n/a
• Width Inside Front Frame: n/a

Product Guarantee: 1 Year
Catalogue Page: Page 309

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
