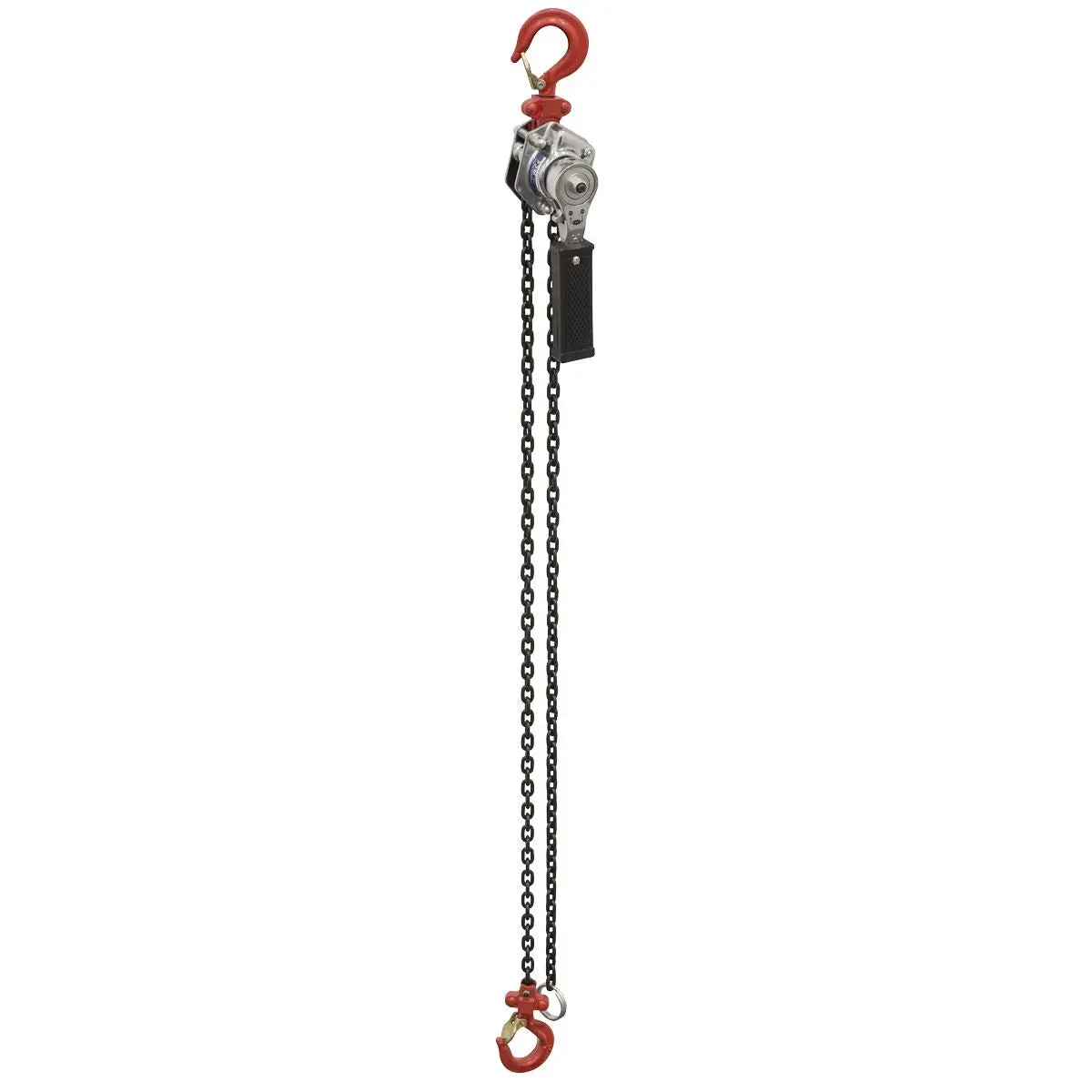

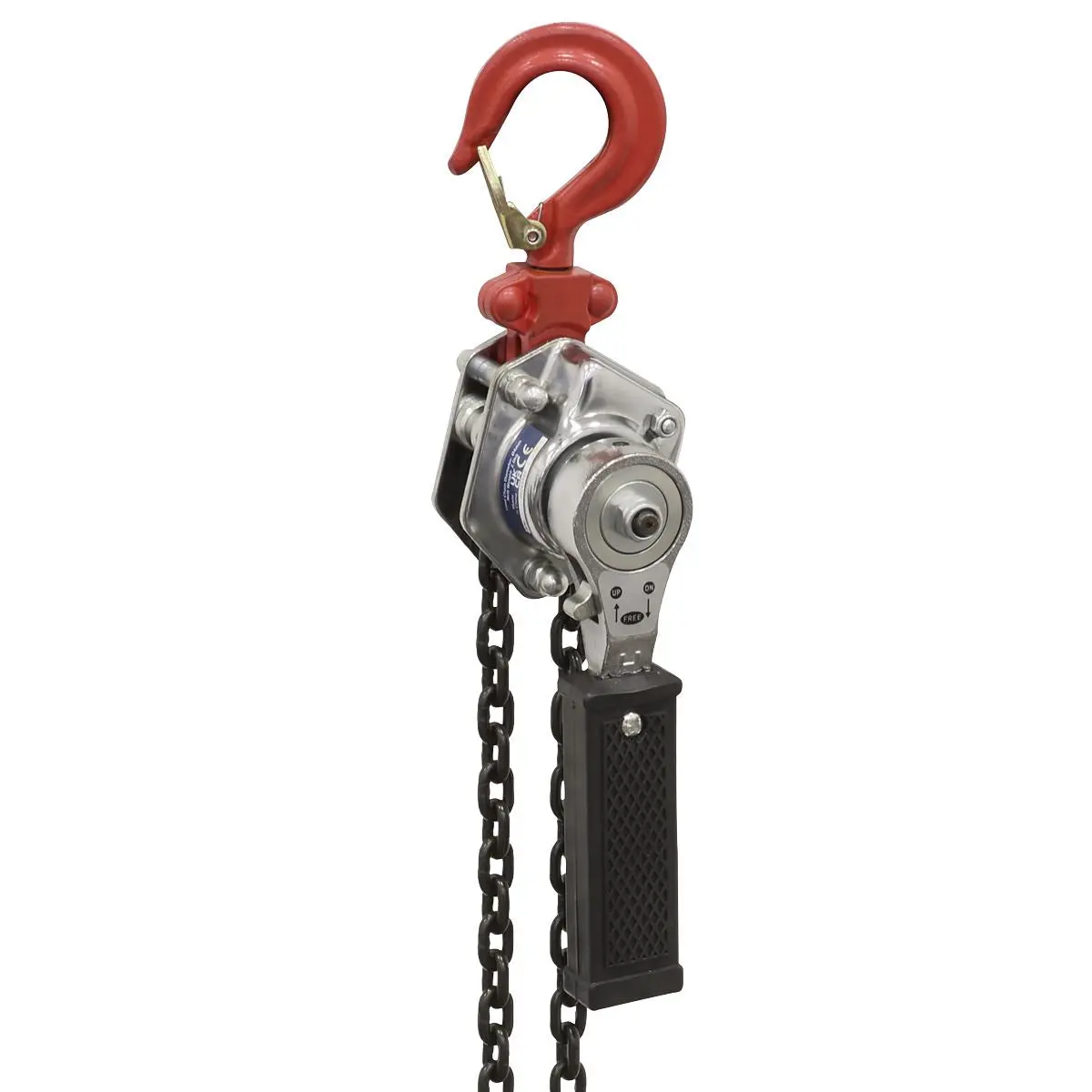

Sealey Mini Lever Hoist 250kg

LIGHTWEIGHT AND COMPACT - Small and light design for easy use in confined conditions.

HEAVY-DUTY GEARING - Features drop-forged and heat treated pinion gear with totally enclosed mechanism.

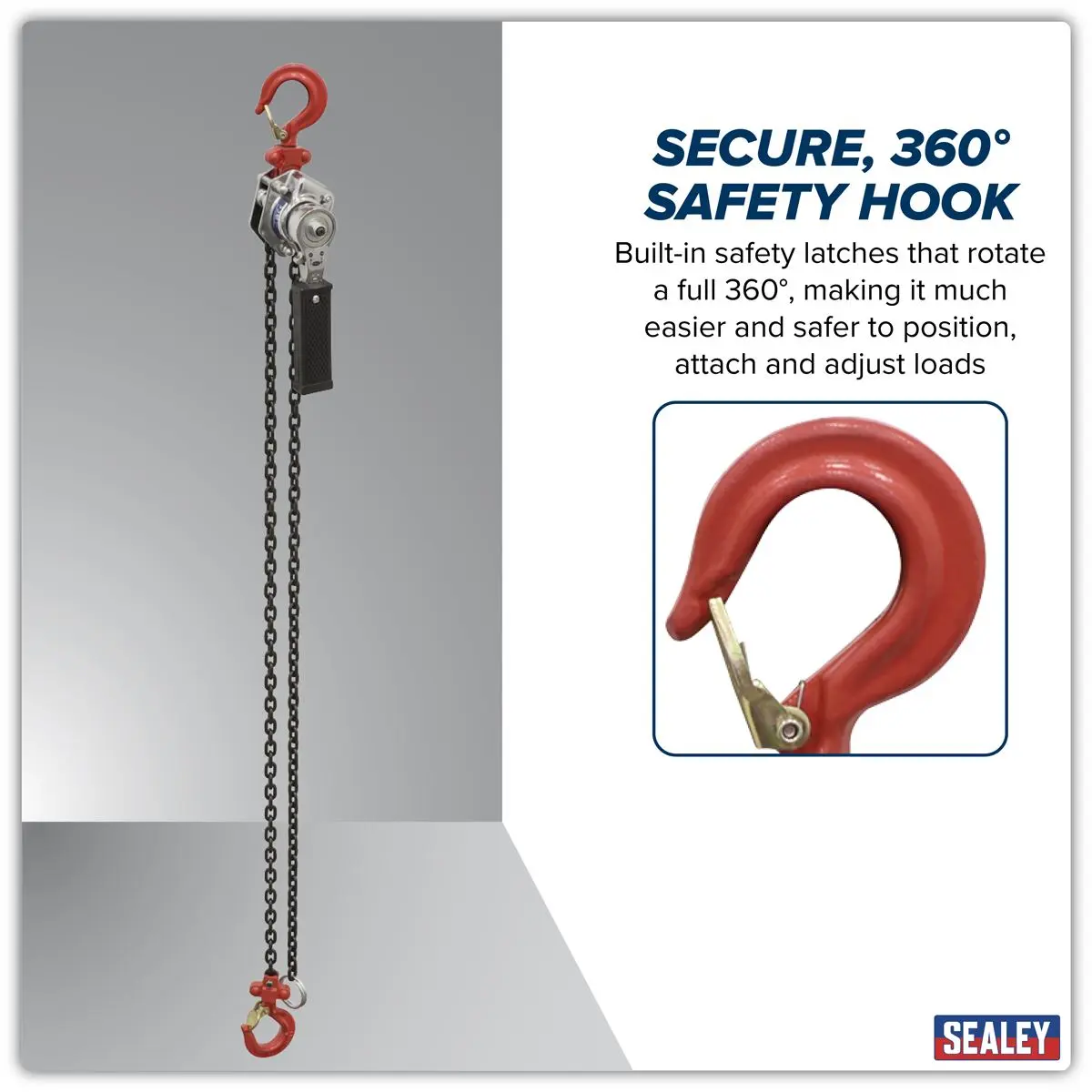

SAFE AND ANTI-TWIST - Hooks fitted with safety latches and rotate 360°.

QUICK AND SIMPLE - Free-chaining feature permits slack in the load chain to be taken up by-hand before engaging the ratchet arm.

PRECISE - Provides total control on the load position.

HORIZONTAL PULL - Please note this unit is for horizontal pull only.

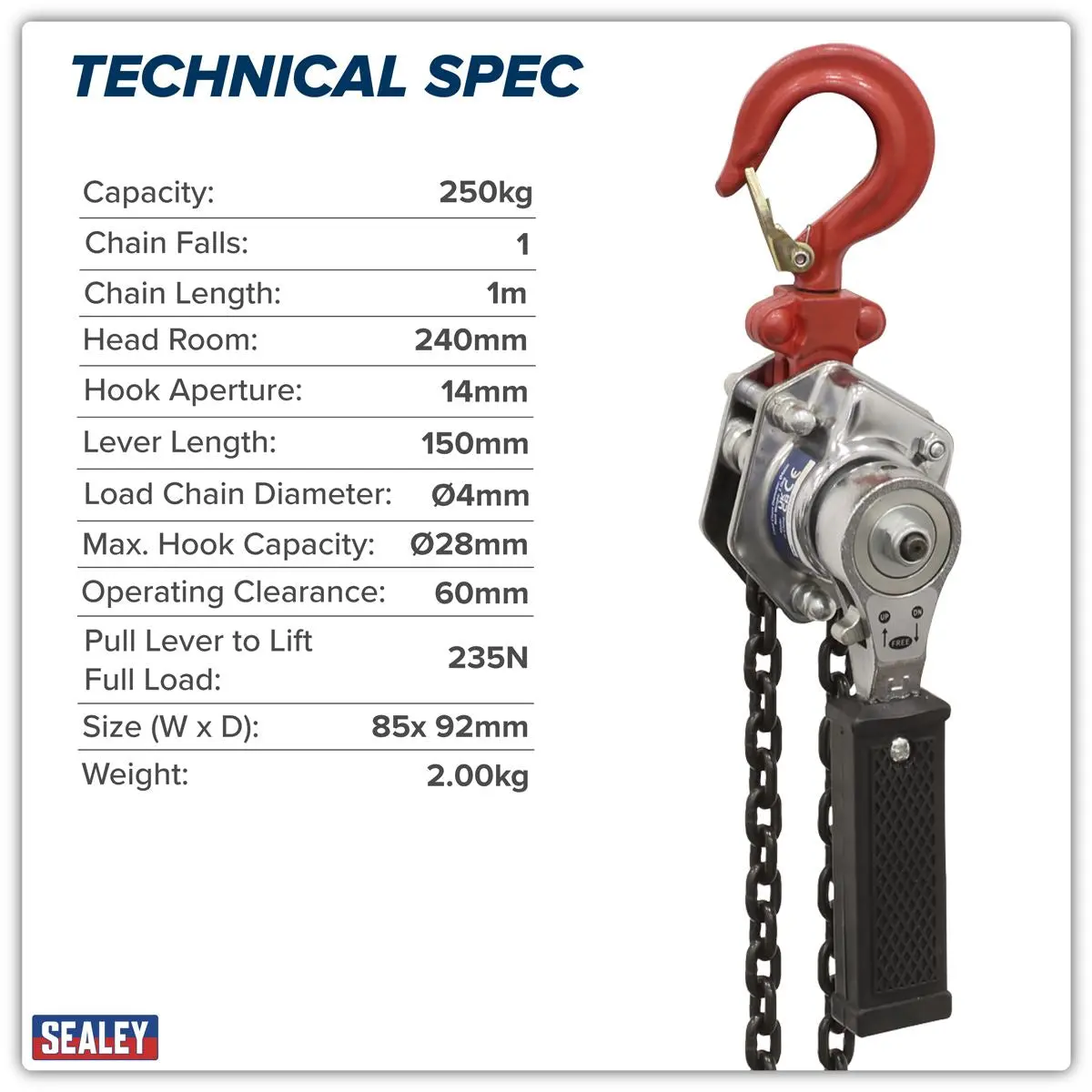

Specification:

• Model No LH251
• Brand: Sealey
• Capacity: 250kg
• Chain Falls: 1
• Chain Length: 1m
• Head Room: 240mm
• Hook Aperture: 14mm
• Lever Length: 150mm
• Load Chain Diameter: Ø4mm
• Maximum Hook Capacity Ø: 28mm
• Nett Weight: 2kg
• Operating Clearance: 60mm
• Pull on Lever to Lift Full Load: 235N
• Size (W x D): 85 x 92mm
• Test Load: 375kg

Product Guarantee: 1 Year
Catalogue Page: Page 893

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
